因为在k8s上部署的应用越来越多，本地的四个虚拟机已经有点吃力，所以这一次使用Ansible安装的四节点K8S集群上实验。
1、环境清单
1.1、系统清单
| IP | Hostname | Role | OS |
|---|---|---|---|
| 192.168.115.210 | master | K8s-master、nfs | Ubuntu 16.04.2 LTS |
| 192.168.115.211 | node1 | K8s-node | Ubuntu 16.04.2 LTS |
| 192.168.115.212 | node2 | k8s-node | Ubuntu 16.04.2 LTS |
| 192.168.115.213 | node3 | K8s-node | Ubuntu 16.04.2 LTS |
1.2、镜像清单
- docker.elastic.co/logstash/logstash:6.2.2
- docker.elastic.co/logstash/kibana:6.2.2
下载地址参考：
https://www.elastic.co/guide/en/kibana/current/docker.html
https://www.elastic.co/guide/en/logstash/current/docker.html
和elasticsearch不同的是，这两个在默认情况下都是带有x-pack插件的，这里使用默认镜像。
下文附网盘下载链接，不需要x-pack的参考上面链接。
2、部署说明
2.1、部署Kibana
2.1.1、编写YML文件并部署
---
kind: Deployment
apiVersion: apps/v1beta2
metadata:
labels:
elastic-app: kibana
name: kibana
namespace: ns-elasticsearch
spec:
replicas: 1
revisionHistoryLimit: 10
selector:
matchLabels:
elastic-app: kibana
template:
metadata:
labels:
elastic-app: kibana
spec:
containers:
- name: kibana
image: 192.168.112.21:5000/elastic/kibana:6.2.2
ports:
- containerPort: 5601
protocol: TCP
env:
- name: "ELASTICSEARCH_URL"
value: "http://elasticsearch-service:9200"
tolerations:
- key: node-role.kubernetes.io/master
effect: NoSchedule
---
kind: Service
apiVersion: v1
metadata:
labels:
elastic-app: kibana
name: kibana-service
namespace: ns-elasticsearch
spec:
ports:
- port: 5601
targetPort: 5601
selector:
elastic-app: kibana
type: NodePort镜像是我的私库地址，需要修改为你自己的
ES集群地址通过环境变量注入，指向上一篇文章搭建的ES集群服务
For compatibility with container orchestration systems, these environment variables are written in all capitals, with underscores as word separators. The helper translates these names to valid Kibana setting names.
### 部署应用 ###
root@master:~/kubernetes/kibana/yml# kubectl apply -f kibana.yml
root@master:~/kubernetes/kibana/yml# kubectl get pods --all-namespaces
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system calico-node-5s598 1/1 Running 0 1d
kube-system calico-node-bw4wm 1/1 Running 0 1d
kube-system calico-node-qdzcg 1/1 Running 0 1d
kube-system calico-node-vp6cr 1/1 Running 0 1d
kube-system kube-apiserver-master 1/1 Running 0 1d
kube-system kube-controller-manager-master 1/1 Running 0 1d
kube-system kube-dns-7d9c4d7876-tnzmc 3/3 Running 0 1d
kube-system kube-dns-7d9c4d7876-x94jm 3/3 Running 0 1d
kube-system kube-proxy-8s5d2 1/1 Running 0 1d
kube-system kube-proxy-j5wvt 1/1 Running 0 1d
kube-system kube-proxy-mvbbn 1/1 Running 0 1d
kube-system kube-proxy-rl7mm 1/1 Running 0 1d
kube-system kube-scheduler-master 1/1 Running 0 1d
kube-system kubedns-autoscaler-564b455d77-lggwt 1/1 Running 0 1d
kube-system kubernetes-dashboard-767994d8b8-wch2v 1/1 Running 0 1d
kube-system nginx-proxy-node1 1/1 Running 0 1d
kube-system nginx-proxy-node2 1/1 Running 0 1d
kube-system nginx-proxy-node3 1/1 Running 0 1d
kube-system tiller-deploy-798bc759cc-shx7z 1/1 Running 0 1d
ns-elasticsearch elasticsearch-data-7bdd87cc67-sxnjd 1/1 Running 0 1d
ns-elasticsearch elasticsearch-data-7bdd87cc67-xhdfd 1/1 Running 0 1d
ns-elasticsearch elasticsearch-master-59b7d775f8-w4tfb 1/1 Running 0 1d
ns-elasticsearch elasticsearch-master-59b7d775f8-wc67k 1/1 Running 0 1d
ns-elasticsearch elasticsearch-master-59b7d775f8-z9bjv 1/1 Running 0 1d
ns-elasticsearch kibana-7d9897fbc4-gkqqr 1/1 Running 0 6h
root@master:~/kubernetes/kibana/yml# kubectl get svc --all-namespaces
NAMESPACE NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
default kubernetes ClusterIP 10.233.0.1 <none> 443/TCP 1d
kube-system kube-dns ClusterIP 10.233.0.3 <none> 53/UDP,53/TCP 1d
kube-system kubernetes-dashboard ClusterIP 10.233.55.254 <none> 443/TCP 1d
kube-system tiller-deploy ClusterIP 10.233.45.163 <none> 44134/TCP 1d
ns-elasticsearch elasticsearch-discovery ClusterIP 10.233.6.191 <none> 9300/TCP 1d
ns-elasticsearch elasticsearch-service NodePort 10.233.46.107 <none> 9200:32366/TCP 1d
ns-elasticsearch kibana-service NodePort 10.233.20.112 <none> 5601:30730/TCP 6h2.1.2、测试并验证应用状态

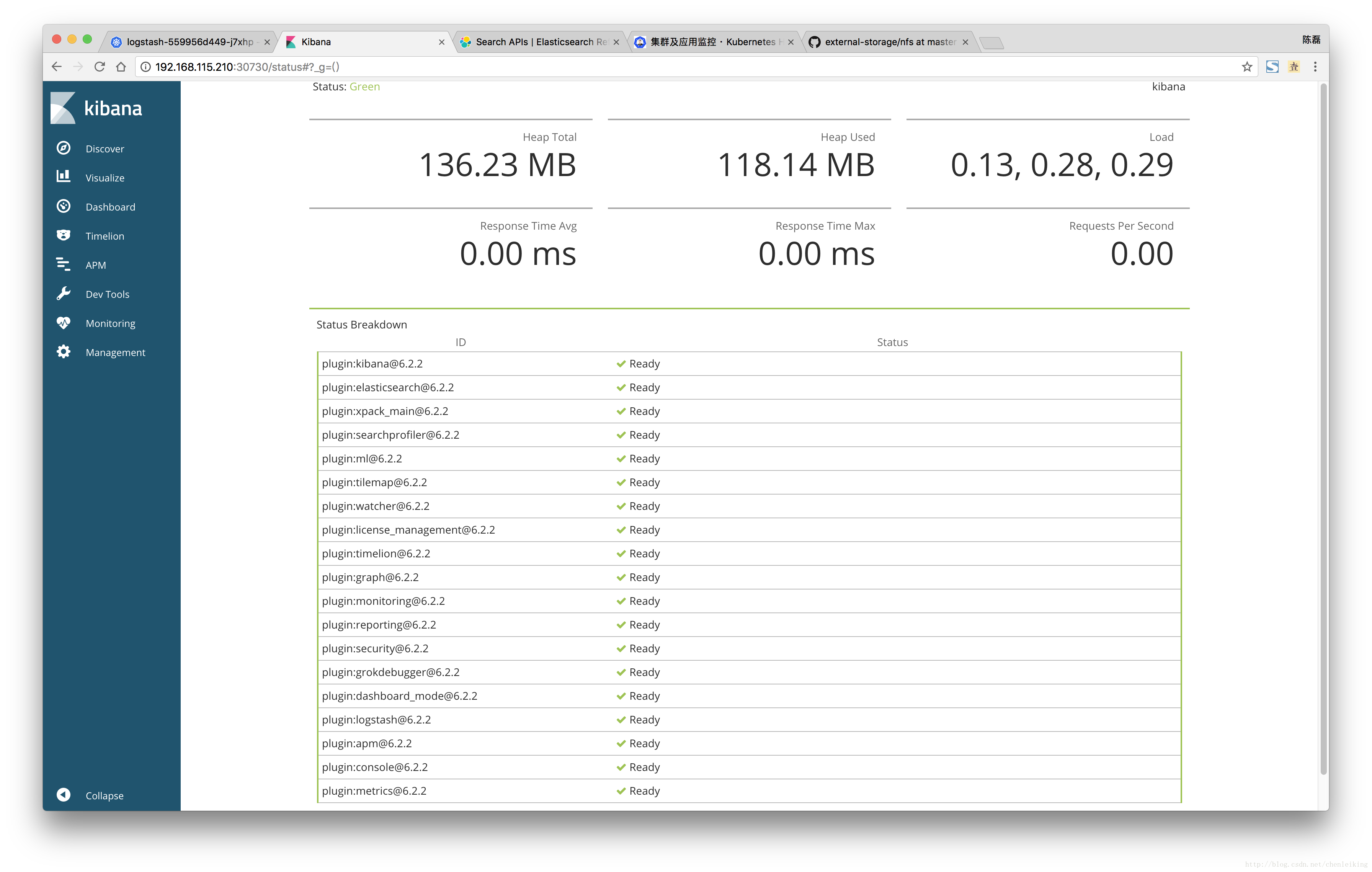

浏览器访问：http://192.168.115.210:30730/status（你的端口号和我的不一样）

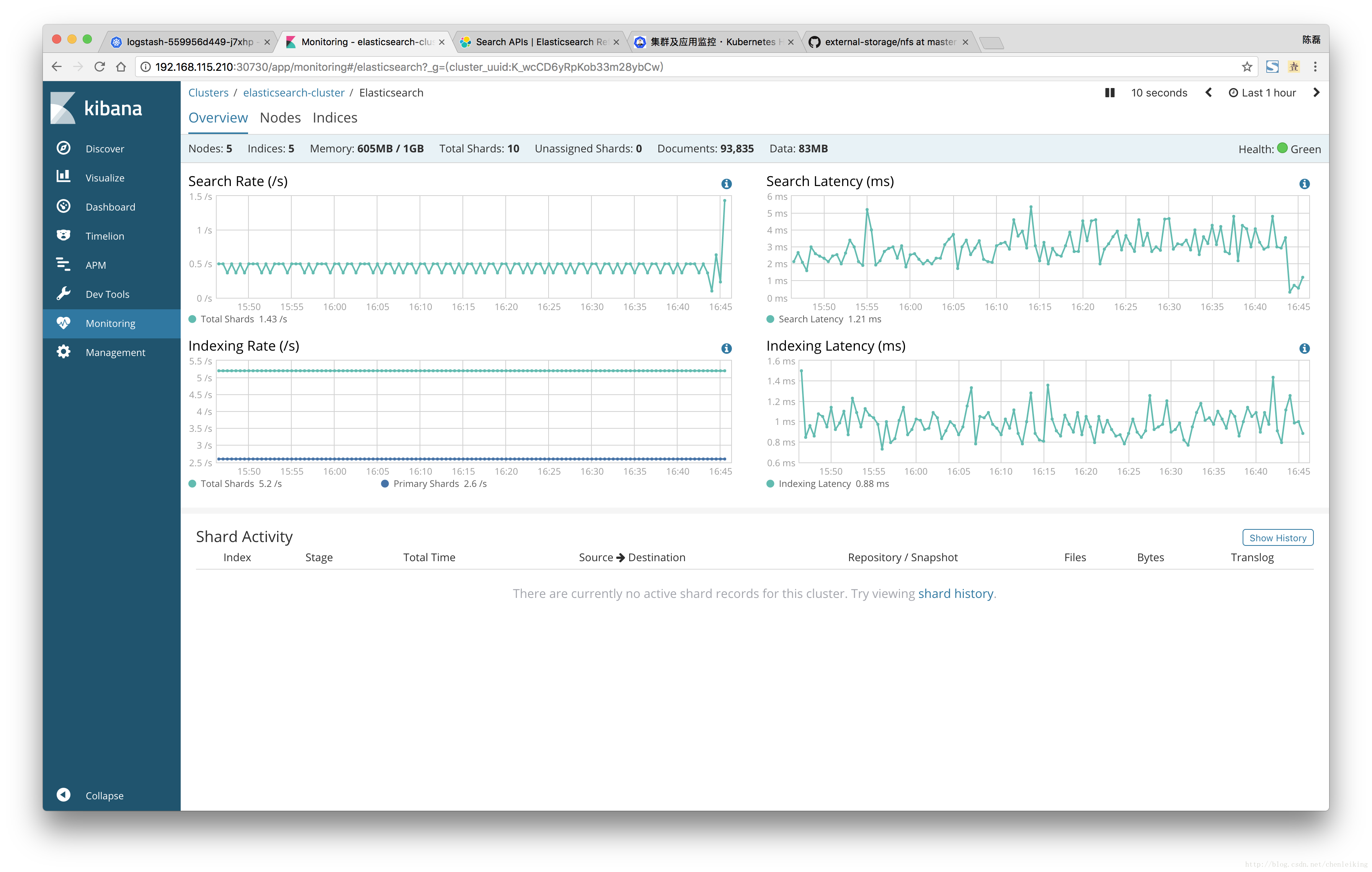

还可以看看ES集群的各项运行指标：
默认情况下会提示你类似：Your Basic license will expire on March 7, 2019.，也就是一个月之后过期，你可点击链接，免费申请Basic License，有效期一年。当然，Basic License并不能使用所有的功能！
2.2、部署Logstash
2.2.1、安装部署NFS服务
root@master:~# apt install nfs-kernel-server
root@master:~# vi /etc/exports
# /etc/exports: the access control list for filesystems which may be exported
# to NFS clients. See exports(5).
#
# Example for NFSv2 and NFSv3:
# /srv/homes hostname1(rw,sync,no_subtree_check) hostname2(ro,sync,no_subtree_check)
#
# Example for NFSv4:
# /srv/nfs4 gss/krb5i(rw,sync,fsid=0,crossmnt,no_subtree_check)
# /srv/nfs4/homes gss/krb5i(rw,sync,no_subtree_check)
#
/nfs *(rw,sync,no_root_squash)
root@master:~# systemctl restart nfs-kernel-server
root@master:~# exportfs -r
root@master:~# showmount -e
Export list for master:
/nfs *参考链接：https://help.ubuntu.com/lts/serverguide/network-file-system.html
CentOS参考：http://blog.csdn.net/chenleiking/article/details/78577657#t29
root@node1:~# apt install nfs-common
root@node2:~# apt install nfs-common
root@node3:~# apt install nfs-common所有node节点上需要安装nfs-common，否则pod启动时会报错。参考：http://blog.csdn.net/wangtaoking1/article/details/50479390
2.2.2、部署Logstash
- 在NFS中编写logstash配置文件
root@master:~/kubernetes/logstash/yml# vi /nfs/logstash.conf
input {
http {
}
}
filter {
json {
source => "message"
}
}
output {
elasticsearch {
hosts => ["elasticsearch-service:9200"]
}
}- 编写YML文件并部署logstash
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: "master-nfs-pv"
labels:
release: stable
spec:
capacity:
storage: 5Gi
accessModes:
- ReadWriteOnce
persistentVolumeReclaimPolicy: Recycle
nfs:
path: /nfs
server: 192.168.115.210
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: logstash-conf-pvc
namespace: ns-elasticsearch
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 5Gi
selector:
matchLabels:
release: stable
---
kind: Deployment
apiVersion: apps/v1beta2
metadata:
labels:
elastic-app: logstash
name: logstash
namespace: ns-elasticsearch
spec:
replicas: 1
revisionHistoryLimit: 10
selector:
matchLabels:
elastic-app: logstash
template:
metadata:
labels:
elastic-app: logstash
spec:
containers:
- name: logstash
image: 192.168.112.21:5000/elastic/logstash:6.2.2
volumeMounts:
- mountPath: /usr/share/logstash/pipeline
name: logstash-conf-volume
ports:
- containerPort: 8080
protocol: TCP
env:
- name: "XPACK_MONITORING_ELASTICSEARCH_URL"
value: "http://elasticsearch-service:9200"
securityContext:
privileged: true
volumes:
- name: logstash-conf-volume
persistentVolumeClaim:
claimName: logstash-conf-pvc
tolerations:
- key: node-role.kubernetes.io/master
effect: NoSchedule
---
kind: Service
apiVersion: v1
metadata:
labels:
elastic-app: logstash
name: logstash-service
namespace: ns-elasticsearch
spec:
ports:
- port: 8080
targetPort: 8080
selector:
elastic-app: logstash
type: NodePort镜像是我的私库地址，需要修改为你自己的
ES集群地址通过环境变量注入，指向上一篇文章搭建的ES集群服务
For compatibility with container orchestration systems, these environment variables are written in all capitals, with underscores as word separators. The helper translates these names to valid Kibana setting names.
Logstash配置文件通过挂载NFS到容器内部
/usr/share/logstash/pipeline路径下不同的input plugin可能需要开放不同的端口
root@master:~/kubernetes/logstash/yml# kubectl apply -f logstash.yml
root@master:~/kubernetes/logstash/yml# kubectl get pods -n ns-elasticsearch
NAME READY STATUS RESTARTS AGE
elasticsearch-data-7bdd87cc67-sxnjd 1/1 Running 0 1d
elasticsearch-data-7bdd87cc67-xhdfd 1/1 Running 0 1d
elasticsearch-master-59b7d775f8-w4tfb 1/1 Running 0 1d
elasticsearch-master-59b7d775f8-wc67k 1/1 Running 0 1d
elasticsearch-master-59b7d775f8-z9bjv 1/1 Running 0 1d
kibana-7d9897fbc4-gkqqr 1/1 Running 0 7h
logstash-559956d449-cww6v 1/1 Running 0 8m
root@master:~/kubernetes/logstash/yml# kubectl get svc -n ns-elasticsearch
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
elasticsearch-discovery ClusterIP 10.233.6.191 <none> 9300/TCP 1d
elasticsearch-service NodePort 10.233.46.107 <none> 9200:32366/TCP 1d
kibana-service NodePort 10.233.20.112 <none> 5601:30730/TCP 7h
logstash-service NodePort 10.233.9.191 <none> 8080:30040/TCP 9m2.2.3、测试并验证应用状态

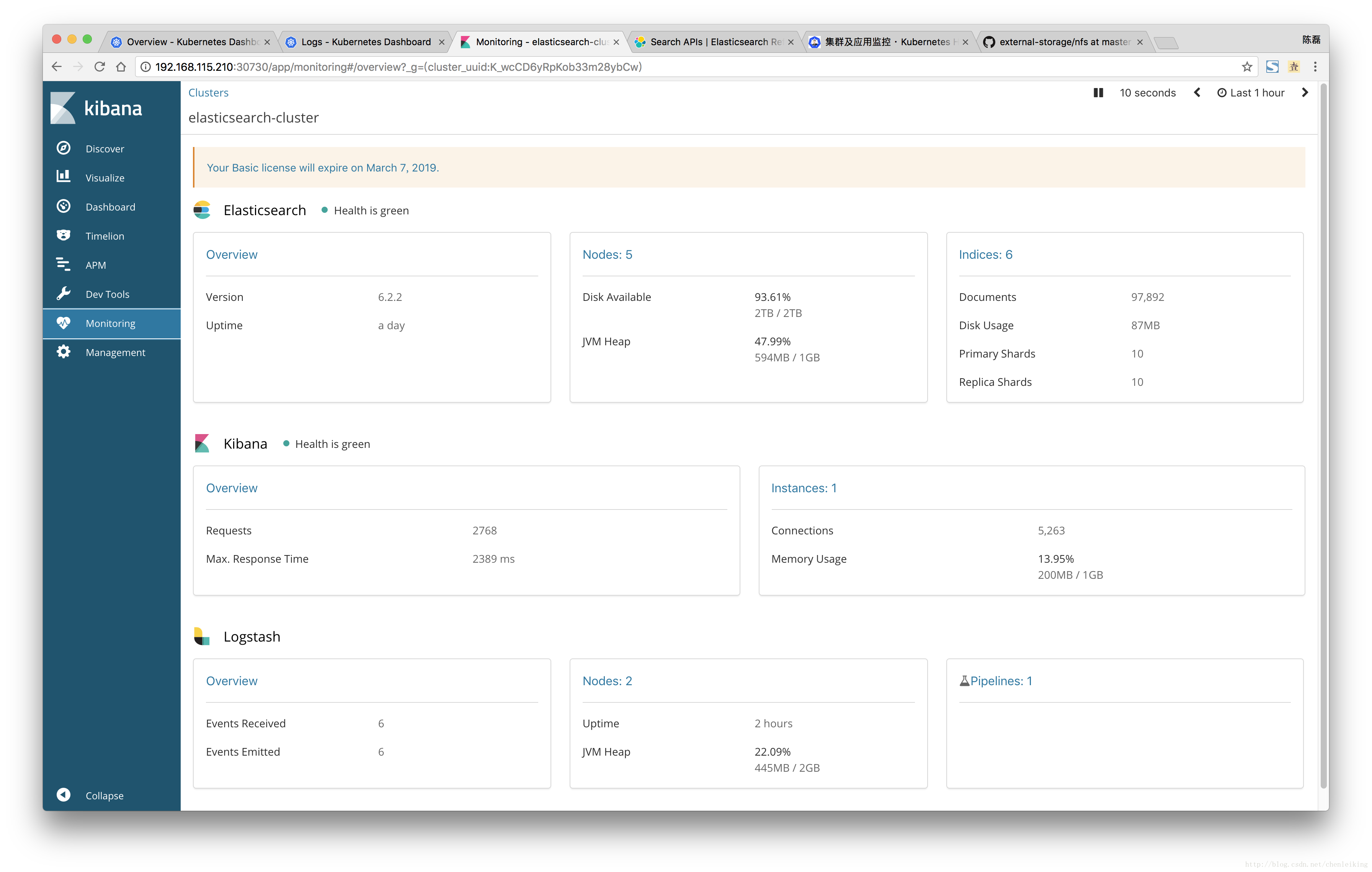

- 访问Kibana的monitoring，可以看到logstash的相关信息

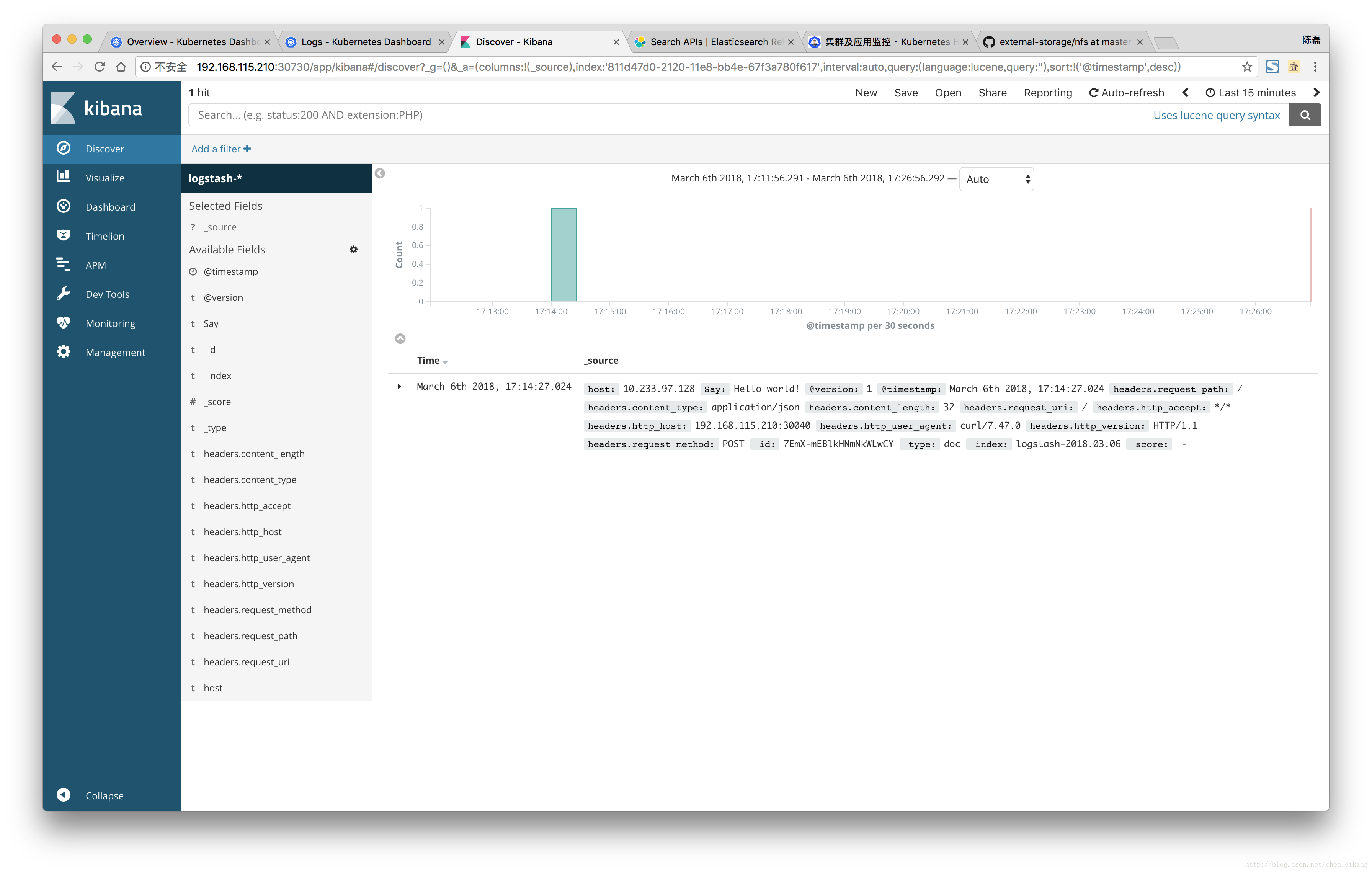

- 向Logstash发送消息，在Kibana查看ES数据
root@master:~/kubernetes/logstash/yml# curl -XPOST 'http://192.168.115.210:30040' -H 'Content-Type: application/json' -d'
{
"Say" : "Hello world!"
}

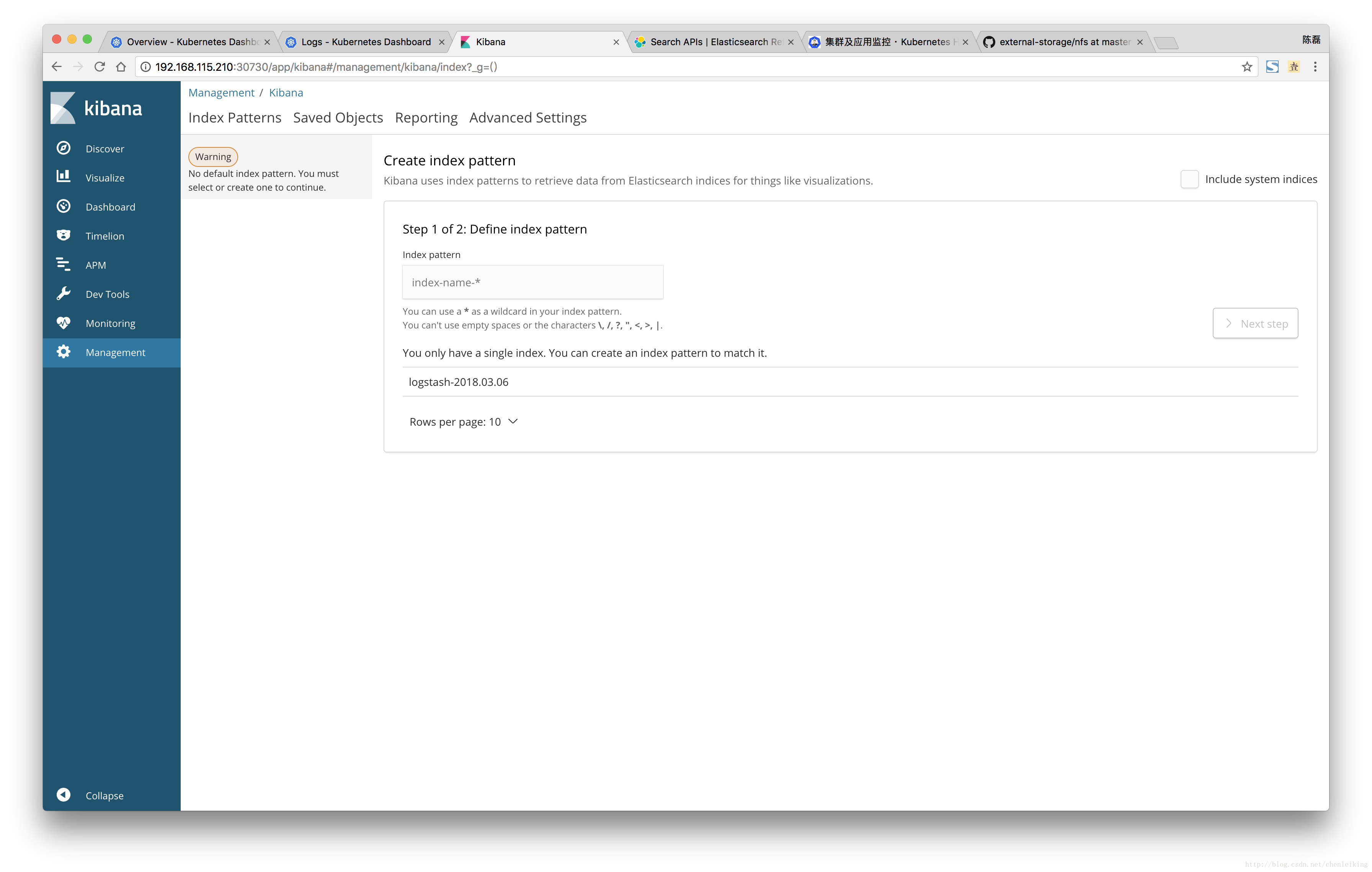

'注意你的端口号
3、注意事项
- 在没有指定Kibana和Logstash名称的情况下，每一次重启在Kibana看开就产生了一个新的实例，所以我的截图中Logstash的Nodes是2，也可能是monitoring记录的索引数据导致的。
- 使用NFS时，在ubuntu系统下的每一个K8S的Node节点都需要安装nfs-common，否则POD启动会提示挂载失败。
- Logstash的HTTP输入插件默认是8080 端口。
4、附件下载
网盘地址：https://pan.baidu.com/s/1E7XFaj66VIcoG9ku3gogPA
5、参考资料
