引言

笔者Ultra-Fast-Lane-Detection专栏链接🔗导航：

1. 【Lane】 Ultra-Fast-Lane-Detection 复现
2. 【Lane】Ultra-Fast-Lane-Detection（1）自定义数据集训练
3. 【Lane】Ultra-Fast-Lane-Detection（2）自定义模型测试

车道线检测源码复现以及训练自己的数据集
源码地址：https://github.com/cfzd/Ultra-Fast-Lane-Detection
论文地址：https://arxiv.org/abs/2004.11757

1 环境搭建

conda create -n lane python=3.7
conda activate lane  # 激活环境
复制

conda install pytorch torchvision cudatoolkit=10.1 -c pytorch
# 参考官网：https://pytorch.org/get-started/locally/
pip install -r requirements.txt
复制

2 下载项目源码

若在服务器上可以用指令下载，否则直接在网址中下载

git clone https://github.com/cfzd/Ultra-Fast-Lane-Detection
复制

3 下载开源数据集

笔者下载了Tusimple数据集，链接如下：
Tusimple

上图显示的可以都下载下来

开源数据集准备
在源码根目录中新建文件夹TUSIMPLEROOT，将上述的压缩包解压后放入文件夹中。

$TUSIMPLEROOT
|──clips
|──label_data_0313.json
|──label_data_0531.json
|──label_data_0601.json
|──test_tasks_0627.json
|──test_label.json
|──readme.md
复制

对于Tusimple，没有提供分段注释，因此我们需要从json注释生成分段。

python scripts/convert_tusimple.py --root $TUSIMPLEROOT
复制

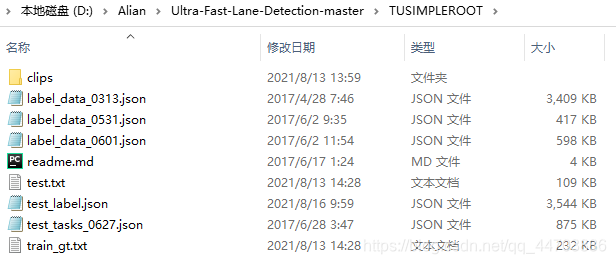

$TUSIMPLEROOT代表你自己创建的文件夹TUSIMPLEROOT的路径。通过这一步将会产生上图中的两个.txt文件

4 测试源码

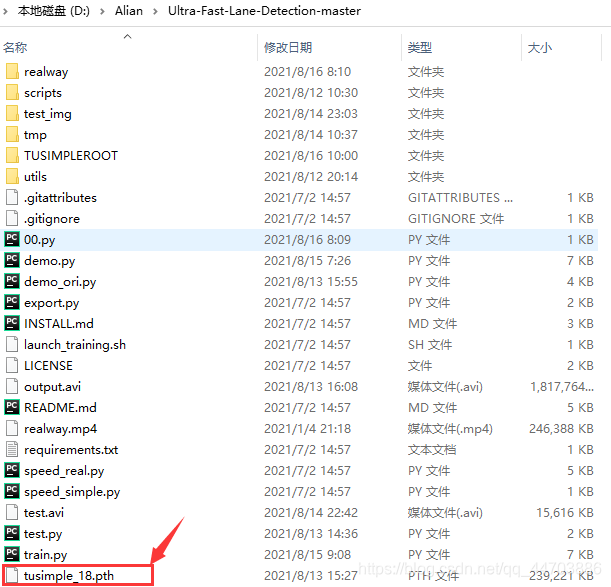

下载预训练模型，放在源码根目录下，如下图
百度网盘链接，提取码：bghd

4.1 执行test.py

python test.py configs/tusimple.py --test_model tusimple_18.pth --test_work_dir ./tmp
复制

运行上述指令，在根目录文件夹下终端显示如下：

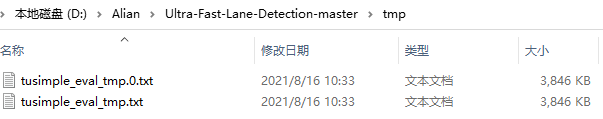

并在根目录文件夹下新建tmp文件夹，文件夹下内容如下：

4.2 执行demo.py

python demo.py configs/tusimple.py --test_model tusimple_18.pth
复制

运行上述指令，在根目录文件夹下终端显示如下：

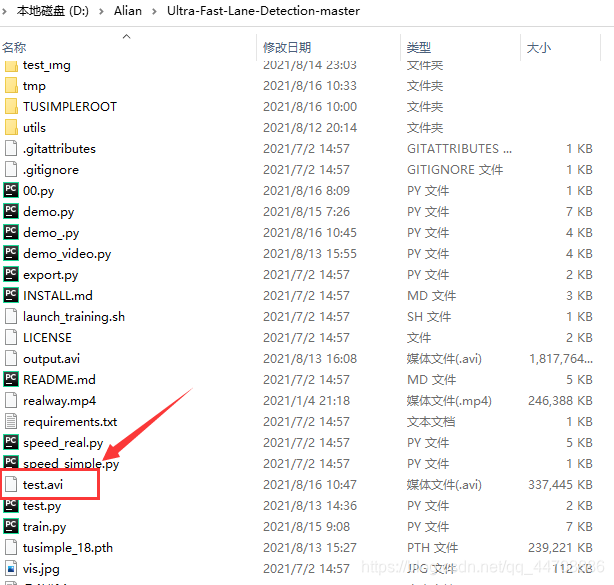

并在终端生成test.avi（将检测结果整合成视频文件）

4.3 demo.py 自定义修改

（1）测试自己的视频文件

复制demo.py文件并重命名为demo_video.py，代码做如下修改：

"""
2021.08.16
author:alian
function:
Ultra-Fast-Lane-Detection 测试视频文件并保存结果为视频
"""

import torch, os
import cv2
from model.model import parsingNet
from utils.common import merge_config
from utils.dist_utils import dist_print
import torch
import scipy.special, tqdm
import numpy as np
import torchvision.transforms as transforms
from data.dataset import LaneTestDataset
from data.constant import culane_row_anchor, tusimple_row_anchor

if __name__ == "__main__":
    torch.backends.cudnn.benchmark = True

    args, cfg = merge_config()

    dist_print('start testing...')
    assert cfg.backbone in ['18', '34', '50', '101', '152', '50next', '101next', '50wide', '101wide']

    if cfg.dataset == 'CULane':
        cls_num_per_lane = 18
    elif cfg.dataset == 'Tusimple':
        cls_num_per_lane = 56
    else:
        raise NotImplementedError

    net = parsingNet(pretrained=False, backbone=cfg.backbone, cls_dim=(cfg.griding_num + 1, cls_num_per_lane, 4),
                     use_aux=False).cuda()  # we dont need auxiliary segmentation in testing

    state_dict = torch.load(cfg.test_model, map_location='cpu')['model']
    compatible_state_dict = {}
    for k, v in state_dict.items():
        if 'module.' in k:
            compatible_state_dict[k[7:]] = v
        else:
            compatible_state_dict[k] = v

    net.load_state_dict(compatible_state_dict, strict=False)
    net.eval()

    img_transforms = transforms.Compose([
        # transforms.CenterCrop((590,1640)),
        transforms.Resize((288, 800)),
        transforms.ToTensor(),
        transforms.Normalize((0.485, 0.456, 0.406), (0.229, 0.224, 0.225)),
    ])

    cap = cv2.VideoCapture("******.avi")  # 读取视频文件
    fourcc = cv2.VideoWriter_fourcc(*'MJPG')
    rval, frame = cap.read()
    frame = frame[490:1080, 0:1640, :]
    vout = cv2.VideoWriter('output.avi', fourcc, 30.0, (frame.shape[1], frame.shape[0]))  # 结果保存
    print("w= {},h = {}".format(cap.get(3), cap.get(4)))
    from PIL import Image

    print('加载CUDA是否成功:', torch.cuda.is_available())
    while 1:
        rval, frame = cap.read()
        if rval == False:
            break
        frame = frame[490:1080, 0:1640, :]
        img = cv2.cvtColor(frame, cv2.COLOR_BGR2RGB)
        img_ = Image.fromarray(img)
        imgs = img_transforms(img_)
        imgs = imgs.unsqueeze(0)
        imgs = imgs.cuda()
        with torch.no_grad():
            out = net(imgs)

        col_sample = np.linspace(0, 800 - 1, cfg.griding_num)
        col_sample_w = col_sample[1] - col_sample[0]

        out_j = out[0].data.cpu().numpy()
        out_j = out_j[:, ::-1, :]
        prob = scipy.special.softmax(out_j[:-1, :, :], axis=0)
        idx = np.arange(cfg.griding_num) + 1
        idx = idx.reshape(-1, 1, 1)
        loc = np.sum(prob * idx, axis=0)
        out_j = np.argmax(out_j, axis=0)
        loc[out_j == cfg.griding_num] = 0
        out_j = loc

        for i in range(out_j.shape[1]):
            if np.sum(out_j[:, i] != 0) > 2:
                for k in range(out_j.shape[0]):
                    if out_j[k, i] > 0:
                        ppp = (
                        int(out_j[k, i] * col_sample_w * frame.shape[1] / 800) - 1, int(frame.shape[0] - k * 20) - 1)
                        cv2.circle(frame, ppp, 5, (0, 255, 0), -1)
        vout.write(frame)

    vout.release()

复制

在终端执行指令：

python demo_video.py configs/tusimple.py --test_model tusimple_18.pth
复制

在根目录下生成output.avi测试结果文件

（2）测试自己的图片文件夹并保存检测结果图

复制demo.py并重命名为demo_custom.py，代码修改如下：

"""
2021.08.16
author:alian
function: 测试自己的数据集，并保存成检测结果图
"""
import torch, os, cv2
from model.model import parsingNet
from utils.common import merge_config
from utils.dist_utils import dist_print
import torch
import scipy.special, tqdm
import numpy as np
import torchvision.transforms as transforms
from data.dataset import LaneTestDataset
from data.constant import culane_row_anchor, tusimple_row_anchor

# 指定测试的配置信息
backbone = '18'  # 骨干网络
dataset = '11'  # 数据集类型
griding_num = 100  # 网格数
# test_model = 'tusimple_18.pth'  # 预训练模型路径 tusimple_18.pth
test_model = r'D:\Alian\Ultra-Fast-Lane-Detection-master\log\20210812_201601_lr_4e-04_b_32\ep099.pth'  # 自训练模型路径
# data_root = r'D:\Alian\Ultra-Fast-Lane-Detection-master\TUSIMPLEROOT'  # 开源数据集测试路径
data_root = r'D:\Alian\Ultra-Fast-Lane-Detection-master\test_img\test'  # 自定义测试路径
data_save = r'D:\Alian\Ultra-Fast-Lane-Detection-master\test_img\out'  # 保存检测结果图路径


import torch
from PIL import Image
import os
import numpy as np
import cv2
import glob


def loader_func(path):
    return Image.open(path)


class TestDataset(torch.utils.data.Dataset):
    def __init__(self, path, img_transform=None):
        super(TestDataset, self).__init__()
        self.path = path
        self.img_transform = img_transform
        # self.list：储存测试图片的相对路径 clips/0601/1494452577507766671/20.jpg\n

    def __getitem__(self, index):
        name = glob.glob('%s/*.jpg'%self.path)[index]
        img = loader_func(name)

        if self.img_transform is not None:
            img = self.img_transform(img)
        return img, name

    def __len__(self):
        return len(self.list)

if __name__ == "__main__":
    torch.backends.cudnn.benchmark = True  # 加速

    # args, cfg = merge_config()   # 用终端指定配置信息
    dist_print('start testing...')
    assert backbone in ['18', '34', '50', '101', '152', '50next', '101next', '50wide', '101wide']

    if dataset == 'CULane':
        cls_num_per_lane = 18
    elif dataset == 'Tusimple':
        cls_num_per_lane = 56
    else:
        # raise NotImplementedError
        cls_num_per_lane = 56

    net = parsingNet(pretrained=False, backbone=backbone, cls_dim=(griding_num + 1, cls_num_per_lane, 4),
                                    use_aux=False).cuda() # we dont need auxiliary segmentation in testing

    state_dict = torch.load(test_model, map_location='cpu')['model']
    compatible_state_dict = {}
    for k, v in state_dict.items():
        if 'module.' in k:
            compatible_state_dict[k[7:]] = v
        else:
            compatible_state_dict[k] = v

    net.load_state_dict(compatible_state_dict, strict=False)
    net.eval()
    # 图像格式统一：(288, 800)，图像张量，归一化
    img_transforms = transforms.Compose([
        transforms.Resize((288, 800)),
        transforms.ToTensor(),
        transforms.Normalize((0.485, 0.456, 0.406), (0.229, 0.224, 0.225)),
    ])
    if dataset == 'CULane':
        splits = ['test0_normal.txt', 'test1_crowd.txt', 'test2_hlight.txt', 'test3_shadow.txt', 'test4_noline.txt', 'test5_arrow.txt', 'test6_curve.txt', 'test7_cross.txt', 'test8_night.txt']
        datasets = [LaneTestDataset(data_root,os.path.join(data_root, 'list/test_split/'+split),img_transform = img_transforms) for split in splits]

        img_w, img_h = 1640, 590
        row_anchor = culane_row_anchor
    elif dataset == 'Tusimple':
        splits = ['test.txt']
        datasets = [LaneTestDataset(data_root,os.path.join(data_root, split),img_transform = img_transforms) for split in splits]
        img_w, img_h = 1280, 720
        row_anchor = tusimple_row_anchor
    else:  # 自定义数据集
        # raise NotImplementedError
        datasets = TestDataset(data_root, img_transform=img_transforms)
        img_w, img_h = 1280, 720
        row_anchor = tusimple_row_anchor

    for dataset in zip(datasets): # splits：图片列表 datasets：统一格式之后的数据集
        loader = torch.utils.data.DataLoader(dataset, batch_size=1, shuffle = False, num_workers=1)  # 加载数据集
        # fourcc = cv2.VideoWriter_fourcc(*'MJPG')
        # print(split[:-3]+'avi')
        # vout = cv2.VideoWriter(split[:-3]+'avi', fourcc, 30.0, (img_w, img_h))  # 保存结果为视频文件
        for i, data in enumerate(tqdm.tqdm(loader)):  # 进度条显示进度
            imgs, names = data  # imgs:图像张量，图像相对路径：
            imgs = imgs.cuda()  # 使用GPU
            with torch.no_grad():  # 测试代码不计算梯度
                out = net(imgs)  # 模型预测 输出张量：[1,101,56,4]

            col_sample = np.linspace(0, 800 - 1, griding_num)
            col_sample_w = col_sample[1] - col_sample[0]


            out_j = out[0].data.cpu().numpy()  # 数据类型转换成numpy [101,56,4]
            out_j = out_j[:, ::-1, :]  # 将第二维度倒着取[101,56,4]
            prob = scipy.special.softmax(out_j[:-1, :, :], axis=0)  # [100,56,4]softmax 计算（概率映射到0-1之间且沿着维度0概率总和=1）
            idx = np.arange(griding_num) + 1  # 产生 1-100
            idx = idx.reshape(-1, 1, 1)  # [100,1,1]
            loc = np.sum(prob * idx, axis=0)  # [56,4]
            out_j = np.argmax(out_j, axis=0)  # 返回最大值的索引
            loc[out_j == griding_num] = 0  # 若最大值的索引=griding_num，归零
            out_j = loc  # [56,4]

            # import pdb; pdb.set_trace()
            vis = cv2.imread(os.path.join(data_root,names[0]))  # 读取图像 [720,1280,3]
            for i in range(out_j.shape[1]):  # 遍历列
                if np.sum(out_j[:, i] != 0) > 2:  # 非0单元格的数量大于2
                    sum1 = np.sum(out_j[:, i] != 0)
                    for k in range(out_j.shape[0]):  # 遍历行
                        if out_j[k, i] > 0:
                            ppp = (int(out_j[k, i] * col_sample_w * img_w / 800) - 1, int(img_h * (row_anchor[cls_num_per_lane-1-k]/288)) - 1 )
                            cv2.circle(vis,ppp,5,(0,255,0),-1)
            # 保存检测结果图
            cv2.imwrite(os.path.join(data_save,os.path.basename(names[0])),vis)

        # 保存视频结果（注释掉）
        #     vout.write(vis)
        #
        # vout.release()
复制

测试结果图保存在D:\Alian\Ultra-Fast-Lane-Detection-master\test_img\out文件夹下，但是预训练模型在笔者自定义的数据集测试结果并不理想，还是重新训练自己的数据集可能结果会更加理想。

5 训练自定义数据库

5.1 数据集准备

用labelme完成数据标注得到原始图片以及对应的标注文件.json（这里笔者不做过多的赘述），分别放在两个文件夹下：

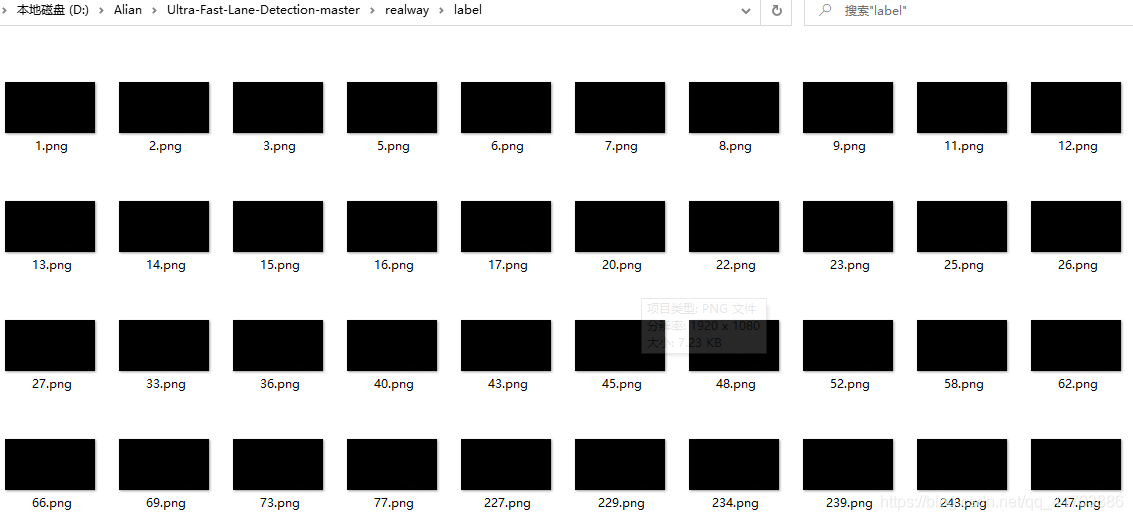

生成实例掩膜图像，即开源数据中黑黑的什么也看不到的图像，代码如下：

"""
2021.8.16
author:alian
function:
根据labelme标注的文件生成实例掩膜
"""

import argparse
import glob
import json
import os
import os.path as ops

import cv2
import numpy as np


def init_args():
    """

    :return:
    """
    parser = argparse.ArgumentParser()
    parser.add_argument('--img_dir', type=str, help='The origin path of image')
    parser.add_argument('--json_dir', type=str, help='The origin path of json')

    return parser.parse_args()

# 获得原始图像（.png），二值化图像以及实例分割图像
def process_json_file(img_path, json_path, instance_dst_dir):
    """
    :param img_path:
    :param ori_dst_dir:
    :param binary_dst_dir:
    :param instance_dst_dir:
    :return:
    """

    assert ops.exists(img_path), '{:s} not exist'.format(img_path)
    image = cv2.imread(img_path, cv2.IMREAD_COLOR)
    binary_image = np.zeros([image.shape[0], image.shape[1]], np.uint8)
    instance_image = np.zeros([image.shape[0], image.shape[1]], np.uint8)
    with open(json_path, 'r',encoding='utf8') as file:
        info_dict = json.load(file)
        for ind,info in enumerate(info_dict['shapes']):
            contours = info['points']
            contours = np.array(contours,dtype=int)
            # 绘制多边形
            cv2.fillPoly(binary_image, [contours], (255, 255, 255))
            cv2.fillPoly(instance_image, [contours], (ind, ind, ind)) #  * 50 + 20

        instance_image_path = img_path.replace(os.path.dirname(img_path),instance_dst_dir)
        cv2.imwrite(instance_image_path.replace('.jpg','.png'), instance_image)  # 实例分割图像

# 训练库构建
def process_tusimple_dataset(src_dir,json_dir):
    """

    :param src_dir:
    :return:
    """
    traing_folder_path = ops.join(os.path.dirname(src_dir), 'training')

    os.makedirs(traing_folder_path, exist_ok=True)

    gt_instance_dir = ops.join(traing_folder_path, 'label')

    os.makedirs(gt_instance_dir, exist_ok=True)

    for img_path in glob.glob('{:s}/*.jpg'.format(src_dir)):
        json_path = img_path.replace(src_dir,json_dir).replace('.jpg','.json')
        process_json_file(img_path, json_path, gt_instance_dir)
    return


if __name__ == '__main__':
    args = init_args()
    # 方法1：在终端指定配置信息
    # process_tusimple_dataset(args.img_dir,args.json_dir)  # 在终端指定配置信息
    # 方法2：直接在代码中输入
    img_dir = r'./pic'  # 原始图片路径
    json_dir = r'./json'  # 标注文件路径
    process_tusimple_dataset(img_dir,json_dir)
复制

5.2 开始训练

打开./data/dataset.py在最后加入如下代码，类ClsDataset用来生成加载自定义数据集

# 加载自定义的数据集
class ClsDataset(torch.utils.data.Dataset):
    def __init__(self, path, img_transform=None, target_transform=None, simu_transform=None, griding_num=50,
                 load_name=False,
                 row_anchor=None, use_aux=False, segment_transform=None, num_lanes=4):
        super(ClsDataset, self).__init__()
        self.img_transform = img_transform
        self.target_transform = target_transform
        self.segment_transform = segment_transform
        self.simu_transform = simu_transform
        self.path = path
        self.griding_num = griding_num
        self.load_name = load_name
        self.use_aux = use_aux
        self.num_lanes = num_lanes

        self.row_anchor = row_anchor
        self.row_anchor.sort()

    def __getitem__(self, index):  # 获得图像数组
        labels = glob.glob('%s/label/*.png'%self.path)
        label_path = labels[index]
        label = loader_func(label_path)

        imgs = glob.glob('%s/pic/*.jpg'%self.path)
        img_path = imgs[index]
        img = loader_func(img_path)  # 读取图像

        if self.simu_transform is not None:
            img, label = self.simu_transform(img, label)
        lane_pts = self._get_index(label)
        # get the coordinates of lanes at row anchors

        w, h = img.size
        cls_label = self._grid_pts(lane_pts, self.griding_num, w)
        # make the coordinates to classification label
        if self.use_aux:
            assert self.segment_transform is not None
            seg_label = self.segment_transform(label)

        if self.img_transform is not None:
            img = self.img_transform(img)

        if self.use_aux:
            return img, cls_label, seg_label
        if self.load_name:
            return img, cls_label, img_name

        return img, cls_label

    def __len__(self):
        return len(glob.glob('%s/label/*.png'%self.path))

    def _grid_pts(self, pts, num_cols, w):  # 获得网格数
        # pts : numlane,n,2
        num_lane, n, n2 = pts.shape
        col_sample = np.linspace(0, w - 1, num_cols)

        assert n2 == 2
        to_pts = np.zeros((n, num_lane))
        for i in range(num_lane):
            pti = pts[i, :, 1]
            to_pts[:, i] = np.asarray(
                [int(pt // (col_sample[1] - col_sample[0])) if pt != -1 else num_cols for pt in pti])
        return to_pts.astype(int)

    def _get_index(self, label):
        w, h = label.size

        if h != 288:
            scale_f = lambda x: int((x * 1.0 / 288) * h)
            sample_tmp = list(map(scale_f, self.row_anchor))

        all_idx = np.zeros((self.num_lanes, len(sample_tmp), 2))
        for i, r in enumerate(sample_tmp):
            label_r = np.asarray(label)[int(round(r))]
            for lane_idx in range(1, self.num_lanes + 1):
                pos = np.where(label_r == lane_idx)[0]
                if len(pos) == 0:
                    all_idx[lane_idx - 1, i, 0] = r
                    all_idx[lane_idx - 1, i, 1] = -1
                    continue
                pos = np.mean(pos)
                all_idx[lane_idx - 1, i, 0] = r
                all_idx[lane_idx - 1, i, 1] = pos

        # data augmentation: extend the lane to the boundary of image

        all_idx_cp = all_idx.copy()
        for i in range(self.num_lanes):
            if np.all(all_idx_cp[i, :, 1] == -1):
                continue
            # if there is no lane

            valid = all_idx_cp[i, :, 1] != -1
            # get all valid lane points' index
            valid_idx = all_idx_cp[i, valid, :]
            # get all valid lane points
            if valid_idx[-1, 0] == all_idx_cp[0, -1, 0]:
                # if the last valid lane point's y-coordinate is already the last y-coordinate of all rows
                # this means this lane has reached the bottom boundary of the image
                # so we skip
                continue
            if len(valid_idx) < 6:
                continue
            # if the lane is too short to extend

            valid_idx_half = valid_idx[len(valid_idx) // 2:, :]
            p = np.polyfit(valid_idx_half[:, 0], valid_idx_half[:, 1], deg=1)
            start_line = valid_idx_half[-1, 0]
            pos = find_start_pos(all_idx_cp[i, :, 0], start_line) + 1

            fitted = np.polyval(p, all_idx_cp[i, pos:, 0])
            fitted = np.array([-1 if y < 0 or y > w - 1 else y for y in fitted])

            assert np.all(all_idx_cp[i, pos:, 1] == -1)
            all_idx_cp[i, pos:, 1] = fitted
        if -1 in all_idx[:, :, 0]:
            pdb.set_trace()
        return all_idx_cp  # [4,56,2]
复制

打开./data/dataloder.py，修改else:如下：

    if dataset == 'CULane':
        train_dataset = LaneClsDataset(data_root,
                                           os.path.join(data_root, 'list/train_gt.txt'),
                                           img_transform=img_transform, target_transform=target_transform,
                                           simu_transform = simu_transform,
                                           segment_transform=segment_transform,
                                           row_anchor = culane_row_anchor,
                                           griding_num=griding_num, use_aux=use_aux, num_lanes = num_lanes)
        cls_num_per_lane = 18

    elif dataset == 'Tusimple':
        train_dataset = LaneClsDataset(data_root,
                                           os.path.join(data_root, 'train_gt.txt'),
                                           img_transform=img_transform, target_transform=target_transform,
                                           simu_transform = simu_transform,
                                           griding_num=griding_num,
                                           row_anchor = tusimple_row_anchor,
                                           segment_transform=segment_transform,use_aux=use_aux, num_lanes = num_lanes)
        cls_num_per_lane = 56
    else:  # 自定义数据集
        # raise NotImplementedError
        train_dataset = ClsDataset(data_root,
                                       img_transform=img_transform, target_transform=target_transform,
                                       simu_transform=simu_transform,
                                       griding_num=griding_num,
                                       row_anchor=tusimple_row_anchor,
                                       segment_transform=segment_transform, use_aux=use_aux, num_lanes=num_lanes)
        cls_num_per_lane = 56
复制

打开配置文件./configs/tusimple.py,修改配置信息如下：

# DATA
# dataset= 'Tusimple'  # 开源数据集
dataset= 'realway'  # 自定义数据集
# data_root = 'D:/Alian/Ultra-Fast-Lane-Detection-master/TUSIMPLEROOT/'  # 开源数据集
data_root = 'D:/Alian/Ultra-Fast-Lane-Detection-master/realway/'  # 自定义

# TRAIN
epoch = 100
batch_size = 32
optimizer = 'Adam'    #['SGD','Adam']
# learning_rate = 0.1
learning_rate = 4e-4
weight_decay = 1e-4
momentum = 0.9

scheduler = 'cos'     #['multi', 'cos']
# steps = [50,75]
gamma  = 0.1
warmup = 'linear'
warmup_iters = 100

# NETWORK
backbone = '18'
griding_num = 100
use_aux = True

# LOSS
sim_loss_w = 1.0
shp_loss_w = 0.0

# EXP
note = ''

log_path = 'D:/Alian/Ultra-Fast-Lane-Detection-master/log/'  # 模型保存路径

# FINETUNE or RESUME MODEL PATH
finetune = None
resume = None

# TEST
test_model = None
test_work_dir = None

num_lanes = 4
复制

在终端输入训练指令：

python train.py configs/tusimple.py
复制

笔者遇到的报错：

Traceback (most recent call last):
  File "train.py", line 152, in <module>
    train(net, train_loader, loss_dict, optimizer, scheduler,logger, epoch, metric_dict, cfg.use_aux)
  File "train.py", line 68, in train
    loss = calc_loss(loss_dict, results, logger, global_step)  # 构建损失函数
  File "train.py", line 49, in calc_loss
    logger.add_scalar('loss/'+loss_dict['name'][i], loss_cur, global_step)
  File "D:\Alian\Ultra-Fast-Lane-Detection-master\utils\dist_utils.py", line 142, in add_scalar
    super(DistSummaryWriter, self).add_scalar(*args, **kwargs)
  File "D:\Anaconda3\envs\lane\lib\site-packages\torch\utils\tensorboard\writer.py", line 345, in add_scalar
    scalar(tag, scalar_value), global_step, walltime)
  File "D:\Anaconda3\envs\lane\lib\site-packages\torch\utils\tensorboard\summary.py", line 247, in scalar
    scalar = make_np(scalar)
  File "D:\Anaconda3\envs\lane\lib\site-packages\torch\utils\tensorboard\_convert_np.py", line 23, in make_np
    return _prepare_pytorch(x)
  File "D:\Anaconda3\envs\lane\lib\site-packages\torch\utils\tensorboard\_convert_np.py", line 31, in _prepare_pytorch
    x = x.cpu().numpy()
RuntimeError: CUDA error: device-side assert triggered
  0%|                                                                                           | 0/32 [00:19<?, ?it/s]
复制

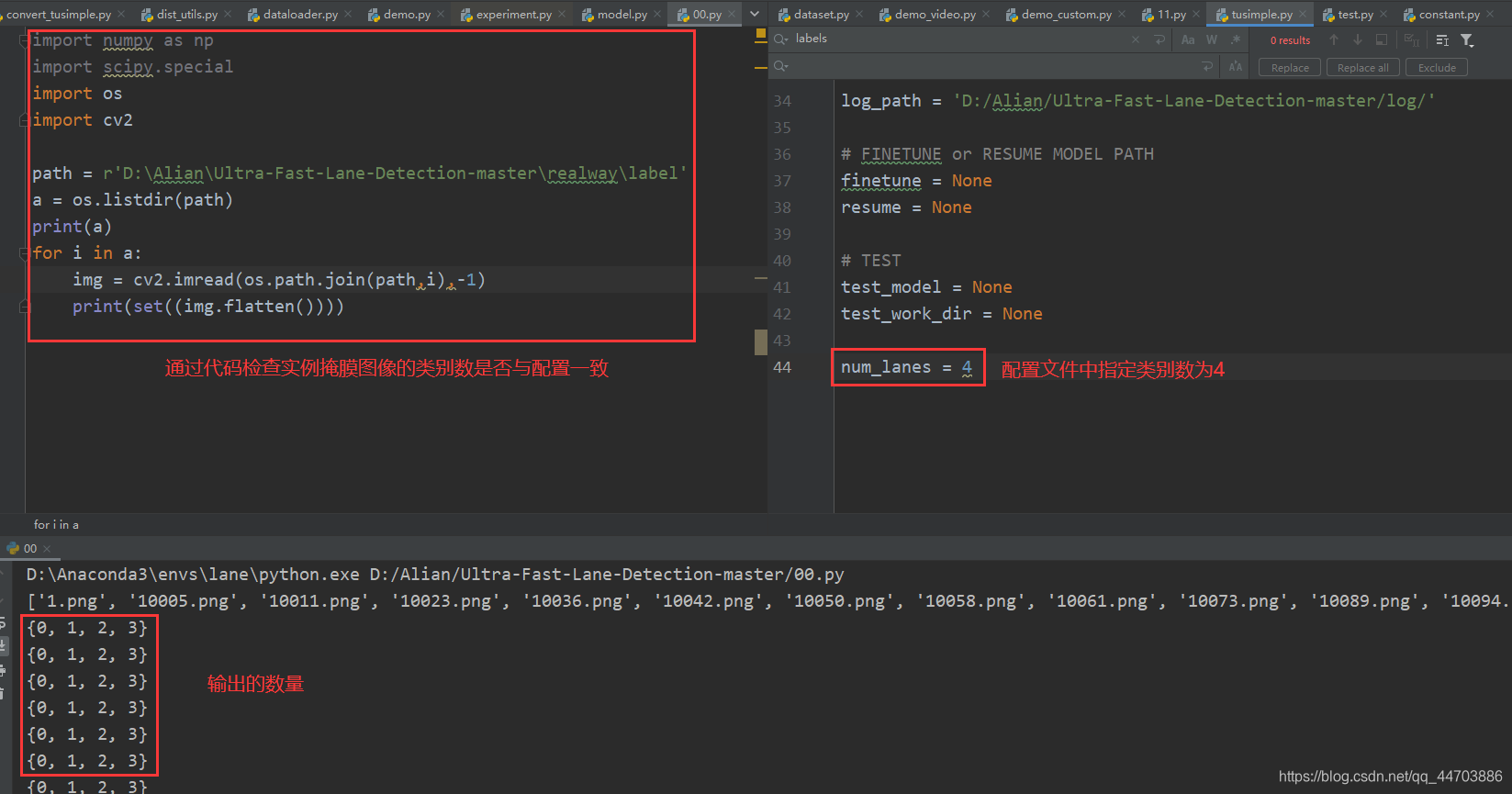

上述错误是由于数据集的类别数与指定的类别数不一致导致的，解决方法：

上述的检查代码如下：

import os
import cv2

path = r'D:\Alian\Ultra-Fast-Lane-Detection-master\realway\label'  # 生成的实例掩膜图像路径，即漆黑什么也看不见的图像
a = os.listdir(path)
print(a)
for i in a:
    img = cv2.imread(os.path.join(path,i),-1)
    print(set((img.flatten())))
复制

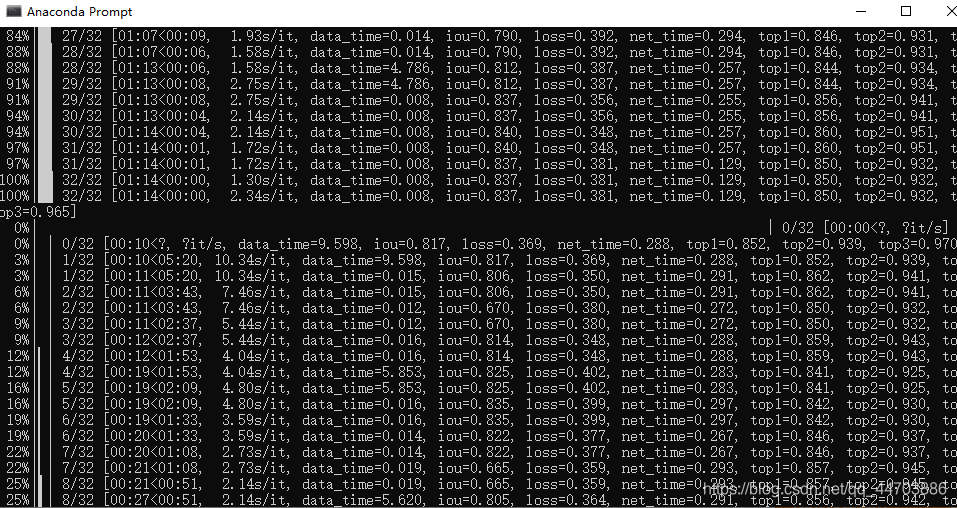

成功训练在终端显示如下：

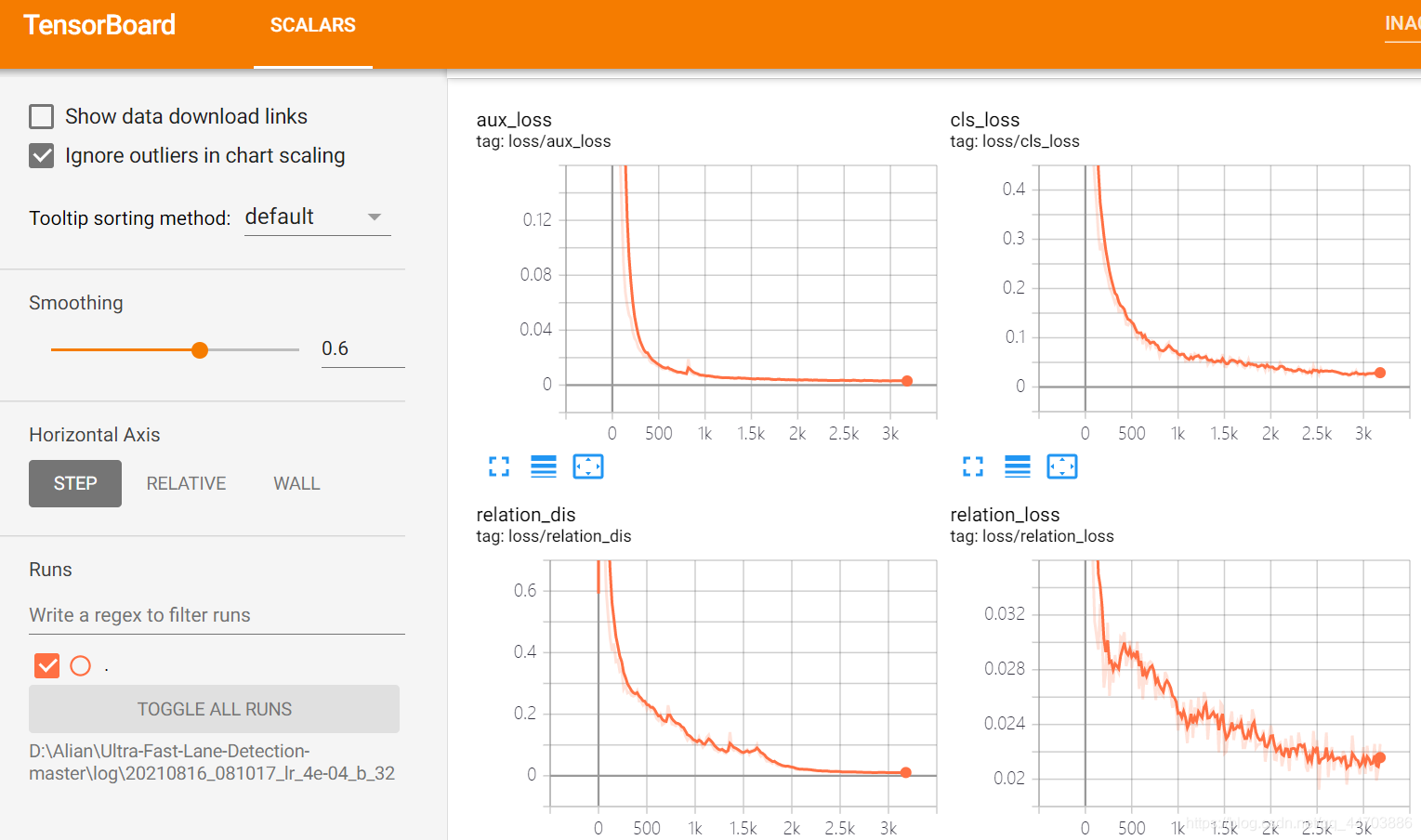

5.3 可视化训练过程

tensorboard --logdir=D:\Alian\Ultra-Fast-Lane-Detection-master\log\20210816_081017_lr_4e-04_b_32  # events.out.tfevents保存路径
复制

后记

综上基本就实现了Ultra-Fast-Lane-Detection 的复现
