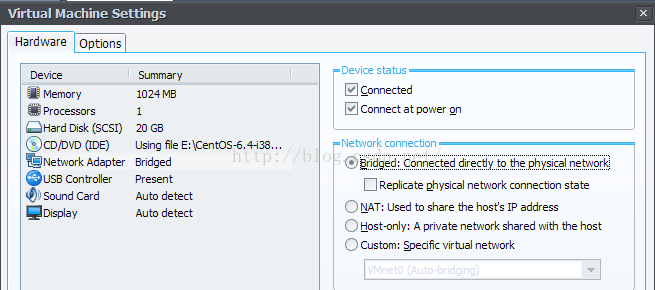

一、vmware的网卡连接方式选择为桥接(bridged)不要用Nat方法,如下图所示:





二、修改虚拟机centos上的网卡配置    /etc/sysconfig/network-scripts/ifcfg-eth0

[root@localhost tomener]# vim /etc/sysconfig/network-scripts/ifcfg-eth0

DEVICE=eth0
HWADDR=00:0C:29:45:97:65
TYPE=Ethernet
UUID=18d76aa8-6142-45fa-98dd-4e0d391fc90c
ONBOOT=yes
NM_CONTROLLED=yes
BOOTPROTO=static

NETMASK=255.255.255.0
IPADDR=192.168.1.200
GATEWAY=192.168.1.1
DNS1=8.8.8.8

提示:BOOTPROTO的设置,可以设置为static 或者 dhcp

三、禁止掉SELINUX

[root@localhost tomener]# vim /etc/selinux/config


# This file controls the state of SELinux on the system.
# SELINUX= can take one of these three values:
    enforcing - SELinux security policy is enforced.
    permissive - SELinux prints warnings instead of enforcing.
    disabled - No SELinux policy is loaded.
#SELINUX=enforcing
SELINUX=disabled
# SELINUXTYPE= can take one of these two values:
    targeted - Targeted processes are protected,
    mls - Multi Level Security protection.
SELINUXTYPE=targeted


这里是把SELINUX=enforcing 改为 SELINUX=disabled

第四步:重启network
service network restart

第五步:ping www.baidu.com

[root@localhost tomener]# ping www.baidu.com
PING www.a.shifen.com (115.239.210.26) 56(84) bytes of data.
64 bytes from 115.239.210.26: icmp_seq=1 ttl=55 time=204 ms
64 bytes from 115.239.210.26: icmp_seq=2 ttl=55 time=119 ms
64 bytes from 115.239.210.26: icmp_seq=3 ttl=55 time=264 ms
64 bytes from 115.239.210.26: icmp_seq=4 ttl=55 time=207 ms
^C


到此,让在vmware虚拟机上的centos上网,并起和本机通信就完成了,

现在你就可以是用putty来连接了你的linux服务器了

如果重启了network还是连接不上,那么先关闭服务器,再启动,不要用重启试试

参考:http://linux.chinaunix.net/techdoc/beginner/2009/03/23/1102227.shtml
