七牛云存储搭建图床
//////////////////////2016/10/29//////////////////////////////////////////by xbw//////////////////////////用了七牛云一段时间，感觉真心不错，免费的足够用了，为了修改域名充值了10元，其实无所谓，现在想想嵌入程序中管他链接长短，反正不用手动输入，所以绑定不绑定域名都无所谓
·
//2016/10/29/
/by xbw//
用了七牛云一段时间，感觉真心不错，免费的足够用了，为了修改域名充值了10元，其实无所谓，
现在想想嵌入程序中管他链接长短，反正不用手动输入，所以绑定不绑定域名都无所谓。
上传下载速度都很快，我个人很少用在博客上，搭建了一个app的广告投放平台，
利用七牛云搭建图床再好不过了。
按着七牛云API一步步来。
我选择了php sdk 还用了点 js sdk
autoload.php
<?php
function classLoader($class)
{
$path = str_replace('\\', DIRECTORY_SEPARATOR, $class);
$file = __DIR__ . '/src/' . $path . '.php';
if (file_exists($file)) {
require_once $file;
}
}
spl_autoload_register('classLoader');
require_once __DIR__ . '/src/Qiniu/functions.php';token.php
<?php
require_once __DIR__ . '/../autoload.php';
use Qiniu\Auth;
$accessKey = '七牛云账号管理获取';
$secretKey = '七牛云账号管理获取';
$auth = new Auth($accessKey, $secretKey);
$bucket = '存储空间名字，不是域名';
$upToken = $auth->uploadToken($bucket);
$rs['uptoken']=$upToken;
//看需要什么数据格式，json或者单纯字符串
//echo json_encode($rs);
echo $upToken;每次上传图片都需要先获取这个token，这个token也作为post参数。

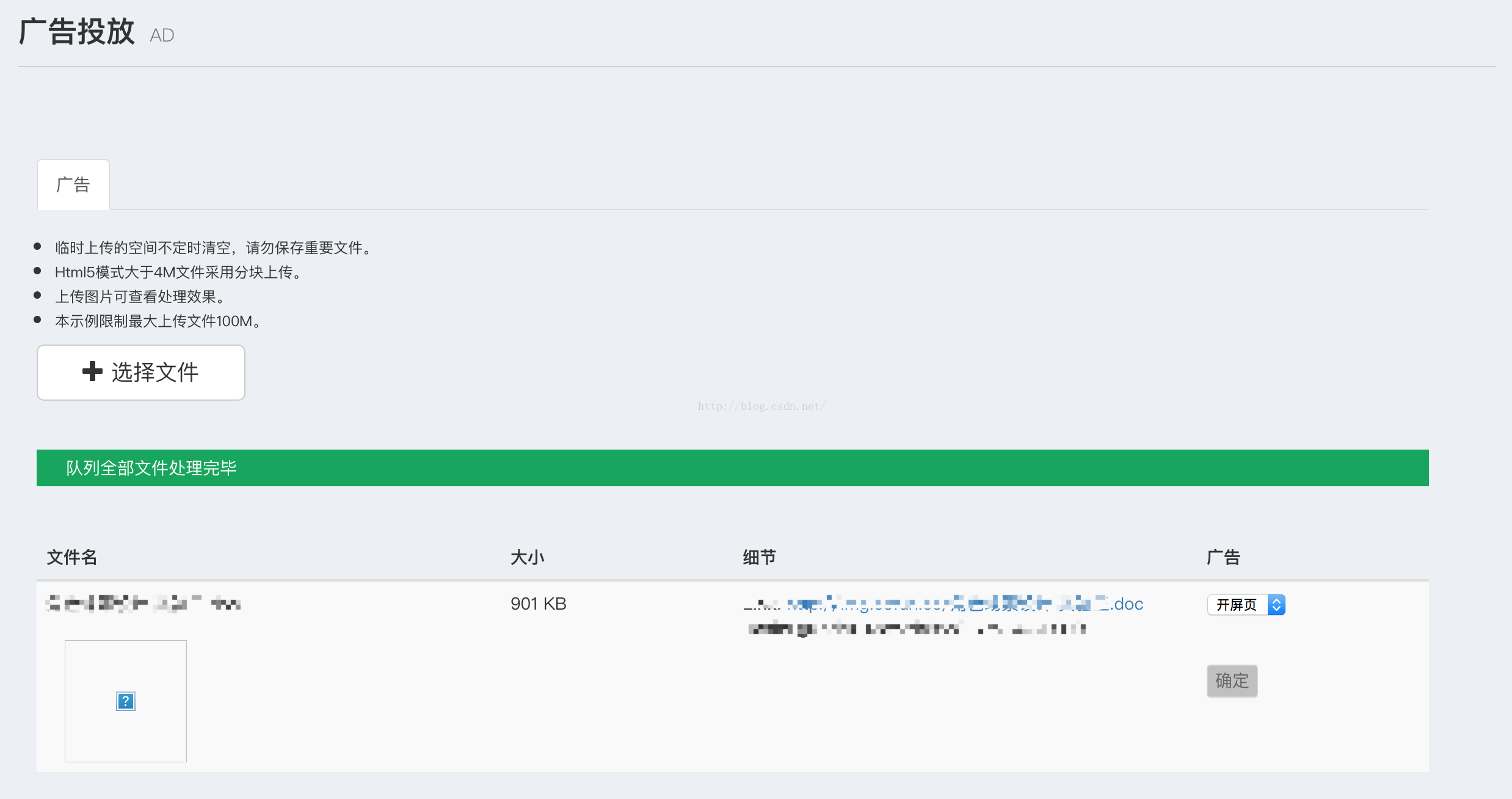

广告平台界面
<?php require("../token/config.php"); ?>
<!doctype html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>广告平台</title>
<link href="images/favicon.ico" rel="shortcut icon">
<link rel="stylesheet" href="bower_components/bootstrap/dist/css/bootstrap.css">
<link rel="stylesheet" href="styles/main.css">
<link rel="stylesheet" href="styles/highlight.css">
<script type="text/javascript" src="bower_components/jquery/jquery.min.js"></script>
<!--[if lt IE 9]>
<script src="bower_components/respond/dest/respond.min.js"></script>
<![endif]-->
</head>
<body>
<nav class="navbar navbar-default navbar-fixed-top">
<div class="container">
<div class="navbar-header">
<button type="button" class="navbar-toggle collapsed" data-toggle="collapse" data-target="#bs-example-navbar-collapse-6" aria-expanded="false">
<span class="sr-only">Toggle navigation</span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
</button>
<a class="navbar-brand" href="#">冰糖图床</a>
</div>
<div class="collapse navbar-collapse" id="bs-example-navbar-collapse-6">
<ul class="nav navbar-nav">
<li class="active"><a href="#">首页</a></li>
</ul>
</div>
</div>
</nav>
<div class="container" style="padding-top: 60px;">
<ul class="nav nav-tabs" role="tablist">
<li role="presentation" class="active">
<a href="#demo" id="demo-tab" role="tab" data-toggle="tab" aria-controls="demo" aria-expanded="true">广告</a>
</li>
</ul>
<div class="tab-content">
<div role="tabpanel" class="tab-pane fade in active" id="demo" aria-labelledby="demo-tab">
<div class="row" style="margin-top: 20px;">
<input type="hidden" id="domain" value="<?php echo $domain; ?>">
<input type="hidden" id="uptoken_url" value="<?php echo $uptoken_url; ?>">
<ul class="tip col-md-12 text-mute">
<li>
<small>临时上传的空间不定时清空，请勿保存重要文件。</small>
</li>
<li>
<small>Html5模式大于4M文件采用分块上传。</small>
</li>
<li>
<small>上传图片可查看处理效果。</small>
</li>
<li>
<small>本示例限制最大上传文件100M。</small>
</li>
</ul>
<div class="col-md-12">
<div id="container">
<a class="btn btn-default btn-lg " id="pickfiles" href="#" >
<i class="glyphicon glyphicon-plus"></i>
<span>选择文件</span>
</a>
</div>
</div>
<div style="display:none" id="success" class="col-md-12">
<div class="alert-success">
队列全部文件处理完毕
</div>
</div>
<div class="col-md-12 ">
<table class="table table-striped table-hover text-left" style="margin-top:40px;display:none">
<thead>
<tr>
<th class="col-md-4">文件名</th>
<th class="col-md-2">大小</th>
<th class="col-md-4">细节</th>
<th class="col-md-2">广告</th>
</tr>
</thead>
<tbody id="fsUploadProgress">
</tbody>
</table>
</div>
</div>
</div>
</div>
</div>
<script>
function displayHideUI()
{
var ui =document.getElementById("upup");
ui.style.display="none";
}
function uploadxu(){
$.ajax({
type:"GET",
url:"../../mvp/ad/adsplash.php",
dataType:"json",
data:{
url: $('#uurl').val(),
type: $('#select option:selected') .val()
},
success:function(data){
alert($('#select option:selected') .val()+"上传成功");
displayHideUI();
console.log("zhengque");
},
error:function(jqXHR){
alert($('#select option:selected') .val()+"上传失败");
// 在控制台输出错误信息
console.log("cuowu");
}
});
}
</script>
<script type="text/javascript" src="bower_components/bootstrap/dist/js/bootstrap.min.js"></script>
<script type="text/javascript" src="bower_components/plupload/js/moxie.js"></script>
<script type="text/javascript" src="bower_components/plupload/js/plupload.dev.js"></script>
<!-- <script type="text/javascript" src="bower_components/plupload/js/plupload.full.min.js"></script> -->
<script type="text/javascript" src="bower_components/plupload/js/i18n/zh_CN.js"></script>
<script type="text/javascript" src="scripts/ui.js"></script>
<script type="text/javascript" src="src/qiniu.js"></script>
<script type="text/javascript" src="scripts/highlight.js"></script>
<script type="text/javascript" src="scripts/main.js"></script>
<script type="text/javascript">hljs.initHighlightingOnLoad();</script>
</body>
</html>
/*global plupload */
/*global qiniu */
function FileProgress(file, targetID) {
this.fileProgressID = file.id;
this.file = file;
this.opacity = 100;
this.height = 0;
this.fileProgressWrapper = $('#' + this.fileProgressID);
if (!this.fileProgressWrapper.length) {
// <div class="progress">
// <div class="progress-bar progress-bar-info" role="progressbar" aria-valuenow="20" aria-valuemin="0" aria-valuemax="100" style="width: 20%">
// <span class="sr-only">20% Complete</span>
// </div>
// </div>
this.fileProgressWrapper = $('<tr></tr>');
var Wrappeer = this.fileProgressWrapper;
Wrappeer.attr('id', this.fileProgressID).addClass('progressContainer');
var progressText = $("<td/>");
progressText.addClass('progressName').text(file.name);
var fileSize = plupload.formatSize(file.size).toUpperCase();
var progressSize = $("<td/>");
progressSize.addClass("progressFileSize").text(fileSize);
var progressBarTd = $("<td/>");
//progressBarTd.addClass('ad').text('ad');
var progressBarBox = $("<div/>");
progressBarBox.addClass('info');
var progressBarWrapper = $("<div/>");
progressBarWrapper.addClass("progress progress-striped");
var progressBar = $("<div/>");
progressBar.addClass("progress-bar progress-bar-info")
.attr('role', 'progressbar')
.attr('aria-valuemax', 100)
.attr('aria-valuenow', 0)
.attr('aria-valuein', 0)
.width('0%');
var progressBarPercent = $('<span class=sr-only />');
progressBarPercent.text(fileSize);
var progressCancel = $('<a href=javascript:; />');
progressCancel.show().addClass('progressCancel').text('×');
progressBar.append(progressBarPercent);
progressBarWrapper.append(progressBar);
progressBarBox.append(progressBarWrapper);
progressBarBox.append(progressCancel);
var progressBarStatus = $('<div class="status text-center"/>');
progressBarBox.append(progressBarStatus);
progressBarTd.append(progressBarBox);
//2016/10/25许博文修改
var progressAd =$("<td/>");
progressAd.append("<select id='select'><option value='A'>开屏页</option><option value='B1'>广告A</option><option value='B2'>广告B</option><option value='B3'>广告C</option><option value='B4'>广告D</option></select><br><br><br><button id='upup' οnclick='uploadxu()' style='display:block;'>确定</button>");
Wrappeer.append(progressText);
Wrappeer.append(progressSize);
Wrappeer.append(progressBarTd);
Wrappeer.append(progressAd);
$('#' + targetID).append(Wrappeer);
} else {
this.reset();
}
this.height = this.fileProgressWrapper.offset().top;
this.setTimer(null);
}
FileProgress.prototype.setTimer = function(timer) {
this.fileProgressWrapper.FP_TIMER = timer;
};
FileProgress.prototype.getTimer = function(timer) {
return this.fileProgressWrapper.FP_TIMER || null;
};
FileProgress.prototype.reset = function() {
this.fileProgressWrapper.attr('class', "progressContainer");
this.fileProgressWrapper.find('td .progress .progress-bar-info').attr('aria-valuenow', 0).width('0%').find('span').text('');
this.appear();
};
FileProgress.prototype.setChunkProgess = function(chunk_size) {
var chunk_amount = Math.ceil(this.file.size / chunk_size);
if (chunk_amount === 1) {
return false;
}
var viewProgess = $('<button class="btn btn-default">查看分块上传进度</button>');
var progressBarChunkTr = $('<tr class="chunk-status-tr"><td colspan=3></td></tr>');
var progressBarChunk = $('<div/>');
for (var i = 1; i <= chunk_amount; i++) {
var col = $('<div class="col-md-2"/>');
var progressBarWrapper = $('<div class="progress progress-striped"></div');
var progressBar = $("<div/>");
progressBar.addClass("progress-bar progress-bar-info text-left")
.attr('role', 'progressbar')
.attr('aria-valuemax', 100)
.attr('aria-valuenow', 0)
.attr('aria-valuein', 0)
.width('0%')
.attr('id', this.file.id + '_' + i)
.text('');
var progressBarStatus = $('<span/>');
progressBarStatus.addClass('chunk-status').text();
progressBarWrapper.append(progressBar);
progressBarWrapper.append(progressBarStatus);
col.append(progressBarWrapper);
progressBarChunk.append(col);
}
if(!this.fileProgressWrapper.find('td:eq(2) .btn-default').length){
this.fileProgressWrapper.find('td>div').append(viewProgess);
}
progressBarChunkTr.hide().find('td').append(progressBarChunk);
progressBarChunkTr.insertAfter(this.fileProgressWrapper);
};
FileProgress.prototype.setProgress = function(percentage, speed, chunk_size) {
this.fileProgressWrapper.attr('class', "progressContainer green");
var file = this.file;
var uploaded = file.loaded;
var size = plupload.formatSize(uploaded).toUpperCase();
var formatSpeed = plupload.formatSize(speed).toUpperCase();
var progressbar = this.fileProgressWrapper.find('td .progress').find('.progress-bar-info');
if (this.fileProgressWrapper.find('.status').text() === '取消上传'){
return;
}
this.fileProgressWrapper.find('.status').text("已上传: " + size + " 上传速度： " + formatSpeed + "/s");
percentage = parseInt(percentage, 10);
if (file.status !== plupload.DONE && percentage === 100) {
percentage = 99;
}
progressbar.attr('aria-valuenow', percentage).css('width', percentage + '%');
if (chunk_size) {
var chunk_amount = Math.ceil(file.size / chunk_size);
if (chunk_amount === 1) {
return false;
}
var current_uploading_chunk = Math.ceil(uploaded / chunk_size);
var pre_chunk, text;
for (var index = 0; index < current_uploading_chunk; index++) {
pre_chunk = $('#' + file.id + "_" + index);
pre_chunk.width('100%').removeClass().addClass('alert-success').attr('aria-valuenow', 100);
text = "块" + index + "上传进度100%";
pre_chunk.next().html(text);
}
var currentProgessBar = $('#' + file.id + "_" + current_uploading_chunk);
var current_chunk_percent;
if (current_uploading_chunk < chunk_amount) {
if (uploaded % chunk_size) {
current_chunk_percent = ((uploaded % chunk_size) / chunk_size * 100).toFixed(2);
} else {
current_chunk_percent = 100;
currentProgessBar.removeClass().addClass('alert-success');
}
} else {
var last_chunk_size = file.size - chunk_size * (chunk_amount - 1);
var left_file_size = file.size - uploaded;
if (left_file_size % last_chunk_size) {
current_chunk_percent = ((uploaded % chunk_size) / last_chunk_size * 100).toFixed(2);
} else {
current_chunk_percent = 100;
currentProgessBar.removeClass().addClass('alert-success');
}
}
currentProgessBar.width(current_chunk_percent + '%');
currentProgessBar.attr('aria-valuenow', current_chunk_percent);
text = "块" + current_uploading_chunk + "上传进度" + current_chunk_percent + '%';
currentProgessBar.next().html(text);
}
this.appear();
};
FileProgress.prototype.setComplete = function(up, info) {
var td = this.fileProgressWrapper.find('td:eq(2)'),
tdProgress = td.find('.progress');
var res = $.parseJSON(info);
var url;
if (res.url) {
url = res.url;
str = "<div><strong>Link:</strong><a href=" + res.url + " target='_blank' > " + res.url + "</a></div>" +
"<div class=hash><strong>Hash:</strong>" + res.hash + "</div> <input type='hidden' id='uurl' name='uurl' value=" + res.url + " />";
} else {
var domain = up.getOption('domain');
url = domain + encodeURI(res.key);
var link = domain + res.key;
str = "<div><strong>Link:</strong><a href=" + url + " target='_blank' > " + link + "</a></div>" +
"<div class=hash><strong>Hash:</strong>" + res.hash + "</div> <input type='hidden' id='uurl' name='uurl' value=" + url + " />";
}
tdProgress.html(str).removeClass().next().next('.status').hide();
td.find('.progressCancel').hide();
var progressNameTd = this.fileProgressWrapper.find('.progressName');
var imageView = '?imageView2/1/w/100/h/100';
var isImage = function(url) {
var res, suffix = "";
var imageSuffixes = ["png", "jpg", "jpeg", "gif", "bmp"];
var suffixMatch = /\.([a-zA-Z0-9]+)(\?|\@|$)/;
if (!url || !suffixMatch.test(url)) {
return false;
}
res = suffixMatch.exec(url);
suffix = res[1].toLowerCase();
for (var i = 0, l = imageSuffixes.length; i < l; i++) {
if (suffix === imageSuffixes[i]) {
return true;
}
}
return false;
};
var isImg = isImage(url);
var Wrapper = $('<div class="Wrapper"/>');
var imgWrapper = $('<div class="imgWrapper col-md-3"/>');
var linkWrapper = $('<a class="linkWrapper" target="_blank"/>');
var showImg = $('<img src="images/loading.gif"/>');
progressNameTd.append(Wrapper);
if (!isImg) {
showImg.attr('src', 'images/default.png');
Wrapper.addClass('default');
imgWrapper.append(showImg);
Wrapper.append(imgWrapper);
} else {
linkWrapper.append(showImg);
imgWrapper.append(linkWrapper);
Wrapper.append(imgWrapper);
var img = new Image();
if (!/imageView/.test(url)) {
url += imageView
}
$(img).attr('src', url);
var height_space = 340;
$(img).on('load', function() {
showImg.attr('src', url);
linkWrapper.attr('href', url).attr('title', '查看原图');
function initImg(url, key, height) {
$('#myModal-img').modal();
var modalBody = $('#myModal-img').find('.modal-body');
if (height <= 300) {
$('#myModal-img').find('.text-warning').show();
}
var newImg = new Image();
modalBody.find('img').attr('src', 'images/loading.gif');
newImg.onload = function() {
modalBody.find('img').attr('src', url).data('key', key).data('h', height);
modalBody.find('.modal-body-wrapper').find('a').attr('href', url);
};
newImg.src = url;
}
var infoWrapper = $('<div class="infoWrapper col-md-6"></div>');
var fopLink = $('<a class="fopLink"/>');
fopLink.attr('data-key', res.key).text('查看处理效果');
infoWrapper.append(fopLink);
fopLink.on('click', function() {
var key = $(this).data('key');
var height = parseInt($(this).parents('.Wrapper').find('.origin-height').text(), 10);
if (height > $(window).height() - height_space) {
height = parseInt($(window).height() - height_space, 10);
} else {
height = parseInt(height, 10) || 300;
//set a default height 300 for ie9-
}
var fopArr = [];
fopArr.push({
fop: 'imageView2',
mode: 3,
h: height,
q: 100,
format: 'png'
});
fopArr.push({
fop: 'watermark',
mode: 1,
image: 'http://www.b1.qiniudn.com/images/logo-2.png',
dissolve: 100,
gravity: 'SouthEast',
dx: 100,
dy: 100
});
var url = Qiniu.pipeline(fopArr, key);
$('#myModal-img').on('hide.bs.modal', function() {
$('#myModal-img').find('.btn-default').removeClass('disabled');
$('#myModal-img').find('.text-warning').hide();
}).on('show.bs.modal', function() {
$('#myModal-img').find('.imageView').find('a:eq(0)').addClass('disabled');
$('#myModal-img').find('.watermark').find('a:eq(3)').addClass('disabled');
$('#myModal-img').find('.text-warning').hide();
});
initImg(url, key, height);
return false;
});
var ie = Qiniu.detectIEVersion();
if (!(ie && ie <= 9)) {
var exif = Qiniu.exif(res.key);
if (exif) {
var exifLink = $('<a href="" target="_blank">查看exif</a>');
exifLink.attr('href', url + '?exif');
infoWrapper.append(exifLink);
}
var imageInfo = Qiniu.imageInfo(res.key);
var infoArea = $('<div/>');
var infoInner = '<div>格式：<span class="origin-format">' + imageInfo.format + '</span></div>' +
'<div>宽度：<span class="orgin-width">' + imageInfo.width + 'px</span></div>' +
'<div>高度：<span class="origin-height">' + imageInfo.height + 'px</span></div>';
infoArea.html(infoInner);
infoWrapper.append(infoArea);
}
Wrapper.append(infoWrapper);
}).on('error', function() {
showImg.attr('src', 'default.png');
Wrapper.addClass('default');
});
}
};
FileProgress.prototype.setError = function() {
this.fileProgressWrapper.find('td:eq(2)').attr('class', 'text-warning');
this.fileProgressWrapper.find('td:eq(2) .progress').css('width', 0).hide();
this.fileProgressWrapper.find('button').hide();
this.fileProgressWrapper.next('.chunk-status-tr').hide();
};
FileProgress.prototype.setCancelled = function(manual) {
var progressContainer = 'progressContainer';
if (!manual) {
progressContainer += ' red';
}
this.fileProgressWrapper.attr('class', progressContainer);
this.fileProgressWrapper.find('td .progress').remove();
this.fileProgressWrapper.find('td:eq(2) .btn-default').hide();
this.fileProgressWrapper.find('td:eq(2) .progressCancel').hide();
};
FileProgress.prototype.setStatus = function(status, isUploading) {
if (!isUploading) {
this.fileProgressWrapper.find('.status').text(status).attr('class', 'status text-left');
}
};
// 绑定取消上传事件
FileProgress.prototype.bindUploadCancel = function(up) {
var self = this;
if (up) {
self.fileProgressWrapper.find('td:eq(2) .progressCancel').on('click', function(){
self.setCancelled(false);
self.setStatus("取消上传");
self.fileProgressWrapper.find('.status').css('left', '0');
up.removeFile(self.file);
});
}
};
FileProgress.prototype.appear = function() {
if (this.getTimer() !== null) {
clearTimeout(this.getTimer());
this.setTimer(null);
}
if (this.fileProgressWrapper[0].filters) {
try {
this.fileProgressWrapper[0].filters.item("DXImageTransform.Microsoft.Alpha").opacity = 100;
} catch (e) {
// If it is not set initially, the browser will throw an error. This will set it if it is not set yet.
this.fileProgressWrapper.css('filter', "progid:DXImageTransform.Microsoft.Alpha(opacity=100)");
}
} else {
this.fileProgressWrapper.css('opacity', 1);
}
this.fileProgressWrapper.css('height', '');
this.height = this.fileProgressWrapper.offset().top;
this.opacity = 100;
this.fileProgressWrapper.show();
};
效果图
华为开发者空间，是为全球开发者打造的专属开发空间，汇聚了华为优质开发资源及工具，致力于让每一位开发者拥有一台云主机，基于华为根生态开发、创新。
更多推荐
0
0- 0
已为社区贡献9条内容
所有评论(0)
