在Kubernetes上部署Elasticsearch集群

在Kubernetes上部署Elasticsearch集群尝试在上一篇文章中搭建的K8S集群上部署ES集群，去年年中的时候，未来搭建ELK，学习过一段时间的ES，在虚拟机里搭建过简单的集群环境。现在K8S里再次搭建的时候，发现当时学过的很多概念都生疏了，又找到之前的学习记录复习了一遍——好记忆不如烂笔头。言归正传1、环境清单1.1、系统清单IPHos...

迷途的攻城狮（798570156）

39425人浏览 · 2018-03-06 09:07:55

迷途的攻城狮（798570156） · 2018-03-06 09:07:55 发布

2018-12-13更新：
鉴于最近很多网友询问关于Elasticsearch部署的问题，主要问题在于容器操作系统的内核参数限制，在此将最新的部署文件贴出来，仅供参考：

---
apiVersion: v1
kind: ServiceAccount
metadata:
 labels:
   app: elasticsearch
 name: elasticsearch-admin
 namespace: ns-elastic
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
 name: elasticsearch-admin
 labels:
   app: elasticsearch
roleRef:
 apiGroup: rbac.authorization.k8s.io
 kind: ClusterRole
 name: cluster-admin
subjects:
 - kind: ServiceAccount
   name: elasticsearch-admin
   namespace: ns-elastic
---
kind: Deployment
apiVersion: apps/v1
metadata:
 labels:
   app: elasticsearch
   role: master
 name: elasticsearch-master
 namespace: ns-elastic
spec:
 replicas: 3
 revisionHistoryLimit: 10
 selector:
   matchLabels:
     app: elasticsearch
     role: master
 template:
   metadata:
     labels:
       app: elasticsearch
       role: master
   spec:
     serviceAccountName: elasticsearch-admin
     containers:
       - name: elasticsearch-master
         image: 192.168.101.88:5000/elastic/elasticsearch:6.2.3
         command: ["bash", "-c", "ulimit -l unlimited && sysctl -w vm.max_map_count=262144 && exec su elasticsearch docker-entrypoint.sh"]
         ports:
           - containerPort: 9200
             protocol: TCP
           - containerPort: 9300
             protocol: TCP
         env:
           - name: "cluster.name"
             value: "elasticsearch-cluster"
           - name: "bootstrap.memory_lock"
             value: "true"
           - name: "discovery.zen.ping.unicast.hosts"
             value: "elasticsearch-discovery"
           - name: "discovery.zen.minimum_master_nodes"
             value: "2"
           - name: "discovery.zen.ping_timeout"
             value: "5s"
           - name: "node.master"
             value: "true"
           - name: "node.data"
             value: "false"
           - name: "node.ingest"
             value: "false"
           - name: "ES_JAVA_OPTS"
             value: "-Xms512m -Xmx512m"
         securityContext:
           privileged: true
---
kind: Service
apiVersion: v1
metadata:
 labels:
   app: elasticsearch
 name: elasticsearch-discovery
 namespace: ns-elastic
spec:
 ports:
   - port: 9300
     targetPort: 9300
 selector:
   app: elasticsearch
   role: master
---
apiVersion: v1
kind: Service
metadata:
 name: elasticsearch-data-service
 namespace: ns-elastic
 labels:
   app: elasticsearch
   role: data
spec:
 ports:
   - port: 9200
     name: outer
   - port: 9300
     name: inner
 clusterIP: None
 selector:
   app: elasticsearch
   role: data
---
kind: StatefulSet
apiVersion: apps/v1
metadata:
 labels:
   app: elasticsearch
   role: data
 name: elasticsearch-data
 namespace: ns-elastic
spec:
 replicas: 2
 revisionHistoryLimit: 10
 selector:
   matchLabels:
     app: elasticsearch
 serviceName: elasticsearch-data-service
 template:
   metadata:
     labels:
       app: elasticsearch
       role: data
   spec:
     serviceAccountName: elasticsearch-admin
     containers:
       - name: elasticsearch-data
         image: 192.168.101.88:5000/elastic/elasticsearch:6.2.3
         command: ["bash", "-c", "ulimit -l unlimited && sysctl -w vm.max_map_count=262144 && chown -R elasticsearch:elasticsearch /usr/share/elasticsearch/data && exec su elasticsearch docker-entrypoint.sh"]
         ports:
           - containerPort: 9200
             protocol: TCP
           - containerPort: 9300
             protocol: TCP
         env:
           - name: "cluster.name"
             value: "elasticsearch-cluster"
           - name: "bootstrap.memory_lock"
             value: "true"
           - name: "discovery.zen.ping.unicast.hosts"
             value: "elasticsearch-discovery"
           - name: "node.master"
             value: "false"
           - name: "node.data"
             value: "true"
           - name: "ES_JAVA_OPTS"
             value: "-Xms1024m -Xmx1024m"
         volumeMounts:
           - name: elasticsearch-data-volume
             mountPath: /usr/share/elasticsearch/data
         securityContext:
           privileged: true
     securityContext:
       fsGroup: 1000
     # volumes:
     #   - name: elasticsearch-data-volume
     #     emptyDir: {}
 volumeClaimTemplates:
   - metadata:
       name: elasticsearch-data-volume
     spec:
       accessModes: ["ReadWriteOnce"]
       storageClassName: "vsphere-volume-sc"
       resources:
         requests:
           storage: 15Gi
---
kind: Service
apiVersion: v1
metadata:
 labels:
   app: elasticsearch
 name: elasticsearch-service
 namespace: ns-elastic
spec:
 ports:
   - port: 9200
     targetPort: 9200
 selector:
   app: elasticsearch
---
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
 labels:
   app: elasticsearch
 name: elasticsearch-ingress
 namespace: ns-elastic
spec:
 rules:
   - host: elasticsearch.kube.com
     http:
       paths:
         - backend:
             serviceName: elasticsearch-service
             servicePort: 9200

如果需要定时清理历史数据，可以参考：

apiVersion: batch/v1beta1
kind: CronJob
metadata:
 name: elasticsearch
 labels:
   app.kubernetes.io/name: elasticsearch
   helm.sh/chart: elasticsearch-0.1.0
   app.kubernetes.io/instance: elasticsearch
   app.kubernetes.io/managed-by: Tiller
spec:
 schedule: "0 1 * * *"
 concurrencyPolicy: Forbid
 jobTemplate:
   spec:
     template:
       spec:
         containers:
           - name: hello
             image: "192.168.101.88:5000/busybox:1.29.3"
             imagePullPolicy: IfNotPresent
             command:
               - "sh"
               - "-c"
               - >
                 history=$(date -D '%s' +"%Y.%m.%d" -d "$(( `date +%s`-60*60*24*6 ))");
                 echo ${history};
                 hostname=elasticsearch.ns-monitor;
                 echo ${hostname};
                 echo -ne "DELETE /*${history}* HTTP/1.1\r\nHost: ${hostname}\r\n\r\n" | nc -v -i 1 ${hostname} 9200
         restartPolicy: OnFailure

------------------------------------------------原文如下------------------------------------------------

在Kubernetes上部署Elasticsearch集群

尝试在上一篇文章中搭建的K8S集群上部署ES集群，去年年中的时候，未来搭建ELK，学习过一段时间的ES，在虚拟机里搭建过简单的集群环境。现在K8S里再次搭建的时候，发现当时学过的很多概念都生疏了，又找到之前的学习记录复习了一遍——好记忆不如烂笔头。言归正传

1、环境清单

1.1、系统清单

IP	Hostname	Role	OS
192.168.119.160	k8s-master	Master	CentOS 7
192.168.119.161	k8s-node-1	Node	CentOS 7
192.168.119.162	k8s-node-2	Node	CentOS 7
192.168.119.163	k8s-node-3	Node	CentOS 7

在之前的基础上多加了一个node节点，因为在两个node的时候部署ES集群，内存不够，然后一直提示提示OPENJDK GC Kill之类的信息。

1.2、镜像清单

docker.elastic.co/elasticsearch/elasticsearch:6.2.2

下载地址参考：https://www.docker.elastic.co，下文附网盘下载链接。

2、部署说明

2.1、导入镜像

将镜像导入私库或者你的所有k8s节点上的docker内。

2.2、编写Dockerfile，修改镜像

[root@k8s-master dockerfile]# pwd
/root/dockerfile

[root@k8s-master dockerfile]# ll
-rw-r--r--. 1 root root       156 3月   5 16:28 Dockerfile
-rw-r--r--. 1 root root        98 3月   2 15:26 run.sh

### Dockerfile文件内容 ###
[root@k8s-master dockerfile]# vi Dockerfile

FROM docker.elastic.co/elasticsearch/elasticsearch:6.2.2

MAINTAINER chenlei leichen.china@gmail.com

COPY run.sh /

RUN chmod 775 /run.sh

CMD ["/run.sh"]

### 启动脚本内容 ###
[root@k8s-master dockerfile]# vi run.sh
#!/bin/bash

# 设置memlock无限制
ulimit -l unlimited

exec su elasticsearch /usr/local/bin/docker-entrypoint.sh

### 构建镜像 ###
[root@k8s-master dockerfile]# docker build --tag docker.elastic.co/elasticsearch/elasticsearch:6.2.2-1 .

之所以要修改镜像，是因为在k8s中不能直接修改系统参数（ulimit）。官网上的事例是在docker上部署的，docker可以通过ulimits来修改用户资源限制。但是k8s上各种尝试各种碰壁，老外也有不少争论。

通过上述方式，将镜像的入口命令修改为我们自己的run.sh，然后在脚本内设置memlock，最后调研原本的启动脚本来达到目的。

2.3、ES集群规划

Elasticsearch我选用的6.2.2的最新版本，集群节点分饰三种角色：master、data、ingest，每个节点担任至少一种角色。每个觉得均有对应的参数指定，下文将描述。

标注为master的节点表示master候选节点，具备成为master的资格，实际的master节点在运行时由其他节点投票产生，集群健康的情况下，同一时刻只有一个master节点，否则称之为脑裂，会导致数据不一致。

ES节点（POD）	是否Master	是否Data	是否Ingest
节点1	Y	N	N
节点2	Y	N	N
节点3	Y	N	N
节点4	N	Y	Y
节点5	N	Y	Y

2.4、编写YML文件并部署集群

仅此一个文件：elasticsearch-cluster.yml，内容如下：

---
apiVersion: v1
kind: Namespace
metadata:
  name: ns-elasticsearch
  labels:
    name: ns-elasticsearch

---
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    elastic-app: elasticsearch
  name: elasticsearch-admin
  namespace: ns-elasticsearch

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: elasticsearch-admin
  labels:
    elastic-app: elasticsearch
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
  - kind: ServiceAccount
    name: elasticsearch-admin
    namespace: ns-elasticsearch

---
kind: Deployment
apiVersion: apps/v1beta2
metadata:
  labels:
    elastic-app: elasticsearch
    role: master
  name: elasticsearch-master
  namespace: ns-elasticsearch
spec:
  replicas: 3
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      elastic-app: elasticsearch
      role: master
  template:
    metadata:
      labels:
        elastic-app: elasticsearch
        role: master
    spec:
      containers:
        - name: elasticsearch-master
          image: docker.elastic.co/elasticsearch/elasticsearch:6.2.2-1
          lifecycle:
            postStart:
              exec:
                command: ["/bin/bash", "-c", "sysctl -w vm.max_map_count=262144; ulimit -l unlimited;"]
          ports:
            - containerPort: 9200
              protocol: TCP
            - containerPort: 9300
              protocol: TCP
          env:
            - name: "cluster.name"
              value: "elasticsearch-cluster"
            - name: "bootstrap.memory_lock"
              value: "true"
            - name: "discovery.zen.ping.unicast.hosts"
              value: "elasticsearch-discovery"
            - name: "discovery.zen.minimum_master_nodes"
              value: "2"
            - name: "discovery.zen.ping_timeout"
              value: "5s"
            - name: "node.master"
              value: "true"
            - name: "node.data"
              value: "false"
            - name: "node.ingest"
              value: "false"
            - name: "ES_JAVA_OPTS"
              value: "-Xms256m -Xmx256m"
          securityContext:
            privileged: true
      serviceAccountName: elasticsearch-admin
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule

---
kind: Service
apiVersion: v1
metadata:
  labels:
    elastic-app: elasticsearch
  name: elasticsearch-discovery
  namespace: ns-elasticsearch
spec:
  ports:
    - port: 9300
      targetPort: 9300
  selector:
    elastic-app: elasticsearch
    role: master

---
kind: Deployment
apiVersion: apps/v1beta2
metadata:
  labels:
    elastic-app: elasticsearch
    role: data
  name: elasticsearch-data
  namespace: ns-elasticsearch
spec:
  replicas: 2
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      elastic-app: elasticsearch
  template:
    metadata:
      labels:
        elastic-app: elasticsearch
        role: data
    spec:
      containers:
        - name: elasticsearch-data
          image: docker.elastic.co/elasticsearch/elasticsearch:6.2.2-1
          lifecycle:
            postStart:
              exec:
                command: ["/bin/bash", "-c", "sysctl -w vm.max_map_count=262144; ulimit -l unlimited;"]
          ports:
            - containerPort: 9200
              protocol: TCP
            - containerPort: 9300
              protocol: TCP
          volumeMounts:
            - name: esdata
              mountPath: /usr/share/elasticsearch/data
          env:
            - name: "cluster.name"
              value: "elasticsearch-cluster"
            - name: "bootstrap.memory_lock"
              value: "true"
            - name: "discovery.zen.ping.unicast.hosts"
              value: "elasticsearch-discovery"
            - name: "node.master"
              value: "false"
            - name: "node.data"
              value: "true"
            - name: "ES_JAVA_OPTS"
              value: "-Xms256m -Xmx256m"
          securityContext:
            privileged: true
      volumes:
        - name: esdata
          emptyDir: {}
      serviceAccountName: elasticsearch-admin
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule

---
kind: Service
apiVersion: v1
metadata:
  labels:
    elastic-app: elasticsearch-service
  name: elasticsearch-service
  namespace: ns-elasticsearch
spec:
  ports:
    - port: 9200
      targetPort: 9200
  selector:
    elastic-app: elasticsearch
  type: NodePort

通过环境变量设置：node.master、node.data和node.ingest来控制对应的角色，三个选项的默认值均是true；

通过postStart来设置系统内核参数，但是对memlock无效；网上也有通过initPod进行修改的，暂时没有尝试过。

通过设置discovery.zen.minimum_master_nodes来防止脑裂，表示多少个master候选节点在线时集群可用；

通过设置discovery.zen.ping_timeout来降低网络延时带来的脑裂现象；

节点通过单播来发现和加入进群，设置elasticsearch-discovery服务作为进群发现入口；

serviceAccount是否有必要带验证！

### 在K8S上发布ES集群 ###
[root@k8s-master elasticsearch-cluster]# kubectl apply -f elasticsearch-cluster.yml

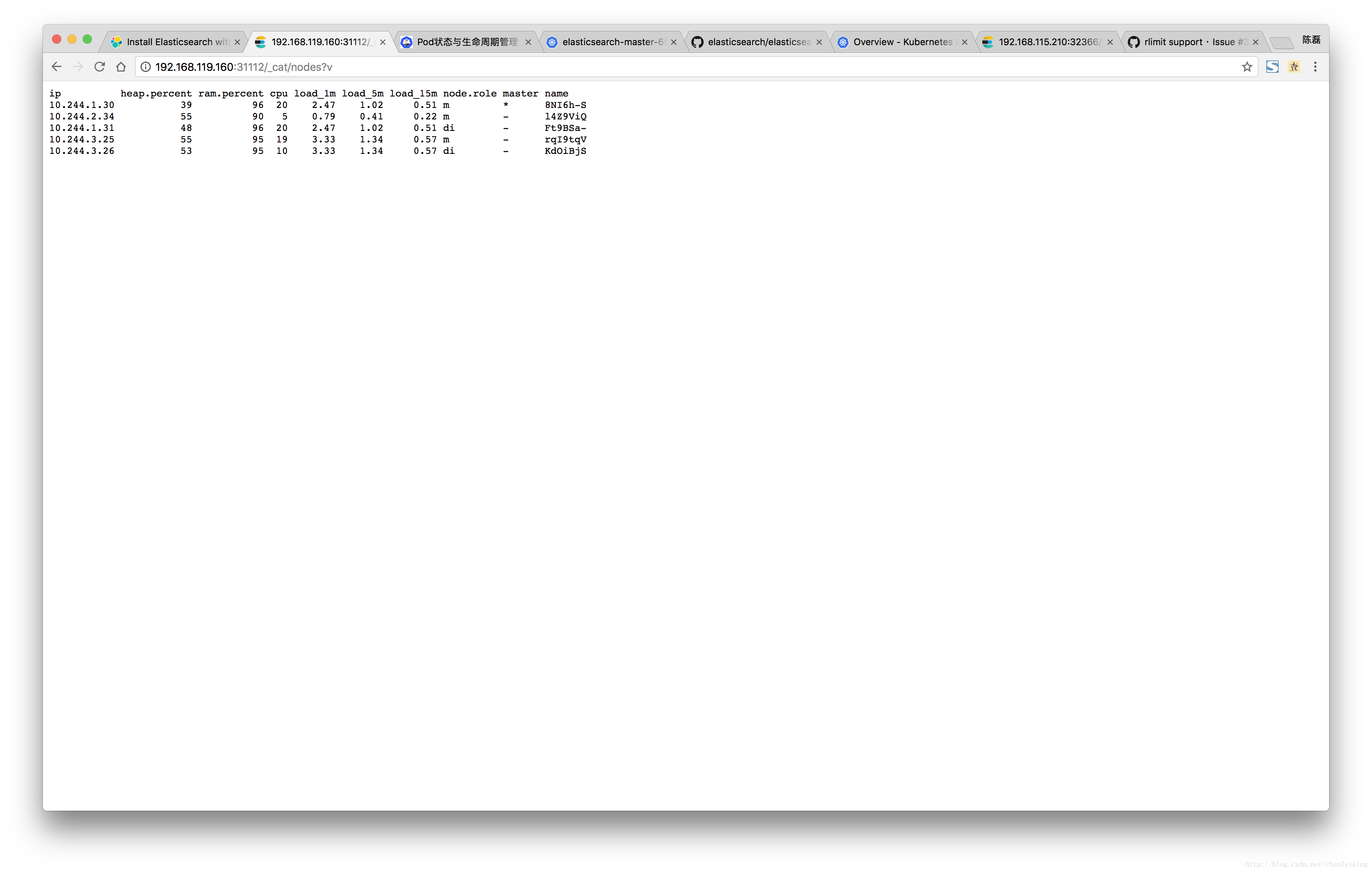

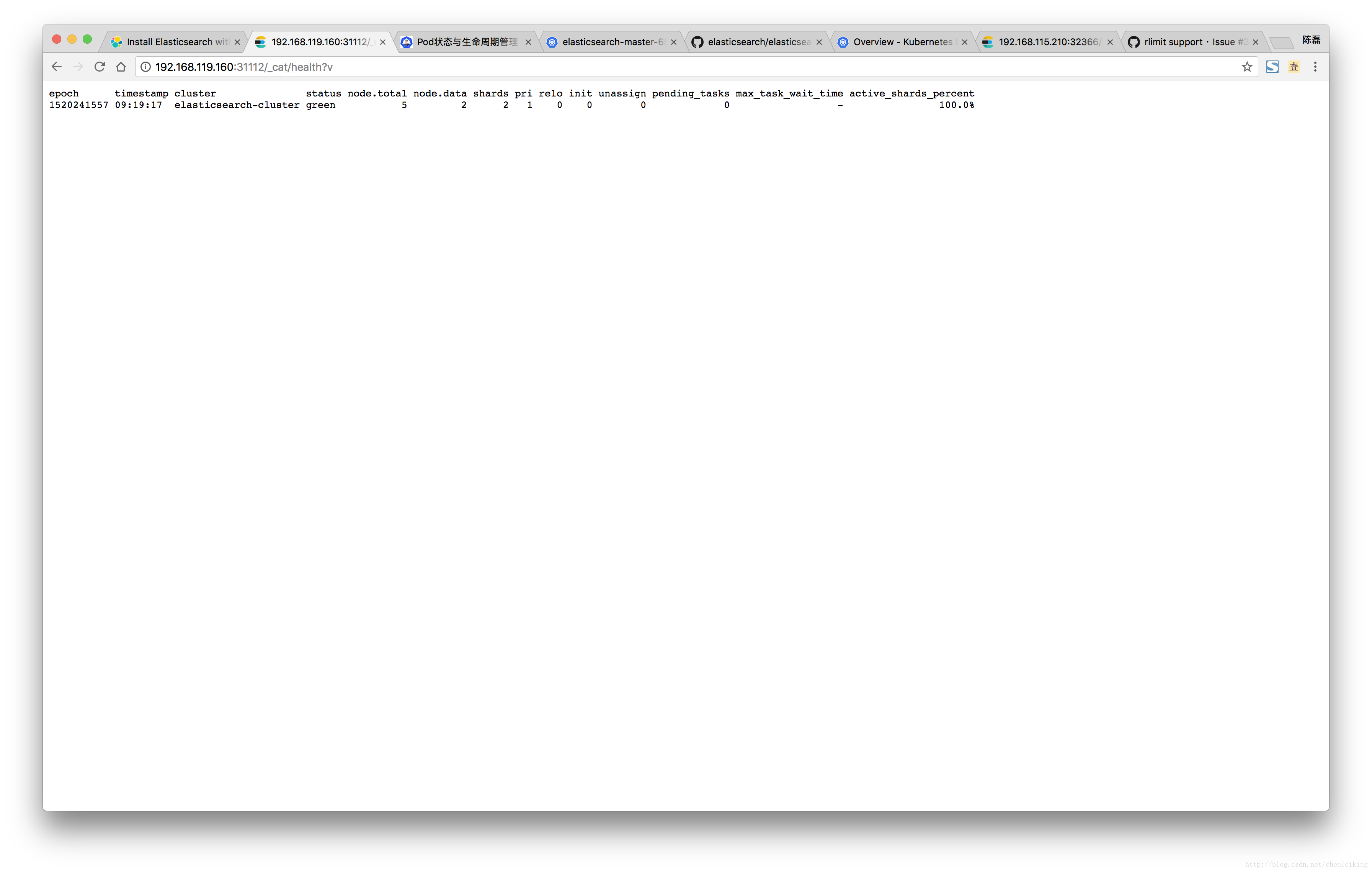

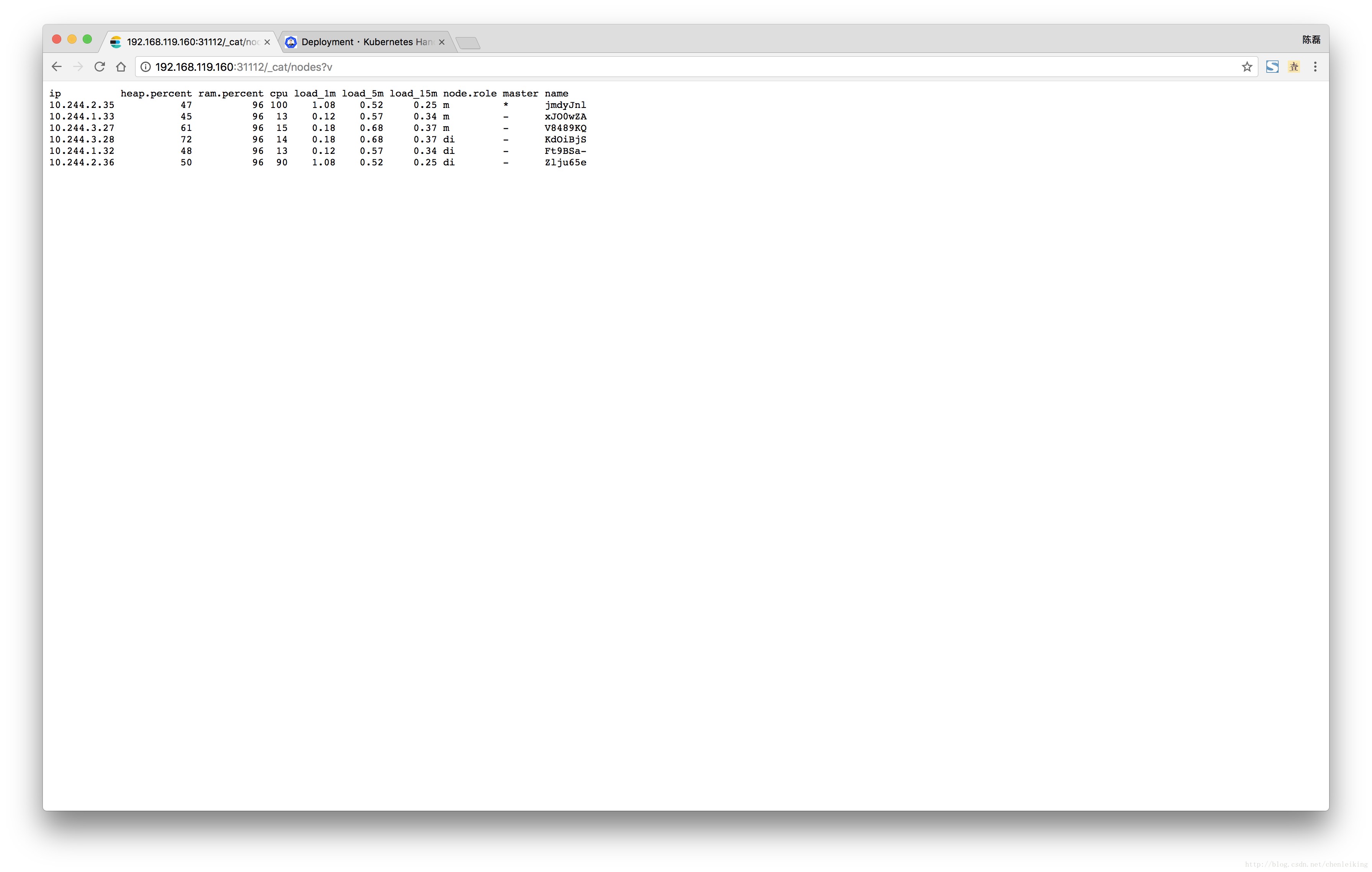

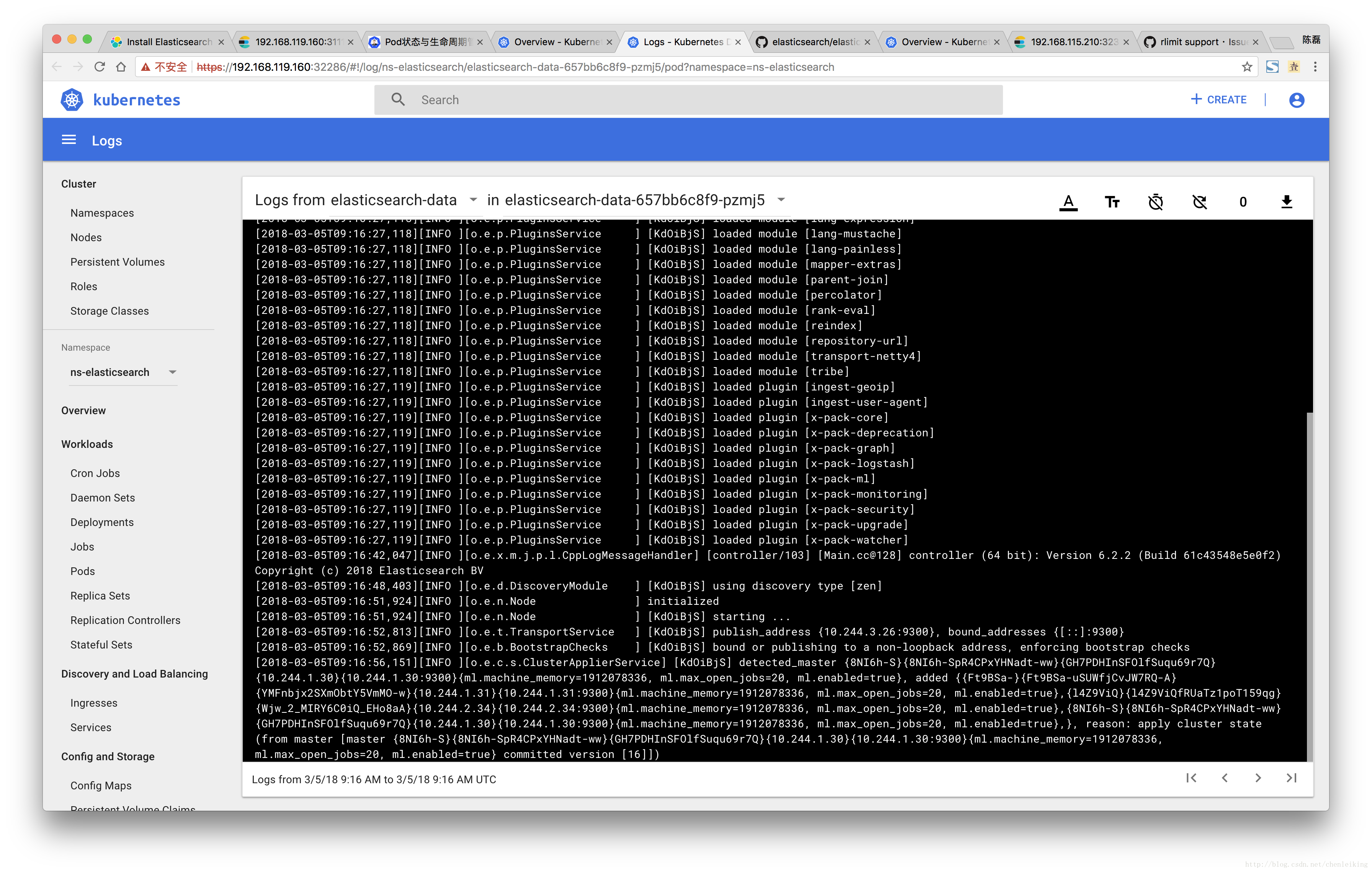

2.5、检查并测试集群

[root@k8s-master elasticsearch-cluster]# kubectl get pods --all-namespaces
NAMESPACE          NAME                                    READY     STATUS    RESTARTS   AGE
kube-system        etcd-k8s-master                         1/1       Running   7          5d
kube-system        kube-apiserver-k8s-master               1/1       Running   7          5d
kube-system        kube-controller-manager-k8s-master      1/1       Running   4          5d
kube-system        kube-dns-6f4fd4bdf-mwddx                3/3       Running   10         5d
kube-system        kube-flannel-ds-nwxcl                   1/1       Running   5          5d
kube-system        kube-flannel-ds-pdxhs                   1/1       Running   5          5d
kube-system        kube-flannel-ds-qgbmf                   1/1       Running   3          5h
kube-system        kube-flannel-ds-qrkwd                   1/1       Running   3          5d
kube-system        kube-proxy-7lsqw                        1/1       Running   5          5d
kube-system        kube-proxy-bq6kg                        1/1       Running   0          5h
kube-system        kube-proxy-f9kps                        1/1       Running   5          5d
kube-system        kube-proxy-g47nx                        1/1       Running   3          5d
kube-system        kube-scheduler-k8s-master               1/1       Running   4          5d
kube-system        kubernetes-dashboard-845747bdd4-gcj47   1/1       Running   3          5d
ns-elasticsearch   elasticsearch-master-65c8cc584c-jcsq4   1/1       Running   0          4h
ns-elasticsearch   elasticsearch-master-65c8cc584c-kwg69   1/1       Running   0          4h
ns-elasticsearch   elasticsearch-master-65c8cc584c-rdcbz   1/1       Running   0          4h
ns-elasticsearch   elasticsearch-node-6f9d5fbd6c-6jktr     1/1       Running   0          4h
ns-elasticsearch   elasticsearch-node-6f9d5fbd6c-x7qk8     1/1       Running   0          4h

[root@k8s-master elasticsearch-cluster]# kubectl get svc --all-namespaces
NAMESPACE          NAME                      TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)          AGE
default            kubernetes                ClusterIP   10.96.0.1        <none>        443/TCP          5d
kube-system        kube-dns                  ClusterIP   10.96.0.10       <none>        53/UDP,53/TCP    5d
kube-system        kubernetes-dashboard      NodePort    10.111.158.221   <none>        443:32286/TCP    5d
ns-elasticsearch   elasticsearch-discovery   ClusterIP   10.97.150.85     <none>        9300/TCP         1m
ns-elasticsearch   elasticsearch-service     NodePort    10.101.40.47     <none>        9200:31112/TCP   1m

这里写图片描述

上图中的node.role包含mdi，分别对呀master、data和ingest。

这里写图片描述

3、注意事项

如果k8s节点内存不够，可能导致部分ES节点报错
集群发现通过k8s service来实现，ES本身“discovery.zen.ping.unicast.hosts”也不需要配置所有节点列表，新节点只需要连上集群中任意一个有效节点即可找到全部
ulimit -l unlimited无法在postStart中生效
在dashboard中可以比较方便的查看日志，当然也可以使用kubectl log命令，查看日志可以快速定位问题

这里写图片描述

尝试增加数据节点

[root@k8s-master ~]# kubectl scale deployment elasticsearch-data --replicas 3 -n ns-elasticsearch

[root@k8s-master ~]# kubectl get pods --all-namespaces
NAMESPACE          NAME                                    READY     STATUS    RESTARTS   AGE
kube-system        etcd-k8s-master                         1/1       Running   8          5d
kube-system        kube-apiserver-k8s-master               1/1       Running   8          5d
kube-system        kube-controller-manager-k8s-master      1/1       Running   5          5d
kube-system        kube-dns-6f4fd4bdf-mwddx                3/3       Running   13         5d
kube-system        kube-flannel-ds-nwxcl                   1/1       Running   6          5d
kube-system        kube-flannel-ds-pdxhs                   1/1       Running   6          5d
kube-system        kube-flannel-ds-qgbmf                   1/1       Running   4          21h
kube-system        kube-flannel-ds-qrkwd                   1/1       Running   4          5d
kube-system        kube-proxy-7lsqw                        1/1       Running   6          5d
kube-system        kube-proxy-bq6kg                        1/1       Running   1          21h
kube-system        kube-proxy-f9kps                        1/1       Running   6          5d
kube-system        kube-proxy-g47nx                        1/1       Running   4          5d
kube-system        kube-scheduler-k8s-master               1/1       Running   5          5d
kube-system        kubernetes-dashboard-845747bdd4-gcj47   1/1       Running   4          5d
ns-elasticsearch   elasticsearch-data-657bb6c8f9-gpv89     1/1       Running   0          9s
ns-elasticsearch   elasticsearch-data-657bb6c8f9-jbrkc     1/1       Running   1          15h
ns-elasticsearch   elasticsearch-data-657bb6c8f9-pzmj5     1/1       Running   1          15h
ns-elasticsearch   elasticsearch-master-976859f58-qltf5    1/1       Running   1          15h
ns-elasticsearch   elasticsearch-master-976859f58-ts65d    1/1       Running   1          15h
ns-elasticsearch   elasticsearch-master-976859f58-zwqgv    1/1       Running   1          15h

这里写图片描述

上图出现新节点可能需要等待一分钟左右

4、附件下载

网盘地址：https://pan.baidu.com/s/1PN0ku0BNYWZUI_5moXS9cA

解压：

[root@k8s-master elasticsearch-cluster]# tar -zxvf elasticsearch-6.2.2.tar.gz
elasticsearch-6.2.2.tar

导入：

[root@k8s-master elasticsearch-cluster]# docker load -i elasticsearch-6.2.2.tar

5、参考资料

华为开发者空间

华为开发者空间，是为全球开发者打造的专属开发空间，汇聚了华为优质开发资源及工具，致力于让每一位开发者拥有一台云主机，基于华为根生态开发、创新。

更多推荐

解析openGauss账本数据库

华为开发者空间

GaussDB高智能--库内AI引擎：模型管理&数据集管理

华为开发者空间

GaussDB高智能--库内AI引擎：机器学习算法的训练和推理

华为开发者空间

所有评论(0)

查看更多评论

迷途的攻城狮（798570156）

@chenleiking

已为社区贡献2条内容
