本文实例为大家分享了Android使用入门第二十七篇点赞动画的具体代码，供大家参考，具体内容如下

MainActivity.java代码:

package siso.likeanimation;

import android.graphics.Bitmap;

import android.graphics.PointF;

import android.graphics.drawable.BitmapDrawable;

import android.support.v4.content.res.ResourcesCompat;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.view.View;

import android.widget.Button;

import android.widget.ImageView;

import java.util.ArrayList;

public class MainActivity extends AppCompatActivity {

private DivergeViewSecond mDivergeView;

private Button mBtnStart;

private ImageView mImageView;

private ArrayList mList;

private int mIndex = 0;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

mBtnStart = (Button)findViewById(R.id.btnStart);

mImageView = (ImageView)findViewById(R.id.iv_start);

mList = new ArrayList<>();

mList.add(((BitmapDrawable) ResourcesCompat.getDrawable(getResources(), R.drawable.ic_praise_sm1, null)).getBitmap());

mList.add(((BitmapDrawable) ResourcesCompat.getDrawable(getResources(),R.drawable.ic_praise_sm2,null)).getBitmap());

mList.add(((BitmapDrawable) ResourcesCompat.getDrawable(getResources(),R.drawable.ic_praise_sm3,null)).getBitmap());

mList.add(((BitmapDrawable) ResourcesCompat.getDrawable(getResources(),R.drawable.ic_praise_sm4,null)).getBitmap());

mList.add(((BitmapDrawable) ResourcesCompat.getDrawable(getResources(),R.drawable.ic_praise_sm5,null)).getBitmap());

mList.add(((BitmapDrawable) ResourcesCompat.getDrawable(getResources(), R.drawable.ic_praise_sm6, null)).getBitmap());

mBtnStart.setOnClickListener(new View.OnClickListener() {

@Override

public void onClick(View v) {

if(mIndex == 5){

mIndex = 0 ;

}

mDivergeView.startDiverges(mIndex);

mIndex ++;

// if (mDivergeView.isRunning()) {

// mDivergeView.stop();

// } else {

//

// }

}

});

mDivergeView = (DivergeViewSecond) findViewById(R.id.divergeView);

mDivergeView.post(new Runnable() {

@Override

public void run() {

mDivergeView.setEndPoint(new PointF(mDivergeView.getMeasuredWidth()/2,0));

mDivergeView.setDivergeViewProvider(new Provider());

}

});

// mDivergeView.start();

}

@Override

protected void onDestroy() {

super.onDestroy();

if(mList != null){

mList.clear();

mList = null;

}

}

class Provider implements DivergeViewSecond.DivergeViewProvider{

@Override

public Bitmap getBitmap(Object obj) {

return mList == null ? null : mList.get((int)obj);

}

}

}

DivergeViewSecond.java代码:

package siso.likeanimation;

import android.content.Context;

import android.graphics.Bitmap;

import android.graphics.Canvas;

import android.graphics.Paint;

import android.graphics.PointF;

import android.util.AttributeSet;

import android.util.Log;

import android.view.View;

import java.util.ArrayList;

import java.util.Collections;

import java.util.List;

import java.util.Random;

import java.util.concurrent.CopyOnWriteArrayList;

public class DivergeViewSecond extends View implements Runnable{

public static final float mDuration = 0.010F;

public static final int mDefaultHeight = 100;

protected static final long mQueenDuration = 200;

protected final Random mRandom = new Random();

protected ArrayList mDivergeInfos;

protected List mQueen;

protected PointF mPtStart;

protected PointF mPtEnd;

protected ArrayList mDeadPool = new ArrayList<>();

private Paint mPaint;

// private static final int mDefaultWidth = 100;

// private static final int mAlphaOffset = 50;

private DivergeViewProvider mDivergeViewProvider;

private long mLastAddTime = 0;

private Thread mThread;

private boolean mRunning = true;

private boolean mIsDrawing = false;

public DivergeViewSecond(Context context) {

this(context, null);

}

public DivergeViewSecond(Context context, AttributeSet attrs) {

this(context, attrs, 0);

}

public DivergeViewSecond(Context context, AttributeSet attrs, int defStyleAttr) {

super(context, attrs, defStyleAttr);

init();

}

/**

* Loop

*/

@Override

public void run() {

while(mRunning){

if(mDivergeViewProvider == null){

continue;

}

if(mQueen == null){

continue;

}

if(mIsDrawing){

//如果正在绘制，不要处理数据

continue;

}

if(mDivergeInfos == null){

continue;

}

dealQueen();

if(mDivergeInfos.size() == 0){

continue;

}

dealDiverge();

mIsDrawing = true;

postInvalidate();

}

//停止

release();

}

private void dealDiverge(){

for (int i = 0; i < mDivergeInfos.size(); i++) {

DivergeInfo divergeInfo = mDivergeInfos.get(i);

float timeLeft = 1.0F - divergeInfo.mDuration;

divergeInfo.mDuration += mDuration;

float x, y;

//二次贝塞尔

float time1 = timeLeft * timeLeft;

float time2 = 2 * timeLeft * divergeInfo.mDuration;

float time3 = divergeInfo.mDuration * divergeInfo.mDuration;

x = time1 * (mPtStart.x)

+ time2 * (divergeInfo.mBreakPoint.x)

+ time3 * (divergeInfo.mEndPoint.x);

divergeInfo.mX = x;

y = time1 * (mPtStart.y)

+ time2 * (divergeInfo.mBreakPoint.y)

+ time3 * (divergeInfo.mEndPoint.y);

divergeInfo.mY = y;

if (divergeInfo.mY <= divergeInfo.mEndPoint.y) {

mDivergeInfos.remove(i);

mDeadPool.add(divergeInfo);

i--;

continue;

}

}

}

private void dealQueen(){

long now = System.currentTimeMillis();

if(mQueen.size() > 0 && now - mLastAddTime > mQueenDuration){

mLastAddTime = System.currentTimeMillis();

DivergeInfo divergeInfo = null;

if(mDeadPool.size() > 0){

//死池里面有空闲的divergeNode

divergeInfo = mDeadPool.get(0);

mDeadPool.remove(0);

}

if(divergeInfo == null){

divergeInfo = createDivergeNode(mQueen.get(0));

}

divergeInfo.reset();

divergeInfo.mType = mQueen.get(0);

mDivergeInfos.add(divergeInfo);

mQueen.remove(0);

}

}

public interface DivergeViewProvider{

public Bitmap getBitmap(Object obj);

}

private void init(){

mPaint = new Paint(Paint.ANTI_ALIAS_FLAG);

}

@Override

protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {

super.onMeasure(widthMeasureSpec, heightMeasureSpec);

//不需要支持wrap_content

}

@Override

protected void onLayout(boolean changed, int left, int top, int right, int bottom) {

super.onLayout(changed, left, top, right, bottom);

}

public void setDivergeViewProvider(DivergeViewProvider divergeViewProvider){

mDivergeViewProvider = divergeViewProvider;

}

public PointF getStartPoint(){

return mPtStart;

}

public boolean isRunning(){

return mRunning;

}

public void startDiverges(Object obj){

if(mDivergeInfos == null){

mDivergeInfos = new ArrayList<>(30);

}

if(mQueen == null){

mQueen = Collections.synchronizedList(new ArrayList<>(30));

}

mQueen.add(obj);

// for(Object obj : objs) {

// mQueen.add(obj);

// }

if(mThread == null) {

mThread = new Thread(this);

mThread.start();

}

}

public void stop(){

if(mDivergeInfos != null){

mDivergeInfos.clear();

}

if(mQueen != null){

mQueen.clear();

}

if(mDeadPool != null){

mDeadPool.clear();

}

}

public void release(){

stop();

mPtEnd = null;

mPtStart = null;

mDivergeInfos = null;

mQueen = null;

mDeadPool = null;

}

public void setStartPoint(PointF point){

mPtStart = point;

}

public void setEndPoint(PointF point){

mPtEnd = point;

}

@Override

protected void onDetachedFromWindow() {

super.onDetachedFromWindow();

mRunning = false;

}

@Override

protected void onDraw(Canvas canvas) {

if(mRunning && mDivergeViewProvider != null && mDivergeInfos != null){

for(DivergeInfo divergeInfo : mDivergeInfos){

mPaint.setAlpha((int)(255 * divergeInfo.mY / mPtStart.y));

canvas.drawBitmap(mDivergeViewProvider.getBitmap(divergeInfo.mType),

divergeInfo.mX,

divergeInfo.mY,

mPaint);

}

}

mIsDrawing = false;

}

private PointF getBreakPointF(int scale1, int scale2) {

PointF pointF = new PointF();

pointF.x = mRandom.nextInt((getMeasuredWidth() - getPaddingRight() + getPaddingLeft()) / scale1) + getMeasuredWidth() / scale2;

pointF.y = mRandom.nextInt((getMeasuredHeight() - getPaddingBottom() + getPaddingTop()) / scale1) + getMeasuredHeight() / scale2;

return pointF;

}

protected DivergeInfo createDivergeNode(Object type){

PointF endPoint = mPtEnd;

if(endPoint == null){

endPoint = new PointF(mRandom.nextInt(getMeasuredWidth()),0);

}

// int height = mDivergeViewProvider == null ? mDefaultHeight : mDivergeViewProvider.getBitmap(type).getHeight();

if(mPtStart == null) {

mPtStart = new PointF(getMeasuredWidth() / 2, getMeasuredHeight() - mDefaultHeight);//默认起始高度

}

return new DivergeInfo(

mPtStart.x,

mPtStart.y,

getBreakPointF(2, 3),

endPoint,

type);

}

public class DivergeInfo {

public float mDuration;

public PointF mBreakPoint;

public PointF mEndPoint;

public float mX;

public float mY;

public Object mType;

public float mStartX;

public float mStartY;

public DivergeInfo(float x, float y, PointF breakPoint, PointF endPoint, Object type){

mDuration = 0.0f;

mEndPoint = endPoint;

mX = x;

mY = y;

mStartX = x;

mStartY = y;

mBreakPoint = breakPoint;

mType = type;

}

public void reset(){

mDuration = 0.0f;

mX = mStartX;

mY = mStartY;

}

}

}

activity_main.xml内容:

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:paddingBottom="@dimen/activity_vertical_margin"

android:paddingLeft="@dimen/activity_horizontal_margin"

android:paddingRight="@dimen/activity_horizontal_margin"

android:paddingTop="@dimen/activity_vertical_margin"

tools:context="siso.likeanimation.MainActivity">

android:id="@+id/btnStart"

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:text="开始"/>

android:id="@+id/divergeView"

android:layout_alignParentBottom="true"

android:layout_alignParentRight="true"

android:layout_width="130dp"

android:layout_height="300dp"/>

android:id="@+id/iv_start"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_marginRight="10dp"

android:layout_alignParentBottom="true"

android:layout_alignParentRight="true"

android:background="@drawable/ic_praise_sm6"/>

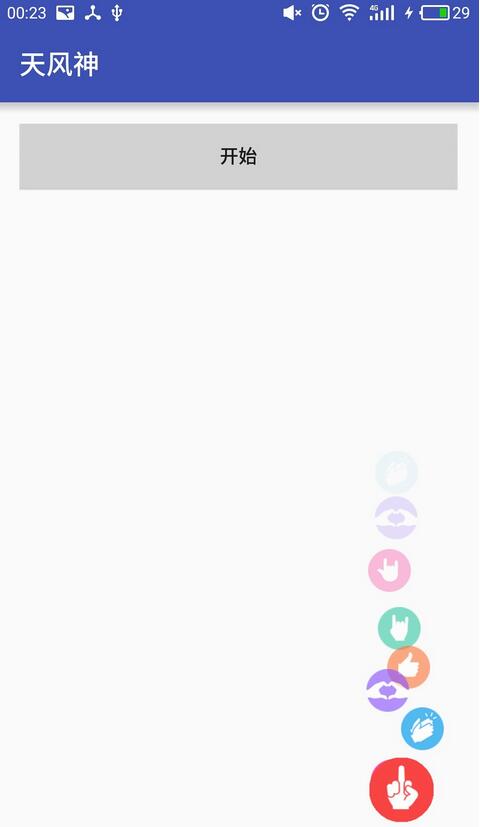

运行结果如图：
