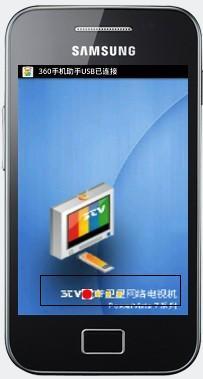

在手机的桌面实现三屏页面滑动显示方式实现如下：

注意长方形中的图表变化

主要的布局文件如下：

<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:orientation="vertical" >

    <android.support.v4.view.ViewPager
        android:id="@+id/guidePages"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"/>

    <RelativeLayout
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:orientation="vertical" >
    <LinearLayout
        android:id="@+id/viewGroup"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:layout_alignParentBottom="true"
        android:layout_marginBottom="30dp"
        android:gravity="center_horizontal"
        android:orientation="horizontal" >
    </LinearLayout>
    </RelativeLayout>

</FrameLayout>

主要的代码文件如下：

package com.easyway.guide;

import android.app.Activity;
import android.os.Bundle;


import java.util.ArrayList;

import android.app.Activity;
import android.os.Bundle;
import android.os.Parcelable;
import android.support.v4.view.PagerAdapter;
import android.support.v4.view.ViewPager;
import android.support.v4.view.ViewPager.OnPageChangeListener;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.view.ViewGroup.LayoutParams;
import android.view.Window;
import android.widget.ImageView;
/**
 * 使用Android-suport-v4.jar中android的扩展功能ViewPager实现左右滑动的切换的功能
 * 此种功能在智能机的桌面应用中多屏信息的展示中使用
 *
 * @Title:
 * @Description: 实现TODO
 * @Copyright:Copyright (c) 2011
 * @Company:易程科技股份有限公司
 * @Date:2012-7-16
 * @author  longgangbai
 * @version 1.0
 */
public class AndroidGuideViewActivityActivity extends Activity {

	    private ViewPager viewPager;
	    private ArrayList<View> pageViews;
	    private ViewGroup main, group;
	    private ImageView imageView;
	    private ImageView[] imageViews;

	    /** Called when the activity is first created. */
	    @Override
	    public void onCreate(Bundle savedInstanceState) {
	        super.onCreate(savedInstanceState);
	        this.requestWindowFeature(Window.FEATURE_NO_TITLE);
	        //获取页面的布局
	        LayoutInflater inflater = getLayoutInflater();
	        pageViews = new ArrayList<View>();
	        pageViews.add(inflater.inflate(R.layout.list_item0, null));
	        pageViews.add(inflater.inflate(R.layout.list_item1, null));
	        pageViews.add(inflater.inflate(R.layout.list_item2, null));
	        pageViews.add(inflater.inflate(R.layout.list_item3, null));

	        imageViews = new ImageView[pageViews.size()];
	        //获取相关的容器
	        main = (ViewGroup)inflater.inflate(R.layout.main, null);

	        // group是R.layou.main中的负责包裹小圆点的LinearLayout.
	        group = (ViewGroup)main.findViewById(R.id.viewGroup);
	       //获取ViewPager对象
	        viewPager = (ViewPager)main.findViewById(R.id.guidePages);

	        //创建相关的ImageView对象并添加对象
	        for (int i = 0; i < pageViews.size(); i++) {
	            imageView = new ImageView(AndroidGuideViewActivityActivity.this);
	            imageView.setLayoutParams(new LayoutParams(20,20));
	            imageView.setPadding(20, 0, 20, 0);
	            imageViews[i] = imageView;
	            if (i == 0) {
	                //默认选中第一张图片
	                imageViews[i].setBackgroundResource(R.drawable.page_indicator_focused);
	            } else {
	                imageViews[i].setBackgroundResource(R.drawable.page_indicator);
	            }
	            group.addView(imageViews[i]);
	        }
	        //设置布局
	        setContentView(main);
	       //设置相关的适配器对象
	        viewPager.setAdapter(new GuidePageAdapter());
	        //设置相关的响应事件
	        viewPager.setOnPageChangeListener(new GuidePageChangeListener());
	    }

	    /** 指引页面Adapter */
	    class GuidePageAdapter extends PagerAdapter {

	        @Override
	        public int getCount() {
	            return pageViews.size();
	        }

	        @Override
	        public boolean isViewFromObject(View arg0, Object arg1) {
	            return arg0 == arg1;
	        }

	        @Override
	        public int getItemPosition(Object object) {
	            // TODO Auto-generated method stub
	            return super.getItemPosition(object);
	        }

	        @Override
	        public void destroyItem(View arg0, int arg1, Object arg2) {
	            // TODO Auto-generated method stub
	            ((ViewPager) arg0).removeView(pageViews.get(arg1));
	        }

	        @Override
	        public Object instantiateItem(View arg0, int arg1) {
	            // TODO Auto-generated method stub
	            ((ViewPager) arg0).addView(pageViews.get(arg1));
	            return pageViews.get(arg1);
	        }

	        @Override
	        public void restoreState(Parcelable arg0, ClassLoader arg1) {
	            // TODO Auto-generated method stub

	        }

	        @Override
	        public Parcelable saveState() {
	            // TODO Auto-generated method stub
	            return null;
	        }

	        @Override
	        public void startUpdate(View arg0) {
	            // TODO Auto-generated method stub

	        }

	        @Override
	        public void finishUpdate(View arg0) {
	            // TODO Auto-generated method stub

	        }
	    }

	    /** 指引页面改监听器 */
	    class GuidePageChangeListener implements OnPageChangeListener {

	        @Override
	        public void onPageScrollStateChanged(int arg0) {
	            // TODO Auto-generated method stub

	        }

	        @Override
	        public void onPageScrolled(int arg0, float arg1, int arg2) {
	            // TODO Auto-generated method stub

	        }

	        @Override
	        public void onPageSelected(int arg0) {
	            for (int i = 0; i < imageViews.length; i++) {
	                imageViews[arg0]
	                        .setBackgroundResource(R.drawable.page_indicator_focused);
	                if (arg0 != i) {
	                    imageViews[i]
	                            .setBackgroundResource(R.drawable.page_indicator);
	                }
	            }

	        }

	    }

}
