概述

在平时开发过程中经常会碰到需要使用圆角button的情况，一般也会包括很多其他小功能，比如要在里面添加img，设置不同的圆角大小等。

针对这样的场景，直接使用创建多个shape，定义多个xml文件也是可以实现的。但是如果使用非常频繁，那么直接自定义一个就会来的非常方便。

甚至在一些情况下，不是可以用shape定义的规则图形，比如需要用到贝塞尔曲线等。

如果全局需要这样风格的view，那么自定义一个View是非常必要的。

本文主要是个demo记录，如有需要的读者可以借鉴学习。

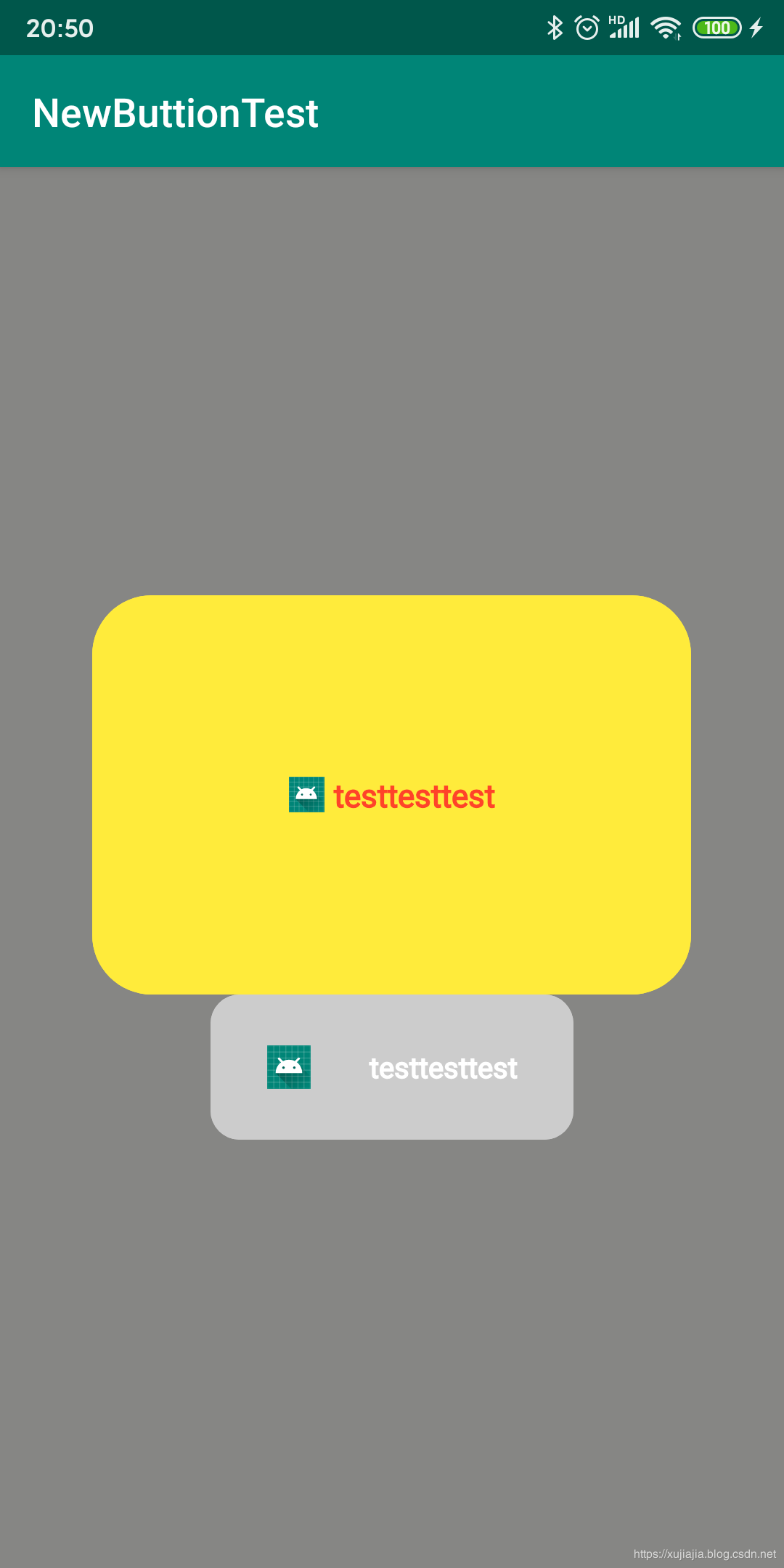

Demo

主要实现功能：

自定义圆角大小

支持设置leftDrawable，和自定义文字内容(文字和img默认居中)

支持点击效果

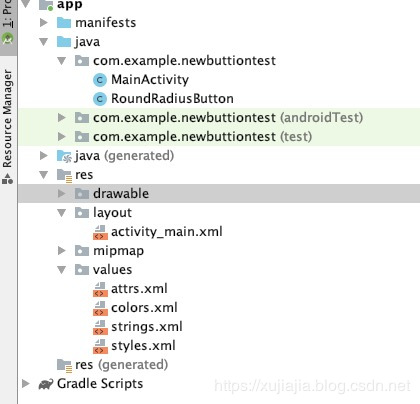

源码

RoundRadiusButton.java

/**

* author: xujiajia

* description:

* 1、drawable只有在设置textString的时候才会生效(居中效果两个一起测量)

*/

public class RoundRadiusButton extends View {

//data

private int width = 0;

private int height = 0;

private int roundRadius = 16;

private int bgColor = Color.LTGRAY;

private boolean isTouching = false;

//img and text

private Drawable leftDrawable = null;

private int drawableWidth = 20;

private int drawableHeight = 20;

private int leftDrawablePaddingRight = 0;

private String textString;

private int textSize = 30;

private int textColor = Color.BLACK;

//onDraw

Paint paint;

Path path;

RectF rectF;

Rect rect;

public RoundRadiusButton(Context context, int width, int height) {

super(context);

this.width = width;

this.height = height;

this.setLayoutParams(new ViewGroup.LayoutParams(width, height));

this.setClickable(true);

}

public RoundRadiusButton(Context context, AttributeSet attrs) {

super(context, attrs);

getDataFromAttrs(context, attrs);

this.setClickable(true);

}

public RoundRadiusButton(Context context, AttributeSet attrs, int defStyleAttr) {

super(context, attrs, defStyleAttr);

getDataFromAttrs(context, attrs);

this.setClickable(true);

}

private void getDataFromAttrs(Context context, AttributeSet attrs) {

if (attrs == null) {

return;

}

TypedArray ta = context.obtainStyledAttributes(attrs, R.styleable.RoundRadiusButton);

roundRadius = ta.getDimensionPixelOffset(R.styleable.RoundRadiusButton_roundRadius, 16);

bgColor = ta.getColor(R.styleable.RoundRadiusButton_bgColor, Color.LTGRAY);

leftDrawable = ta.getDrawable(R.styleable.RoundRadiusButton_leftDrawable);

drawableWidth = ta.getDimensionPixelOffset(R.styleable.RoundRadiusButton_drawableWidth, 0);

drawableHeight = ta.getDimensionPixelOffset(R.styleable.RoundRadiusButton_drawableHeight, 0);

leftDrawablePaddingRight =

ta.getDimensionPixelOffset(R.styleable.RoundRadiusButton_leftDrawablePaddingRight, 0);

textString = ta.getString(R.styleable.RoundRadiusButton_textString);

textSize = ta.getDimensionPixelOffset(R.styleable.RoundRadiusButton_textSize, 0);

textColor = ta.getColor(R.styleable.RoundRadiusButton_textColor, Color.BLACK);

ta.recycle();

}

public void setRoundRadius(int roundRadius) {

this.roundRadius = roundRadius;

invalidate();

}

public void setBgColor(int bgColor) {

this.bgColor = bgColor;

invalidate();

}

public void setLeftDrawable(Drawable leftDrawable, int drawableWidth, int drawableHeight,

int paddingRight) {

this.leftDrawable = leftDrawable;

this.drawableWidth = drawableWidth;

this.drawableHeight = drawableHeight;

this.leftDrawablePaddingRight = paddingRight;

invalidate();

}

public void setTextString(String textString) {

this.textString = textString;

invalidate();

}

public void setTextColor(int textColor) {

this.textColor = textColor;

invalidate();

}

public void setTextSize(int textSize) {

this.textSize = textSize;

invalidate();

}

@Override public boolean onTouchEvent(MotionEvent event) {

if (isClickable()) {

switch (event.getAction()) {

case MotionEvent.ACTION_DOWN:

isTouching = true;

invalidate();

break;

case MotionEvent.ACTION_UP:

isTouching = false;

invalidate();

break;

}

}

return super.onTouchEvent(event);

}

@Override protected void onDraw(Canvas canvas) {

super.onDraw(canvas);

if (width == 0 || height == 0) {

width = getWidth();

height = getHeight();

}

if (paint == null) {

paint = new Paint();

}

if (path == null) {

path = new Path();

}

if (rectF == null) {

rectF = new RectF();

}

if (rect == null) {

rect = new Rect();

}

paint.setColor(bgColor);

paint.setAntiAlias(true);//抗锯齿

paint.setStrokeWidth(0);//线的宽度设为0，避免画圆弧的时候部分圆弧与边界相切

paint.setStyle(Paint.Style.FILL_AND_STROKE);

path.setFillType(Path.FillType.WINDING);

//左上圆角

path.moveTo(0, roundRadius);

rectF.set(0, 0, 2 * roundRadius,

2 * roundRadius);

path.addArc(rectF, 180, 90);

//上边

path.lineTo(width - roundRadius, 0);

//右上圆角

rectF.set(width - roundRadius * 2, 0, width, roundRadius * 2);

path.addArc(rectF, -90, 90);

//右边

path.lineTo(width, height - roundRadius);

//右下圆角

rectF.set(width - roundRadius * 2, height - roundRadius * 2, width,

height);

path.addArc(rectF, 0, 90);

//下边

path.lineTo(roundRadius, height);

//左下圆角

rectF.set(0, height - roundRadius * 2, 2 * roundRadius,

height);

path.addArc(rectF, 90, 90);

//左边

path.lineTo(0, roundRadius);

path.close();

canvas.drawPath(path, paint);

if (isTouching) {

paint.setColor(getContext().getResources().getColor(R.color.black_tran_30));

canvas.drawPath(path, paint);

}

//填充背景中间空白的部分

path.moveTo(0, roundRadius);

path.lineTo(width - roundRadius, 0);

path.lineTo(width, height - roundRadius);

path.lineTo(roundRadius, height);

path.close();

canvas.drawPath(path, paint);

if (isTouching) {

paint.setColor(getContext().getResources().getColor(R.color.black_tran_30));

canvas.drawPath(path, paint);

}

//text, drawable两个一起计算位置

if (!TextUtils.isEmpty(textString)) {

paint.setStrokeWidth(1.5f);

paint.setColor(textColor);

paint.setTextSize(textSize);

rect.setEmpty();

paint.getTextBounds(textString, 0, textString.length(), rect);

float leftBitmap = 0;

float topBitmap = 0;

if (leftDrawable != null) {

if (leftDrawable != null) {

leftBitmap = (1.0f * width - drawableWidth - rect.width() - leftDrawablePaddingRight) / 2;

topBitmap = (1.0f * height - drawableHeight) / 2;

leftDrawable.setBounds((int) leftBitmap, (int) topBitmap,

(int) (leftBitmap + drawableWidth),

(int) (topBitmap + drawableHeight));

leftDrawable.draw(canvas);

}

}

float textX = 0;

float textY =

1.0f * height / 2 + paint.getTextSize() / 2 - paint.getFontMetrics().descent / 2;

if (leftBitmap == 0 && topBitmap == 0) {

textX = width / 2 - rect.width() / 2;

} else {

textX = leftBitmap + drawableWidth + leftDrawablePaddingRight;

}

canvas.drawText(textString, textX, textY, paint);

}

}

}

MainActivity.java

public class MainActivity extends AppCompatActivity {

private LinearLayout llContainer;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

initView();

}

private void initView() {

llContainer = findViewById(R.id.ll_container);

RoundRadiusButton roundRadiusButton = new RoundRadiusButton(this, 500, 200);

roundRadiusButton.setBgColor(Color.LTGRAY);

roundRadiusButton.setRoundRadius(40);

//text

roundRadiusButton.setTextString("testtesttest");

roundRadiusButton.setTextColor(Color.WHITE);

roundRadiusButton.setTextSize(40);

//drawable

roundRadiusButton.setLeftDrawable(getResources().getDrawable(R.mipmap.ic_launcher), 60, 60, 80);

roundRadiusButton.setOnClickListener(new View.OnClickListener() {

@Override public void onClick(View v) {

Toast.makeText(MainActivity.this, "testest", Toast.LENGTH_LONG).show();

}

});

roundRadiusButton.setClickable(false);

llContainer.addView(roundRadiusButton);

}

}

activity_main.xml

xmlns:app="http://schemas.android.com/apk/res-auto"

xmlns:tools="http://schemas.android.com/tools"

android:id="@+id/ll_container"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:background="#868684"

android:gravity="center"

android:orientation="vertical"

tools:context=".MainActivity"

>

android:layout_width="300dp"

android:layout_height="200dp"

app:bgColor="#FFEB3B"

app:drawableHeight="18dp"

app:drawableWidth="18dp"

app:leftDrawable="@mipmap/ic_launcher"

app:leftDrawablePaddingRight="5dp"

app:roundRadius="30dp"

app:textColor="#FF4329"

app:textSize="16dip"

app:textString="testtesttest"

/>

attrs.xml

colors.xml

#30000000

总结

以上所述是小编给大家介绍的android 自定义圆角button效果的实例代码，希望对大家有所帮助，如果大家有任何疑问请给我留言，小编会及时回复大家的。在此也非常感谢大家对脚本之家网站的支持！

如果你觉得本文对你有帮助，欢迎转载，烦请注明出处，谢谢！
