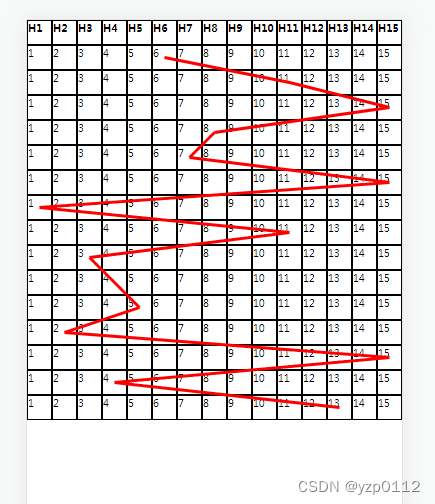

在这里插入图片描述

<template>
	<view>
		<view class="table">
			<view class="t-h">
				<view class="t-r" v-for="item in list" :key="item">H{{item}}</view>
			</view>
			<view class="t-b" v-for="(item,index) in bList">
				<view class="t-r" :id="'T'+index+'_'+cIndex" v-for="(cItem,cIndex) in item">{{cItem}}</view>
			</view>
		</view>
		<canvas id="canvasdiv" canvas-id="canvasdiv"></canvas>
	</view>
</template>

<script>
	export default{
		data(){
			return{
				list:[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15],
				bList:[
					[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15],
					[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15],
					[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15],
					[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15],
					[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15],
					[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15],
					[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15],
					[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15],
					[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15],
					[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15],
					[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15],
					[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15],
					[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15],
					[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15],
					[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15]
				],
				lineDot:[]
			}
		},
		onLoad() {

		},
		onShow() {
			// console.log(this.ids)
		},
		computed:{
			ids(){
				let ids = "";
				for (let i = 0; i < 15; i++) {
				    ids+= "T" + i + "_" + Math.floor(Math.random() * 15) + ",";
				}
				ids = ids.substring(0, ids.length - 1);
				return ids
			}
		},
		onReady() {
			this.CreateLine(this.ids);
		},
		methods:{
			getPosi(id){
				return new Promise((resolve,reject)=>{
					const query = uni.createSelectorQuery().in(this);
					query.select('#'+id).boundingClientRect(data => {
					  // console.log("得到布局位置信息" + JSON.stringify(data));
					  // console.log("节点离页面顶部的距离为" + data);
					  resolve(data)
					}).exec();
				})
			},
			async CreateLine(ids) {
			    let list = ids.split(",");
				let ctx = uni.createCanvasContext('canvasdiv');
				ctx.beginPath()
			    for (let j = list.length - 1; j > 0; j--) {
			        let tid =await this.getPosi(list[j]);
			        let fid =await this.getPosi(list[j-1]);
					let f_width = fid.width;
					let f_height = fid.height;
					let t_width = tid.width;
					let t_height = tid.height;
			        let f_top = fid.top+f_width/2;
			        let f_left = fid.left+f_height/2;
			        let t_top = tid.top+t_width/2;
			        let t_left = tid.left+t_height/2;
					ctx.moveTo(f_left, f_top)
					ctx.lineTo(t_left, t_top)
			    }
				ctx.setStrokeStyle('red')
				ctx.lineWidth = 3
				ctx.stroke()
				ctx.draw()
			}
		}
	}
</script>

<style>
	#canvasdiv{
		position: fixed;
		top: 0;
		left: 0;
		right: 0;
		bottom: 0;
		z-index: 1000;
		width: 100vw;
		height: 100vh;
	}
	.table{
		width: 100vw;
		height: 100vh;
	}
	.t-h .t-r{
		color: #000000;
		font-weight: bold;
	}
	.t-h,.t-b{
		display: flex;
		justify-content: flex-start;
		align-items: flex-start;
	}
	.t-r{
		width:50rpx;
		height: 50rpx;
		border: 2rpx solid #000000;
		box-sizing: border-box;
		font-size: 20rpx;

	}
</style>
