数据结构--全国交通咨询系统（C语言）
数据结构之图结构处理全国交通咨询
·
问题重述
处于不同目的的旅客对交通工具有不同的要求。例如，因公出差的旅客希望在旅途中的时间尽可能地短，出门旅游的游客则期望旅费尽可能省，而老年旅客则要求中转次数最少。编制一个全国城市间的交通咨询程序，为旅客提供两种或三种最优决策的交通咨询。
目标：
- 提供对城市信息进行编辑（如添加或删除）的功能。
(2)城市之间有两种交通工具：火车和飞机。提供对列车时刻表和飞机航班进行编辑（增设或删除）的功能。
(3)提供两种最优决策：最快到达和最省钱到达。全程只考虑一种交通工具。
(4)旅途中耗费的总时间应该包括中转站的等候时间。
(5)咨询以用户和计算机的对话方式进行。由用户输入起始站、终点站、最优决策原则和交通工具。输出信息：最快需要多长时间才能到达或者最少需要多少旅费才能到达，并详细说明依次于何时乘坐哪一趟列车或哪一次班机到何地。
(6)对全国城市交通图和列车时刻表及飞机航班表进行编辑，应该提供文件形式输入和键盘输入两种方式。飞机航班表的信息应包括：起始站的出发时间、终点站的到达时间和票价；列车时刻表则需根据交通图给出各个路段的详细信息，例如：对从北京到上海的火车，需给出北京至天津、天津至徐州及徐州至上海各段的出发时间、到达时间及票价等信息。
(7)以邻接表作交通图的存储结构，表示边的结构内除含有邻接点的信息外，还应包括交通工具、路程中耗费的时间和花费以及出发和到达的时间等多种属性。
(8)*可考虑增加旅途中转次数最少的最优决策。
分析过程
- 全国交通图中数据量较多，顶点为城市，而边上的信息非常丰富，包括两城市间的路程，两种交通工具的发车时间，费用，交通工具的车牌号或者航班号等信息。
- 首先将咨询者分为两类，管理员和用户，管理员可以对交通图进行编辑，而用户只能进行查询，所以设置不同的界面，界面里面包括不同的功能。

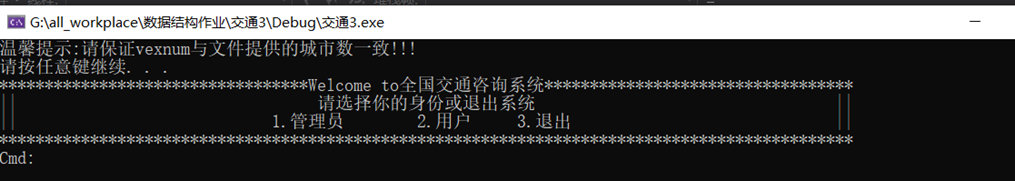

主界面
管理员界面
用户界面
- 对管理员界面分析:

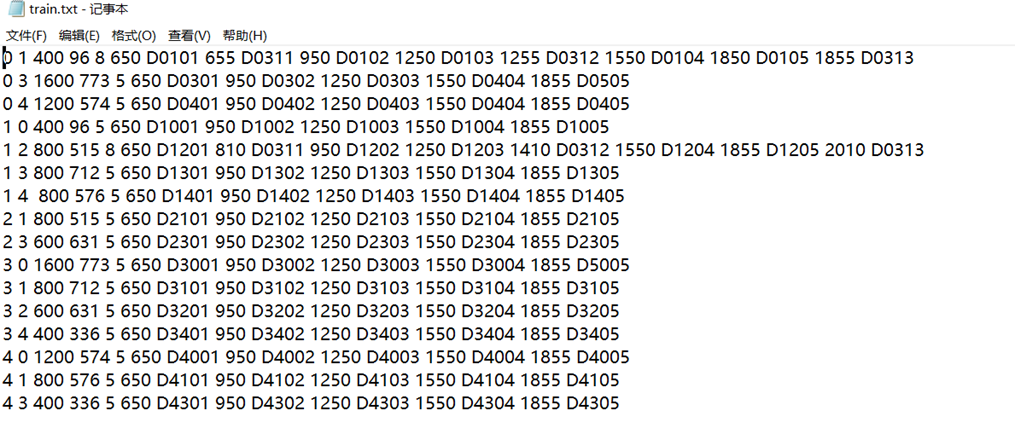

（数据说明:出发城市号 目的城市号 距离 费用 一天内有几趟车 第一趟车的出发时间（655表示6:55）第一趟车的车牌号 第二趟…）
（航班表未进行展示）
2）增添城市：在存储城市节点的数组中添加新城市即可。
3）删除城市：删除一个城市同时要删除与它相关的边，时间复杂度为O（V+E）。
4）增添指定路线:找到要出发点节点，然后遍历其邻接表，找到相应位置，修改里面的数据，但是作者的火车，飞机出发时间都是有序的，所以还需要再进行一次遍历，插入到出发时间链表的相应位置。时间复杂度与出发节点后的链表长度和时间信息链表相关。
5）删除指定路线:找到要删除路线的起始城市，然后遍历其后的链表，找到相应的表节点，然后进行删除即可。时间复杂度与起始节点后的链表长度有关，最坏为O（V）。

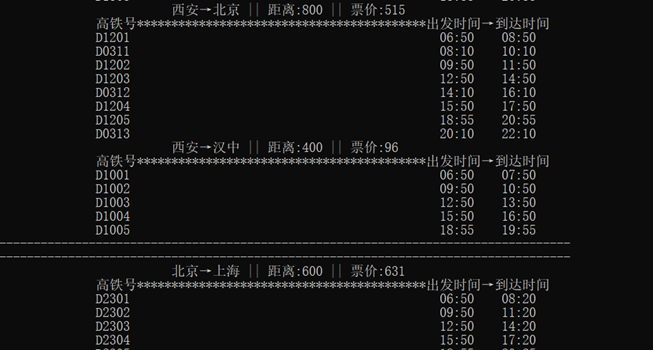

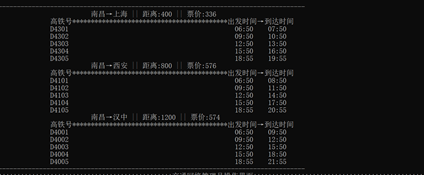

6）查看所有的火车和航班：遍历整个表，时间复杂度为O（V+E），但是实际时间还要加上遍历每条边上存储的时间链的时间。

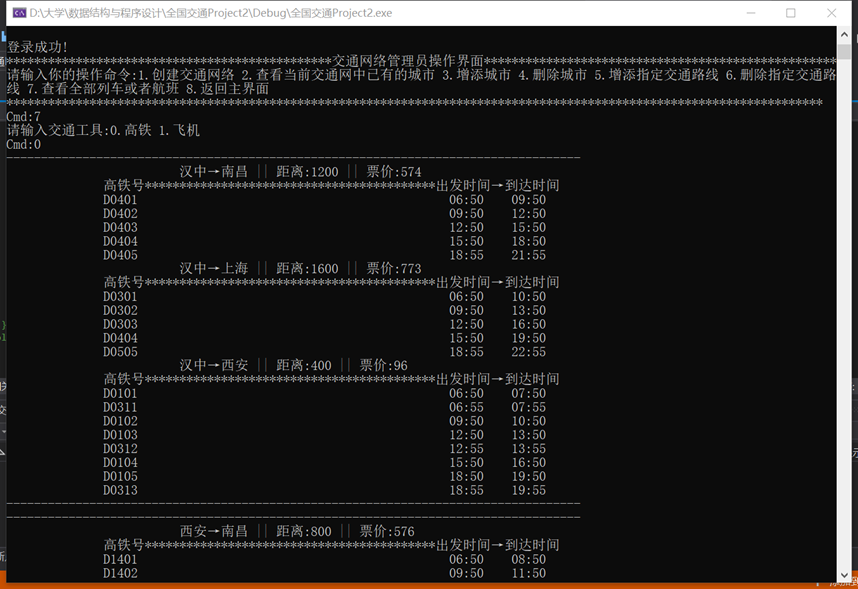

（展示部分）
- 用户界面分析：旅客出行出于不同目的：提供了“距离最短”，“费用最少”和“转站最少”3种选项，让乘客可以选择适合自己的路径；这里作者全部采用了Floyd算法，没有使用Dijkstra算法，因为在用户界面，只能进行查询操作，不能进行编辑，所以在用户进行第一次加载交通图时，直接进行Floyd算法，将所有点的最短路径等信息全部保存在Path和dis数组中，后面不用重复Floyd，只用通过Path和dis数组查询即可以。而Dijkstra每次查询都要运行，不具有存储功能。Floyd算法的时间复杂度为O（n^3），空间复杂度为O（n^2）.
- 距离最短：对于所带“路径长度”的权值采用floyd算法，计算最短路径也就是最短时间的乘车方案；因为floyd算法可以把各个顶点之间的最低路径得到，要要查询哪两个点，直接通过dis和Path数组，便可以直接获得所要求两点的最低路径。
- 费用最少：思路同求最短路径一致，只是将权值换成费用即可。
- 转站最少：换一个思维，假设在所有边上加上同一个权值—1，然后依据此权值同样进行Floyd算法，就可以求得中转次数最少的方案。 当然，作者还使用修改过DFS算法，也可以完成了这一功能。DFS时间复杂度为O（V+E），空间复杂度也为O（V）。
用DFS解决中转次数--具体代码如下:
1. void DFS(ALGraph G,int u)
2. {
3. //d[i]表示从u到i节点的最短路径
4. for (int i = 0; i < G.vexnum; ++i)
5. {
6. d[i] = INF; //初始化长度
7. }
8. visited[u] = TRUE;
9. d[u] = 0;
10. EnQueue(Q, u);
11. while (!IsEmpty(Q)) {
12. DeQueue(Q, u);
13. for (w = FirstNeighour(G, u); w >= 0; w = NextNeighbor(G, u, w))
14. {
15. if (!visited[w])
16. {
17. visited[w] = TRUE;
18. d[w] = d[u] + 1; //中转站加1
19. EnQueue(Q, w);
20. }
21. }//if
22. }//while
23. }
测试

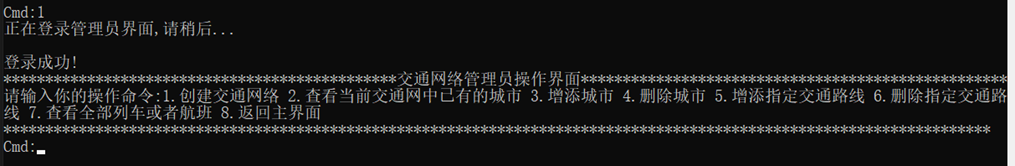

- 管理员主界面：

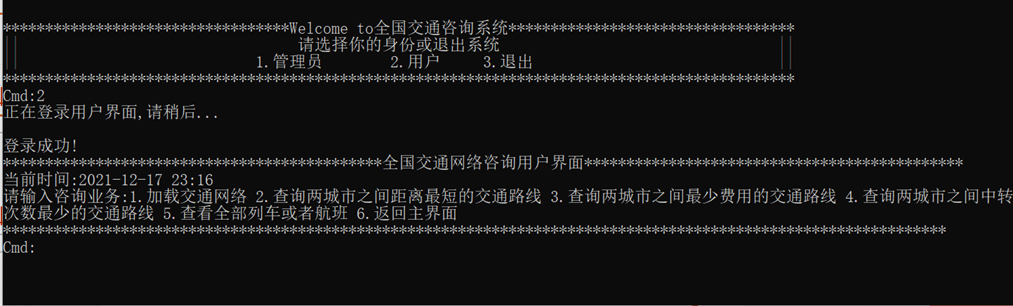

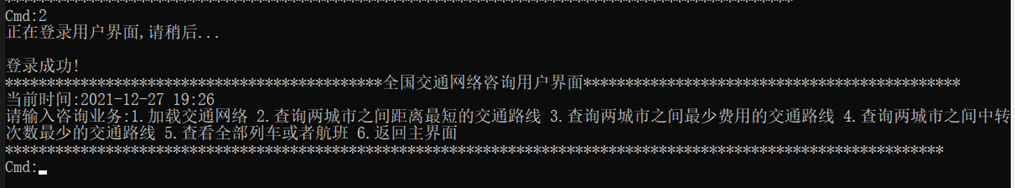

- 用户主界面：

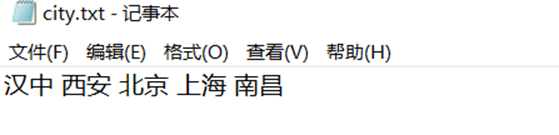

- 初始化交通图和列车时刻表：

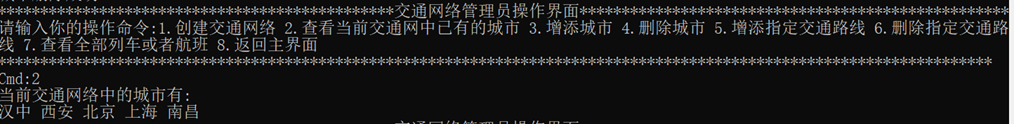

- 查看已有的城市：

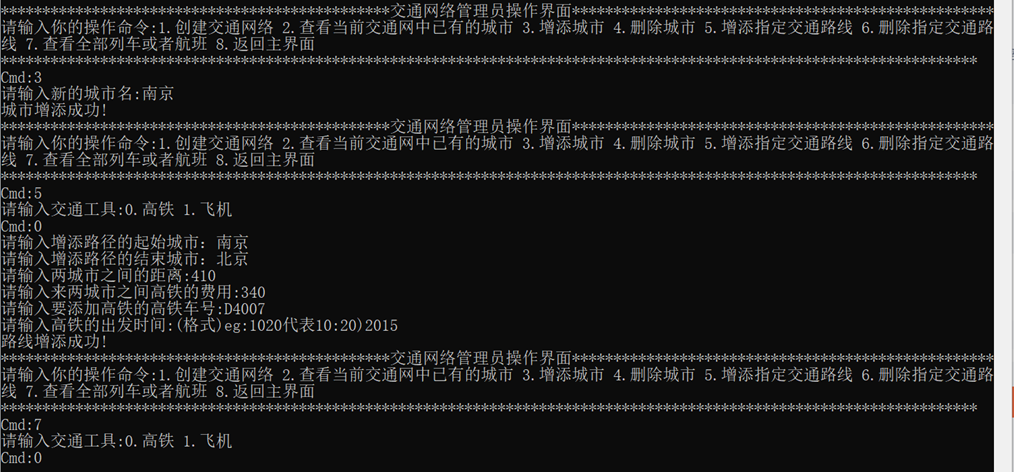

- 增添城市和路径：

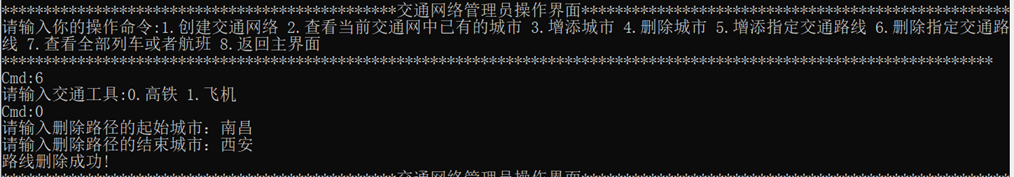

- 删除城市和路径：

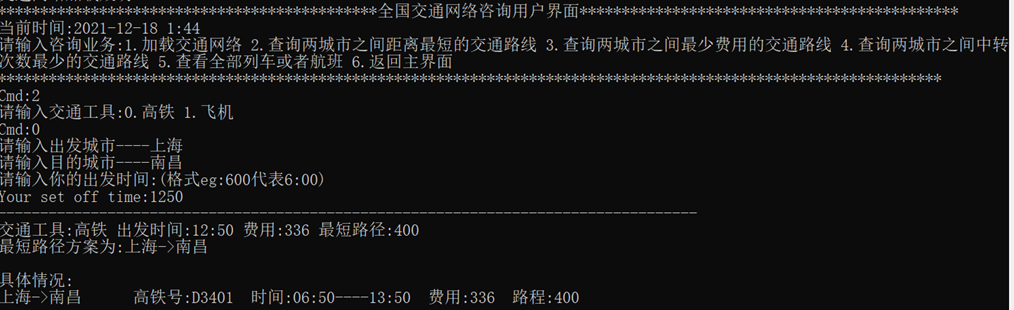

- 最快到达：
- 最省钱到达：略
- 转站最少：略
源代码
#define _CRT_SECURE_NO_WARNINGS
#include<stdio.h>
#include<stdlib.h>
#include<string.h>
#include<time.h>
#include<memory.h>
#define MAXCITYNUM 20 //定义城市数量
//交通工具速度
#define train_speed 400.0
#define plane_speed 800.0
//状态变量
typedef int Status;
#define TRUE 1
#define FALSE 0
#define OK 1
#define ERROR 0
#define OVERFLOW -1
#define DataType int
#define MAX_NAME 10 /* 顶点字符串的最大长度 */
#define MAX_INFO 10 /* 相关信息字符串的最大长度 */
#define MAXV 100
#define INF 10000
#define VexNum 5
int t_distance_Path[MAXCITYNUM][MAXCITYNUM];
int p_distance_Path[MAXCITYNUM][MAXCITYNUM];
int t_price_Path[MAXCITYNUM][MAXCITYNUM];
int p_price_Path[MAXCITYNUM][MAXCITYNUM];
int t_distance_dis[MAXCITYNUM][MAXCITYNUM];
int p_distance_dis[MAXCITYNUM][MAXCITYNUM];
int t_price_dis[MAXCITYNUM][MAXCITYNUM];
int p_price_dis[MAXCITYNUM][MAXCITYNUM];
int t_transfer_Path[MAXCITYNUM][MAXCITYNUM];
int p_transfer_Path[MAXCITYNUM][MAXCITYNUM];
int t_transfer_dis[MAXCITYNUM][MAXCITYNUM];
int p_transfer_dis[MAXCITYNUM][MAXCITYNUM];
//全局变量用来计算价格,路程,中转次数
int s_price = 0;
int s_distance = 0;
int s_transfer = 0;
//全局变量当前时间
char now_time[10] = { '\0' };
typedef char VertexType[MAX_NAME];
typedef struct Time {
char set_off_time[10]; //出发时间
char tag[MAX_INFO]; //火车号或者航班号
struct Time* next;
}Time;
typedef struct InfoType {
int distance; //距离
int price; //该段距离的票价
Time* time; //时间结构
}InfoType;
typedef struct ArcNode {
int adjvex; //该边所指向的节点位置
struct ArcNode* nextarc; //指向下一个结点的指针
InfoType* info; //边上的数据
}ArcNode;
typedef struct {
VertexType city; //城市名
ArcNode* firstarc;
}VNode, AdjList[MAXCITYNUM];
typedef struct {
AdjList plane_vertices; //飞机邻接表
AdjList train_vertices; //火车邻接表
int vexnum; //图上的顶点数
}ALGraph;
//队列结构
typedef struct {
DataType data[MAXCITYNUM];
int front;
int rear;
}Queue;
//全局队列
Queue s_queue;
//界面函数
void Run_Process(void); //运行函数
void Main_InterFace(void); //主界面函数
void Administrator_Command(void); //管理员操作提示界面
void Ordinary_Command(char* str); //用户操作提示界面
//创建交通图
Status CreateGraph(ALGraph* G);
//Floyd算法 求最短路径 flag为交通变量标识
Status Floyd_price(ALGraph* G, int flag);
Status Floyd_price(ALGraph* G, int flag);
Status Floyd_transfer(ALGraph* G, int flag);
//交通图编辑函数
Status Insert_Vex(ALGraph* G, char* v);
Status DeleteVex(ALGraph* G, char* v);
Status DeleteArc(ALGraph* G, char* v, char* w, int flag);
Status InsertArc(ALGraph* G, char* v, char* w, int flag);
//交通图相关其他函数
int Locate_City_Num(ALGraph G, char* s);
int Is_Next_City(ALGraph G, int i, int j, int flag);
void Display_City(ALGraph G);
Status Judge_City_Exist(ALGraph G, char* str);
void Print_All_Arc(ALGraph G,int flag);
//时间处理函数
void Time_Convert(char* t, int n);
void Convert_To_Str(char* str, int n, int m);
void Time_Standard(char* s, int total_second);
int Convert_To_Second(char* s);
//核心代码 flag--交通工具 ctr--控制打印
void Print_Choice_Distance_Path(ALGraph G, int i, int j, int flag);
void Print_Choice_Price_Path(ALGraph G, int i, int j, int flag);
void Print_Choice_Transfer_Path(ALGraph G, int i, int j, int flag);
void Print_Price_Path(ALGraph G, int i, int j, int flag,int ctr);
void Print_Distance_Path(ALGraph G, int i, int j, int flag,int ctr);
void Print_Transfer_Path(ALGraph G, int i, int j, int flag, int ctr);
void Screen_Traffic_Table_Distance(ALGraph G, int from, int to, int flag);
void Screen_Traffic_Table_Price(ALGraph G, int from, int to, int flag);
void Screen_Traffic_Table_Transfer(ALGraph G, int from, int to, int flag);
Status Total_Price(ALGraph G, int i, int j, int flag);
Status Total_Distance(ALGraph G, int i, int j, int flag);
Status Total_Distance_And_Price(ALGraph G, int i, int j, int flag);
Status Detail(ALGraph G, int from, int to, char* set_off_time, int flag);
//队列相关函数
Status InitQueue(Queue* q);
Status EnQueue(Queue* q, DataType data);
DataType DeQueue(Queue* q); //出队
//测试函数
void Command(char* str);
//void Adminstrator_InterFace(ALGraph G); //管理员
//void Ordinary_InterFace(ALGraph G); //用户
void Test3(void);
void Test4(void);
void Test5(void);
int main()
{
printf("温馨提示:请保证vexnum与文件提供的城市数一致!!!\n");
system("pause");
Run_Process();
/*int p = 600;
float k = (float)p / train_speed;
return;*/
//printf("%d", k);
//Main_InterFace();
//Administrator_Command();
//Test3();
//Test4();
//ALGraph G;
//CreateGraph(&G);
//Print_All_Arc(G, 0);
//Test5();
return 0;
}
void Run_Process(void)
{
ALGraph Traffic_Graph;
int choice; //主页面选择
int choice1; //管理员选择
int choice2; //用户选择
int tag = 1; //操纵主界面
int tag1; //操纵管理员界面
int tag2 = 1; //操纵用户界面
int flag; //区分交通工具 0代表高铁 1代表飞机
char f_city[12] = { '\0' }; //出发城市
char t_city[12] = { '\0' }; //目的城市
char new_city[10] = { '\0' }; //新城市
int city_num1;
int city_num2;
Status state; //状态变量
int creation = 0; //用来标识当前图是否创建
int f_creation = 0; //二重标识
while (tag == 1)
{/*主界面设置*/
Main_InterFace();
scanf_s("%d", &choice);
while (choice > 3 || choice < 1)
{
printf("Cmd Error!请输入正确的命令!\nCmd:");
scanf_s("%d", &choice);
}
switch (choice) //主界面设置
{
case 1:
printf("正在登录管理员界面,请稍后...\n\n");
//Adminstrator_InterFace(&Traffic_Graph);
///
///
///
///
///
///
///
///
tag1 = 1;
printf("登录成功!\n");
while (tag1 == 1)
{
Administrator_Command();
scanf_s("%d", &choice1);
while (choice1 > 8 || choice1 < 1)
{
printf("Cmd Error!请输入正确的操作命令!\nCmd:");
scanf_s("%d", &choice1);
}
switch (choice1)
{
case 1:
if (creation == 1)
{
printf("当前交通网络已创建!\n");
break;
}
if (creation == 0)
{
CreateGraph(&Traffic_Graph);
creation = 1;
}
printf("交通网络创建成功!\n");
break;
case 2:
if (creation == 0)
{
printf("请先创建交通网络!\n");
break;
}
Display_City(Traffic_Graph);
break;
case 3:
if (creation == 0)
{
printf("请先创建交通网络!\n");
break;
}
printf("请输入新的城市名:");
(void)scanf("%s", new_city);
if (Locate_City_Num(Traffic_Graph, new_city) != -1)
{
printf("当前交通网络已存在%s!\n", new_city);
break;
}
state = Insert_Vex(&Traffic_Graph, new_city);
if (state == OK) printf("城市增添成功!\n");
break;
case 4:
if (creation == 0)
{
printf("请先创建交通网络!\n");
break;
}
printf("请输入要删除的城市名:");
(void)scanf("%s", new_city);
if (Locate_City_Num(Traffic_Graph, new_city) == -1)
{
printf("当前交通网络不存在%s!\n", new_city);
break;
}
state = DeleteVex(&Traffic_Graph, new_city);
if (state == OK) printf("城市删除成功!\n");
break;
case 5:
if (creation == 0)
{
printf("请先创建交通网络!\n");
break;
}
printf("请输入交通工具:0.高铁 1.飞机\nCmd:");
scanf_s("%d", &flag);
printf("请输入增添路径的起始城市：");
(void)scanf("%s", f_city);
printf("请输入增添路径的结束城市：");
(void)scanf("%s", t_city);
if (strcmp(f_city, t_city) == 0)
{
printf("起止城市相同!\n");
break;
}
state = InsertArc(&Traffic_Graph, f_city, t_city, flag);
if (state == OK) printf("路线增添成功!\n");
break;
case 6:
if (creation == 0)
{
printf("请先创建交通网络!\n");
break;
}
printf("请输入交通工具:0.高铁 1.飞机\nCmd:");
scanf_s("%d", &flag);
printf("请输入删除路径的起始城市：");
(void)scanf("%s", f_city);
printf("请输入删除路径的结束城市：");
(void)scanf("%s", t_city);
if (strcmp(f_city, t_city) == 0)
{
printf("起止城市相同!\n");
break;
}
//Judge_City_Exist(G, f_city);
state = DeleteArc(&Traffic_Graph, f_city, t_city, flag);
if (state == OK) printf("路线删除成功!\n");
else printf("城市删除失败!\n");
break;
case 7:
if (creation == 0)
{
printf("请先创建交通网络!\n");
break;
}
printf("请输入交通工具:0.高铁 1.飞机\nCmd:");
scanf_s("%d", &flag);
Print_All_Arc(Traffic_Graph, flag);
break;
case 8:
tag1 = 0;
break;
default:
tag1 = 0;
printf("管理员系统崩溃!请重新登录...\n\n\n");
break;
}
}//while
///
///
///
///
///
///
f_creation = 0;
printf("正在返回主界面,请稍后...\n\n\n");
break;
case 2:
printf("正在登录用户界面,请稍后...\n\n");
//
///
///
///
///
///
///
printf("登录成功!\n");
tag2 = 1;
while (tag2 == 1)
{
Ordinary_Command(now_time);
scanf_s("%d", &choice2);
while (choice2 > 6 || choice2 < 1)
{
printf("Cmd Error!请输入正确的操作命令!\nCmd:");
scanf_s("%d", &choice2);
}
switch (choice2)
{
case 1:
if (creation == 0 && f_creation == 0)//防止管理员修改交通网络之后刷新
{
CreateGraph(&Traffic_Graph);
creation = 1;
}
/*加载完最短路径和最少费用，后面只做简单查询，不用再修改，避免反复加载，增加复杂度*/
Floyd_distance(&Traffic_Graph, 0);
Floyd_distance(&Traffic_Graph, 1);
Floyd_price(&Traffic_Graph, 0);
Floyd_price(&Traffic_Graph, 1);
Floyd_transfer(&Traffic_Graph, 0);
Floyd_transfer(&Traffic_Graph, 1);
f_creation = 1;
printf("交通网络加载成功!\n");
break;
case 2:
if (f_creation == 0)
{
printf("请先加载交通网络!\n");
break;
}
printf("请输入交通工具:0.高铁 1.飞机\nCmd:");
scanf_s("%d", &flag);
printf("请输入出发城市----");
(void)scanf("%s", f_city);
printf("请输入目的城市----");
(void)scanf("%s", t_city);
city_num1 = Locate_City_Num(Traffic_Graph, f_city);
city_num2 = Locate_City_Num(Traffic_Graph, t_city);
if (city_num1 == -1)
{
printf("当前交通网络中不存在%s城市\n", f_city);
break;
}
if (city_num2 == -1)
{
printf("当前交通网络中不存在%s城市\n", t_city);
break;
}
if (city_num1 == city_num2)
{
printf("出发地址与目的地址一样!\n");
break;
}
Screen_Traffic_Table_Distance(Traffic_Graph, city_num1, city_num2, flag);
break;
case 3:
if (f_creation == 0)
{
printf("请先加载交通网络!\n");
break;
}
printf("请输入交通工具:0.高铁 1.飞机\nCmd:");
scanf_s("%d", &flag);
printf("请输入出发城市----");
(void)scanf("%s", f_city);
printf("请输入目的城市----");
(void)scanf("%s", t_city);
city_num1 = Locate_City_Num(Traffic_Graph, f_city);
city_num2 = Locate_City_Num(Traffic_Graph, t_city);
if (city_num1 == -1)
{
printf("当前交通网络中不存在%s城市\n", f_city);
break;
}
if (city_num2 == -1)
{
printf("当前交通网络中不存在%s城市\n", t_city);
break;
}
if (city_num1 == city_num2)
{
printf("出发地址与目的地址一样!\n");
break;
}
Screen_Traffic_Table_Price(Traffic_Graph, city_num1, city_num2, flag);
break;
case 4:
if (f_creation == 0)
{
printf("请先加载交通网络!\n");
break;
}
printf("请输入交通工具:0.高铁 1.飞机\nCmd:");
scanf_s("%d", &flag);
printf("请输入出发城市----");
(void)scanf("%s", f_city);
printf("请输入目的城市----");
(void)scanf("%s", t_city);
city_num1 = Locate_City_Num(Traffic_Graph, f_city);
city_num2 = Locate_City_Num(Traffic_Graph, t_city);
if (city_num1 == -1)
{
printf("当前交通网络中不存在%s城市\n", f_city);
break;
}
if (city_num2 == -1)
{
printf("当前交通网络中不存在%s城市\n", t_city);
break;
}
if (city_num1 == city_num2)
{
printf("出发地址与目的地址一样!\n");
break;
}
Screen_Traffic_Table_Transfer(Traffic_Graph, city_num1, city_num2, flag);
break;
case 5:
if (f_creation == 0)
{
printf("请先加载交通网络!\n");
break;
}
printf("请输入交通工具:0.高铁 1.飞机\nCmd:");
scanf_s("%d", &flag);
Print_All_Arc(Traffic_Graph, flag);
break;
case 6:
tag2 = 0;
printf("正在返回主界面,请稍后...\n\n\n");
break;
default:
printf("用户界面崩溃!请重新登录...\n\n\n");
tag2 = 0;
break;
}
}//while
///
///
///
///
break;
case 3:
printf("正在退出交通咨询系统,请稍后...\n\n\n");
tag = 0;
break;
default:
printf("系统崩溃!即将退出系统...\n\n");
tag = 0;
break;
}
}//while
printf("退出成功!\n");
return;
}
void Main_InterFace(void)
{
printf("**********************************Welcome to全国交通咨询系统**********************************\n");
printf("|| 请选择你的身份或退出系统 ||\n");
printf("|| 1.管理员 2.用户 3.退出 ||\n");
printf("**********************************************************************************************\nCmd:");
}
void Administrator_Command(void)
{
printf("***********************************************交通网络管理员操作界面***************************************************\n");
printf("请输入你的操作命令:1.创建交通网络 2.查看当前交通网中已有的城市 3.增添城市 4.删除城市 5.增添指定交通路线 6.删除指定交通路线 7.查看全部列车或者航班 8.返回主界面\n");
printf("**********************************************************************************************************************\nCmd:");
}
void Ordinary_Command(char* str)
{
time_t now;
time(&now);
struct tm* tm_now;
tm_now = localtime(&now);
printf("*********************************************全国交通网络咨询用户界面*********************************************\n");
printf("当前时间:%d-%d-%d %d:%d\n", tm_now->tm_year + 1900, tm_now->tm_mon + 1, tm_now->tm_mday, tm_now->tm_hour, tm_now->tm_min);
printf("请输入咨询业务:1.加载交通网络 2.查询两城市之间距离最短的交通路线 3.查询两城市之间最少费用的交通路线 4.查询两城市之间中转次数最少的交通路线 5.查看全部列车或者航班 6.返回主界面\n");
Convert_To_Str(str, tm_now->tm_hour, tm_now->tm_min);
printf("****************************************************************************************************************\n");
printf("Cmd:");
}
void Display_City(ALGraph G)
{
printf("当前交通网络中的城市有:\n");
for (int i = 0; i < G.vexnum; i++)
{
printf("%s ", G.train_vertices[i].city);
}
printf("\n");
return;
}
Status CreateGraph(ALGraph* G)
{
FILE* fp;
FILE* fp1;
FILE* fp2;
ArcNode* p;
(*G).vexnum = VexNum;
if ((fp = fopen("city.txt", "r")) == NULL) {
perror("the file fail to read");
system("pause");//暂停显示
exit(1);
}
if ((fp1 = fopen("train.txt", "r")) == NULL) {
perror("the file fail to read");
system("pause");//暂停显示
exit(1);
}
if ((fp2 = fopen("plane.txt", "r")) == NULL) {
perror("the file fail to read");
system("pause");//暂停显示
exit(1);
}
int n = 0;
while (!feof(fp) && !ferror(fp)) {
fscanf(fp, "%s", (*G).train_vertices[n].city);
strcpy((*G).plane_vertices[n].city, (*G).train_vertices[n].city);
(*G).train_vertices[n].firstarc = NULL;
(*G).plane_vertices[n].firstarc = NULL;
n++;
}
int t1, t2;
char str_time[20] = { '\0' };
int itime;
int distance;
int price;
int num;
char icon[10] = { '\0' }; //用来缓存车牌号
Time* ptr, * ptr1;
while (!feof(fp1) && !ferror(fp1)) {//文件读取结束或出错则退出
fscanf_s(fp1, "%d%d%d%d%d", &t1, &t2, &distance, &price, &num);
p = (ArcNode*)malloc(sizeof(ArcNode));
if (p == NULL) {
return;
}
p->adjvex = t2;
p->info = (InfoType*)malloc(sizeof(InfoType));
p->info->distance = distance;
p->info->price = price;
p->info->time = (Time*)malloc(sizeof(Time));
/*单独处理第一个元素*/
ptr1 = p->info->time;
fscanf(fp1, "%d%s", &itime,icon);
Time_Convert(str_time, itime);
strcpy(ptr1->set_off_time, str_time);
strcpy(ptr1->tag, icon);
/*处理除去其他元素*/
for (int i = 1; i < num; i++)
{
fscanf(fp1, "%d%s", &itime,icon);
Time_Convert(str_time, itime);
ptr = (Time*)malloc(sizeof(Time));
strcpy(ptr->set_off_time, str_time);
strcpy(ptr->tag, icon);
/*插入到最后，让时间从小到大*/
ptr1->next = ptr;
ptr1 = ptr1->next;
}
/*将最后的指针置空*/
ptr1->next = NULL;
/* 插在表头 */
p->nextarc = (*G).train_vertices[t1].firstarc;
(*G).train_vertices[t1].firstarc = p;
}
while (!feof(fp2) && !ferror(fp2)) {
fscanf_s(fp2, "%d%d%d%d%d", &t1, &t2, &distance, &price, &num);
p = (ArcNode*)malloc(sizeof(ArcNode));
if (p == NULL) {
return;
}
p->adjvex = t2;
p->info = (InfoType*)malloc(sizeof(InfoType));
p->info->distance = distance;
p->info->price = price;
p->info->time = (Time*)malloc(sizeof(Time));
/*单独处理第一个元素*/
ptr1 = p->info->time;
fscanf(fp2, "%d%s", &itime, icon);
Time_Convert(str_time, itime);
strcpy(ptr1->set_off_time, str_time);
strcpy(ptr1->tag, icon);
/*处理除去其他元素*/
for (int i = 1; i < num; i++)
{
fscanf(fp2, "%d%s", &itime, icon);
Time_Convert(str_time, itime);
ptr = (Time*)malloc(sizeof(Time));
strcpy(ptr->set_off_time, str_time);
strcpy(ptr->tag, icon);
/*插入到最后，让时间从小到大*/
ptr1->next = ptr;
ptr1 = ptr1->next;
}
/*将最后的指针置空*/
ptr1->next = NULL;
/* 插在表头 */
p->nextarc = (*G).plane_vertices[t1].firstarc;
(*G).plane_vertices[t1].firstarc = p;
}
return OK;
}
int Locate_City_Num(ALGraph G, char* s)
{
int n;
int flag = 0;
for (n = 0; n < (G.vexnum); n++)
{
if (strcmp(s, G.train_vertices[n].city) == 0)
{
flag = 1;
break;
}
}
return flag == 1 ? n : -1;
}
Status Judge_City_Exist(ALGraph G, char* str)
{
if (Locate_City_Num(G, str) == -1)
{
printf("当前交通网络中不存在%s城市\n", str);
return FALSE;
}
return TRUE;
}
Status Floyd_distance(ALGraph* G, int flag)
{
if (flag == 0)
{/*flag==0代表是火车*/
int i, j, k;
for (i = 0; i < (*G).vexnum; i++) {
for (j = 0; j < (*G).vexnum; j++) {
if (i == j) {
t_distance_dis[i][j] = 0;
}
else {
t_distance_dis[i][j] = INF;
}
}
}
memset(t_distance_Path, -1, sizeof(t_distance_Path));
ArcNode* s;
for (i = 0; i < (*G).vexnum; i++) {
s = (*G).train_vertices[i].firstarc;
while (s != NULL) {
t_distance_dis[i][s->adjvex] = s->info->distance;
s = s->nextarc;
}
}
for (k = 0; k < (*G).vexnum; k++) {
for (i = 0; i < (*G).vexnum; i++) {
for (j = 0; j < (*G).vexnum; j++) {
if (t_distance_dis[i][k] + t_distance_dis[k][j] < t_distance_dis[i][j]) {
t_distance_dis[i][j] = t_distance_dis[i][k] + t_distance_dis[k][j];
t_distance_Path[i][j] = k;
}//if
}//for j
}//for i
}//for k
}
else {/*飞机*/
int i, j, k;
for (i = 0; i < (*G).vexnum; i++) {
for (j = 0; j < (*G).vexnum; j++) {
if (i == j) {
p_distance_dis[i][j] = 0;
}
else {
p_distance_dis[i][j] = INF;
}
}
}
memset(p_distance_Path, -1, sizeof(p_distance_Path));
ArcNode* s;
for (i = 0; i < (*G).vexnum; i++) {
s = (*G).plane_vertices[i].firstarc;
while (s != NULL) {
p_distance_dis[i][s->adjvex] = s->info->distance;
s = s->nextarc;
}
}
for (k = 0; k < (*G).vexnum; k++) {
for (i = 0; i < (*G).vexnum; i++) {
for (j = 0; j < (*G).vexnum; j++) {
if (p_distance_dis[i][k] + p_distance_dis[k][j] < p_distance_dis[i][j]) {
p_distance_dis[i][j] = p_distance_dis[i][k] + p_distance_dis[k][j];
p_distance_Path[i][j] = k;
}//if
}//for j
}//for i
}//for k
}
return OK;
}
Status Floyd_price(ALGraph* G, int flag)
{
if (flag == 0) {/*火车*/
int i, j, k;
for (i = 0; i < (*G).vexnum; i++) {
for (j = 0; j < (*G).vexnum; j++) {
if (i == j) {
t_price_dis[i][j] = 0;
}
else {
t_price_dis[i][j] = INF;
}
}
}
memset(t_price_Path, -1, sizeof(t_price_Path));
ArcNode* s;
for (i = 0; i < (*G).vexnum; i++) {
s = (*G).train_vertices[i].firstarc;
while (s) {
t_price_dis[i][s->adjvex] = s->info->price;
s = s->nextarc;
}
}
for (k = 0; k < (*G).vexnum; k++) {
for (i = 0; i < (*G).vexnum; i++) {
for (j = 0; j < (*G).vexnum; j++) {
if (t_price_dis[i][k] + t_price_dis[k][j] < t_price_dis[i][j]) {
t_price_dis[i][j] = t_price_dis[i][k] + t_price_dis[k][j];
t_price_Path[i][j] = k;
}//if
}//for j
}//for i
}//for k
}
else {/*飞机*/
int i, j, k;
for (i = 0; i < (*G).vexnum; i++) {
for (j = 0; j < (*G).vexnum; j++) {
if (i == j) {
p_price_dis[i][j] = 0;
}
else {
p_price_dis[i][j] = INF;
}
}
}
memset(p_price_Path, -1, sizeof(p_price_Path));
ArcNode* s;
for (i = 0; i < (*G).vexnum; i++) {
s = (*G).plane_vertices[i].firstarc;
while (s) {
p_price_dis[i][s->adjvex] = s->info->price;
s = s->nextarc;
}
}
for (k = 0; k < (*G).vexnum; k++) {
for (i = 0; i < (*G).vexnum; i++) {
for (j = 0; j < (*G).vexnum; j++) {
if (p_price_dis[i][k] + p_price_dis[k][j] < p_price_dis[i][j]) {
p_price_dis[i][j] = p_price_dis[i][k] + p_price_dis[k][j];
p_price_Path[i][j] = k;
}//if
}//for j
}//for i
}//for k
}
}
Status Floyd_transfer(ALGraph* G, int flag)
{
if (flag == 0) {/*火车*/
int i, j, k;
for (i = 0; i < (*G).vexnum; i++) {
for (j = 0; j < (*G).vexnum; j++) {
if (i == j) {
t_transfer_dis[i][j] = 0;
}
else {
t_transfer_dis[i][j] = INF;
}
}
}
memset(t_transfer_Path, -1, sizeof(t_transfer_Path));
ArcNode* s;
for (i = 0; i < (*G).vexnum; i++) {
s = (*G).train_vertices[i].firstarc;
while (s) {
t_transfer_dis[i][s->adjvex] = 1; //代表中转一次
s = s->nextarc;
}
}
for (k = 0; k < (*G).vexnum; k++) {
for (i = 0; i < (*G).vexnum; i++) {
for (j = 0; j < (*G).vexnum; j++) {
if (t_transfer_dis[i][k] + t_transfer_dis[k][j] < t_transfer_dis[i][j]) {
t_transfer_dis[i][j] = t_transfer_dis[i][k] + t_transfer_dis[k][j];
t_transfer_Path[i][j] = k;
}//if
}//for j
}//for i
}//for k
}
else {/*飞机*/
int i, j, k;
for (i = 0; i < (*G).vexnum; i++) {
for (j = 0; j < (*G).vexnum; j++) {
if (i == j) {
p_transfer_dis[i][j] = 0;
}
else {
p_transfer_dis[i][j] = INF;
}
}
}
memset(p_transfer_Path, -1, sizeof(p_transfer_Path));
ArcNode* s;
for (i = 0; i < (*G).vexnum; i++) {
s = (*G).plane_vertices[i].firstarc;
while (s) {
p_transfer_dis[i][s->adjvex] = 1;
s = s->nextarc;
}
}
for (k = 0; k < (*G).vexnum; k++) {
for (i = 0; i < (*G).vexnum; i++) {
for (j = 0; j < (*G).vexnum; j++) {
if (p_transfer_dis[i][k] + p_transfer_dis[k][j] < p_transfer_dis[i][j]) {
p_transfer_dis[i][j] = p_transfer_dis[i][k] + p_transfer_dis[k][j];
p_transfer_Path[i][j] = k;
}//if
}//for j
}//for i
}//for k
}
return OK;
}
void Print_Choice_Distance_Path(ALGraph G, int i, int j, int flag)
{
if (flag == 0) {
if (t_distance_dis[i][j] == INF) {
printf("无法从%s乘坐高铁到达%s\n", G.train_vertices[i].city, G.train_vertices[j].city);
}
else {
printf("最短路径方案为:%s->", G.train_vertices[i].city);
Print_Distance_Path(G, i, j, flag, 1);
printf("%s\n", G.train_vertices[j].city);
EnQueue(&s_queue, j);
}
}
else {
if (p_distance_dis[i][j] == INF) {
printf("无法从%s乘坐飞机到达%s\n", G.plane_vertices[i].city, G.plane_vertices[j].city);
}
else {
printf("最短路径方案为:%s->", G.plane_vertices[i].city);
Print_Distance_Path(G, i, j, flag, 1);
printf("%s\n", G.plane_vertices[j].city);
EnQueue(&s_queue, j);
}
}//else
}
void Print_Distance_Path(ALGraph G, int i, int j, int flag,int ctr)
{
if (flag == 0) {
int k = t_distance_Path[i][j];
if (k == -1)
{
ArcNode* p = G.train_vertices[i].firstarc;
while (p->adjvex != j) {
p = p->nextarc;
}
s_price += p->info->price;
return;
}
Print_Distance_Path(G, i, k, flag, ctr);
if (ctr == 1) {
printf("%s->", G.train_vertices[k].city);
EnQueue(&s_queue, k);
}
Print_Distance_Path(G, k, j, flag, ctr);
}//if_train
else {
int k = p_distance_Path[i][j];
if (k == -1)
{
ArcNode* p = G.plane_vertices[i].firstarc;
while (p->adjvex != j) {
p = p->nextarc;
}
s_price += p->info->price;
return;
}
Print_Distance_Path(G, i, k, flag, ctr);
if (ctr == 1) {
printf("%s->", G.plane_vertices[k].city);
EnQueue(&s_queue, k);
}
Print_Distance_Path(G, k, j, flag, ctr);
}//if_plane
}
void Print_Choice_Price_Path(ALGraph G, int i, int j, int flag)
{
if (flag == 0) {
if (t_price_dis[i][j] == INF) {
printf("无法从%s乘坐高铁到达%s\n", G.train_vertices[i].city, G.train_vertices[j].city);
}
else {
printf("最少费用路径方案为:%s->", G.train_vertices[i].city);
Print_Price_Path(G, i, j, flag,1);
printf("%s\n", G.train_vertices[j].city);
EnQueue(&s_queue, j);
}
}
else {
if (p_price_dis[i][j] == INF) {
printf("无法从%s乘坐飞机到达%s\n", G.plane_vertices[i].city, G.plane_vertices[j].city);
}
else {
printf("最少费用路径方案为:%s->", G.plane_vertices[i].city);
Print_Price_Path(G, i, j, flag,1);
printf("%s\n", G.plane_vertices[j].city);
EnQueue(&s_queue, j);
}
}//else
}
void Print_Price_Path(ALGraph G, int i, int j, int flag,int ctr)
{
if (flag == 0) {
int k = t_price_Path[i][j];
if (k == -1)
{
ArcNode* p = G.train_vertices[i].firstarc;
while (p->adjvex != j) {
p = p->nextarc;
}
s_distance += p->info->distance;
return;
}
Print_Price_Path(G, i, k, flag,ctr);
if (ctr == 1) {
printf("%s->", G.train_vertices[k].city);
EnQueue(&s_queue, k);
}
Print_Price_Path(G, k, j, flag,ctr);
}//if_train
else {
int k = p_price_Path[i][j];
if (k == -1)
{
ArcNode* p = G.plane_vertices[i].firstarc;
while (p->adjvex != j) {
p = p->nextarc;
}
s_distance += p->info->distance;
return;
}
Print_Price_Path(G, i, k, flag, ctr);
if (ctr == 1) {
printf("%s->", G.plane_vertices[k].city);
EnQueue(&s_queue, k);
}
Print_Price_Path(G, k, j, flag, ctr);
}//if_plane
}
void Print_Choice_Transfer_Path(ALGraph G, int i, int j, int flag)
{
if (flag == 0) {
if (t_transfer_dis[i][j] == INF) {
printf("无法从%s乘坐高铁到达%s\n", G.train_vertices[i].city, G.train_vertices[j].city);
}
else {
printf("最少中转路径方案为:%s->", G.train_vertices[i].city);
Print_Transfer_Path(G, i, j, flag, 1);
printf("%s\n", G.train_vertices[j].city);
EnQueue(&s_queue, j);
}
}
else {
if (p_transfer_dis[i][j] == INF) {
printf("无法从%s乘坐飞机到达%s\n", G.plane_vertices[i].city, G.plane_vertices[j].city);
}
else {
printf("最少中转路径方案为:%s->", G.plane_vertices[i].city);
Print_Transfer_Path(G, i, j, flag, 1);
printf("%s\n", G.plane_vertices[j].city);
EnQueue(&s_queue, j);
}
}//else
}
void Print_Transfer_Path(ALGraph G, int i, int j, int flag, int ctr)
{
if (flag == 0) {
int k = t_transfer_Path[i][j];
if (k == -1)
{
ArcNode* p = G.train_vertices[i].firstarc;
while (p->adjvex != j) {
p = p->nextarc;
}
s_distance += p->info->distance;
s_price += p->info->price;
return;
}
Print_Transfer_Path(G, i, k, flag, ctr);
if (ctr == 1) {
printf("%s->", G.train_vertices[k].city);
EnQueue(&s_queue, k);
}
Print_Transfer_Path(G, k, j, flag, ctr);
}//if_train
else {
int k = p_transfer_Path[i][j];
if (k == -1)
{
ArcNode* p = G.plane_vertices[i].firstarc;
while (p->adjvex != j) {
p = p->nextarc;
}
s_distance += p->info->distance;
s_price += p->info->price;
return;
}
Print_Transfer_Path(G, i, k, flag, ctr);
if (ctr == 1) {
printf("%s->", G.plane_vertices[k].city);
EnQueue(&s_queue, k);
}
Print_Transfer_Path(G, k, j, flag, ctr);
}//if_plane
}
void Screen_Traffic_Table_Distance(ALGraph G, int from, int to, int flag)
{
ArcNode* p;
Time* ptr;
int time;
char str_time[10] = { '\0' };
int tag;
int distance;
int set_time;
Status B;
if (flag == 0) {
InitQueue(&s_queue);
p = G.train_vertices[from].firstarc;
s_price = 0;
distance = t_distance_dis[from][to];
ptr = p->info->time;
B = Total_Price(G, from, to, flag);
if (B == FALSE) {//无法到达
return;
}
printf("请输入你的出发时间:(格式eg:600代表6:00)\nYour set off time:");
scanf_s("%d", &set_time);
Time_Convert(str_time, set_time);
while (ptr != NULL && strcmp(ptr->set_off_time, str_time) < 0) {
ptr = ptr->next;
}
if (ptr == NULL)
{
printf("-----------------------------------------------------------------------------------\n");
printf("没有合适的高铁!\n");
printf("-----------------------------------------------------------------------------------\n\n");
return;
}
printf("-----------------------------------------------------------------------------------\n");
printf("交通工具:高铁 出发时间:%s 费用:%d 最短路径:%d\n", str_time, s_price, distance);
Print_Choice_Distance_Path(G, from, to, flag);
printf("\n具体情况:\n");
Detail(G, from, DeQueue(&s_queue), ptr->set_off_time, flag);
printf("-----------------------------------------------------------------------------------\n\n");
}//if
else{
InitQueue(&s_queue);
p = G.plane_vertices[from].firstarc;
s_price = 0;
distance= p_distance_dis[from][to];
ptr = p->info->time;
B = Total_Price(G, from, to, flag);
if (B == FALSE) {//无法到达
return;
}
printf("请输入你的出发时间:(格式eg:600代表6:00)\nYour set off time:");
scanf_s("%d", &set_time);
Time_Convert(str_time, set_time);
while (ptr != NULL && strcmp(ptr->set_off_time, str_time) < 0) {
ptr = ptr->next;
}
if (ptr == NULL)
{
printf("-----------------------------------------------------------------------------------\n");
printf("没有合适的航班!\n");
printf("-----------------------------------------------------------------------------------\n\n");
return;
}
printf("-----------------------------------------------------------------------------------\n");
printf("交通工具:飞机 出发时间:%s 费用:%d 最短路径:%d\n", str_time, s_price,distance);
Print_Choice_Distance_Path(G, from, to, flag);
printf("\n具体情况:\n");
Detail(G, from, DeQueue(&s_queue), ptr->set_off_time, flag);
printf("-----------------------------------------------------------------------------------\n\n");
}
}
void Screen_Traffic_Table_Price(ALGraph G, int from, int to, int flag)
{
ArcNode* p;
Time* ptr;
int time;
char str_time[10] = { '\0' };
int tag;
int cost;
int set_time;//用户选择出发时间
Status B;
if (flag == 0) {
InitQueue(&s_queue);
p = G.train_vertices[from].firstarc;
s_distance = 0;
// float k;
cost = t_price_dis[from][to];
ptr = p->info->time;
B = Total_Distance(G, from, to, flag);
if(B==FALSE){//无法到达
return;
}
/* k = (float)s_distance / train_speed;
k = (int)(k * 3600);*/
printf("请输入你的出发时间:(格式eg:600代表6:00)\nYour set off time:");
scanf_s("%d", &set_time);
Time_Convert(str_time, set_time);
while (ptr != NULL && strcmp(ptr->set_off_time, str_time) < 0) {
ptr = ptr->next;
}
if (ptr == NULL)
{
printf("-----------------------------------------------------------------------------------\n");
printf("没有合适的高铁!\n");
printf("-----------------------------------------------------------------------------------\n\n");
return;
}
printf("-----------------------------------------------------------------------------------\n");
printf("交通工具:高铁 出发时间:%s 最少费用:%d 路径:%d\n", str_time,cost,s_distance);
Print_Choice_Price_Path(G, from, to, flag);
printf("\n具体情况:\n");
Detail(G, from,DeQueue(&s_queue),ptr->set_off_time, flag);
printf("-----------------------------------------------------------------------------------\n\n");
}//if
else{
InitQueue(&s_queue);
p = G.plane_vertices[from].firstarc;
s_distance = 0;
// float k;
cost = p_price_dis[from][to];
ptr = p->info->time;
B = Total_Distance(G, from, to, flag);
if (B == FALSE) {//无法到达
return;
}
/* k = (float)s_distance / plane_speed;
k = (int)(k * 3600);*/
printf("请输入你的出发时间:(格式eg:600代表6:00)\nYour set off time:");
scanf_s("%d", &set_time);
Time_Convert(str_time, set_time);
while (ptr != NULL && strcmp(ptr->set_off_time, str_time) < 0) {
ptr = ptr->next;
}
if (ptr == NULL)
{
printf("-----------------------------------------------------------------------------------\n");
printf("没有合适的航班!\n");
printf("-----------------------------------------------------------------------------------\n\n");
return;
}
printf("-----------------------------------------------------------------------------------\n");
printf("交通工具:飞机 出发时间:%s 最少费用:%d 路径:%d\n", str_time, cost,s_distance);
Print_Choice_Price_Path(G, from, to, flag);
printf("\n具体情况:\n");
Detail(G, from, DeQueue(&s_queue), ptr->set_off_time, flag);
printf("-----------------------------------------------------------------------------------\n\n");
}//else
return;
}
void Screen_Traffic_Table_Transfer(ALGraph G, int from, int to, int flag)
{
ArcNode* p;
Time* ptr;
int time;
char str_time[10] = { '\0' };
int tag;
int transfer;
int set_time;//用户选择出发时间
Status B;
if (flag == 0) {
InitQueue(&s_queue);
p = G.train_vertices[from].firstarc;
s_distance = 0;
s_price = 0;
// float k;
transfer = t_transfer_dis[from][to];
ptr = p->info->time;
B = Total_Distance_And_Price(G, from, to, flag);
if (B == FALSE) {//无法到达
return;
}
/* k = (float)s_distance / train_speed;
k = (int)(k * 3600);*/
printf("请输入你的出发时间:(格式eg:600代表6:00)\nYour set off time:");
scanf_s("%d", &set_time);
Time_Convert(str_time, set_time);
while (ptr != NULL && strcmp(ptr->set_off_time, str_time) < 0) {
ptr = ptr->next;
}
if (ptr == NULL)
{
printf("-----------------------------------------------------------------------------------\n");
printf("没有合适的高铁!\n");
printf("-----------------------------------------------------------------------------------\n\n");
return;
}
printf("-----------------------------------------------------------------------------------\n");
printf("交通工具:高铁 出发时间:%s 最少中转次数:%d 费用:%d 路径:%d\n", str_time,transfer, s_price, s_distance);
Print_Choice_Transfer_Path(G, from, to, flag);
printf("\n具体情况:\n");
Detail(G, from, DeQueue(&s_queue), ptr->set_off_time, flag);
printf("-----------------------------------------------------------------------------------\n\n");
}//if
else {
InitQueue(&s_queue);
p = G.plane_vertices[from].firstarc;
s_distance = 0;
s_price = 0;
// float k;
transfer = p_transfer_dis[from][to];
ptr = p->info->time;
B = Total_Distance_And_Price(G, from, to, flag);
if (B == FALSE) {//无法到达
return;
}
/* k = (float)s_distance / plane_speed;
k = (int)(k * 3600);*/
printf("请输入你的出发时间:(格式eg:600代表6:00)\nYour set off time:");
scanf_s("%d", &set_time);
Time_Convert(str_time, set_time);
while (ptr != NULL && strcmp(ptr->set_off_time, str_time) < 0) {
ptr = ptr->next;
}
if (ptr == NULL)
{
printf("-----------------------------------------------------------------------------------\n");
printf("没有合适的航班!\n");
printf("-----------------------------------------------------------------------------------\n\n");
return;
}
printf("-----------------------------------------------------------------------------------\n");
printf("交通工具:高铁 出发时间:%s 最少中转次数:%d 费用:%d 路径:%d\n", str_time, transfer, s_price, s_distance);
Print_Choice_Transfer_Path(G, from, to, flag);
printf("\n具体情况:\n");
Detail(G, from, DeQueue(&s_queue), ptr->set_off_time, flag);
printf("-----------------------------------------------------------------------------------\n\n");
}//else
return;
}
Status Detail(ALGraph G, int from,int to,char* set_off_time,int flag)
{
if (flag == 0) {
printf("%s->%s", G.train_vertices[from].city, G.train_vertices[to].city);
for (int i = 0; i < 10 - strlen(G.train_vertices[to].city); i++)
{
printf(" ");
}
ArcNode* p = G.train_vertices[from].firstarc;
while (p->adjvex != to) {
p = p->nextarc;
}
float k = (float)p->info->distance / train_speed;
k = (int)(k * 3600);
int time = k + Convert_To_Second(set_off_time);
char str_time[10] = { '\0' };
Time_Standard(str_time, time);
printf("高铁号:%s 时间:%s----%s 费用:%d 路程:%d\n", p->info->time->tag, p->info->time->set_off_time, str_time, p->info->price, p->info->distance);
int temp = DeQueue(&s_queue);
if (temp == -1) {
return;
}
char new_set_off[10] = { '\0' };
Time* q = G.train_vertices[to].firstarc->info->time;
//printf("%p", q->next);
/*if (q->next == 00000000) {
printf("好看!");
}*/
while (q != NULL&&strcmp(q->set_off_time, str_time) < 0) {
q = q->next;
}
if (q == NULL) {
printf("你到达%s的时间是%s,当天已经没有从%s开往%s的高铁!\n",G.train_vertices[to].city,str_time,G.train_vertices[to].city,G.train_vertices[temp].city);
return;
}
Detail(G, to,temp,q->set_off_time, flag);
}//if
else {
printf("%s->%s", G.plane_vertices[from].city, G.plane_vertices[to].city);
for (int i = 0; i < 10 - strlen(G.plane_vertices[to].city); i++)
{
printf(" ");
}
ArcNode* p = G.plane_vertices[from].firstarc;
while (p->adjvex != to) {
p = p->nextarc;
}
float k = (float)p->info->distance / plane_speed;
k = (int)(k * 3600);
int time = k + Convert_To_Second(set_off_time);
char str_time[10] = { '\0' };
Time_Standard(str_time, time);
printf("航班号:%s 时间:%s----%s 费用:%d 路程:%d\n", p->info->time->tag, p->info->time->set_off_time, str_time,p->info->price,p->info->distance);
int temp = DeQueue(&s_queue);
if (temp == -1) {
return;
}
char new_set_off[10] = { '\0' };
Time* q = G.plane_vertices[to].firstarc->info->time;
while (q != NULL && strcmp(q->set_off_time, str_time) < 0) {
q = q->next;
}
if (q == NULL) {
printf("你到达%s的时间是%s,当天已经没有从%s飞往%s的飞机!\n", G.plane_vertices[to].city, str_time, G.plane_vertices[to].city, G.plane_vertices[temp].city);
return;
}
Detail(G, to, temp, q->set_off_time, flag);
}
return OK;
}
/*使用全局变量计算全程中的费用*/
Status Total_Price(ALGraph G, int i, int j, int flag)
{
ArcNode* p = G.train_vertices[i].firstarc;
if (flag == 0) {
int k = t_distance_Path[i][j];
if (k == -1)//直达
{
if (t_distance_dis[i][j] == INF) {
printf("无法从%s乘高铁到达%s\n", G.train_vertices[i].city, G.train_vertices[j].city);
return FALSE;
}
else {
while (p->adjvex != j) {
p = p->nextarc;
}
s_price += p->info->price;
return TRUE;
}
}
Print_Distance_Path(G, i, k, flag, 0);
Print_Distance_Path(G, k, j, flag, 0);
}//if
else {
int k = p_distance_Path[i][j];
if (k == -1)//直达
{
if (p_distance_dis[i][j] == INF) {
printf("无法从%s乘飞机到达%s\n", G.plane_vertices[i].city, G.plane_vertices[j].city);
return FALSE;
}
else {
while (p->adjvex != j) {
p = p->nextarc;
}
s_price += p->info->price;
return TRUE;
}
}
Print_Distance_Path(G, i, k, flag, 0);
Print_Distance_Path(G, k, j, flag, 0);
}//else_plane
return OK;
}
Status Total_Distance(ALGraph G, int i, int j, int flag)
{
ArcNode* p= G.train_vertices[i].firstarc;
if (flag == 0) {
int k = t_price_Path[i][j];
if (k == -1)//直达
{
if (t_price_dis[i][j] == INF) {
printf("无法从%s乘高铁到达%s\n", G.train_vertices[i].city, G.train_vertices[j].city);
return FALSE;
}
else {
while (p->adjvex != j) {
p = p->nextarc;
}
s_distance += p->info->distance;
return TRUE;
}
}
Print_Price_Path(G, i, k, flag,0);
Print_Price_Path(G, k, j, flag,0);
}//if_train
else {
int k = p_price_Path[i][j];
if (k == -1)//直达
{
if (p_price_dis[i][j] == INF) {
printf("无法从%s乘飞机到达%s\n", G.plane_vertices[i].city, G.plane_vertices[j].city);
return FALSE;
}
else {
while (p->adjvex != j) {
p = p->nextarc;
}
s_distance += p->info->distance;
return TRUE;
}
}
Print_Price_Path(G, i, k, flag, 0);
Print_Price_Path(G, k, j, flag, 0);
}
return TRUE;
}
Status Total_Distance_And_Price(ALGraph G, int i, int j, int flag)
{
ArcNode* p = G.train_vertices[i].firstarc;
if (flag == 0) {
int k = t_transfer_Path[i][j];
if (k == -1)//直达
{
if (t_transfer_dis[i][j] == INF) {
printf("无法从%s乘高铁到达%s\n", G.train_vertices[i].city, G.train_vertices[j].city);
return FALSE;
}
else {
while (p->adjvex != j) {
p = p->nextarc;
}
s_distance += p->info->distance;
s_price += p->info->price;
return TRUE;
}
}
Print_Transfer_Path(G, i, k, flag, 0);
Print_Transfer_Path(G, k, j, flag, 0);
}//if_train
else {
int k = p_distance_Path[i][j];
if (k == -1)//直达
{
if (p_distance_dis[i][j] == INF) {
printf("无法从%s乘飞机到达%s\n", G.plane_vertices[i].city, G.plane_vertices[j].city);
return FALSE;
}
else {
while (p->adjvex != j) {
p = p->nextarc;
}
s_distance += p->info->distance;
s_price += p->info->price;
return TRUE;
}
}
Print_Transfer_Path(G, i, k, flag, 0);
Print_Transfer_Path(G, k, j, flag, 0);
}
return TRUE;
}
Status Insert_Vex(ALGraph* G, char* v)
{ /* 初始条件: 图G存在,v和图中顶点有相同特征 */
/* 操作结果: 在图G中增添新顶点v(不增添与顶点相关的弧,留待InsertArc()去做) */
strcpy((*G).train_vertices[(*G).vexnum].city, v);
strcpy((*G).plane_vertices[(*G).vexnum].city, v);
(*G).train_vertices[(*G).vexnum].firstarc = NULL;
(*G).plane_vertices[(*G).vexnum].firstarc = NULL;
(*G).vexnum++;
return OK;
}
Status DeleteVex(ALGraph* G, char* v)
{ /* 初始条件: 图G存在,v是G中某个顶点 */
/* 操作结果: 删除G中顶点v及其相关的弧 */
int i, j;
ArcNode* p, * q, * s,*t;
j = LocateVex(*G, v); /* j是顶点v的序号 */
if (j < 0) /* v不是图G的顶点 */
return ERROR;
p = (*G).train_vertices[j].firstarc; /* 删除以v为出度的弧或边 */
s= (*G).plane_vertices[j].firstarc;
while (p)
{
q = p;
p = p->nextarc;
free(q);
}//while
while (s) {
t = s;
s = s->nextarc;
free(t);
//(*G).arcnum--; /* 弧或边数减1 */
}
(*G).vexnum--; /* 顶点数减1 */
//改变顶点数组
for (i = j; i < (*G).vexnum; i++) /* 顶点v后面的顶点前移 */
{
(*G).train_vertices[i] = (*G).train_vertices[i + 1];
(*G).plane_vertices[i] = (*G).plane_vertices[i + 1];
}
//改变邻接表
for (i = 0; i < (*G).vexnum; i++) /* 删除以v为入度的弧或边且必要时修改表结点的顶点位置值 */
{
p = (*G).train_vertices[i].firstarc; /* 指向第1条弧或边 */
s= (*G).plane_vertices[i].firstarc;
while (p) /* 有弧 */
{
if (p->adjvex == j)
{
if (p == (*G).train_vertices[i].firstarc) /* 待删结点是第1个结点 */
{
(*G).train_vertices[i].firstarc = p->nextarc;
free(p);
p = (*G).train_vertices[i].firstarc;/*指针回归表头节点*/
// (*G).arcnum--; /* 弧或边数减1 */
}
}
else
{
if (p->adjvex > j)
p->adjvex--; /* 修改表结点的顶点位置值(序号) */
q = p;
p = p->nextarc;
}//else
}//while
while (s) /* 有弧 */
{
if (s->adjvex == j)
{
if (s == (*G).plane_vertices[i].firstarc) /* 待删结点是第1个结点 */
{
(*G).plane_vertices[i].firstarc = s->nextarc;
free(s);
s = (*G).plane_vertices[i].firstarc;/*指针回归表头节点*/
// (*G).arcnum--; /* 弧或边数减1 */
}
}
else
{
if (s->adjvex > j)
s->adjvex--; /* 修改表结点的顶点位置值(序号) */
t = s;
s = s->nextarc;
}//else
}//while
}//for
return OK;
}
Status DeleteArc(ALGraph* G, char* v, char* w,int flag)
{ /* 初始条件: 图G存在,v和w是G中两个顶点 */
/* 操作结果: 在G中删除弧<v,w>,若G是无向的,则还删除对称弧<w,v> */
if (flag == 0) {/*火车*/
ArcNode* p, * q;
int i, j;
i = LocateVex(*G, v); /* i是顶点v(弧尾)的序号 */
j = LocateVex(*G, w); /* j是顶点w(弧头)的序号 */
if (i < 0 || j < 0 || i == j)
return ERROR;
p = (*G).train_vertices[i].firstarc; /* p指向顶点v的第一条出弧 */
q = p;
while (p && p->adjvex != j) /* p不空且所指之弧不是待删除弧<v,w> */
{ /* p指向下一条弧 */
q = p;
p = p->nextarc;
}
if (p && p->adjvex == j) /* 找到弧<v,w> */
{
if (p == (*G).train_vertices[i].firstarc) /* p所指是第1条弧 */
(*G).train_vertices[i].firstarc = p->nextarc; /* 指向下一条弧 */
else {
q->nextarc = p->nextarc;
}
//free(p);
}
}//if
else {
ArcNode* p, * q;
int i, j;
i = LocateVex(*G, v); /* i是顶点v(弧尾)的序号 */
j = LocateVex(*G, w); /* j是顶点w(弧头)的序号 */
if (i < 0 || j < 0 || i == j)
return ERROR;
p = (*G).plane_vertices[i].firstarc; /* p指向顶点v的第一条出弧 */
q = p;
while (p && p->adjvex != j) /* p不空且所指之弧不是待删除弧<v,w> */
{ /* p指向下一条弧 */
q = p;
p = p->nextarc;
}
if (p && p->adjvex == j) /* 找到弧<v,w> */
{
if (p == (*G).plane_vertices[i].firstarc) /* p所指是第1条弧 */
(*G).plane_vertices[i].firstarc = p->nextarc; /* 指向下一条弧 */
//free(p); /* 释放此结点 */
else {
q->nextarc = p->nextarc;
}
}//if
}
return OK;
}
Status InsertArc(ALGraph* G, char* v, char* w,int flag)
{ /* 初始条件: 图G存在,v和w是G中两个顶点 */
/* 操作结果: 在G中增添弧<v,w>,若G是无向的,则还增添对称弧<w,v> */
char str_time[10] = { '\0' };
int i, j;
int elem;//缓存数据
int itime;
i = LocateVex(*G, v);
j = LocateVex(*G, w);
if (i < 0 || j < 0)
return ERROR;
if (flag == 0) {/*火车*/
if (Is_Next_City(*G, i, j, flag)==0)//不是相邻城市,新表节点
{
ArcNode* p = (ArcNode*)malloc(sizeof(ArcNode));
p->info = (InfoType*)malloc(sizeof(InfoType));
p->info->time = (Time*)malloc(sizeof(Time));
p->adjvex = j;
printf("请输入两城市之间的距离:");
(void)scanf_s("%d", &p->info->distance);
printf("请输入来两城市之间高铁的费用:");
(void)scanf_s("%d", &p->info->price);
printf("请输入要添加高铁的高铁车号:");
(void)scanf("%s", p->info->time->tag);
printf("请输入高铁的出发时间:(格式)eg:1020代表10:20)");
(void)scanf_s("%d", &itime);
Time_Convert(str_time, itime);
strcpy(p->info->time->set_off_time, str_time);
p->info->time->next = NULL;
p->nextarc = (*G).train_vertices[i].firstarc;
(*G).train_vertices[i].firstarc = p;
}//if
else {//已经是相邻城市，只用添加发车时间就可以
Time* q = (*G).train_vertices[i].firstarc->info->time;
Time* s=q;
Time* p = (Time*)malloc(sizeof(Time));
printf("请输入要添加高铁的高铁车号:");
(void)scanf("%s", p->tag);
printf("请输入高铁的出发时间:(格式)eg:1020代表10:20)");
(void)scanf_s("%d", &itime);
Time_Convert(str_time, itime);
strcpy(p->set_off_time, str_time);
//p->next = NULL;
if (strcmp(p->set_off_time, q->set_off_time) < 0)
{
(*G).train_vertices[i].firstarc->info->time = p;
p->next = q;
}
else {
while (q != NULL && strcmp(p->set_off_time, q->set_off_time) > 0) {
s = q;
q = q->next;
}
p->next = s->next;
s->next = p;
}
}//else
}
else {/*飞机*/
if (Is_Next_City(*G, i, j, flag) == 0)//不是相邻城市,新表节点
{
ArcNode* p = (ArcNode*)malloc(sizeof(ArcNode));
p->info = (InfoType*)malloc(sizeof(InfoType));
p->info->time = (Time*)malloc(sizeof(Time));
p->adjvex = j;
printf("请输入两城市之间的距离:");
(void)scanf_s("%d", &p->info->distance);
printf("请输入来两城市之间飞机的费用:");
(void)scanf_s("%d", &p->info->price);
printf("请输入要添加航班号:");
(void)scanf("%s", p->info->time->tag);
printf("请输入飞机的起飞时间:(格式)eg:1020代表10:20)");
(void)scanf_s("%d", &itime);
Time_Convert(str_time, itime);
strcpy(p->info->time->set_off_time, str_time);
p->info->time->next = NULL;
p->nextarc = (*G).plane_vertices[i].firstarc;
(*G).plane_vertices[i].firstarc = p;
}//if
else {//已经是相邻城市，只用添加发车时间就可以
Time* q = (*G).plane_vertices[i].firstarc->info->time;
Time* s = q;
Time* p = (Time*)malloc(sizeof(Time));
printf("请输入要添加航班号:");
(void)scanf("%s", p->tag);
printf("请输入飞机的起飞时间:(格式)eg:1020代表10:20)");
(void)scanf_s("%d", &itime);
Time_Convert(str_time, itime);
strcpy(p->set_off_time, str_time);
//p->next = NULL;
if (strcmp(p->set_off_time, q->set_off_time) < 0)
{
(*G).train_vertices[i].firstarc->info->time = p;
p->next = q;
}
else {
while (q != NULL && strcmp(p->set_off_time, q->set_off_time) > 0) {
s = q;
q = q->next;
}
p->next = s->next;
s->next = p;
}
}//else
}
return OK;
}
Status InitQueue(Queue* q)
{
for (int i = 0; i < MAXCITYNUM; i++) {
(*q).data[i] = -1;
}
(*q).front = (*q).rear = 0;
return OK;
}
Status EnQueue(Queue* q, DataType data) {
//尾插法
q->data[q->rear] = data;
q->rear++;
return OK;
}
DataType DeQueue(Queue* q)
{
DataType temp = q->data[q->front];
q->front++;
return temp;
}
int Is_Next_City(ALGraph G, int i, int j, int flag)
{
if (flag == 0)
{
ArcNode* p = G.train_vertices[i].firstarc;
while (p != NULL && p->adjvex != j)
{
p = p->nextarc;
}
return p == NULL ? 0 : 1;
}
else {
ArcNode* p = G.plane_vertices[i].firstarc;
while (p != NULL && p->adjvex != j)
{
p = p->nextarc;
}
return p == NULL ? 0 : 1;
}
}
void Time_Convert(char* t, int n)
{
int i = 4;
while (i >= 0) {
if (i == 2) t[i] = ':';
else {
t[i] = n % 10 + '0';
n = n / 10;
}//else
i--;
}//while
}
void Convert_To_Str(char* str, int n, int m)
{
str[0] = n / 10 + '0';
str[1] = n % 10 + '0';
str[2] = ':';
str[3] = m / 10 + '0';
str[4] = m % 10 + '0';
return str;
}
int Convert_To_Second(char* s)
{
return (s[0] - '0') * 10 * 3600 + (s[1] - '0') * 3600 + (s[3] - '0') * 10 * 60 + (s[4] - '0') * 60;
}
void Time_Standard(char* s, int total_second)
{
int hour = (total_second / 3600) % 24;
int minute = (total_second % 3600) / 60;
hour / 10 == 0 ? (s[0] = '0') : (s[0] = hour / 10 + '0');
s[1] = hour % 10 + '0';
s[2] = ':';
minute / 10 == 0 ? (s[3] = '0') : (s[3] = minute / 10 + '0');
s[4] = minute % 10 + '0';
}
void Print_All_Arc(ALGraph G,int flag)
{
ArcNode* p;
Time* t;
char str_time[12] = { '\0' };
float k;
int time;
if (flag == 0) {
for (int i = 0; i < (G.vexnum); i++)
{
p = G.train_vertices[i].firstarc;
printf("-----------------------------------------------------------------------------------\n");
while (p != NULL)
{
k = (float)p->info->distance / train_speed;
k = (int)(k * 3600);
printf(" %s→%s || 距离:%d || 票价:%d\n", G.train_vertices[i].city, G.train_vertices[p->adjvex].city, p->info->distance, p->info->price);
t = p->info->time;
printf(" 高铁号******************************************出发时间→到达时间\n");
while (t != NULL)
{
time= k + Convert_To_Second(t->set_off_time);
Time_Standard(str_time, time);
printf(" %s %s %s\n", t->tag, t->set_off_time,str_time);
t = t->next;
}
p = p->nextarc;
}//while p
printf("-----------------------------------------------------------------------------------\n");
}//for
}
else
{
for (int i = 0; i < (G.vexnum); i++)
{
p = G.plane_vertices[i].firstarc;
printf("-----------------------------------------------------------------------------------\n");
while (p != NULL)
{
k = (float)p->info->distance / train_speed;
k = (int)(k * 3600);
printf(" %s→%s || 距离:%d || 票价:%d\n", G.plane_vertices[i].city, G.plane_vertices[p->adjvex].city, p->info->distance, p->info->price);
t = p->info->time;
printf(" 航班号******************************************起飞时间→到达时间\n");
while (t != NULL)
{
time = k + Convert_To_Second(t->set_off_time);
Time_Standard(str_time, time);
printf(" %s %s %s\n", t->tag, t->set_off_time, str_time);
t = t->next;
}
p = p->nextarc;
}//while p
printf("-----------------------------------------------------------------------------------\n");
}//for
}
}
//测试函数
void Test5(void)
{
ALGraph G;
CreateGraph(&G);
Floyd_transfer(&G, 0);
Screen_Traffic_Table_Transfer(G, 0, 6, 0);
}
void Test4(void)
{
ALGraph g;
CreateGraph(&g);
char new_city[5] = { '\0' };
//printf("请输入新的城市名:");
//(void)scanf("%s", new_city);
//Insert_Vex(&g, new_city);
//DeleteVex(&g, "杭州");
//DeleteArc(&g, "汉中", "西安",0);
InsertArc(&g, "汉中", "北京", 0);
Floyd_price(&g, 0);
Screen_Traffic_Table_Price(g, Locate_City_Num(g, "汉中"), Locate_City_Num(g, "北京"), 0);
DeleteArc(&g, "汉中", "西安", 0);
Floyd_price(&g, 0);
Screen_Traffic_Table_Price(g, Locate_City_Num(g, "汉中"), Locate_City_Num(g, "西安"), 0);
return;
}
void Test3(void)
{
int i, j, k, n;
VertexType v1, v2;
ALGraph g;
char f_city[12] = { '\0' };
char t_city[12] = { '\0' };
printf("请输入出发城市----");
(void)scanf("%s", f_city);
printf("请输入出发城市----");
(void)scanf("%s", t_city);
CreateGraph(&g);
int city_num1 = Locate_City_Num(g, f_city);
int city_num2 = Locate_City_Num(g, t_city);
if (city_num1 == -1)
{
printf("当前交通网络中不存在%s城市\n", f_city);
return;
}
if (city_num2 == -1)
{
printf("当前交通网络中不存在%s城市\n", t_city);
return;
}
Floyd_distance(&g, 0);
//Floyd_price(&g, 0);
Screen_Traffic_Table_Distance(g, city_num1, city_num2, 0);
}
void Command(char* str)
{
time_t now;
time(&now);
struct tm* tm_now;
tm_now = localtime(&now);
//printf("now time:%d-%d-%d %d:%d", tm_now->tm_year + 1900, tm_now->tm_mon + 1, tm_now->tm_mday, tm_now->tm_hour, tm_now->tm_min);
printf("*********************全国交通网络咨询****************\n");
printf("当前时间:%d-%d-%d %d:%d\n", tm_now->tm_year + 1900, tm_now->tm_mon + 1, tm_now->tm_mday, tm_now->tm_hour, tm_now->tm_min);
printf("请输入咨询业务:1.创建交通网络 2.最短距离 3.最少费用 4.退出\n");
Convert_To_Str(str, tm_now->tm_hour, tm_now->tm_min);
printf("Cmd:");
}
int LocateVex(ALGraph G, char* u)
{ /* 初始条件: 图G存在,u和G中顶点有相同特征 */
/* 操作结果: 若G中存在顶点u,则返回该顶点在图中位置;否则返回-1 */
int i;
for (i = 0; i < G.vexnum; ++i)
if (strcmp(u, G.train_vertices[i].city) == 0)
return i;
return -1;
}
//
//void Adminstrator_InterFace(ALGraph* G)
//{
// int choice1; //管理员选择
// int tag1 = 1; //操纵管理员界面
// int flag; //区分交通工具 0代表高铁 1代表飞机
// char f_city[12] = { '\0' }; //出发城市
// char t_city[12] = { '\0' }; //目的城市
// char new_city[12] = { '\0' };
// Status state;
// int city_num;
//
// printf("登录成功!\n");
// while (tag1 == 1)
// {
// Administrator_Command();
// scanf_s("%d", &choice1);
// while (choice1 > 7 || choice1 < 1)
// {
// printf("Cmd Error!请输入正确的操作命令!\nCmd:");
// scanf_s("%d", &choice1);
// }
// switch (choice1)
// {
// case 1:
// if (creation == 0)
// {
// CreateGraph(&G);
// creation = 1;
// }
// printf("交通网络创建成功!\n");
// break;
// case 2:
// if (creation == 0)
// {
// printf("请先创建交通网络!\n");
// break;
// }
// Display_City(&G);
// break;
// case 3:
// if (creation == 0)
// {
// printf("请先创建交通网络!\n");
// break;
// }
// printf("请输入新的城市名:");
// (void)scanf("%s", new_city);
// if (Locate_City_Num2(&G, new_city) != -1)
// {
// printf("当前交通网络已存在%s!\n", new_city);
// break;
// }
// state = Insert_Vex(&G, new_city);
// if (state == OK) printf("城市增添成功!\n");
// break;
// case 4:
// if (creation == 0)
// {
// printf("请先创建交通网络!\n");
// break;
// }
// printf("请输入要删除的城市名:");
// (void)scanf("%s", new_city);
// state = DeleteVex(&G, new_city);
// if (state == OK) printf("城市删除成功!\n");
// break;
// case 5:
// if (creation == 0)
// {
// printf("请先创建交通网络!\n");
// break;
// }
// printf("请输入交通工具:0.高铁 1.飞机\n");
// scanf_s("%d", &flag);
// printf("请输入增添路径的起始城市：\n");
// scanf("%s", f_city);
// printf("请输入增添路径的结束城市：\n");
// scanf("%s", t_city);
// state = InsertArc(&G, f_city, t_city, flag);
// if (state == OK) printf("路线增添成功!\n");
// break;
// case 6:
// if (creation == 0)
// {
// printf("请先创建交通网络!\n");
// break;
// }
// printf("请输入交通工具:0.高铁 1.飞机\n");
// scanf_s("%d", &flag);
// printf("请输入删除路径的起始城市：\n");
// scanf("%s", f_city);
// printf("请输入删除路径的结束城市：\n");
// scanf("%s", t_city);
// //Judge_City_Exist(G, f_city);
// state = DeleteArc(&G, f_city, t_city, flag);
// if (state == OK) printf("路线删除成功!\n");
// break;
// case 7:
// tag1 = 0;
// break;
// default:
// tag1 = 0;
// printf("管理员系统崩溃!请重新登录...\n\n\n");
// break;
// }
// }//while
//
//}
//
//int Locate_City_Num2(ALGraph* G, char* s)
//{
// int n;
// int flag = 0;
// for (n = 0; n < ((*G).vexnum); n++)
// {
// if (strcmp(s, (*G).train_vertices[n].city) == 0)
// {
// flag = 1;
// break;
// }
// }
//
// return flag == 1 ? n : -1;
//}
//
//ALGraph Ordinary_InterFace(ALGraph G)
//{
// int choice2; //用户选择
// int tag2 = 1; //用户界面控制
// int flag; //区分交通工具 0代表高铁 1代表飞机
// char f_city[12] = { '\0' }; //出发城市
// char t_city[12] = { '\0' }; //目的城市
// char new_city[12] = { '\0' };
// int city_num1;
// int city_num2;
// Status state;
// while (tag2 == 1)
// {
// Ordinary_Command(now_time);
// scanf_s("%d", &choice2);
// while (choice2 > 4 || choice2 < 1)
// {
// printf("Cmd Error!请输入正确的操作命令!\nCmd:");
// scanf_s("%d", &choice2);
// }
// switch (choice2)
// {
// case 1:
// if (creation == 0)//防止管理员修改交通网络之后刷新
// {
// CreateGraph(&G);
// creation = 1;
// }
// /*加载完最短路径和最少费用，后面只做简单查询，不用再修改，避免反复加载，增加复杂度*/
// Floyd_distance(&G, 0);
// Floyd_price(&G, 0);
// printf("交通网络加载成功!\n");
// break;
// case 2:
// if (creation == 0)
// {
// printf("请先加载交通网络!\n");
// break;
// }
// printf("请输入交通工具:0.高铁 1.飞机\n");
// scanf_s("%d", &flag);
// printf("请输入出发城市----");
// (void)scanf("%s", f_city);
// printf("请输入出发城市----");
// (void)scanf("%s", t_city);
// city_num1 = Locate_City_Num(G, f_city);
// city_num2 = Locate_City_Num(G, t_city);
// if (city_num1 == -1)
// {
// printf("当前交通网络中不存在%s城市\n", f_city);
// break;
// }
// if (city_num2 == -1)
// {
// printf("当前交通网络中不存在%s城市\n", t_city);
// break;
// }
// //Floyd_distance(G, 0);
// //Floyd_price(&g, 0);
// Screen_Traffic_Table_Distance(G, city_num1, city_num2, 0);
// break;
// case 3:
// if (creation == 0)
// {
// printf("请先加载交通网络!\n");
// break;
// }
// printf("请输入交通工具:0.高铁 1.飞机\n");
// scanf_s("%d", &flag);
// printf("请输入出发城市----");
// (void)scanf("%s", f_city);
// printf("请输入出发城市----");
// (void)scanf("%s", t_city);
// city_num1 = Locate_City_Num(G, f_city);
// city_num2 = Locate_City_Num(G, t_city);
// if (city_num1 == -1)
// {
// printf("当前交通网络中不存在%s城市\n", f_city);
// break;
// }
// if (city_num2 == -1)
// {
// printf("当前交通网络中不存在%s城市\n", t_city);
// break;
// }
// //Floyd_distance(G, 0);
// //Floyd_price(&g, 0);
// Screen_Traffic_Table_Price(G, city_num1, city_num2, 0);
// break;
// case 4:
// tag2 = 0;
// printf("正在返回主界面,请稍后...\n\n\n");
// break;
// default:
// printf("用户界面崩溃!请重新登录...\n\n\n");
// tag2 = 0;
// break;
// }
// }//while
// return G;
//}
//void Screen_Traffic_Table_Price(ALGraph G, int from, int to, int flag)
//{
// ArcNode* p;
// Time* ptr;
// int time;
// char str_time[10] = { '\0' };
// int tag;
// int cost;
// Status B;
//
//
// if (flag == 0) {
// InitQueue(&s_queue);
// p = G.train_vertices[from].firstarc;
// s_distance = 0;
// tag = 0;
// float k;
// cost = t_price_dis[from][to];
// ptr = p->info->time;
// while (ptr) {
//
// B = Total_Distance(G, from, to, flag);
//
// if (B == FALSE) {//无法到达
// break;
// }
//
// if (tag == 0) {
// k = (float)s_distance / train_speed;
// k = (int)(k * 3600);
// tag = 1;
// }
// time = k + Convert_To_Second(ptr->set_off_time);
// Time_Standard(str_time, time);
// printf("-----------------------------------------------------------------------------------\n");
// printf("交通工具:高铁");
// Print_Choice_Price_Path(G, from, to, flag);
// printf("具体情况:\n");
// Detail(G, from, DeQueue(&s_queue), ptr->set_off_time, flag);
// printf("\n交通工具:高铁 出发时间:%s 达到时间:%s 费用:%d\n", ptr->set_off_time, str_time, cost);
//
// printf("-----------------------------------------------------------------------------------\n\n");
// ptr = ptr->next;
// }
// }//if
//
// else {
// InitQueue(&s_queue);
// p = G.plane_vertices[from].firstarc;
// s_distance = 0;
// tag = 0;
// float k;
// cost = p_price_dis[from][to];
// ptr = p->info->time;
// while (ptr) {
//
// B = Total_Distance(G, from, to, flag);
//
// if (B == FALSE) {//无法到达
// break;
// }
//
// if (tag == 0) {
// k = (float)s_distance / plane_speed;
// k = (int)(k * 3600);
// tag = 1;
// }
// time = k + Convert_To_Second(ptr->set_off_time);
// Time_Standard(str_time, time);
// printf("-----------------------------------------------------------------------------------\n");
// Print_Choice_Price_Path(G, from, to, flag);
// printf("具体情况:\n");
// Detail(G, from, DeQueue(&s_queue), ptr->set_off_time, flag);
// printf("\n交通工具:飞机 出发时间:%s 达到时间:%s 费用:%d\n", ptr->set_off_time, str_time, cost);
//
// printf("-----------------------------------------------------------------------------------\n\n");
// ptr = ptr->next;
// }
// }//plane
//
//
//}
//void DFS(ALGraph G,int u)
//{
// //d[i]表示从u到i节点的最短路径
// for (int i = 0; i < G.vexnum; ++i)
// {
// d[i] = INF; //初始化长度
// }
// visited[u] = TRUE;
// d[u] = 0;
// EnQueue(Q, u);
// while (!IsEmpty(Q)) {
// DeQueue(Q, u);
// for (w = FirstNeighour(G, u); w >= 0; w = NextNeighbor(G, u, w))
// {
// if (!visited[w])
// {
// visited[w] = TRUE;
// d[w] = d[u] + 1; //中转站加1
// EnQueue(Q, w);
// }
// }//if
// }//while
//}city txt
汉中 西安 北京 上海 南昌train txt
0 1 400 96 8 650 D0101 655 D0311 950 D0102 1250 D0103 1255 D0312 1550 D0104 1850 D0105 1855 D0313
0 3 1600 773 5 650 D0301 950 D0302 1250 D0303 1550 D0404 1855 D0505
0 4 1200 574 5 650 D0401 950 D0402 1250 D0403 1550 D0404 1855 D0405
1 0 400 96 5 650 D1001 950 D1002 1250 D1003 1550 D1004 1855 D1005
1 2 800 515 8 650 D1201 810 D0311 950 D1202 1250 D1203 1410 D0312 1550 D1204 1855 D1205 2010 D0313
1 3 800 712 5 650 D1301 950 D1302 1250 D1303 1550 D1304 1855 D1305
1 4 800 576 5 650 D1401 950 D1402 1250 D1403 1550 D1404 1855 D1405
2 1 800 515 5 650 D2101 950 D2102 1250 D2103 1550 D2104 1855 D2105
2 3 600 631 5 650 D2301 950 D2302 1250 D2303 1550 D2304 1855 D2305
3 0 1600 773 5 650 D3001 950 D3002 1250 D3003 1550 D3004 1855 D5005
3 1 800 712 5 650 D3101 950 D3102 1250 D3103 1550 D3104 1855 D3105
3 2 600 631 5 650 D3201 950 D3202 1250 D3203 1550 D3204 1855 D3205
3 4 400 336 5 650 D3401 950 D3402 1250 D3403 1550 D3404 1855 D3405
4 0 1200 574 5 650 D4001 950 D4002 1250 D4003 1550 D4004 1855 D4005
4 1 800 576 5 650 D4101 950 D4102 1250 D4103 1550 D4104 1855 D4105
4 3 400 336 5 650 D4301 950 D4302 1250 D4303 1550 D4304 1855 D4305plane txt
0 3 1200 1500 4 600 F0301 800 F0302 1000 F0303 1200 F0304
3 0 1200 1500 4 600 F3001 800 F3002 1000 F3003 1200 F3004
0 1 900 1000 4 700 F0101 800 F0102 900 F0103 1000 F0104
1 0 900 1000 4 700 F1001 800 F1002 900 F1003 1000 F1004
0 2 800 900 4 850 F0201 950 F0202 1050 F0203 1120 F0204
2 0 800 900 4 850 F2001 950 F2002 1050 F2003 1220 F2004
1 3 500 450 4 750 F1301 850 F1302 950 F1303 1050 F1304
3 1 500 450 4 750 F3101 850 F3102 950 F3103 1050 F3104
1 2 600 520 4 650 F120 1850 F1202 1050 F1203 1250 F1204
2 1 600 520 4 650 F2101 850 F2102 1050 F2103 1250 F2104
1 4 1000 1200 3 820 F1401 940 F1402 1030 F1403
4 1 1000 1200 3 820 F4101 940 F4102 1030 F4103
2 3 1100 1250 4 640 F2301 840 F2302 1040 F2303 1240 F2304
3 2 1100 1250 4 640 F3201 840 F3202 1040 F3203 1240 F3204
2 4 1300 1650 3 740 F2401 850 F2402 930 F2403
4 2 1300 1650 3 740 F4201 850 F4202 930 F4203
3 4 1500 1800 3 820 F3401 930 F3402 1040 F3403
4 3 1500 1800 3 820 F4301 930 F4302 1040 F4303
为开发者提供学习成长、分享交流、生态实践、资源工具等服务，帮助开发者快速成长。
更多推荐
22
0- 0
已为社区贡献1条内容
所有评论(0)
