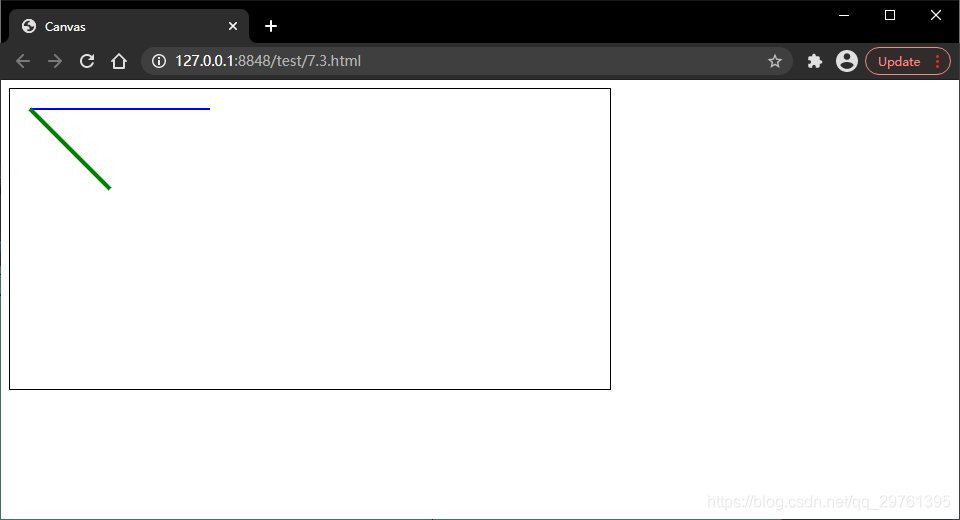

画线

在这里插入图片描述

<!DOCTYPE html>
<html>
    <head>
        <meta charset="utf-8">
        <title>Canvas</title>
        <style type="text/css">
            body {
                background-color: aquamarine;
            }
            #canvas {
                border: 1px solid black;
            }
        </style>
    </head>
    <body>
        <canvas id="canvas" width="600" height="600"></canvas>

        <script type="text/javascript">
            window.onload = function(event) {
                // console.log(this, event)
                main()
            }

            function main() {
                const canvas = document.getElementById('canvas')
                const ctx = canvas.getContext('2d')

                if (!ctx) return

                ctx.beginPath()
                ctx.strokeStyle = 'blue'
                ctx.lineWidth = 2
                ctx.moveTo(20, 20)
                ctx.lineTo(200, 20)
                ctx.stroke()

                ctx.beginPath()
                ctx.strokeStyle = 'green'
                ctx.lineWidth = 4
                ctx.moveTo(20, 20)
                ctx.lineTo(100, 100)
                ctx.stroke()
            }
        </script>
    </body>
</html>

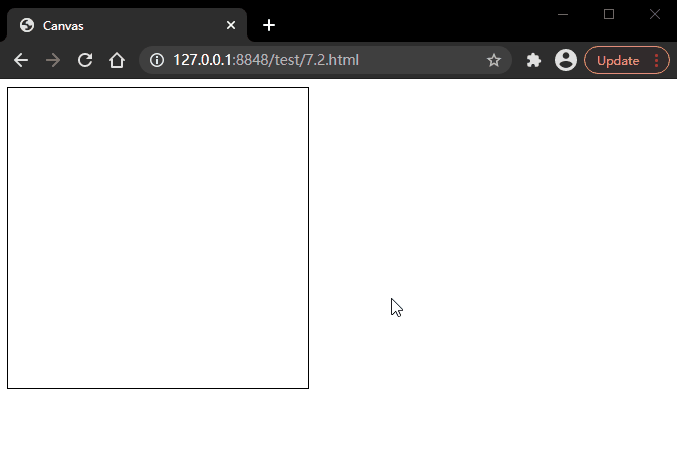

使用鼠标画线

在这里插入图片描述

<!DOCTYPE html>
<html>
    <head>
        <meta charset="utf-8">
        <title>Canvas</title>
        <style type="text/css">
            #canvas {
                border: 1px solid black;
            }
        </style>
    </head>
    <body>
        <canvas id="canvas" width="300" height="300"></canvas>

        <script type="text/javascript">
            window.onload = function(event) {
                // console.log(this, event)

                main()
            }

            function main() {
                const canvas = document.getElementById('canvas')
                const ctx = canvas.getContext('2d')

                if (!ctx) return

                let isDrawing = false
                let x = 0
                let y = 0

                canvas.addEventListener('mousedown', e => {
                    x = e.layerX
                    y = e.layerY
                    isDrawing = true
                })

                canvas.addEventListener('mousemove', e => {
                    if (isDrawing) {
                        drawLine(ctx, x, y, e.layerX, e.layerY)
                        x = e.layerX
                        y = e.layerY
                    }
                })

                canvas.addEventListener('mouseup', e => {
                    console.log(e)

                    if (isDrawing) {
                        drawLine(ctx, x, y, e.layerX, e.layerY)
                        x = 0
                        y = 0
                        isDrawing = false
                    }
                })
            }

            function drawLine(context, x0, y0, x1, y1) {
                context.beginPath()
                context.strokeStyle = 'black'
                context.lineWidth = 1
                context.moveTo(x0, y0)
                context.lineTo(x1, y1)
                context.stroke()
            }
        </script>
    </body>
</html>

参考

Drawing shapes with canvas - Lines

Web API 接口参考 - Element - mousemove
