基于JavaWeb+MySQL的快递驿站系统
随着互联网和通信技术的高速发展，使电子商务迅速普及，网购成为人们购物的重要手段之一。据统计2019年双十一，11月11日~16日，受电商平台集中促销影响，业务量达全年高峰，6天内共处理邮(快)件23.09亿件。
·
1、背景提出
随着互联网和通信技术的高速发展，使电子商务迅速普及，网购成为人们购物的重要手段之一。据统计2019年双十一，11月11日~16日，受电商平台集中促销影响，业务量达全年高峰，6天内共处理邮(快)件23.09亿件。疫情期间配送快递成了一件难事。疫情防控已经趋于常态化，很多小区出台了新的治安管理条例，开始禁止快递人员进入。这给民众收发快件造成了极大的不便，因进不去小区，快递人员只能在小区门口周边摆摊设点，也影响了小区周边环境。
除了快递，外卖也一样面临相同的问题。除了小区，写字楼、校园也面临着相同的问题。正是基于对疫情期间配送最后一公里深刻的认识，我们探索出一条解决之道，那就是社区快递e栈（类似快递柜）。
2、实践目的
1、锻炼动手能力
2、融会贯通JavaWeb技术
3、体验项目开发流程
4、做出上线级别的微信端+JavaWeb后端项目
5、为框架阶段打下前后端交互的基础
3、技术要点
html5、css3、js、Jquery、bootstrap、layui、layer、ajax、mysql、tomcat、servlet、filter、listener、jsp、公有云服务器。
4、技术分工
后台必做功能：
1.管理员登录
2.管理员退出
3.快件增加
4.快件删除
5.快件修改
6.快件列表查看
7.用户增加
8.用户删除
9.用户删除
10.用户列表查看
11.快递员增加
12.快递员删除
13.快递员修改
14.快递员查询
选做：
1.控制台-显示快件区域区分图
2.控制台-显示用户人数
3.控制台-显示快递员人数
4.控制台-显示总快件数
5.控制台-显示等待取件数量
前台必做功能：
1.用户/快递员登录
2.用户/快递员注册
3.用户-我的取件列表(未取件/已取件)
4.用户-快件取件码展示
5.快递员-扫码取件
6.快递员-取件码取件
7.首页根据快递单号查询快递信息
选做：
1.快递员-录入快递
2.快递员历史查询
3.个人中心-昵称显示与修改
4.懒人排行榜
5.自动登录
6.修改密码
5、时间分配
3、12开始，……
3、18结束
6、编写后台代码
（1）管理员登录
Controller
@ResponseBody("/admin/login.do")
public String login(HttpServletRequest request, HttpServletResponse response){
//1. 接参数
String username = request.getParameter("username");
String password = request.getParameter("password");
//2. 调用Service传参数，并获取结果
boolean result = AdminService.login(username, password);
//3. 根据结果，准备不同的返回数据
Message msg = null;
if(result){
msg = new Message(0,"登录成功");//{status:0,result:"登录成功"}
//登录时间 和 ip的更新
Date date = new Date();
String ip = request.getRemoteAddr();
AdminService.updateLoginTimeAndIP(username,date,ip);
request.getSession().setAttribute("adminUserName","username");
}else{
msg = new Message(-1,"登录失败");//{status:-1,result:"登录失败"}
}
//4. 将数据转换为JSON
String json = JSONUtil.toJSON(msg);
//5. 将JSON回复给ajax
return json;
}
Service
public static boolean login(String username,String password){
return dao.login(username,password);
}
}（2）快递管理
快递的列表
- 分页查询的列表
@ResponseBody("/express/list.do")
public String list(HttpServletRequest request, HttpServletResponse response){
//1. 获取查询数据的起始索引值
int offset = Integer.parseInt(request.getParameter("offset"));
//2. 获取当前页要查询的数据量
int pageNumber = Integer.parseInt(request.getParameter("pageNumber"));
//3. 进行查询
List<Express> list = ExpressService.findAll(true, offset, pageNumber);
List<BootStrapTableExpress> list2 = new ArrayList<>();
for(Express e:list){
String inTime = DateFormatUtil.format(e.getInTime());
String outTime = e.getOutTime()==null?"未出库":DateFormatUtil.format(e.getOutTime());
String status = e.getStatus()==0?"待取件":"已取件";
String code = e.getCode()==null?"已取件":e.getCode();
BootStrapTableExpress e2 = new BootStrapTableExpress(e.getId(),e.getNumber(),e.getUsername(),e.getUserPhone(),e.getCompany(),code,inTime,outTime,status,e.getSysPhone());
list2.add(e2);
}
List<Map<String, Integer>> console = ExpressService.console();
Integer total = console.get(0).get("data1_size");
//4. 将集合封装为 bootstrap-table识别的格式
ResultData<BootStrapTableExpress> data = new ResultData<>();
data.setRows(list2);
data.setTotal(total);
String json = JSONUtil.toJSON(data);
return json;
}新增快递
@ResponseBody("/express/insert.do")
public String insert(HttpServletRequest request, HttpServletResponse response){
String number = request.getParameter("number");
String company = request.getParameter("company");
String username = request.getParameter("username");
String userPhone = request.getParameter("userPhone");
//Express e = new Express(number,company,username,userPhone, UserUtil.getUserPhone(request.getSession()));
Express e = new Express(number,username,userPhone,company,UserUtil.getUserPhone(request.getSession()));
boolean flag = ExpressService.insert(e);
Message msg = new Message();
if(flag){
//录入成功
msg.setStatus(0);
msg.setResult("快递录入成功!");
}else{
//录入失败
msg.setStatus(-1);
msg.setResult("快递录入失败!");
}
String json = JSONUtil.toJSON(msg);
return json;
}- 用户输入内容，后台接收参数，向数据库存储
删除快递
@ResponseBody("/express/delete.do")
public String delete(HttpServletRequest request,HttpServletResponse response){
int id = Integer.parseInt(request.getParameter("id"));
boolean flag = ExpressService.delete(id);
Message msg = new Message();
if(flag){
msg.setStatus(0);
msg.setResult("删除成功");
}else{
msg.setStatus(-1);
msg.setResult("删除失败");
}
String json = JSONUtil.toJSON(msg);
return json;
}
}
- 用户输入快递单号查询到快递信息
- 浏览快递信息的最后，可以点击删除按钮 ，删除快递
修改快递
@ResponseBody("/express/find.do")
public String find(HttpServletRequest request,HttpServletResponse response){
String number = request.getParameter("number");
Express e = ExpressService.findByNumber(number);
Message msg = new Message();
if(e == null){
msg.setStatus(-1);
msg.setResult("单号不存在");
}else{
msg.setStatus(0);
msg.setResult("查询成功");
msg.setData(e);
}
String json = JSONUtil.toJSON(msg);
return json;
}
/**
* 更新
* @param request
* @param response
* @return
*/
@ResponseBody("/express/update.do")
public String update(HttpServletRequest request,HttpServletResponse response){
int id = Integer.parseInt(request.getParameter("id"));
String number = request.getParameter("number");
String company = request.getParameter("company");
String username = request.getParameter("username");
String userPhone = request.getParameter("userPhone");
int status = Integer.parseInt(request.getParameter("status"));
Express newExpress = new Express();
newExpress.setNumber(number);
newExpress.setCompany(company);
newExpress.setUsername(username);
newExpress.setUserPhone(userPhone);
newExpress.setStatus(status);
boolean flag = ExpressService.update(id, newExpress);
Message msg = new Message();
if(flag){
msg.setStatus(0);
msg.setResult("修改成功");
}else{
msg.setStatus(-1);
msg.setResult("修改失败");
}
String json = JSONUtil.toJSON(msg);
return json;
}
- 用户输入快递单号查询到快递信息
- 浏览（可修改）快递信息的最后，可以点击确认按钮 ，确认修改快递
（3）快递员管理
快递员的列表
- 分页查询的列表
@ResponseBody("/courier/list.do")
public String list(HttpServletRequest request, HttpServletResponse response){
int offset = Integer.parseInt(request.getParameter("offset"));
// 获取当前页要查询的数据量
int pageNumber = Integer.parseInt(request.getParameter("pageNumber"));
List<Courier> list = CourierService.findAll(true, offset, pageNumber);
List<BootStrapTableCourier> list2 = new ArrayList<>();
for (Courier c : list){
String enrollTime = DateFormatUtil.format(c.getEnrollTime());
String loginTime = c.getLoginTime()==null?"未登录":DateFormatUtil.format(c.getLoginTime());
String sendNumber = null;
int courierSendNumber = c.getCourierSendNumber();
if (courierSendNumber <= 10000){
sendNumber = courierSendNumber + "";
}else{
sendNumber = courierSendNumber/10000 + "w+";
}
BootStrapTableCourier c2 = new BootStrapTableCourier(c.getId(),c.getCourierName(),c.getCourierPhone(),"******",c.getCourierPassword(),sendNumber,enrollTime,loginTime);
list2.add(c2);
}
List<Map<String, Integer>> console = CourierService.console();
Integer total = console.get(0).get("data_size");
ResultData<BootStrapTableCourier> data = new ResultData<>();
data.setRows(list2);
data.setTotal(total);
String json = JSONUtil.toJSON(data);
return json;
}
新增快递员
@ResponseBody("/courier/insert.do")
public String insert(HttpServletRequest request, HttpServletResponse response){
String courierName = request.getParameter("courierName");
String courierPhone = request.getParameter("courierPhone");
String courierIdNumber = request.getParameter("courierIdNumber");
String courierPassword = request.getParameter("courierPassword");
Courier c = new Courier(courierName,courierPhone,courierIdNumber,courierPassword);
boolean flag = CourierService.insert(c);
Message msg = new Message();
if (flag){
msg.setStatus(0);
msg.setResult("快递员录入成功");
}else {
msg.setStatus(-1);
msg.setResult("快递员录入失败");
}
String json = JSONUtil.toJSON(msg);
return json;
}
- 管理员输入内容，后台接收参数，向数据库存储
删除快递
@ResponseBody("/courier/delete.do")
public String delete(HttpServletRequest request, HttpServletResponse response){
int id = Integer.parseInt(request.getParameter("id"));
boolean flag = CourierService.delete(id);
Message msg = new Message();
if (flag){
msg.setStatus(0);
msg.setResult("删除成功");
}else {
msg.setStatus(-1);
msg.setResult("删除失败");
}
String json = JSONUtil.toJSON(msg);
return json;

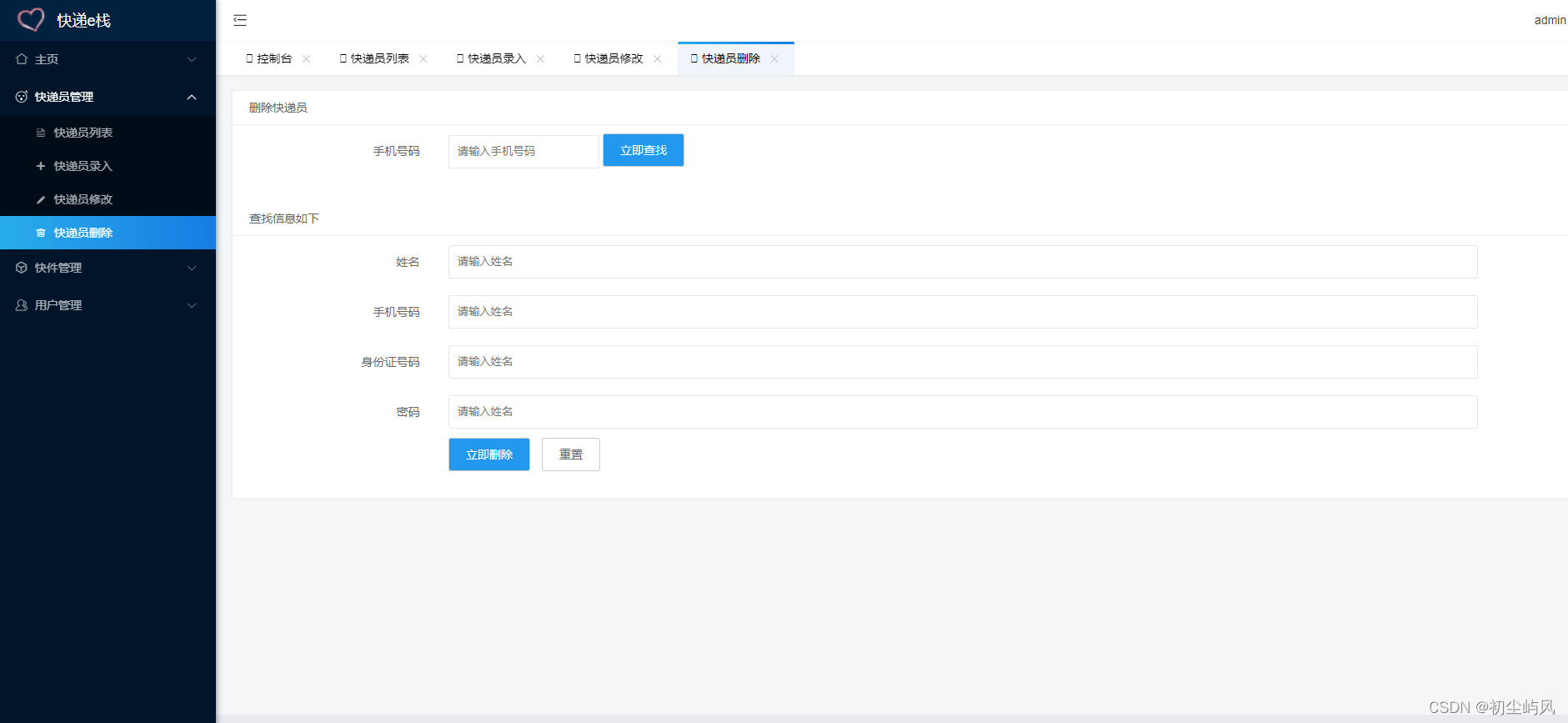

}- 快递员输入快递单号查询到快递信息
- 浏览快递信息的最后，可以点击删除按钮 ，删除快递
修改快递
@ResponseBody("/courier/find.do")
public String find(HttpServletRequest request, HttpServletResponse response){
String courierPhone = request.getParameter("courierPhone");
Courier c = CourierService.findByPhone(courierPhone);
Message msg = new Message();
if (c == null){
msg.setStatus(-1);
msg.setResult("手机号不存在");
}else {
msg.setStatus(0);
msg.setResult("查询成功");
msg.setData(c);
}
String json = JSONUtil.toJSON(msg);
return json;
}
@ResponseBody("/courier/update.do")
public String update(HttpServletRequest request, HttpServletResponse response){
int id = Integer.parseInt(request.getParameter("id"));
String courierName = request.getParameter("courierName");
String courierPhone = request.getParameter("courierPhone");
String courierIdNumber = request.getParameter("courierIdNumber");
String courierPassword = request.getParameter("courierPassword");
Courier newCourier = new Courier(courierName,courierPhone,courierIdNumber,courierPassword);
Message msg = new Message();
boolean flag = CourierService.update(id, newCourier);
if (flag){
msg.setStatus(0);
msg.setResult("修改成功");
}else {
msg.setStatus(-1);
msg.setResult("修改失败");
}
String json = JSONUtil.toJSON(msg);
return json;
}- 快递员输入快递单号查询到快递信息
- 浏览（可修改）快递信息的最后，可以点击确认按钮 ，确认修改快递
（4）用户管理
用户的列表
- 分页查询的列表
@ResponseBody("/user/list.do")
public String list(HttpServletRequest request, HttpServletResponse response){
//1. 获取查询数据的起始索引值
int offset = Integer.parseInt(request.getParameter("offset"));
//2. 获取当前页要查询的数据量
int pageNumber = Integer.parseInt(request.getParameter("pageNumber"));
//3. 进行查询
List<Express> list = ExpressService.findAll(true, offset, pageNumber);
List<BootStrapTableExpress> list2 = new ArrayList<>();
for(Express e:list){
String inTime = DateFormatUtil.format(e.getInTime());
String outTime = e.getOutTime()==null?"未出库":DateFormatUtil.format(e.getOutTime());
String status = e.getStatus()==0?"待取件":"已取件";
String code = e.getCode()==null?"已取件":e.getCode();
BootStrapTableExpress e2 = new BootStrapTableExpress(e.getId(),e.getNumber(),e.getUsername(),e.getUserPhone(),e.getCompany(),code,inTime,outTime,status,e.getSysPhone());
list2.add(e2);
}
List<Map<String, Integer>> console = ExpressService.console();
Integer total = console.get(0).get("data1_size");
//4. 将集合封装为 bootstrap-table识别的格式
ResultData<BootStrapTableExpress> data = new ResultData<>();
data.setRows(list2);
data.setTotal(total);
String json = JSONUtil.toJSON(data);
return json;
}新增快递员
@ResponseBody("/user/insert.do")
public String insert(HttpServletRequest request, HttpServletResponse response){
String userName = request.getParameter("userName");
String userPhone = request.getParameter("userPhone");
String userIdNumber = request.getParameter("userIdNumber");
String userPassword = request.getParameter("userPassword");
User u = new User(userName, userPhone, userIdNumber, userPassword);
boolean flag = UserService.insert(u);
Message msg = new Message();
if (flag){
msg.setStatus(0);
msg.setResult("用户录入成功");
}else{
msg.setStatus(-1);
msg.setResult("用户录入失败");
}
String json = JSONUtil.toJSON(msg);
return json;
}- 用户输入内容，后台接收参数，向数据库存储
删除快递员
@ResponseBody("/user/delete.do")
public String delete(HttpServletRequest request, HttpServletResponse response){
int id = Integer.parseInt(request.getParameter("id"));
boolean flag = UserService.delete(id);
Message msg = new Message();
if (flag){
msg.setStatus(0);
msg.setResult("删除成功");
}else {
msg.setStatus(-1);
msg.setResult("删除失败");
}
String json = JSONUtil.toJSON(msg);
return json;
}- 用户输入快递单号查询到快递信息
- 浏览快递信息的最后，可以点击删除按钮 ，删除快递员
修改快递员
@ResponseBody("/user/find.do")
public String find(HttpServletRequest request, HttpServletResponse response){
String userPhone = request.getParameter("userPhone");
User u = UserService.findByUserPhone(userPhone);
Message msg = new Message();
if (u == null){
msg.setStatus(-1);
msg.setResult("手机号不存在");
}else {
msg.setStatus(0);
msg.setResult("查询成功");
msg.setData(u);
}
String json = JSONUtil.toJSON(msg);
return json;
}
/**
* 删除
* @param request
* @param response
* @return
*/
@ResponseBody("/user/update.do")
public String update(HttpServletRequest request, HttpServletResponse response){
int id = Integer.parseInt(request.getParameter("id"));
String userName = request.getParameter("userName");
String userPhone = request.getParameter("userPhone");
String userIdNumber = request.getParameter("userIdNumber");
String userPassword = request.getParameter("userPassword");
User newUser = new User(userName,userPhone,userIdNumber,userPassword);
Message msg = new Message();
boolean flag = UserService.update(id, newUser);
if (flag){
msg.setStatus(0);
msg.setResult("修改成功");
}else {
msg.setStatus(-1);
msg.setResult("修改失败");
}
String json = JSONUtil.toJSON(msg);
return json;
}- 用户输入快递单号查询到快递信息
- 浏览（可修改）快递信息的最后，可以点击确认按钮 ，确认修改快递员
（5）数据库
-德鲁伊数据库操作，MYSQL5.7
#德鲁伊数据库连接
url=jdbc:mysql://localhost:3306/e?useUnicode=true&characterEncoding=utf-8
username=root
password=123
driverClassName=com.mysql.jdbc.Driver
initialSize=5
maxActive=10
minIdle=5
maxWait=3000（6）过滤器
权限
@WebFilter({"/admin/index.html","/admin/views/*","/express/*","/courier/*","/user/*"})
public class AccessControlFilter implements Filter {
public void destroy() {
}
public void doFilter(ServletRequest req, ServletResponse resp, FilterChain chain) throws ServletException, IOException {
HttpServletRequest request = (HttpServletRequest) req;
HttpServletResponse response = (HttpServletResponse) resp;
String userName = UserUtil.getUserName(request.getSession());
if(userName != null)
chain.doFilter(req, resp);
else
response.sendError(404,"很遗憾,权限不足");
}
public void init(FilterConfig config) throws ServletException {
}字符编码
@WebFilter("*.do")
public class CharSetFilter implements Filter {
public void destroy() {
}
public void doFilter(ServletRequest req, ServletResponse resp, FilterChain chain) throws ServletException, IOException {
req.setCharacterEncoding("utf-8");
resp.setContentType("text/json;charset=utf-8");
resp.setCharacterEncoding("utf-8");
chain.doFilter(req, resp);
}
public void init(FilterConfig config) throws ServletException {
}（7）实体类
分别生成get/set方法，无参，有参及其他方法
Express(快递)
public class Express {
private int id;
private String number;
private String username;
private String userPhone;
private String company;
private String code;
private Timestamp inTime;
private Timestamp outTime;
private int status;
private String sysPhone;
@Override
public boolean equals(Object o) {
if (this == o) return true;
if (o == null || getClass() != o.getClass()) return false;
Express express = (Express) o;
return id == express.id &&
status == express.status &&
Objects.equals(number, express.number) &&
Objects.equals(username, express.username) &&
Objects.equals(userPhone, express.userPhone) &&
Objects.equals(company, express.company) &&
Objects.equals(code, express.code) &&
Objects.equals(inTime, express.inTime) &&
Objects.equals(outTime, express.outTime) &&
Objects.equals(sysPhone, express.sysPhone);
}
@Override
public int hashCode() {
return Objects.hash(id, number, username, userPhone, company, code, inTime, outTime, status, sysPhone);
}
@Override
public String toString() {
return "Express{" +
"id=" + id +
", number='" + number + '\'' +
", username='" + username + '\'' +
", userPhone='" + userPhone + '\'' +
", company='" + company + '\'' +
", code='" + code + '\'' +
", inTime=" + inTime +
", outTime=" + outTime +
", status=" + status +
", sysPhone='" + sysPhone + '\'' +
'}';
}
public int getId() {
return id;
}
public void setId(int id) {
this.id = id;
}
public String getNumber() {
return number;
}
public void setNumber(String number) {
this.number = number;
}
public String getUsername() {
return username;
}
public void setUsername(String username) {
this.username = username;
}
public String getUserPhone() {
return userPhone;
}
public void setUserPhone(String userPhone) {
this.userPhone = userPhone;
}
public String getCompany() {
return company;
}
public void setCompany(String company) {
this.company = company;
}
public String getCode() {
return code;
}
public void setCode(String code) {
this.code = code;
}
public Timestamp getInTime() {
return inTime;
}
public void setInTime(Timestamp inTime) {
this.inTime = inTime;
}
public Timestamp getOutTime() {
return outTime;
}
public void setOutTime(Timestamp outTime) {
this.outTime = outTime;
}
public int getStatus() {
return status;
}
public void setStatus(int status) {
this.status = status;
}
public String getSysPhone() {
return sysPhone;
}
public void setSysPhone(String sysPhone) {
this.sysPhone = sysPhone;
}
public Express(String number, String username, String userPhone, String company, String sysPhone,String code) {
this.number = number;
this.username = username;
this.userPhone = userPhone;
this.company = company;
this.sysPhone = sysPhone;
this.code = code;
}
public Express(String number, String username, String userPhone, String company, String sysPhone) {
this.number = number;
this.username = username;
this.userPhone = userPhone;
this.company = company;
this.sysPhone = sysPhone;
}
public Express() {
}
public Express(int id, String number, String username, String userPhone, String company, String code, Timestamp inTime, Timestamp outTime, int status, String sysPhone) {
this.id = id;
this.number = number;
this.username = username;
this.userPhone = userPhone;
this.company = company;
this.code = code;
this.inTime = inTime;
this.outTime = outTime;
this.status = status;
this.sysPhone = sysPhone;
}Courier（快递员）
public class Courier {
private int id;
private String courierName;
private String courierPhone;
private String courierIdNumber;
private String courierPassword;
private int courierSendNumber;
private Timestamp enrollTime;
private Timestamp loginTime;
public Courier() {
}
public Courier(String courierName, String courierPhone, String courierIdNumber, String courierPassword) {
this.courierName = courierName;
this.courierPhone = courierPhone;
this.courierIdNumber = courierIdNumber;
this.courierPassword = courierPassword;
}
public Courier(int id, String courierName, String courierPhone, String courierIdNumber, String courierPassword, int courierSendNumber, Timestamp enrollTime, Timestamp loginTime) {
this.id = id;
this.courierName = courierName;
this.courierPhone = courierPhone;
this.courierIdNumber = courierIdNumber;
this.courierPassword = courierPassword;
this.courierSendNumber = courierSendNumber;
this.enrollTime = enrollTime;
this.loginTime = loginTime;
}
public int getId() {
return id;
}
public void setId(int id) {
this.id = id;
}
public String getCourierName() {
return courierName;
}
public void setCourierName(String courierName) {
this.courierName = courierName;
}
public String getCourierPhone() {
return courierPhone;
}
public void setCourierPhone(String courierPhone) {
this.courierPhone = courierPhone;
}
public String getCourierIdNumber() {
return courierIdNumber;
}
public void setCourierIdNumber(String courierIdNumber) {
this.courierIdNumber = courierIdNumber;
}
public String getCourierPassword() {
return courierPassword;
}
public void setCourierPassword(String courierPassword) {
this.courierPassword = courierPassword;
}
public int getCourierSendNumber() {
return courierSendNumber;
}
public void setCourierSendNumber(int courierSendNumber) {
this.courierSendNumber = courierSendNumber;
}
public Timestamp getEnrollTime() {
return enrollTime;
}
public void setEnrollTime(Timestamp enrollTime) {
this.enrollTime = enrollTime;
}
public Timestamp getLoginTime() {
return loginTime;
}
public void setLoginTime(Timestamp loginTime) {
this.loginTime = loginTime;
}
@Override
public String toString() {
return "Courier{" +
"id=" + id +
", courierName='" + courierName + '\'' +
", courierPhone='" + courierPhone + '\'' +
", courierIdNumber='" + courierIdNumber + '\'' +
", courierPassword='" + courierPassword + '\'' +
", courierSendNumber=" + courierSendNumber +
", enrollTime=" + enrollTime +
", loginTime=" + loginTime +
'}';
}User（用户）
public class User {
private int id;
private String userName;
private String userPhone;
private String userIdNumber;
private String userPassword;
private Timestamp enrollTime;
private Timestamp loginTime;
private boolean user;
public User() {
}
public User(String userName, String userPhone, String userIdNumber, String userPassword) {
this.userName = userName;
this.userPhone = userPhone;
this.userIdNumber = userIdNumber;
this.userPassword = userPassword;
}
public User(int id, String userName, String userPhone, String userIdNumber, String userPassword, Timestamp enrollTime, Timestamp loginTime) {
this.id = id;
this.userName = userName;
this.userPhone = userPhone;
this.userIdNumber = userIdNumber;
this.userPassword = userPassword;
this.enrollTime = enrollTime;
this.loginTime = loginTime;
}
public int getId() {
return id;
}
public void setId(int id) {
this.id = id;
}
public String getUserName() {
return userName;
}
public void setUserName(String userName) {
this.userName = userName;
}
public String getUserPhone() {
return userPhone;
}
public void setUserPhone(String userPhone) {
this.userPhone = userPhone;
}
public String getUserIdNumber() {
return userIdNumber;
}
public void setUserIdNumber(String userIdNumber) {
this.userIdNumber = userIdNumber;
}
public String getUserPassword() {
return userPassword;
}
public void setUserPassword(String userPassword) {
this.userPassword = userPassword;
}
public Timestamp getEnrollTime() {
return enrollTime;
}
public void setEnrollTime(Timestamp enrollTime) {
this.enrollTime = enrollTime;
}
public Timestamp getLoginTime() {
return loginTime;
}
public void setLoginTime(Timestamp loginTime) {
this.loginTime = loginTime;
}
@Override
public String toString() {
return "User{" +
"id=" + id +
", userName='" + userName + '\'' +
", userPhone='" + userPhone + '\'' +
", userIdNumber='" + userIdNumber + '\'' +
", userPassword='" + userPassword + '\'' +
", enrollTime=" + enrollTime +
", loginTime=" + loginTime +
'}';
}
7、目录
前台（主要）
后台
8、微信端实现
前台
以主页进行展示
<!DOCTYPE html>
<html>
<head>
<title>快件e栈服务平台</title>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width,minimum-scale=1.0,maximum-scale=1.0,user-scalable=no" />
<link href="css/normalize.css" type="text/css" rel="stylesheet" />
<link href="css/main.css" type="text/css" rel="stylesheet" />
<script src="js/jquery.min.js" type="text/javascript"></script>
<script src="js/notice.js" type="text/javascript"></script>
<script src="js/common.js" type="text/javascript"></script>
<script src="layer/layer.js"></script>
</head>
<body>
<div class="content">
<div class="top autoH">
<div class="logo autoH">
<img src="images/logo.png" width="100%">
</div>
</div>
<div class="middle">
<form id="theForm">
<div class="forminput">
<input type="text" id="expressNum" name="expressNum" placeholder="请输入快递单号...">
<input id="PageContext" type="hidden" value="${pageContext.request.contextPath}" />
<div class="submBtn"></div>
</div>
</form>
</div>
<div class="funContdiv">
<div class="funCont">
<div class="userFun">
<p class="funIcon userFunColor1"></p>
<p class="funTxt">个人中心</p>
</div>
<div class="userFun">
<p class="funIcon userFunColor2"></p>
<p class="funTxt">懒人排行</p>
</div>
<div class="userFun">
<p class="funIcon userFunColor3"></p>
<p class="funTxt">取货二维码</p>
</div>
<div class="userFun">
<p class="funIcon userFunColor4"></p>
<p class="funTxt">我的快件</p>
</div>
<div class="userFun" id="userFun5">
<p class="funIcon userFunColor5"></p>
<p class="funTxt">快递助手</p>
</div>
<div class="userFun">
<p class="funIcon userFunColor6"></p>
<p class="funTxt">退出登录</p>
</div>
</div>
</div>
<div class="footer">
<p class="copytxt">©新职课版权所有</p>
</div>
</div>
<script type="text/javascript">
var isUser;
var userPhone;
$(function(){
$.getJSON("/wx/userInfo.do",null,function(data){
//{status:0/1,result:手机号}
userPhone = data.result;
if(data.status == 0){
isUser = true;
$("#userFun5").hide();
}else{
isUser = false;
}
//layer.msg("欢迎您:"+userPhone);
});
});
$(function(){
var pageContextVal = $("#PageContext").val();
$(".userFun").click(function(){
var clickNum = $(this).index();
switch(clickNum){
//个人中心
case(0):
window.location.href= "wxUserhome.html";
break;
case(1):
window.location.href= "lazyboard.html";
break;
case(2): window.location.href= "/wx/createQRCode.do?type=user"; break;
case(3): window.location.href= "expressList.html"; break;
case(4): window.location.href= "expressAssist.html"; break;
case(5):
//1. 告知服务器
$.getJSON("/wx/logout.do",null,function(data){
window.location.href= "login.html";
});
break;
}
});
var initFunc = function(){
var windowH = $(document).height();
var windowW = $(document).width();
$(".content").css({"height": windowH+"px"});
var contentW = $(".content").width();
var contentH = $(".content").height();
var contH = windowH / 3;
$(".autoH").css({"height": contH+"px"});
// userFunH content
var middleH = $(".middle").height() + 40;
var userFunH = contentH - contH - middleH - 30 -20; //footer,userfun(margin)
$(".funContdiv").css({"height":userFunH+"px"});
var funIconH = $(".funIcon").width();
$(".funIcon").css({"height": funIconH+"px","line-height": funIconH+"px","border-radius": funIconH/2 +"px","font-size":funIconH/2 +"px"});
};
initFunc();
$(window).resize(function(){
initFunc();
});
// input focus
$(".middle .forminput input").focus(function(){
$(".middle .forminput").css({"border":"1px solid rgba(31,114,255,.75)","box-shadow":"0 0 8px rgba(31,114,255,.5)"});
});
// input blur
$(".middle .forminput input").blur(function(){
$(".middle .forminput").css({"border":"1px solid #333333","box-shadow":"none"});
});
//submit arrow
$(".submBtn").click(function(){
var expressNum = $("#expressNum").val();//快递单号
$.ajax({
type:'GET',
url:pageContextVal+'/ul/indexQueryExpress',
data:{'expressNum':expressNum},
dataType: "json",
success:function(data){
var jsontmp = data;
switch(jsontmp.code) {
case "1" : rzAlert("操作提示",jsontmp.message); break;
case "0" :
rzAlert("操作提示",jsontmp.message);
break;
}
},
error:function(){
}
});
});
});
</script>
</body>
</html>后台
public class ExpressController {
@ResponseBody("/wx/findExpressByUserPhone.do")
public String findByUserPhone(HttpServletRequest request, HttpServletResponse response){
User wxUser = UserUtil.getWxUser(request.getSession());
String userPhone = wxUser.getUserPhone();
List<Express> list = ExpressService.findByUserPhone(userPhone);
List<BootStrapTableExpress> list2 = new ArrayList<>();
for(Express e:list){
String inTime = DateFormatUtil.format(e.getInTime());
String outTime = e.getOutTime()==null?"未出库":DateFormatUtil.format(e.getOutTime());
String status = e.getStatus()==0?"待取件":"已取件";
String code = e.getCode()==null?"已取件":e.getCode();
BootStrapTableExpress e2 = new BootStrapTableExpress(e.getId(),e.getNumber(),e.getUsername(),e.getUserPhone(),e.getCompany(),code,inTime,outTime,status,e.getSysPhone());
list2.add(e2);
}
Message msg = new Message();
if(list.size()==0){
msg.setStatus(-1);
}else{
msg.setStatus(0);
Stream<BootStrapTableExpress> status0Express = list2.stream().filter(express -> {
if (express.getStatus().equals("待取件")) {
return true;
} else {
return false;
}
}).sorted((o1,o2) -> {
long o1Time = DateFormatUtil.toTime(o1.getInTime());
long o2Time = DateFormatUtil.toTime(o2.getInTime());
return (int)(o1Time-o2Time);
});
Stream<BootStrapTableExpress> status1Express = list2.stream().filter(express -> {
if (express.getStatus().equals("已取件")) {
return true;
} else {
return false;
}
}).sorted((o1,o2) -> {
long o1Time = DateFormatUtil.toTime(o1.getInTime());
long o2Time = DateFormatUtil.toTime(o2.getInTime());
return (int)(o1Time-o2Time);
});
Object[] s0 = status0Express.toArray();
Object[] s1 = status1Express.toArray();
Map data = new HashMap<>();
data.put("status0",s0);
data.put("status1",s1);
msg.setData(data);
}
String json = JSONUtil.toJSON(msg.getData());
return json;
}
@ResponseBody("/wx/userExpressList.do")
public String expressList(HttpServletRequest request,HttpServletResponse response){
String userPhone = request.getParameter("userPhone");
List<Express> list = ExpressService.findByUserPhoneAndStatus(userPhone, 0);
List<BootStrapTableExpress> list2 = new ArrayList<>();
for(Express e:list){
String inTime = DateFormatUtil.format(e.getInTime());
String outTime = e.getOutTime()==null?"未出库":DateFormatUtil.format(e.getOutTime());
String status = e.getStatus()==0?"待取件":"已取件";
String code = e.getCode()==null?"已取件":e.getCode();
BootStrapTableExpress e2 = new BootStrapTableExpress(e.getId(),e.getNumber(),e.getUsername(),e.getUserPhone(),e.getCompany(),code,inTime,outTime,status,e.getSysPhone());
list2.add(e2);
}
Message msg = new Message();
if(list.size() == 0){
msg.setStatus(-1);
msg.setResult("未查询到快递");
}else{
msg.setStatus(0);
msg.setResult("查询成功");
msg.setData(list2);
}
return JSONUtil.toJSON(msg);
}过滤器
防止用户不登录直接进行跳转
@WebFilter({"/index.html"})
public class UserFilter implements Filter {
public void destroy() {
}
public void doFilter(ServletRequest req, ServletResponse resp, FilterChain chain) throws ServletException, IOException {
HttpSession session = ((HttpServletRequest)req).getSession();
User wxUser = UserUtil.getWxUser(session);
if(wxUser != null)
chain.doFilter(req, resp);
else
((HttpServletResponse)resp).sendRedirect("login.html");
}
public void init(FilterConfig config) throws ServletException {
}9、过程梳理
创建数据库表格
编写DAO
编写Service
编写Controller
前后端的交互
前端发起ajax→XXServlet→Controller→Service→DAO→数据库
10、前台实现
需引入相应的jQuery包
Express
分页
<body>
<table id="express_list"></table>
<script>
$(function(){
$("#express_list").bootstrapTable({
url:"/express/list.do",//数据地址
striped:true,//是否显示行的间隔
pageNumber:1,//初始化加载第几页
pagination:true,//是否分页
sidePagination:'server',
pageSize:5,
pageList:[5,10,20],
showRefresh:true,
queryParams:function(params){
var temp = {
offset:params.offset,
pageNumber:params.limit
};
return temp;
},
columns:[
{
title:"编号",
field:"id",
sortable:false
},
{
title:"单号",
field:"number",
sortable:false
},
{
title:"姓名",
field:"username",
sortable:false
},
{
title:"电话",
field:"userPhone",
sortable:false
},
{
title:"快递公司",
field:"company",
sortable:false
},
{
title:"取件码",
field:"code",
sortable:false
},
{
title:"入库时间",
field:"inTime",
sortable:false
},
{
title:"出库时间",
field:"outTime",
sortable:false
},
{
title:"状态",
field:"status",
sortable:false
},
{
title:"录入人电话",
field:"sysPhone",
sortable:false
}
]
});
});
</script>新增
<script>
$(function(){
$("#form").submit(function(){
var windowId = layer.load();
var number = $("input:eq(0)").val();
var company = $("input:eq(1)").val();
var username = $("input:eq(2)").val();
var userPhone = $("input:eq(3)").val();
$.post("/express/insert.do",{
number:number,
company:company,
username:username,
userPhone:userPhone
},function(data){
layer.close(windowId);
layer.msg(data.result);
if(data.status == 0){
//录入成功
$("input").val("");
$("input:eq(1)").val("顺丰速运");
}else{
//录入失败
}
});
return false;
});
});
</script>删除
<script src="/qrcode/jquery2.1.4.js"></script>
<script src="/layer/layer.js"></script>
<script>
$(".header:eq(1),.content:eq(1)").hide();
var expressId = null;
$(function(){
$("#find").click(function(){
var windowId = layer.load();
var number = $("#number").val();
$.getJSON("/express/find.do",{number:number},function(data){
layer.close(windowId);
//data:{"status":0,"result":"查询成功","data":{"id":2,"number":"124","username":"张三","userPhone":"13843838438","company":"京东快递","code":"213456","inTime":"Jul 21, 2020, 4:26:21 PM","status":0,"sysPhone":"18888888888"}}
layer.msg(data.result);
if(data.status == 0){
$(".header:eq(1),.content:eq(1)").fadeIn(1000);
expressId = data.data.id;
$("input:eq(1)").val(data.data.number);
$("input:eq(2)").val(data.data.company);
$("input:eq(3)").val(data.data.username);
$("input:eq(4)").val(data.data.userPhone);
$("input:eq(1),input:eq(2),input:eq(3),input:eq(4)").prop("disabled",true)
if(data.data.status == 0){
//未签收
$("#status").html("未签收");
}else{
//已签收
$("#status").html("已签收");
}
}
})
});
$("#delete").click(function(){
var windowId = layer.load();
$.getJSON("/express/delete.do",{id:expressId},function(data){
layer.close(windowId);
layer.msg(data.result);
if(data.status == 0){
$(".header:eq(1),.content:eq(1)").hide();
}
});
});
});
</script>修改
<script src="/qrcode/jquery2.1.4.js"></script>
<script src="/layer/layer.js"></script>
<script>
$(".header:eq(1),.content:eq(1)").hide();
var expressId = null;
var g_userPhone = null;
$(function(){
$("#find").click(function(){
var windowId = layer.load();
var number = $("#number").val();
$.getJSON("/express/find.do",{number:number},function(data){
layer.close(windowId);
//data:{"status":0,"result":"查询成功","data":{"id":2,"number":"124","username":"张三","userPhone":"13843838438","company":"京东快递","code":"213456","inTime":"Jul 21, 2020, 4:26:21 PM","status":0,"sysPhone":"18888888888"}}
layer.msg(data.result);
if(data.status == 0){
$(".header:eq(1),.content:eq(1)").fadeIn(1000);
expressId = data.data.id;
g_userPhone = data.data.userPhone;
$("input:eq(1)").val(data.data.number);
$("input:eq(2)").val(data.data.company);
$("input:eq(3)").val(data.data.username);
$("input:eq(4)").val(data.data.userPhone);
if(data.data.status == 0){
//未签收
$(".status:eq(1)").prop("checked",true);
}else{
//已签收
$(".status:eq(0)").prop("checked",true);
}
}
})
});
$("#update").click(function(){
var windowId = layer.load();
var number = $("input:eq(1)").val();
var company = $("input:eq(2)").val();
var username = $("input:eq(3)").val();
var userPhone = $("input:eq(4)").val();
var status = $(".status:checked").val();
var express = {
id:expressId,
number:number,
company:company,
username:username,
status:status
};
if(userPhone != g_userPhone){
express.userPhone = userPhone;
}
$.getJSON("/express/update.do",express,function(data){
layer.close(windowId);
layer.msg(data.result)
if(data.status == 0){
//修改成功的
$(".header:eq(1),.content:eq(1)").hide();
}
})
});
});
</script>User与Courier与其雷同，按照实体类修改相关参数即可
11、新知识引入——layer
layer 至今仍作为 layui 的代表作，它的受众广泛并非偶然，而是这数年来的坚持、不弃的执念，将那些不屑的眼光转化为应得的尊重，不断完善和维护、不断建设和提升社区服务，在 Web 开发者的圈子里口口相传，乃至于成为今天的 layui 最强劲的源动力。目前，layer 已然成为网页弹出层的首选交互方案，几乎随处可见。
学习链接：
12、新知识引入——内网穿透
内网穿透即NAT穿透，网络连接时术语，计算机是局域网内时，外网与内网的计算机节点需要连接通信，有时就会出现不支持内网穿透。就是说映射端口,能让外网的电脑找到处于内网的电脑,提高下载速度。不管是内网穿透还是其他类型的网络穿透，都是网络穿透的统一方法来研究和解决。NAT穿透，nat穿透中有关于网络穿透的详细信息。
使用步骤（图片）
登录网站
Sunny-Ngrok内网转发内网穿透 - 国内内网映射服务器
注册登录
下一步
需要两元的认证费
之后
配置自己的域名（我用的同学的）
此步骤省略
13、发送短信及验证码
短信
public static boolean send(String phoneNumber,String code) {
DefaultProfile profile = DefaultProfile.getProfile("cn-hangzhou", "LTAI4GJVun7NhPS8FMgSqqS4", "TgTLk8KVJjESFu6iC1jTHsVMK53z5Q");
IAcsClient client = new DefaultAcsClient(profile);
CommonRequest request = new CommonRequest();
request.setSysMethod(MethodType.POST);
request.setSysDomain("dysmsapi.aliyuncs.com");
request.setSysVersion("2022-3-14");
request.setSysAction("SendSms");
request.putQueryParameter("RegionId", "cn-hangzhou");
request.putQueryParameter("PhoneNumbers", phoneNumber);
request.putQueryParameter("SignName", "快件e栈");
request.putQueryParameter("TemplateCode", "SMS_196641606");
request.putQueryParameter("TemplateParam", "{\"code\":\""+code+"\"}");
try {
CommonResponse response = client.getCommonResponse(request);
System.out.println(response.getData());
String json = response.getData();
Gson g = new Gson();
HashMap result = g.fromJson(json, HashMap.class);
if("OK".equals(result.get("Message"))) {
return true;
}else{
System.out.println("短信发送失败，原因："+result.get("Message"));
}
} catch (ServerException e) {
e.printStackTrace();
} catch (ClientException e) {
e.printStackTrace();
}
return false;
}
public static boolean loginSMS(String phoneNumber,String code) {
DefaultProfile profile = DefaultProfile.getProfile("cn-hangzhou", "LTAI4GKsiFzUmLZ8Qnx1Sfza", "jUhIqqk3wwvhm2T1HOUVbCmIOWNE0O");
IAcsClient client = new DefaultAcsClient(profile);
CommonRequest request = new CommonRequest();
request.setSysMethod(MethodType.POST);
request.setSysDomain("dysmsapi.aliyuncs.com");
request.setSysVersion("2017-05-25");
request.setSysAction("SendSms");
request.putQueryParameter("RegionId", "cn-hangzhou");
request.putQueryParameter("PhoneNumbers", phoneNumber);
request.putQueryParameter("SignName", "快递e栈");
request.putQueryParameter("TemplateCode", "SMS_204295076");
request.putQueryParameter("TemplateParam", "{\"code\":\""+ code +"\"}");
try {
CommonResponse response = client.getCommonResponse(request);
System.out.println(response.getData());
String json = response.getData();
Gson g = new Gson();
HashMap result = g.fromJson(json, HashMap.class);
if("OK".equals(result.get("Message"))) {
return true;
}else{
System.out.println("短信发送失败，原因："+result.get("Message"));
}
} catch (ServerException e) {
e.printStackTrace();
} catch (ClientException e) {
e.printStackTrace();
}
return false;
}验证码
14、运行效果
控制台
Courier:(四个页面，相应为分页、新增、查询、修改)
Express:(四个页面，相应为分页、新增、查询、修改)
User:(四个页面，相应为分页、新增、查询、修改)
华为开发者空间，是为全球开发者打造的专属开发空间，汇聚了华为优质开发资源及工具，致力于让每一位开发者拥有一台云主机，基于华为根生态开发、创新。
更多推荐
12
0- 0
已为社区贡献6条内容
所有评论(0)
