思路:

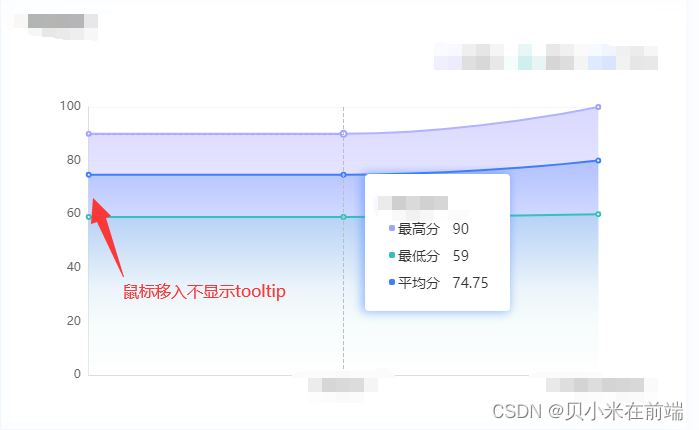

(1)鼠标移入部分数据列,不显示tooltip提示,我们可以在tooltip的formatter属性里面加if条件判断,不符合条件的数据列return空字符串就行。

(2)但这个方法会破坏原有的tooltip样式,我们要需要自己重新定义属性的css样式。

 代码实现:

tooltip: {
     trigger: 'axis',
     formatter:(params)=>{
        let res = `<h3 style="font-size:14px;line-height:14px;font-weight:400;color:#666666;">${params[0].name}</h3>`
        for ( let item of params ) {
            if ( item.name !== "" ) {
               res += `<h3 style="font-size:14px;line-height:14px;margin-top:13px;color:#333333;"><span style="width:6px;height:6px;border-radius:2px;background:${item.color};margin-top: -6x;display: inline-block;margin: 3px;"></span>${item.seriesName}&nbsp;&nbsp;&nbsp;${item.data}</h3>`
             } else
               return '';  //y轴上的第一组数据不显示tooltip
         }
         return res;
     },
     show: true,
     showContent: true,
     backgroundColor: '#fff',
     extraCssText: 'box-shadow:-2px 0px 9px 2px rgba(61,126,255,0.45)',
     padding: 20, // 内边距
     axisPointer: {    //纵向指示线
         type: 'line'
     }
},

 可以在formatter里面将params打印出来,看看不需要展示tooltip的数据列有哪些特质,如我的例子当中,第一组数据的name属性值为空,那么就以此为if条件语句的判断依据,碰到name为空的数据直接return '';
