Javaweb商城项目大作业

Javaweb商城项目大作业如果你是入门Javaweb，那么这个商城项目就将会是个不错的入门选择，总代码以及素材附在文章底下百度网盘中。ps:如报错，需根据自己的背景路径位置自行调整！！！首先我们来看一下效果图productlist页面：productadd页面：productedit页面：******************************************************

九九IT笔记

10955人浏览 · 2021-10-25 16:55:08

九九IT笔记 · 2021-10-25 16:55:08 发布

Javaweb商城项目大作业

如果你是入门Javaweb，那么这个商城项目就将会是个不错的入门选择，总代码以及素材附在文章底下百度网盘中。

ps:如报错，需根据自己的背景路径位置自行调整！！！

首先我们来看一下效果图

productlist页面：

productadd页面：

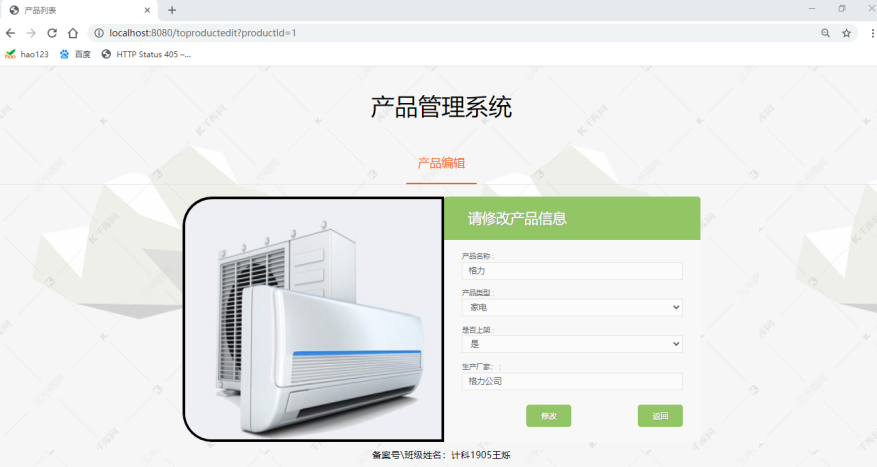

productedit页面：

************************************************************************************************************

下面附上代码：

1 数据库准备
创建商品数据库表： product

DROP TABLE IF EXISTS product;
CREATE TABLE product (
product_id int(11) PRIMARY KEY AUTO_INCREMENT COMMENT '产品id',
product_name varchar(63) DEFAULT NULL COMMENT '产品名称',
product_type varchar(2) DEFAULT NULL COMMENT '产品类型: 1-通讯,2-视频,3-家电',
can_sale varchar(2) DEFAULT NULL COMMENT '是否上架销售: 0-否,1-是',
manufacturer varchar(50) DEFAULT NULL COMMENT '生产厂家'
);

2 项⽬创建及配置
2.1 添加项⽬依赖
在pom.xml⽂件，添加依赖，确保有以下内容的依赖
1、 spring framework 全套组件
2、 aspectjrt （AOP实现）
3、 mybatis
4、 mybatis-spring
5、 servlet-api
6、 jsp-api
7、 jstl
8、 mysql驱动

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.ws</groupId>
  <artifactId>springmvcwebstudy</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>war</packaging>

  <name>springmvcwebstudy Maven Webapp</name>
  <!-- FIXME change it to the project's website -->
  <url>http://www.example.com</url>

  <properties>
    <project.build.sourceEncoding>
      UTF-8
    </project.build.sourceEncoding>
    <maven.compiler.source>
      1.8
    </maven.compiler.source>
    <maven.compiler.target>
      1.8
    </maven.compiler.target>
  </properties>

  <repositories>
    <repository>
      <id>aliyun</id>
      <name>aliyun</name>
      <url>http://maven.aliyun.com/nexus/content/groups/public</url>
    </repository>
  </repositories>


  <dependencies>
    <!--spring core：Spring的核心工具包-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-core</artifactId>
    </dependency>
    <!--spring-beans：Spring IOC的基础实现，包含访问配置文件、创建和管理bean等-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-beans</artifactId>
    </dependency>
    <!-- spring context：在基础IOC功能上提供扩展服务，-->
    <!-- 提供许多企业级服务的支持，如任务调度、JNDI定位，EJB集成、远程访问、缓存以及多种视图层框架的支持等-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
    </dependency>
    <!-- spring-context-indexer -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context-indexer</artifactId>
    </dependency>
    <!--spring-context-support：Spring context的扩展支持，用于MVC方面-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context-support</artifactId>
    </dependency>
    <!--spring aop：Spring的面向切面编程，提供AOP（面向切面编程）的实现-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aop</artifactId>
    </dependency>
    <!-- spring aspect：Spring提供的对AspectJ框架的整合-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aspects</artifactId>
    </dependency>
    <!-- spring expression：Spring表达式语言-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-expression</artifactId>
    </dependency>

    <!--spring instrument：Spring对服务器的代理接口-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-instrument</artifactId>
    </dependency>

    <!--spring orm：Spring对于Java Object/XML映射的支持，可以让Java与XML之间来回切换-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-orm</artifactId>
    </dependency>
    <!--spring jdbc：对JDBC 的简单封装-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
    </dependency>
    <!--spring oxm-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-oxm</artifactId>
    </dependency>
    <!--spring tx：为JDBC、Hibernate、JDO、JPA等提供的一致的声明式和编程式事务管理-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
    </dependency>

    <!--spring web：支持Web应用开发-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-web</artifactId>
    </dependency>
    <!--spring mvc：包含SpringMVC框架相关的所有类-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
    </dependency>

    <!-- aspectjrt：一个AOP第三方实现 -->
    <dependency>
      <groupId>org.aspectj</groupId>
      <artifactId>aspectjrt</artifactId>
      <version>1.9.6</version>
    </dependency>

    <!-- mysql-connector-java：MySQL驱动 -->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>8.0.12</version>
    </dependency>

    <!-- HikariCP：第三方数据库连接池 -->
    <dependency>
      <groupId>com.zaxxer</groupId>
      <artifactId>HikariCP</artifactId>
      <version>3.4.2</version>
    </dependency>
    <!--HikariCP用到的日志框架-->
    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>slf4j-simple</artifactId>
      <version>1.7.25</version>
      <scope>compile</scope>
    </dependency>

    <!-- commons-dbcp2：第三方数据库连接池 -->
    <dependency>
      <groupId>org.apache.commons</groupId>
      <artifactId>commons-dbcp2</artifactId>
      <version>2.7.0</version>
    </dependency>

    <!-- c3p0：第三方数据库连接池 -->
    <dependency>
      <groupId>com.mchange</groupId>
      <artifactId>c3p0</artifactId>
      <version>0.9.5.5</version>
    </dependency>

    <!-- mybatis：ORM框架,访问数据库的封装 -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>3.5.6</version>
    </dependency>

    <!-- mybatis-spring：mybatis与spring的集成 -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>2.0.5</version>
    </dependency>

    <!-- servlet-api -->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>4.0.1</version>
      <!--容器提供的jar。开发用到，运行时不需要打包进应用-->
      <scope>provided</scope>
    </dependency>
    <!-- jsp-api -->
    <dependency>
      <groupId>javax.servlet.jsp</groupId>
      <artifactId>javax.servlet.jsp-api</artifactId>
      <version>2.3.3</version>
      <!--容器提供的jar。开发用到，运行时不需要打包进应用-->
      <scope>provided</scope>
    </dependency>
    <!-- jstl -->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>jstl</artifactId>
      <version>1.2</version>
    </dependency>

    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.11</version>
      <scope>test</scope>
    </dependency>
    <!-- hibernate-validator -->
    <dependency>
      <groupId>org.hibernate.validator</groupId>
      <artifactId>hibernate-validator</artifactId>
      <version>6.1.6.Final</version>
    </dependency>
    <!-- commons-fileupload -->
    <dependency>
      <groupId>commons-fileupload</groupId>
      <artifactId>commons-fileupload</artifactId>
      <version>1.3.3</version>
    </dependency>

    <!-- jackson-annotations -->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-annotations</artifactId>
      <version>2.11.3</version>
    </dependency>
    <!-- jackson-core -->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-core</artifactId>
      <version>2.11.3</version>
    </dependency>
    <!-- jackson-databind -->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>2.11.3</version>
    </dependency>
    <dependency>
      <groupId>org.jetbrains</groupId>
      <artifactId>annotations</artifactId>
      <version>RELEASE</version>
      <scope>compile</scope>
    </dependency>
  </dependencies>

  <dependencyManagement>
    <dependencies>
      <!--使用spring-framework-bom统一管理pring-framework的jar包版本-->
      <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-framework-bom</artifactId>
        <version>5.3.0</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
      <!--其他依赖不要放到这里-->
    </dependencies>
  </dependencyManagement>


  <build>
    <finalName>springmvcwebstudy</finalName>
    <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
      <plugins>
        <plugin>
          <artifactId>maven-clean-plugin</artifactId>
          <version>3.1.0</version>
        </plugin>
        <!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
        <plugin>
          <artifactId>maven-resources-plugin</artifactId>
          <version>3.0.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-compiler-plugin</artifactId>
          <version>3.8.0</version>
        </plugin>
        <plugin>
          <artifactId>maven-surefire-plugin</artifactId>
          <version>2.22.1</version>
        </plugin>
        <plugin>
          <artifactId>maven-war-plugin</artifactId>
          <version>3.2.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-install-plugin</artifactId>
          <version>2.5.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-deploy-plugin</artifactId>
          <version>2.8.2</version>
        </plugin>
      </plugins>
    </pluginManagement>

    <resources>
      <!--资源编译输出-->
      <resource>
        <directory>src/main/java</directory>
        <includes>
          <include>**/*.xml</include>
        </includes>
      </resource>
      <resource>
        <directory>src/main/resources</directory>
        <includes>
          <include>**/*.*</include>
        </includes>
      </resource>
    </resources>
  </build>
</project>

2.2 创建java包结构
在src/main/java下，创建包：
com.hbxy.ssm.prodect(存放产品管理模块的所有代码)
com.hbxy.ssm.prodect.model (存放模型类)
com.hbxy.ssm.prodect.dao (存放内部实现的mapper接⼝)
com.hbxy.ssm.prodect.mapper (存放mapper映射⽂件)
com.hbxy.ssm.prodect.service (存放对外提供的服务接⼝)
com.hbxy.ssm.prodect.service.impl (存放服务接⼝的实现)
com.hbxy.ssm.prodect.controller (存放mvc模型中的控制器)
2.3 创建jsp⽬录
在src/main/webapp⽬录下，创建static⽬录，在static下创建：
css (存放样式⽂件)
js (存放js⽂件)
img (存放图⽚资源⽂件)
3 创建相关Java业务类
3.1 创建模型类
在包com.hbxy.ssm.product.model中创建Product.java类

package com.ws.ssm.product.model;

public class Product {
    private int productId;
    private String productName;
    private String productType;
    private String canSale;
    private String manufacturer;

    public int getProductId() {
        return productId;
    }

    public void setProductId(int productId) {
        this.productId = productId;
    }

    public String getProductName() {
        return productName;
    }

    public void setProductName(String productName) {
        this.productName = productName;
    }

    public String getProductType() {
        return productType;
    }

    public void setProductType(String productType) {
        this.productType = productType;
    }

    public String getCanSale() {
        return canSale;
    }

    public void setCanSale(String canSale) {
        this.canSale = canSale;
    }

    public String getManufacturer() {
        return manufacturer;
    }

    public void setManufacturer(String manufacturer) {
        this.manufacturer = manufacturer;
    }

    @Override
    public String toString() {
        return "Product{" +
                "productId=" + productId +
                ", productName='" + productName + '\'' +
                ", productType='" + productType + '\'' +
                ", canSale='" + canSale + '\'' +
                ", manufacturer='" + manufacturer + '\'' +
                '}';
    }
}

3.2 创建Mapper接⼝类
在包com.hbxy.ssm.product.dao中，创建ProductMapper.java接⼝

package com.ws.ssm.product.dao;

import com.ws.ssm.product.model.Product;
import org.apache.ibatis.annotations.Mapper;

import java.util.List;

@Mapper
public interface ProductMapper {
    public void addProduct(Product product);

    public void deleteProduct(int productId);

    public void deleteProductAll();

    public void updateProduct(Product product);

    public Product findProductById(int productId);

    public List<Product> findAllProduct();
}

3.3 创建Mapper映射⽂件
在包com.hbxy.ssm.product.mapper中，创建ProductMapper.xml⽂件

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.ws.ssm.product.dao.ProductMapper">
    <resultMap id="productResult" type="product">
        <id column="product_id" property="productId" jdbcType="INTEGER"/>
        <id column="product_name" property="productName" jdbcType="VARCHAR"/>
        <id column="product_type" property="productType" jdbcType="VARCHAR"/>
        <id column="can_sale" property="canSale" jdbcType="VARCHAR"/>
        <id column="manufacturer" property="manufacturer" jdbcType="VARCHAR"/>
    </resultMap>

    <insert id="addProduct" parameterType="product">
        insert into product(product_name,product_type,can_sale,manufacturer)
        values(#{productName},#{productType},#{canSale},#{manufacturer});
    </insert>

    <delete id="deleteProduct" parameterType="INTEGER">
        delete from product
        where product_id=#{productId};
    </delete>

    <delete id="deleteProductAll">
        delete from product;
    </delete>

    <update id="updateProduct" parameterType="product">
        update product
        set product_name=#{productName},product_type=#{productType},can_sale=#{canSale},manufacturer=#{manufacturer}
        where product_id=#{productId};
    </update>

    <select id="findProductById" parameterType="INTEGER" resultMap="productResult">
        select * from product
        where product_id=#{productId};
    </select>

    <select id="findAllProduct" resultMap="productResult">
        select * from product;
    </select>
</mapper>

3.4 创建服务接⼝
在包com.hbxy.ssm.product.service中，创建ProductService.java接⼝

package com.ws.ssm.product.service;

import com.ws.ssm.product.model.Product;

import java.util.List;

public interface ProductService {
    public void addProduct(Product product);

    public void deleteProduct(int productId);

    public void deleteProductAll();

    public void updateProduct(Product product);

    public Product findProductById(int productId);

    public List<Product> findAllProduct();

}

3.5 创建服务实现类
在包com.hbxy.ssm.product.service.impl中，创建ProductServiceImpl.java类

package com.ws.ssm.product.service.impl;

import com.ws.ssm.product.dao.ProductMapper;
import com.ws.ssm.product.model.Product;
import com.ws.ssm.product.service.ProductService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

@Service
public class ProductServiceImpl implements ProductService {

    @Autowired
    private ProductMapper mapper;

    @Override
    public void addProduct(Product product) {
        mapper.addProduct(product);
    }

    @Override
    public void deleteProduct(int productId) {
        mapper.deleteProduct(productId);
    }

    @Override
    public void updateProduct(Product product) {
        mapper.updateProduct(product);
    }

    @Override
    public Product findProductById(int productId) {
        return mapper.findProductById(productId);
    }

    @Override
    public List<Product> findAllProduct() {
        return mapper.findAllProduct();
    }

    @Override
    public void deleteProductAll(){ mapper.deleteProductAll(); }
}

3.6 创建控制器
在包com.hbxy.ssm.product.controller中，创建ProductController.java类

package com.ws.ssm.product.controller;

import com.ws.ssm.product.model.Product;
import com.ws.ssm.product.service.ProductService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

import java.util.List;

@Controller /*控制器类*/
public class ProductController {
    @Autowired  /*自动装配，将spring容器中的bean自动和Product类中bean组装到一起*/
    private ProductService productService;

    @GetMapping("/productlist") /*将 HTTP GET 请求映射到特定的处理程序方法*/
    public String productList(Model model){
        //调⽤服务接⼝,获得数据
        List<Product> list = productService.findAllProduct();
        //把数据放进model,传递给⻚⾯展现
        model.addAttribute("productlist",list);
        //跳转到展现⻚⾯
        return "/jsp/product/product_list";
    }

    @GetMapping("/toproductadd")
    public String toProductAdd(Model model){
        //跳转到添加⻚⾯
        return "/jsp/product/product_add";
    }

    @PostMapping("/productadd")
    public String productAdd(Product product, Model model){
        //调⽤服务接⼝,添加数据
        productService.addProduct(product);
        //重定向到列表url
        return "redirect:productlist";
    }

    @GetMapping("/toproductedit")
    public String toProductEdit(int productId,Model model) {
        //调⽤服务接⼝,通过id查询获得数据
        Product product = productService.findProductById(productId);
        //把数据放进model,传递给⻚⾯展现
        model.addAttribute("product", product);
        //跳转到修改⻚⾯
        return "/jsp/product/product_edit";
    }

    @PostMapping("/productedit")
    public String productEdit(Product product, Model model){
        //调⽤服务接⼝,更新数据
        productService.updateProduct(product);
        //重定向到列表url
        return "redirect:productlist";
    }

    @RequestMapping("/productdelete")
        public String productDelete(int productId){
        //调⽤服务接⼝,删除

        productService.deleteProduct(productId);
        //重定向到列表url
        return "redirect:productlist";
    }

    @RequestMapping("/productdeleteall")
    public String productDeleteAll(){
        productService.deleteProductAll();
        return "redirect:productlist";
    }
}

4 创建jsp⻚⾯
在webapp/jsp/party⽂件夹中，创建三个jsp⻚⾯。在webapp/static/css⽂件夹中创建对应的css文件
4.1 product_list.jsp和product_list.css

<%--
  Created by IntelliJ IDEA.
  User: lenovo
  Date: 2021/6/11
  Time: 12:22
  To change this template use File | Settings | File Templates.
--%>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ taglib prefix="c"
           uri="http://java.sun.com/jsp/jstl/core" %>
<html>
    <head>
        <title>产品列表</title>
        <link rel="stylesheet" type="text/css" href="../../static/css/product_list.css">
    </head>
    <body>
    <header>产品管理系统</header>
    <nav>	<!--导航链接部分-->
        <a href="" style="color: #ff6700;border-bottom: 3px solid #FF6700;">产品目录</a>	<!--这样有一个在该页面的感觉-->
        <a onclick="jumpadd()">添加产品</a>
        <button class="deleteAll" onclick="deleteAll()">全部删除</button>
    </nav>
    <div class="showcase">
        <c:forEach var="product" items="${productlist}" varStatus="varstatus">
            <a onclick="jumpedit(${product.productId})" >
                <div>
                    <c:if test="${product.productType==1}">
                        <img src="../../static/img/phone.jpg" style="width: 100%;height: 100%">
                    </c:if>
                    <c:if test="${product.productType==2}">
                        <img src="../../static/img/tv.jpg" style="width: 100%;height: 100%">
                    </c:if>
                    <c:if test="${product.productType==3}">
                        <img src="../../static/img/air-conditioning%20.jpg" style="width: 100%;height: 100%">
                    </c:if>
                </div>
            <div class="detail">
                <c:out value="${varstatus.index+1}"/>
                    ${product.productName}

                <c:if test="${product.productType=='1'}">通讯</c:if>
                <c:if test="${product.productType=='2'}">视频</c:if>
                <c:if test="${product.productType=='3'}">家电</c:if>

                <c:if test="${product.canSale=='0'}">否</c:if>
                <c:if test="${product.canSale=='1'}">是</c:if>
                    ${product.manufacturer}
            </div>
        </a>
            <input type="button" class="btnDel" value="删除"
                   onclick="del(${product.productId})">
        </c:forEach>
    </div>
    <footer>备案号\班级姓名：计科1905王烁</footer>	<!--页脚-->

    <script>
        function jumpadd() {
            window.location.href
                ="${pageContext.request.contextPath}/toproductadd";
        }
        function jumpedit(id) {
            window.location.href
                ="${pageContext.request.contextPath}/toproductedit?productId=" + id;
        }
        function del(id) {
            if(confirm("要删除该数据吗?")){
                window.location.href
                    ="${pageContext.request.contextPath}/productdelete?productId=" + id;
            }
        }
        function deleteAll() {
            if(confirm("要删除该全部数据吗?")){
                window.location.href
                    ="${pageContext.request.contextPath}/productdeleteall";
            }
        }
    </script>
    </body>
</html>

body{
    margin: 0;
    background-color: #f5f5f5;

    display: flex;		/*一种布局方式*/
    flex-direction: column;
    height: 100%;
    /*用flex化空间需要父元素有具体的尺寸*/
    background-image: url(../img/background.jpg);
}

a{
    text-decoration: none;
    color: black;
}
a:hover{
    cursor: pointer;
}
header{
    height: 40px;
    flex-shrink: 0;	/*flex布局防止被挤压，子元素宽度减小*/
    padding-bottom: 20px;
    font-size: 40px;
    margin: 0 auto;
    color: black;
    margin-top: 40px;
    margin-bottom:20px
}

nav{
    border-bottom: 1px solid #e6e6e6;
    height: 80px;

    display: flex;
    justify-content: center;
}
nav a{
    text-decoration: none;	/*去下划线*/
    font-size: 20px;
    color: #000000;
    padding: 30px 20px;
    margin: 0 20px;
    /*调整内外边距，有种线分开的感觉*/
}
nav a:hover{
    color: #ff6700;
    border-bottom: 3px solid #FF6700;
    transition: all .2s;
}
.deleteAll{
    width: 50px;
    height: 50px;
    font-size: 7px;
    border-radius: 50px;
    margin-top: 20px;
    background-color:white;
    color: black;
    outline: none;  /*去外边框框*/
}
.deleteAll:hover{
    background-color: black;
    color: white;
    font-size: 13px;
    cursor: pointer;
    box-shadow: 0 10px 20px darkgrey;	/*块周围有阴影*/
    transition: all .3s;	/*多个属性变换，过渡效果0.3s*/
    border: red 5px solid;
    outline: none;  //去外边框框
}

.showcase{
    flex-grow: 1;	/*索取父容器的剩余空间*/
    margin-top: 20px;
    /*这里其实是给showcase划了100%（占据header和nav和footer的）的伸缩空间*/


    /*之前的空行也是，为了分开对自己的设置和对子元素的设置，好读*/
    display: flex;
    justify-content: center;	/*弹性项目居中紧挨着填充*/
    flex-wrap: wrap;	/*flex-wrap属性定义，如果一条轴线排不下，如何换行    换行，第一行在上方*/
}
.showcase a{
    width: 270px;
    height: 180px;
    background-color: #ffffff;
    transition: all .3s;
    margin: 20px;
    text-decoration: none;	/*去下划线*/
}
.showcase a:hover{
    transform: translateY(-8px);	/*块向上抖动*/
    box-shadow: 0 10px 20px darkgrey;	/*块周围有阴影*/
    transition: all .3s;	/*多个属性变换，过渡效果0.3s*/
}


.detail{
    background-color: gray;
    text-align: center;
    color: white;
}
.btnDel{
    height: 200px;
    margin-top: 20px;
    transform: translateX(-20px);	/*块向上抖动*/
    cursor:pointer;
}
.btnDel:hover{
    transform: translateX(-25px);	/*块向上抖动*/
    box-shadow: 0 10px 20px darkgrey;	/*块周围有阴影*/
    transition: all .3s;	/*多个属性变换，过渡效果0.3s*/

}

footer{
    text-align: center;
}

4.2 product_add.jsp和product_add.css

<%--
  Created by IntelliJ IDEA.
  User: lenovo
  Date: 2021/6/11
  Time: 12:22
  To change this template use File | Settings | File Templates.
--%>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>添加页面</title>
    <link rel="stylesheet" type="text/css" href="../../static/css/product_list.css">
    <link rel="stylesheet" type="text/css" href="../../static/css/product_add.css">
</head>
<body>
<header>产品管理系统</header>
<nav>	<!--导航链接部分-->
    <a onclick="jumplist()">产品目录</a>
    <a href="" style="color: #ff6700;border-bottom: 3px solid #FF6700;">添加产品</a>	<!--这样有一个在该页面的感觉-->
    <button class="deleteAll" onclick="deleteAll()">全部删除</button>
</nav>

<div class="addcase">
    <form name="frmProduct" class="smart-green" method="post">  <!--get 机密性不高，在url中显示输入的信息-->
        <h1>请添加产品信息</h1>
        <label>
            <span>产品名称 :</span>
            <input id="name" type="text" name="productName"/>
        </label>

        <label>
            <span>产品类型 :</span>
            <select name="productType">
                <option disabled selected>请选择产品类型</option>
                <option value="1">通讯</option>
                <option value="2">视频</option>
                <option value="3">家电</option>
            </select>
        </label>

        <label>
            <span>是否上架 :</span>
            <select name="canSale">
                <option disabled selected>请确认是否上架</option>
                <option value="1">是</option>
                <option value="0">否</option>
            </select>
        </label>

        <label>
            <span>生产厂家： :</span>
            <input id="manufactor" type="text" name="manufacturer"/>
        </label>

        <label>
            <input type="button" class="button" value="添加" onclick="add()"/>
            <input type="reset" class="button" value="重置"/>
        </label>
    </form>
</div>
<footer>备案号\班级姓名：计科1905王烁</footer>	<!--页脚-->
<script>
    function jumplist() {
        window.location.href    /*当前页面打开URL页面*/
            ="${pageContext.request.contextPath}/productlist";  /*部署的应用程序名:http://localhost:8080/*/
    }
    function add() {
        document.frmProduct.action
            = "${pageContext.request.contextPath}/productadd";
        document.frmProduct.submit();   <!--表单提交-->
    }
    function deleteAll() {
        if(confirm("要删除该全部数据吗?")){
            window.location.href
                ="${pageContext.request.contextPath}/productdeleteall";
        }
    }
</script>
</body>
</html>

.addcase{
	margin-top: 30px;
}

 .smart-green {
      margin-left: auto;
      margin-right: auto;
      max-width: 500px;
      background: #F8F8F8;
      padding: 30px 30px 20px 30px;
      font: 12px Arial, Helvetica, sans-serif;
      color: #666;
      border-radius: 5px;
      -webkit-border-radius: 5px;
      -moz-border-radius: 5px;
  }

  .smart-green h1 {
      font: 24px "Trebuchet MS", Arial, Helvetica, sans-serif;
      padding: 20px 0px 20px 40px;
      display: block;
      margin: -30px -30px 10px -30px;
      color: #FFF;
      background: #9DC45F;
      text-shadow: 1px 1px 1px #949494;
      border-radius: 5px 5px 0px 0px;
      -webkit-border-radius: 5px 5px 0px 0px;
      -moz-border-radius: 5px 5px 0px 0px;
      border-bottom: 1px solid #89AF4C;
  }

  .smart-green h1 > span {
      display: block;
      font-size: 11px;
      color: #FFF;
  }

  .smart-green label {
      display: block;
      margin: 0px 0px 5px;
  }

  .smart-green label > span {
      float: left;
      margin-top: 10px;
      color: #5E5E5E;
  }

  .smart-green input[type="text"], .smart-green input[type="email"], .smart-green textarea, .smart-green select {
      color: #555;
      height: 30px;
      line-height: 15px;
      width: 100%;
      padding: 0px 0px 0px 10px;
      margin-top: 2px;
      border: 1px solid #E5E5E5;
      background: #FBFBFB;
      outline: 0;
      -webkit-box-shadow: inset 1px 1px 2px rgba(238, 238, 238, 0.2);
      box-shadow: inset 1px 1px 2px rgba(238, 238, 238, 0.2);
      font: normal 14px/14px Arial, Helvetica, sans-serif;
  }

  .smart-green textarea {
      height: 100px;
      padding-top: 10px;
  }


  .smart-green .button {
  	  margin-top: 20px;
  	  margin-left: 110px;
      background-color: #9DC45F;
      border-radius: 5px;
      -webkit-border-radius: 5px;
      -moz-border-border-radius: 5px;
      border: none;
      padding: 10px 25px 10px 25px;
      color: #FFF;
      text-shadow: 1px 1px 1px #949494;
  }

  .smart-green .button:hover {
      background-color: #80A24A;
  }

  .error-msg{
      color: red;
      margin-top: 10px;
  }
  .success-msg{
      color: #80A24A;
      margin-top: 10px;
      margin-bottom: 10px;
  }

4.3 product_edit.jsp和product_edit.css

<%--
  Created by IntelliJ IDEA.
  User: lenovo
  Date: 2021/6/11
  Time: 12:23
  To change this template use File | Settings | File Templates.
--%>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ taglib prefix="c"
           uri="http://java.sun.com/jsp/jstl/core" %>
<html>
<head>
    <meta charset="UTF-8">
    <title>产品列表</title>
    <link rel="stylesheet" href="../../static/css/product_edit.css"/>
    <link rel="stylesheet" href="../../static/css/product_list.css"/>
    <link rel="stylesheet" href="../../static/css/product_add.css"/>
</head>
<body>
<header>产品管理系统</header>
<nav>    <!--导航链接部分-->
    <a href="" style="color: #ff6700;border-bottom: 3px solid #FF6700;">产品编辑</a>    <!--这样有一个在该页面的感觉-->
</nav>
<div class="editcase">
    <div class="img">
        <c:if test="${product.productType==1}">
            <img src="../../static/img/phone.jpg" style="width: 100%;height: 100%">
        </c:if>
        <c:if test="${product.productType==2}">
            <img src="../../static/img/tv.jpg" style="width: 100%;height: 100%">
        </c:if>
        <c:if test="${product.productType==3}">
            <img src="../../static/img/air-conditioning%20.jpg" style="width: 100%;height: 100%">
        </c:if>
    </div>
    <div class="information">
        <form name="frmProduct" class="smart-green" method="post">
            <h1>请修改产品信息</h1>
            <label>
                <span>产品名称 :</span>
                <input id="name" type="text" name="productName" value="${product.productName}"/>
            </label>

            <label>
                <span>产品类型 :</span>
                <select name="productType">
                    <option value="1"
                            <c:if test="${product.productType=='1'}">
                                selected
                            </c:if>>
                            通讯</option>
                    <option value="2"
                            <c:if test="${product.productType=='2'}">
                                selected
                            </c:if>>
                            视频</option>
                    <option value="3"
                            <c:if test="${product.productType=='3'}">
                                selected
                            </c:if>>
                            家电</option>
                </select>
            </label>

            <label>
                <span>是否上架 :</span>
                <select name="canSale">
                    <option value="1"
                            <c:if test="${product.canSale=='1'}">
                                selected
                            </c:if>>
                        是</option>
                    <option value="0"
                            <c:if test="${product.canSale=='0'}">
                                selected
                            </c:if>>
                        否</option>
                </select>
            </label>

            <label>
                <span>生产厂家： :</span>
                <input id="manufactor" type="text" name="manufacturer" value="${product.manufacturer}"/>
            </label>

            <label>
                <input type="button" class="button" value="修改" onclick="save(${product.productId})"/>
                <input type="reset" class="button" value="返回" onclick="cancel()"/>
            </label>
        </form>
    </div>
</div>
<footer>备案号\班级姓名：计科1905王烁</footer>    <!--页脚-->

<script>
    function cancel() {
        window.location.href
            ="${pageContext.request.contextPath}/productlist";
    }
    function save(id) {
        document.frmProduct.action
            = "${pageContext.request.contextPath}/productedit?productId="+id;
        document.frmProduct.submit();
    }
</script>
</body>
</html>

.editcase{
	margin: 0 auto;
	padding-top: 20px;
	width: 883px;
}
.img{
	width: 436px;
	height: 407px;
	float: left;
}
img{
	width: 100%;
	height: 100%;
	border: 5px solid black;
	border-radius: 50px 0 0 50px;
}
.information{
	float: right;
}

5 创建/修改配置⽂件
5.1 创建/修改MyBatis配置⽂件
在src/main/resources⽬录下，创建mybatis-config.xml⽂件。如果mybatisconfig.xml已存在，则添加
相关模块的mapper.xml⽂件及声明别名

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<!--定义别名，可以在mapper.xml使用-->
<typeAliases>
<typeAlias type="com.ws.ssm.product.model.Product" alias="product">
</typeAlias>
<!--定义mapper.xml在哪-->
</typeAliases>
<mappers>
<mapper resource="com/ws/ssm/product/mapper/ProductMapper.xml"/>
</mappers>
</configuration>

5.2 创建/修改Spring配置⽂件
在src/main/resources⽬录下，创建spring-config.xml⽂件。如果springconfig.xml已存在，则修改添
加mybatis相关内容，添加新的服务实现类的扫描路径

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd">
    <!--1 数据源定义-->
    <bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
        <property name="driverClassName" value="com.mysql.cj.jdbc.Driver"/>
        <property name="url"
                  value="jdbc:mysql://localhost:3306/mydb?
                             serverTimezone=Asia/Shanghai&amp;
                             autoReconnect=true&amp;
                             useSSL=false&amp;
                             characterEncoding=utf8&amp;
                             useUnicode=true"/>
        <property name="username" value="root"/>
        <property name="password" value="2205525477"/>
    </bean>

    <!--创建mybatis会话工厂-->
    <bean id="sessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"/>
        <property name="configLocation" value="classpath:mybatis-config.xml"/>
    </bean>

    <!--扫码mapper接口类-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="com.ws.**.dao"/>
    </bean>

    <!--扫描service服务接口-->
    <context:component-scan base-package="com.ws.**.service.impl"/>
</beans>

5.3 创建SpringMVC配置⽂件
在src/main/resources⽬录下，创建springmvc-config.xml⽂件。如果springmvc-config.xml已存在，
则修改添加新模块的控制器扫描路径

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
https://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/mvc
https://www.springframework.org/schema/mvc/spring-mvc.xsd">
<context:component-scan base-package="com.**.controller"/>
<bean id="viewerResolver"
class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value=""/>
<property name="suffix" value=".jsp"/>
</bean>
<mvc:resources location="/static/" mapping="/static/**/*.*"/>
<!--注解驱动-->
<mvc:annotation-driven/>
</beans>

5.4 修改web.xml⽂件
修改web.xml⽂件，添加spring， springmvc的配置，以及处理中⽂的过滤器

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://java.sun.com/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-app_4_0.xsd"
version="4.0">
<!--初始化spring容器-->
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:spring-config.xml</param-value>
</context-param>
<listener>
<listenerclass>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<servlet>
<servlet-name>springmvc</servlet-name>
<servlet-class>
org.springframework.web.servlet.DispatcherServlet
</servlet-class>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:springmvc-config.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
<!--第⼀一个启动Spring容器器及其拦截器器-->
</servlet>
<servlet-mapping>
<servlet-name>springmvc</servlet-name>
<url-pattern>/</url-pattern>
<!--所有的请求都需要经过DispatcherServlet转发处理理-->
</servlet-mapping>
<filter>
<filter-name>CharacterEncodingFilter</filter-name>
<filterclass>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>UTF-8</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>CharacterEncodingFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
</web-app>

6、功能测试
访问：http://localhost:8080/productlist 进行测试

我们还可以根据以上描述添加更多有趣好玩的功能模块。也可做出更好看的形式看着效果更加好。

素材及源代码百度网盘链接：百度网盘请输入提取码

提取码：2205

************************************************************************************************************
