DolphinScheduler任务调度源码剖析

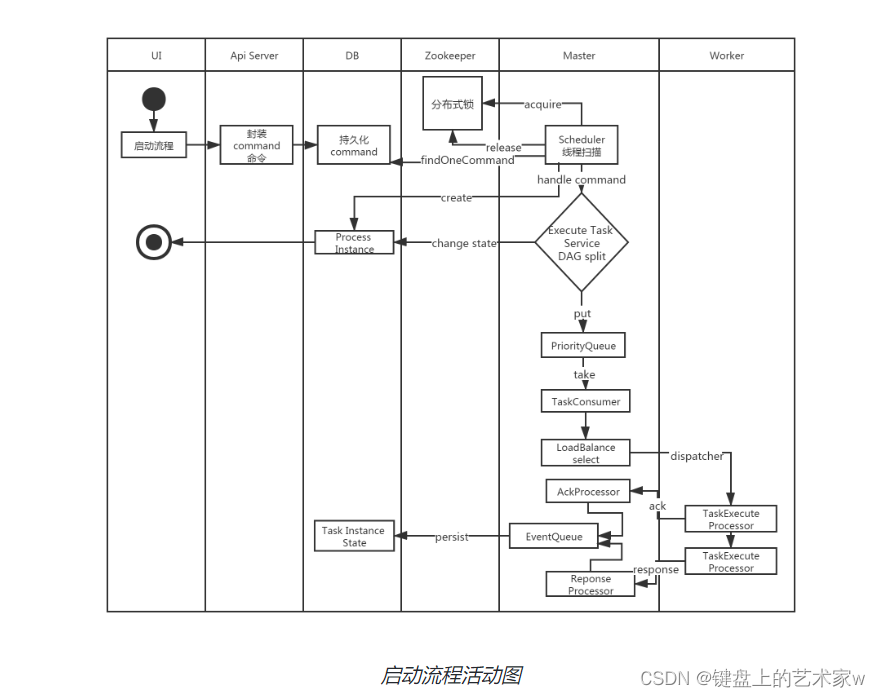

ExecutorController.startProcessInstance()方法。
最终会往mysql表t_ds_command插入一条数据，将要运行的工作流信息写入该表。

@PostMapping(value = "start-process-instance")
@ResponseStatus(HttpStatus.OK)
@ApiException(START_PROCESS_INSTANCE_ERROR)
@AccessLogAnnotation(ignoreRequestArgs = "loginUser")
public Result startProcessInstance(@ApiIgnore @RequestAttribute(value = Constants.SESSION_USER) User loginUser,
                                   @ApiParam(name = "projectCode", value = "PROJECT_CODE", required = true) @PathVariable long projectCode,
                                   @RequestParam(value = "processDefinitionCode") long processDefinitionCode,
                                   @RequestParam(value = "scheduleTime") String scheduleTime,
                                   @RequestParam(value = "failureStrategy") FailureStrategy failureStrategy,
                                   @RequestParam(value = "startNodeList", required = false) String startNodeList,
                                   @RequestParam(value = "taskDependType", required = false) TaskDependType taskDependType,
                                   @RequestParam(value = "execType", required = false) CommandType execType,
                                   @RequestParam(value = "warningType") WarningType warningType,
                                   @RequestParam(value = "warningGroupId", required = false, defaultValue = "0") Integer warningGroupId,
                                   @RequestParam(value = "runMode", required = false) RunMode runMode,
                                   @RequestParam(value = "processInstancePriority", required = false) Priority processInstancePriority,
                                   @RequestParam(value = "workerGroup", required = false, defaultValue = "default") String workerGroup,
                                   @RequestParam(value = "environmentCode", required = false, defaultValue = "-1") Long environmentCode,
                                   @RequestParam(value = "timeout", required = false) Integer timeout,
                                   @RequestParam(value = "startParams", required = false) String startParams,
                                   @RequestParam(value = "expectedParallelismNumber", required = false) Integer expectedParallelismNumber,
                                   @RequestParam(value = "dryRun", defaultValue = "0", required = false) int dryRun,
                                   @RequestParam(value = "complementDependentMode", required = false) ComplementDependentMode complementDependentMode) {

    if (timeout == null) {
        timeout = Constants.MAX_TASK_TIMEOUT;
    }
    Map<String, String> startParamMap = null;
    if (startParams != null) {
        startParamMap = JSONUtils.toMap(startParams);
    }

    if (complementDependentMode == null) {
        complementDependentMode = ComplementDependentMode.OFF_MODE;
    }
    //生成commnd，并入库
    Map<String, Object> result = execService.execProcessInstance(loginUser, projectCode, processDefinitionCode,
            scheduleTime, execType, failureStrategy,
            startNodeList, taskDependType, warningType, warningGroupId, runMode, processInstancePriority,
            workerGroup, environmentCode, timeout, startParamMap, expectedParallelismNumber, dryRun, complementDependentMode);
    return returnDataList(result);
}

3.2 master调度任务

3.2.1 master启动

public void run() throws SchedulerException {
    // init rpc server
    this.masterRPCServer.start();//启动rpc服务，与worker通信使用

    // install task plugin
    this.taskPluginManager.loadPlugin();//加载taskplugin

    // self tolerant
    this.masterRegistryClient.init();//加载高可用的一些注册信息
    this.masterRegistryClient.start();
    this.masterRegistryClient.setRegistryStoppable(this);
    //process扫描线程
    this.masterSchedulerBootstrap.init();
    this.masterSchedulerBootstrap.start();
    //事件处理线程
    this.eventExecuteService.start();
    this.failoverExecuteThread.start();
    //可能是定时调度
    this.schedulerApi.start();

    Runtime.getRuntime().addShutdownHook(new Thread(() -> {
        if (Stopper.isRunning()) {
            close("MasterServer shutdownHook");
        }
    }));
}

3.2.2 command扫描

线程启动之后，进入循环，一直扫描command表，查询出command，然后封装成processInstants入库，创建WorkflowExecuteRunnable 写入到workflowEventQueue中。


public void run() {
    while (Stopper.isRunning()) {
        try {
            // todo: if the workflow event queue is much, we need to handle the back pressure
            boolean isOverload =
                    OSUtils.isOverload(masterConfig.getMaxCpuLoadAvg(), masterConfig.getReservedMemory());
            if (isOverload) {
                MasterServerMetrics.incMasterOverload();
                Thread.sleep(Constants.SLEEP_TIME_MILLIS);
                continue;
            }
            List<Command> commands = findCommands();
            if (CollectionUtils.isEmpty(commands)) {
                // indicate that no command ,sleep for 1s
                Thread.sleep(Constants.SLEEP_TIME_MILLIS);
                continue;
            }
            //将command转换成processInstance,并入库
            List<ProcessInstance> processInstances = command2ProcessInstance(commands);
            if (CollectionUtils.isEmpty(processInstances)) {
                // indicate that the command transform to processInstance error, sleep for 1s
                Thread.sleep(Constants.SLEEP_TIME_MILLIS);
                continue;
            }
            MasterServerMetrics.incMasterConsumeCommand(commands.size());

            processInstances.forEach(processInstance -> {
                try {
                    LoggerUtils.setWorkflowInstanceIdMDC(processInstance.getId());
                    if (processInstanceExecCacheManager.contains(processInstance.getId())) {
                        logger.error("The workflow instance is already been cached, this case shouldn't be happened");
                    }
                    WorkflowExecuteRunnable workflowRunnable = new WorkflowExecuteRunnable(processInstance,
                            processService,
                            nettyExecutorManager,
                            processAlertManager,
                            masterConfig,
                            stateWheelExecuteThread,
                            curingGlobalParamsService);
                    processInstanceExecCacheManager.cache(processInstance.getId(), workflowRunnable);//processInstanceExecCacheManager设置进cache 被  workflowEventLoop获取
                    workflowEventQueue.addEvent(new WorkflowEvent(WorkflowEventType.START_WORKFLOW,
                            processInstance.getId()));
                } finally {
                    LoggerUtils.removeWorkflowInstanceIdMDC();
                }
            });
        } catch (InterruptedException interruptedException) {
            logger.warn("Master schedule bootstrap interrupted, close the loop", interruptedException);
            Thread.currentThread().interrupt();
            break;
        } catch (Exception e) {
            logger.error("Master schedule workflow error", e);
            // sleep for 1s here to avoid the database down cause the exception boom
            ThreadUtils.sleep(Constants.SLEEP_TIME_MILLIS);
        }
    }
}

3.2.3.workerFlowEvent消费

在command扫描线程中启动了workflowEventLooper线程用于消费workerFlowEvent。

@Override
public synchronized void start() {
    logger.info("Master schedule bootstrap starting..");
    super.start();
    workflowEventLooper.start();//工作流调度线程启动
    logger.info("Master schedule bootstrap started...");
}

从workflowEventQueue拉取workflowevent事件，调用workflowEventHandler处理该事件。

public void run() {
    WorkflowEvent workflowEvent = null;
    while (Stopper.isRunning()) {
        try {
            workflowEvent = workflowEventQueue.poolEvent();//拉取workflowevent
            LoggerUtils.setWorkflowInstanceIdMDC(workflowEvent.getWorkflowInstanceId());
            logger.info("Workflow event looper receive a workflow event: {}, will handle this", workflowEvent);
            WorkflowEventHandler workflowEventHandler =
                workflowEventHandlerMap.get(workflowEvent.getWorkflowEventType());//获取workflowevent，处理workflowevent事件
            workflowEventHandler.handleWorkflowEvent(workflowEvent);
        } catch (InterruptedException e) {
            logger.warn("WorkflowEventLooper thread is interrupted, will close this loop", e);
            Thread.currentThread().interrupt();
            break;
        } catch (WorkflowEventHandleException workflowEventHandleException) {
            logger.error("Handle workflow event failed, will add this event to event queue again, event: {}",
                workflowEvent, workflowEventHandleException);
            workflowEventQueue.addEvent(workflowEvent);
            ThreadUtils.sleep(Constants.SLEEP_TIME_MILLIS);
        } catch (WorkflowEventHandleError workflowEventHandleError) {
            logger.error("Handle workflow event error, will drop this event, event: {}",
                         workflowEvent,
                         workflowEventHandleError);
        } catch (Exception unknownException) {
            logger.error(
                "Handle workflow event failed, get a unknown exception, will add this event to event queue again, event: {}",
                workflowEvent, unknownException);
            workflowEventQueue.addEvent(workflowEvent);
            ThreadUtils.sleep(Constants.SLEEP_TIME_MILLIS);
        } finally {
            LoggerUtils.removeWorkflowInstanceIdMDC();
        }
    }
}

3.2.4.workerflow事件处理逻辑

获取WorkflowExecuteRunnable ，异步调用call方法

@Override
public void handleWorkflowEvent(WorkflowEvent workflowEvent) throws WorkflowEventHandleError {
    logger.info("Handle workflow start event, begin to start a workflow, event: {}", workflowEvent);
//获取WorkflowExecuteRunnable
    WorkflowExecuteRunnable workflowExecuteRunnable =
       processInstanceExecCacheManager.getByProcessInstanceId(workflowEvent.getWorkflowInstanceId());
    if (workflowExecuteRunnable == null) {
        throw new WorkflowEventHandleError(
            "The workflow start event is invalid, cannot find the workflow instance from cache");
    }
    ProcessInstance processInstance = workflowExecuteRunnable.getProcessInstance();

    ProcessInstanceMetrics.incProcessInstanceSubmit();
   //异步调用call方法执行workflowExecute运行逻辑。
 CompletableFuture<WorkflowSubmitStatue> workflowSubmitFuture =
        CompletableFuture.supplyAsync(workflowExecuteRunnable::call, workflowExecuteThreadPool);
    workflowSubmitFuture.thenAccept(workflowSubmitStatue -> {
        if (WorkflowSubmitStatue.SUCCESS == workflowSubmitStatue) {
            // submit failed will resend the event to workflow event queue
            logger.info("Success submit the workflow instance");//监听返回状态是否成功
            if (processInstance.getTimeout() > 0) {//是否超时
                stateWheelExecuteThread.addProcess4TimeoutCheck(processInstance);
            }
        } else {//出现异常，重试，重新进入队列，调用call方法
            logger.error("Failed to submit the workflow instance, will resend the workflow start event: {}",
                         workflowEvent);
            workflowEventQueue.addEvent(new WorkflowEvent(WorkflowEventType.START_WORKFLOW,
                                                          processInstance.getId()));
        }
    });
}

3.2.5.workerflowRunnable运行逻辑

初始化workerflow的有向无环图。
初始化任务调度配置
提交源头任务到任务优先级队列中

@Override
public WorkflowSubmitStatue call() {
    if (isStart()) {
        // This case should not been happened
        logger.warn("[WorkflowInstance-{}] The workflow has already been started", processInstance.getId());
        return WorkflowSubmitStatue.DUPLICATED_SUBMITTED;
    }

    try {
        LoggerUtils.setWorkflowInstanceIdMDC(processInstance.getId());
        if (workflowRunnableStatus == WorkflowRunnableStatus.CREATED) {
            buildFlowDag();//创建dag有向无环图
            workflowRunnableStatus = WorkflowRunnableStatus.INITIALIZE_DAG;
            logger.info("workflowStatue changed to :{}", workflowRunnableStatus);
        }
        if (workflowRunnableStatus == WorkflowRunnableStatus.INITIALIZE_DAG) {
            initTaskQueue();//初始化任务调度配置
            workflowRunnableStatus = WorkflowRunnableStatus.INITIALIZE_QUEUE;
            logger.info("workflowStatue changed to :{}", workflowRunnableStatus);
        }
        if (workflowRunnableStatus == WorkflowRunnableStatus.INITIALIZE_QUEUE) {
            submitPostNode(null);//提交任务到队列中，注意是先提交源头结点，源头结点运行万再提交源头结点的下有节点
            workflowRunnableStatus = WorkflowRunnableStatus.STARTED;
            logger.info("workflowStatue changed to :{}", workflowRunnableStatus);
        }
        return WorkflowSubmitStatue.SUCCESS;
    } catch (Exception e) {
        logger.error("Start workflow error", e);
        return WorkflowSubmitStatue.FAILED;
    } finally {
        LoggerUtils.removeWorkflowInstanceIdMDC();
    }
}

3.2.6.任务消费

TaskPriorityQueueConsumer.run方法

/通过注解启动
@PostConstruct
public void init() {
    this.consumerThreadPoolExecutor = (ThreadPoolExecutor) ThreadUtils.newDaemonFixedThreadExecutor("TaskUpdateQueueConsumerThread", masterConfig.getDispatchTaskNumber());
    logger.info("Task priority queue consume thread staring");
    super.start();
    logger.info("Task priority queue consume thread started");
}

@Override
public void run() {
    int fetchTaskNum = masterConfig.getDispatchTaskNumber();
    while (Stopper.isRunning()) {
        try {
            List<TaskPriority> failedDispatchTasks = this.batchDispatch(fetchTaskNum);

            if (CollectionUtils.isNotEmpty(failedDispatchTasks)) {
                TaskMetrics.incTaskDispatchFailed(failedDispatchTasks.size());
                for (TaskPriority dispatchFailedTask : failedDispatchTasks) {
                    taskPriorityQueue.put(dispatchFailedTask);
                }
                // If the all task dispatch failed, will sleep for 1s to avoid the master cpu higher.
                if (fetchTaskNum == failedDispatchTasks.size()) {
                    TimeUnit.MILLISECONDS.sleep(Constants.SLEEP_TIME_MILLIS);
                }
            }
        } catch (Exception e) {
            TaskMetrics.incTaskDispatchError();
            logger.error("dispatcher task error", e);
        }
    }
}

batchDispatch

/**
 * batch dispatch with thread pool
 */
public List<TaskPriority> batchDispatch(int fetchTaskNum) throws TaskPriorityQueueException, InterruptedException {
    List<TaskPriority> failedDispatchTasks = Collections.synchronizedList(new ArrayList<>());
    CountDownLatch latch = new CountDownLatch(fetchTaskNum);

    for (int i = 0; i < fetchTaskNum; i++) {//拉取任务
        TaskPriority taskPriority = taskPriorityQueue.poll(Constants.SLEEP_TIME_MILLIS, TimeUnit.MILLISECONDS);
        if (Objects.isNull(taskPriority)) {
            latch.countDown();
            continue;
        }
        consumerThreadPoolExecutor.submit(() -> {//创建异步线程分派任务
            try {
                boolean dispatchResult = this.dispatchTask(taskPriority);
                if (!dispatchResult) {
                    failedDispatchTasks.add(taskPriority);
                }
            } finally {
                // make sure the latch countDown
                latch.countDown();
            }
        });
    }
    latch.await();
    return failedDispatchTasks;
}

3.2.7.任务分派

/**
 * Dispatch task to worker.
 *
 * @param taskPriority taskPriority
 * @return dispatch result, return true if dispatch success, return false if dispatch failed.
 */
protected boolean dispatchTask(TaskPriority taskPriority) {
    TaskMetrics.incTaskDispatch();
    boolean result = false;
    try {
        WorkflowExecuteRunnable workflowExecuteRunnable =//获取workflowexecuteRunnable
                processInstanceExecCacheManager.getByProcessInstanceId(taskPriority.getProcessInstanceId());
        if (workflowExecuteRunnable == null) {
            logger.error("Cannot find the related processInstance of the task, taskPriority: {}", taskPriority);
            return true;
        }
        Optional<TaskInstance> taskInstanceOptional =//获取任务实例
                workflowExecuteRunnable.getTaskInstance(taskPriority.getTaskId());
        if (!taskInstanceOptional.isPresent()) {
            logger.error("Cannot find the task instance from related processInstance, taskPriority: {}",
                    taskPriority);
            // we return true, so that we will drop this task.
            return true;
        }
        TaskInstance taskInstance = taskInstanceOptional.get();
        TaskExecutionContext context = taskPriority.getTaskExecutionContext();
        ExecutionContext executionContext =//创建执行上下文
                new ExecutionContext(toCommand(context), ExecutorType.WORKER, context.getWorkerGroup(), taskInstance);

        if (isTaskNeedToCheck(taskPriority)) {
            if (taskInstanceIsFinalState(taskPriority.getTaskId())) {
                // when task finish, ignore this task, there is no need to dispatch anymore
                return true;
            }
        }
        //分派任务
        result = dispatcher.dispatch(executionContext);

        if (result) {
            logger.info("Master success dispatch task to worker, taskInstanceId: {}, worker: {}",
                    taskPriority.getTaskId(),
                    executionContext.getHost());
            addDispatchEvent(context, executionContext);
        } else {
            logger.info("Master failed to dispatch task to worker, taskInstanceId: {}, worker: {}",
                    taskPriority.getTaskId(),
                    executionContext.getHost());
        }
    } catch (RuntimeException | ExecuteException e) {
        logger.error("Master dispatch task to worker error, taskPriority: {}", taskPriority, e);
    }
    return result;
}

真正通过netty向worker发送消息。

/**
 * task dispatch
 *
 * @param context context
 * @return result
 * @throws ExecuteException if error throws ExecuteException
 */
public Boolean dispatch(final ExecutionContext context) throws ExecuteException {
    // get executor manager 获取
    ExecutorManager<Boolean> executorManager = this.executorManagers.get(context.getExecutorType());
    if (executorManager == null) {
        throw new ExecuteException("no ExecutorManager for type : " + context.getExecutorType());
    }

    // host select worke节点选择器
    Host host = hostManager.select(context);
    if (StringUtils.isEmpty(host.getAddress())) {
        logger.warn("fail to execute : {} due to no suitable worker, current task needs worker group {} to execute",
            context.getCommand(), context.getWorkerGroup());
        return false;
    }
    context.setHost(host);//设置host进上下文
    executorManager.beforeExecute(context);
    try {
        // task execute 通过netty发送消息给worker，告知worker要执行该任务
        return executorManager.execute(context);
    } finally {
        executorManager.afterExecute(context);
    }
}

/**
 * execute logic
 *
 * @param context context
 * @return result
 * @throws ExecuteException if error throws ExecuteException
 */
@Override
public Boolean execute(ExecutionContext context) throws ExecuteException {
    // all nodes
    Set<String> allNodes = getAllNodes(context);
    // fail nodes
    Set<String> failNodeSet = new HashSet<>();
    // build command accord executeContext
    Command command = context.getCommand();
    // execute task host
    Host host = context.getHost();
    boolean success = false;
    while (!success) {
        try {
            doExecute(host, command);
            success = true;
            context.setHost(host);
            // We set the host to taskInstance to avoid when the worker down, this taskInstance may not be failovered, due to the taskInstance's host
            // is not belongs to the down worker ISSUE-10842.
            context.getTaskInstance().setHost(host.getAddress());
        } catch (ExecuteException ex) {
            logger.error(String.format("execute command : %s error", command), ex);
            try {
                failNodeSet.add(host.getAddress());
                Set<String> tmpAllIps = new HashSet<>(allNodes);
                Collection<String> remained = CollectionUtils.subtract(tmpAllIps, failNodeSet);
                if (remained != null && remained.size() > 0) {
                    host = Host.of(remained.iterator().next());
                    logger.error("retry execute command : {} host : {}", command, host);
                } else {
                    throw new ExecuteException("fail after try all nodes");
                }
            } catch (Throwable t) {
                throw new ExecuteException("fail after try all nodes");
            }
        }
    }

    return success;
}

3.3.worker执行任务

3.3.1.Worker启动

public void run() {
    this.workerRpcServer.start();//启动rpc通信组件
    this.workerRpcClient.start();
    this.taskPluginManager.loadPlugin();

    this.workerRegistryClient.registry();
    this.workerRegistryClient.setRegistryStoppable(this);
    this.workerRegistryClient.handleDeadServer();
    //启动workermaanager线程，消费command执行任务。
    this.workerManagerThread.start();

    this.messageRetryRunner.start();

    /*
     * registry hooks, which are called before the process exits
     */
    Runtime.getRuntime().addShutdownHook(new Thread(() -> {
        if (Stopper.isRunning()) {
            close("WorkerServer shutdown hook");
        }
    }));
}

3.3.2.Worker消费任务启动command

提取command中的task上下文对象封装成TaskExecuteThread，提交到
workerManager中。

@Counted(value = "ds.task.execution.count", description = "task execute total count")
@Timed(value = "ds.task.execution.duration", percentiles = {0.5, 0.75, 0.95, 0.99}, histogram = true)
@Override
public void process(Channel channel, Command command) {
    Preconditions.checkArgument(CommandType.TASK_DISPATCH_REQUEST == command.getType(),
                                String.format("invalid command type : %s", command.getType()));

    TaskDispatchCommand taskDispatchCommand = JSONUtils.parseObject(command.getBody(), TaskDispatchCommand.class);

    if (taskDispatchCommand == null) {
        logger.error("task execute request command content is null");
        return;
    }
    final String masterAddress = taskDispatchCommand.getMessageSenderAddress();
    logger.info("task execute request message: {}", taskDispatchCommand);

    TaskExecutionContext taskExecutionContext = taskDispatchCommand.getTaskExecutionContext();//获取上下文

    if (taskExecutionContext == null) {
        logger.error("task execution context is null");
        return;
    }
    try {
        LoggerUtils.setWorkflowAndTaskInstanceIDMDC(taskExecutionContext.getProcessInstanceId(),
                                                    taskExecutionContext.getTaskInstanceId());

        TaskMetrics.incrTaskTypeExecuteCount(taskExecutionContext.getTaskType());

        // set cache, it will be used when kill task
        TaskExecutionContextCacheManager.cacheTaskExecutionContext(taskExecutionContext);

        // todo custom logger

        taskExecutionContext.setHost(workerConfig.getWorkerAddress());
        taskExecutionContext.setLogPath(LogUtils.getTaskLogPath(taskExecutionContext));

        if (Constants.DRY_RUN_FLAG_NO == taskExecutionContext.getDryRun()) {//不是测试运行
            boolean osUserExistFlag;
            //if Using distributed is true and Currently supported systems are linux,Should not let it automatically
            //create tenants,so TenantAutoCreate has no effect
            if (workerConfig.isTenantDistributedUser() && SystemUtils.IS_OS_LINUX) {
                //use the id command to judge in linux
                osUserExistFlag = OSUtils.existTenantCodeInLinux(taskExecutionContext.getTenantCode());
            } else if (CommonUtils.isSudoEnable() && workerConfig.isTenantAutoCreate()) {
                // if not exists this user, then create
                OSUtils.createUserIfAbsent(taskExecutionContext.getTenantCode());
                osUserExistFlag = OSUtils.getUserList().contains(taskExecutionContext.getTenantCode());
            } else {
                osUserExistFlag = OSUtils.getUserList().contains(taskExecutionContext.getTenantCode());
            }

            // check if the OS user exists
            if (!osUserExistFlag) {//校验操作系统用户是否存在
                logger.error("tenantCode: {} does not exist, taskInstanceId: {}",
                             taskExecutionContext.getTenantCode(),
                             taskExecutionContext.getTaskInstanceId());
                TaskExecutionContextCacheManager.removeByTaskInstanceId(taskExecutionContext.getTaskInstanceId());
                taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.FAILURE);
                taskExecutionContext.setEndTime(new Date());
                workerMessageSender.sendMessageWithRetry(taskExecutionContext,//发送失败消息
                                                         masterAddress,
                                                         CommandType.TASK_EXECUTE_RESULT);
                return;
            }

            // local execute path
            String execLocalPath = getExecLocalPath(taskExecutionContext);
            logger.info("task instance local execute path : {}", execLocalPath);
            taskExecutionContext.setExecutePath(execLocalPath);

            try {
                FileUtils.createWorkDirIfAbsent(execLocalPath);
            } catch (Throwable ex) {//workerdir创建失败
                logger.error("create execLocalPath fail, path: {}, taskInstanceId: {}",
                             execLocalPath,
                             taskExecutionContext.getTaskInstanceId(),
                             ex);
                TaskExecutionContextCacheManager.removeByTaskInstanceId(taskExecutionContext.getTaskInstanceId());
                taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.FAILURE);
                workerMessageSender.sendMessageWithRetry(taskExecutionContext,
                                                         masterAddress,
                                                         CommandType.TASK_EXECUTE_RESULT);
                return;
            }
        }

        // delay task process
        long remainTime = DateUtils.getRemainTime(taskExecutionContext.getFirstSubmitTime(),
                                                  taskExecutionContext.getDelayTime() * 60L);
        if (remainTime > 0) {
            logger.info("delay the execution of task instance {}, delay time: {} s",
                        taskExecutionContext.getTaskInstanceId(),
                        remainTime);
            taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.DELAY_EXECUTION);
            taskExecutionContext.setStartTime(null);
            workerMessageSender.sendMessage(taskExecutionContext, masterAddress, CommandType.TASK_EXECUTE_RESULT);
        }

        // submit task to manager//提交任务 workerManager 中
        boolean offer = workerManager.offer(new TaskExecuteThread(taskExecutionContext,
                                                                  masterAddress,
                                                                  workerMessageSender,
                                                                  alertClientService,
                                                                  taskPluginManager,
                                                                  storageOperate));
        if (!offer) {
            logger.warn("submit task to wait queue error, queue is full, queue size is {}, taskInstanceId: {}",
                        workerManager.getWaitSubmitQueueSize(),
                        taskExecutionContext.getTaskInstanceId());
            workerMessageSender.sendMessageWithRetry(taskExecutionContext, masterAddress, CommandType.TASK_REJECT);
        }
    } finally {
        LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();
    }
}

3.3.3.workerManager消费

public void start() {
    logger.info("Worker manager thread starting");
    Thread thread = new Thread(this, this.getClass().getName());
    thread.setDaemon(true);
    thread.start();
    logger.info("Worker manager thread started");
}

public void submit(TaskExecuteThread taskExecuteThread) {
    taskExecuteThreadMap.put(taskExecuteThread.getTaskExecutionContext().getTaskInstanceId(), taskExecuteThread);//设置进正则运行task的map中。
    ListenableFuture future = this.listeningExecutorService.submit(taskExecuteThread);//提交任务到线程池中运行
    FutureCallback futureCallback = new FutureCallback() {
        @Override
        public void onSuccess(Object o) {//注册毁掉函数
            taskExecuteThreadMap.remove(taskExecuteThread.getTaskExecutionContext().getTaskInstanceId());
        }

        @Override
        public void onFailure(Throwable throwable) {
            logger.error("task execute failed, processInstanceId:{}, taskInstanceId:{}",
                    taskExecuteThread.getTaskExecutionContext().getProcessInstanceId(),
                    taskExecuteThread.getTaskExecutionContext().getTaskInstanceId(),
                    throwable);
            taskExecuteThreadMap.remove(taskExecuteThread.getTaskExecutionContext().getTaskInstanceId());//移除
        }
    };
    Futures.addCallback(future, futureCallback, this.listeningExecutorService);
}

3.3.4.任务运行

@Override
public void run() {
    try {
        LoggerUtils.setWorkflowAndTaskInstanceIDMDC(taskExecutionContext.getProcessInstanceId(),
                taskExecutionContext.getTaskInstanceId());
        if (Constants.DRY_RUN_FLAG_YES == taskExecutionContext.getDryRun()) {//判断是不是测试运行
            taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.SUCCESS);
            taskExecutionContext.setStartTime(new Date());
            taskExecutionContext.setEndTime(new Date());
            TaskExecutionContextCacheManager.removeByTaskInstanceId(taskExecutionContext.getTaskInstanceId());
            workerMessageSender.sendMessageWithRetry(taskExecutionContext,
                    masterAddress,
                    CommandType.TASK_EXECUTE_RESULT);
            logger.info("Task dry run success");
            return;
        }
    } finally {
        LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();
    }
    try {
        LoggerUtils.setWorkflowAndTaskInstanceIDMDC(taskExecutionContext.getProcessInstanceId(),
                taskExecutionContext.getTaskInstanceId());
        logger.info("script path : {}", taskExecutionContext.getExecutePath());
        if (taskExecutionContext.getStartTime() == null) {
            taskExecutionContext.setStartTime(new Date());
        }
        logger.info("the task begins to execute. task instance id: {}", taskExecutionContext.getTaskInstanceId());

        // callback task execute running
        taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.RUNNING_EXECUTION);
        workerMessageSender.sendMessageWithRetry(taskExecutionContext,
                masterAddress,
                CommandType.TASK_EXECUTE_RUNNING);

        // copy hdfs/minio file to local
        List<Pair<String, String>> fileDownloads = downloadCheck(taskExecutionContext.getExecutePath(),
                taskExecutionContext.getResources());
        if (!fileDownloads.isEmpty()) {
            downloadResource(taskExecutionContext.getExecutePath(), logger, fileDownloads);
        }

        taskExecutionContext.setEnvFile(CommonUtils.getSystemEnvPath());

        taskExecutionContext.setTaskAppId(String.format("%s_%s",
                taskExecutionContext.getProcessInstanceId(),
                taskExecutionContext.getTaskInstanceId()));

        TaskChannel taskChannel = taskPluginManager.getTaskChannelMap().get(taskExecutionContext.getTaskType());//获取task构造器
        if (null == taskChannel) {
            throw new ServiceException(String.format("%s Task Plugin Not Found,Please Check Config File.", taskExecutionContext.getTaskType()));
        }
        String taskLogName = LoggerUtils.buildTaskId(taskExecutionContext.getFirstSubmitTime(),
                taskExecutionContext.getProcessDefineCode(),
                taskExecutionContext.getProcessDefineVersion(),
                taskExecutionContext.getProcessInstanceId(),
                taskExecutionContext.getTaskInstanceId());
        taskExecutionContext.setTaskLogName(taskLogName);

        // set the name of the current thread
        Thread.currentThread().setName(taskLogName);

        task = taskChannel.createTask(taskExecutionContext);//创建task

        // task init
        this.task.init();//初始化task

        //init varPool
        this.task.getParameters().setVarPool(taskExecutionContext.getVarPool());

        // task handle
        this.task.handle();//task处理的真正逻辑

        // task result process
        if (this.task.getNeedAlert()) {
            sendAlert(this.task.getTaskAlertInfo(), this.task.getExitStatus().getCode());
        }

        taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.of(this.task.getExitStatus().getCode()));//返回任务的返回信息
        taskExecutionContext.setEndTime(DateUtils.getCurrentDate());
        taskExecutionContext.setProcessId(this.task.getProcessId());
        taskExecutionContext.setAppIds(this.task.getAppIds());
        taskExecutionContext.setVarPool(JSONUtils.toJsonString(this.task.getParameters().getVarPool()));
        logger.info("task instance id : {},task final status : {}", taskExecutionContext.getTaskInstanceId(), this.task.getExitStatus());
    } catch (Throwable e) {
        logger.error("task scheduler failure", e);
        kill();
        taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.FAILURE);//返回失败
        taskExecutionContext.setEndTime(DateUtils.getCurrentDate());
        taskExecutionContext.setProcessId(this.task.getProcessId());
        taskExecutionContext.setAppIds(this.task.getAppIds());
    } finally {
        TaskExecutionContextCacheManager.removeByTaskInstanceId(taskExecutionContext.getTaskInstanceId());
        workerMessageSender.sendMessageWithRetry(taskExecutionContext,
                masterAddress,
                CommandType.TASK_EXECUTE_RESULT);
        clearTaskExecPath();
        LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();
    }
}

3.4.master接受任务反馈

3.4.1.master接受反馈消息

@PostConstruct
private void init() {
    // init remoting server
    NettyServerConfig serverConfig = new NettyServerConfig();
    serverConfig.setListenPort(masterConfig.getListenPort());
    this.nettyRemotingServer = new NettyRemotingServer(serverConfig);
    this.nettyRemotingServer.registerProcessor(CommandType.TASK_EXECUTE_RUNNING, taskExecuteRunningProcessor);
    this.nettyRemotingServer.registerProcessor(CommandType.TASK_EXECUTE_RESULT, taskExecuteResponseProcessor);
    this.nettyRemotingServer.registerProcessor(CommandType.TASK_KILL_RESPONSE, taskKillResponseProcessor);
    this.nettyRemotingServer.registerProcessor(CommandType.STATE_EVENT_REQUEST, stateEventProcessor);
    this.nettyRemotingServer.registerProcessor(CommandType.TASK_FORCE_STATE_EVENT_REQUEST, taskEventProcessor);
    this.nettyRemotingServer.registerProcessor(CommandType.TASK_WAKEUP_EVENT_REQUEST, taskEventProcessor);
    this.nettyRemotingServer.registerProcessor(CommandType.CACHE_EXPIRE, cacheProcessor);
    this.nettyRemotingServer.registerProcessor(CommandType.TASK_REJECT, taskRecallProcessor);
    this.nettyRemotingServer.registerProcessor(CommandType.WORKFLOW_EXECUTING_DATA_REQUEST, workflowExecutingDataRequestProcessor);

    // logger server
    this.nettyRemotingServer.registerProcessor(CommandType.GET_LOG_BYTES_REQUEST, loggerRequestProcessor);
    this.nettyRemotingServer.registerProcessor(CommandType.ROLL_VIEW_LOG_REQUEST, loggerRequestProcessor);
    this.nettyRemotingServer.registerProcessor(CommandType.VIEW_WHOLE_LOG_REQUEST, loggerRequestProcessor);
    this.nettyRemotingServer.registerProcessor(CommandType.REMOVE_TAK_LOG_REQUEST, loggerRequestProcessor);

    this.nettyRemotingServer.start();
}

将其封装成taskResultEvent 提交给taskEventService

@Override
public void process(Channel channel, Command command) {
    Preconditions.checkArgument(CommandType.TASK_EXECUTE_RESULT == command.getType(),
                                String.format("invalid command type : %s", command.getType()));

    TaskExecuteResultCommand taskExecuteResultMessage = JSONUtils.parseObject(command.getBody(),
                                                                              TaskExecuteResultCommand.class);
    TaskEvent taskResultEvent = TaskEvent.newResultEvent(taskExecuteResultMessage,
                                                         channel,
                                                         taskExecuteResultMessage.getMessageSenderAddress());
    try {
        LoggerUtils.setWorkflowAndTaskInstanceIDMDC(taskResultEvent.getProcessInstanceId(),
                                                    taskResultEvent.getTaskInstanceId());
        logger.info("Received task execute result, event: {}", taskResultEvent);

        taskEventService.addEvent(taskResultEvent);
    } finally {
        LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();
    }
}

3.4.2.taskEventService处理taskevent

TaskEventService启动，启动 taskeventdispacher 和 taskeventhandler

Eventservice由这两个组件组成。

@PostConstruct
public void start() {
    this.taskEventThread = new TaskEventDispatchThread();//事件分发线程
    logger.info("TaskEvent dispatch thread starting");
    this.taskEventThread.start();
    logger.info("TaskEvent dispatch thread started");

    this.taskEventHandlerThread = new TaskEventHandlerThread();
    logger.info("TaskEvent handle thread staring");
    this.taskEventHandlerThread.start();//事件处理线程
    logger.info("TaskEvent handle thread started");
}

class TaskEventDispatchThread extends BaseDaemonThread {
    protected TaskEventDispatchThread() {
        super("TaskEventLoopThread");
    }

    @Override
    public void run() {
        while (Stopper.isRunning()) {
            try {
                // if not task event, blocking here
                TaskEvent taskEvent = eventQueue.take();//消费taskevent
                taskExecuteThreadPool.submitTaskEvent(taskEvent);//提交taskEvent到taskExecuteThreadPool
            } catch (InterruptedException e) {
                Thread.currentThread().interrupt();
                break;
            } catch (Exception e) {
                logger.error("persist task error", e);
            }
        }
        logger.info("StateEventResponseWorker stopped");
    }
}

public void submitTaskEvent(TaskEvent taskEvent) {
    if (!processInstanceExecCacheManager.contains(taskEvent.getProcessInstanceId())) {
        logger.warn("Cannot find workflowExecuteThread from cacheManager, event: {}", taskEvent);
        return;
    } //创建taskExecuteRunnable，并且将事件提交到taskEventRunnable
    TaskExecuteRunnable taskExecuteRunnable = taskExecuteThreadMap.computeIfAbsent(taskEvent.getProcessInstanceId(),
        (processInstanceId) -> new TaskExecuteRunnable(processInstanceId, taskEventHandlerMap));
    taskExecuteRunnable.addEvent(taskEvent);
}

处理taskevent,最终调用taskExecuteThread.run方法处理taskevent

class TaskEventHandlerThread extends BaseDaemonThread {

    protected TaskEventHandlerThread() {
        super("TaskEventHandlerThread");
    }

    @Override
    public void run() {
        logger.info("event handler thread started");
        while (Stopper.isRunning()) {
            try {
                taskExecuteThreadPool.eventHandler();
                TimeUnit.MILLISECONDS.sleep(Constants.SLEEP_TIME_MILLIS);
            } catch (InterruptedException e) {
                Thread.currentThread().interrupt();
                logger.warn("TaskEvent handle thread interrupted, will return this loop");
                break;
            } catch (Exception e) {
                logger.error("event handler thread error", e);
            }
        }
    }
}



public void eventHandler() {
    for (TaskExecuteRunnable taskExecuteThread : taskExecuteThreadMap.values()) {
        executeEvent(taskExecuteThread);
    }
}



public void executeEvent(TaskExecuteRunnable taskExecuteThread) {
    if (taskExecuteThread.isEmpty()) {
        return;
    }
    if (multiThreadFilterMap.containsKey(taskExecuteThread.getKey())) {
        return;
    }
    multiThreadFilterMap.put(taskExecuteThread.getKey(), taskExecuteThread);
    ListenableFuture future = this.submitListenable(taskExecuteThread::run);
    future.addCallback(new ListenableFutureCallback() {
        @Override
        public void onFailure(Throwable ex) {
            Integer processInstanceId = taskExecuteThread.getProcessInstanceId();
            logger.error("[WorkflowInstance-{}] persist event failed", processInstanceId, ex);
            if (!processInstanceExecCacheManager.contains(processInstanceId)) {
                taskExecuteThreadMap.remove(processInstanceId);
                logger.info("[WorkflowInstance-{}] Cannot find processInstance from cacheManager, remove process instance from threadMap",
                    processInstanceId);
            }
            multiThreadFilterMap.remove(taskExecuteThread.getKey());
        }

        @Override
        public void onSuccess(Object result) {
            Integer processInstanceId = taskExecuteThread.getProcessInstanceId();
            logger.info("[WorkflowInstance-{}] persist events succeeded", processInstanceId);
            if (!processInstanceExecCacheManager.contains(processInstanceId)) {
                taskExecuteThreadMap.remove(processInstanceId);
                logger.info("[WorkflowInstance-{}] Cannot find processInstance from cacheManager, remove process instance from threadMap",
                    processInstanceId);
            }
            multiThreadFilterMap.remove(taskExecuteThread.getKey());
        }
    });
}




public void run() {
    while (!this.events.isEmpty()) {
        // we handle the task event belongs to one task serial, so if the event comes in wrong order,
        TaskEvent event = this.events.peek();
        try {
            LoggerUtils.setWorkflowAndTaskInstanceIDMDC(event.getProcessInstanceId(), event.getTaskInstanceId());
            logger.info("Handle task event begin: {}", event);/获取handler
            taskEventHandlerMap.get(event.getEvent()).handleTaskEvent(event);
            events.remove(event);
            logger.info("Handle task event finished: {}", event);
        } catch (TaskEventHandleException taskEventHandleException) {
            // we don't need to resubmit this event, since the worker will resubmit this event
            logger.error("Handle task event failed, this event will be retry later, event: {}", event,
                taskEventHandleException);
        } catch (TaskEventHandleError taskEventHandleError) {
            logger.error("Handle task event error, this event will be removed, event: {}", event,
                taskEventHandleError);
            events.remove(event);
        } catch (Exception unknownException) {
            logger.error("Handle task event error, get a unknown exception, this event will be removed, event: {}",
                event, unknownException);
            events.remove(event);
        } finally {
            LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();
        }
    }
}

3.4.3.TaskResultEventHandler处理taskevent

@Override
public void handleTaskEvent(TaskEvent taskEvent) throws TaskEventHandleError, TaskEventHandleException {
    int taskInstanceId = taskEvent.getTaskInstanceId();
    int processInstanceId = taskEvent.getProcessInstanceId();
    //获取wowrkflowExecuteRunnable
    WorkflowExecuteRunnable workflowExecuteRunnable = this.processInstanceExecCacheManager.getByProcessInstanceId(
            processInstanceId);
    if (workflowExecuteRunnable == null) {
        sendAckToWorker(taskEvent);
        throw new TaskEventHandleError(
                "Handle task result event error, cannot find related workflow instance from cache, will discard this event");
    }//获取taskinstantce
    Optional<TaskInstance> taskInstanceOptional = workflowExecuteRunnable.getTaskInstance(taskInstanceId);
    if (!taskInstanceOptional.isPresent()) {
        sendAckToWorker(taskEvent);
        throw new TaskEventHandleError(
                "Handle task result event error, cannot find the taskInstance from cache, will discord this event");
    }
    TaskInstance taskInstance = taskInstanceOptional.get();
    if (taskInstance.getState().typeIsFinished()) {
        sendAckToWorker(taskEvent);
        throw new TaskEventHandleError(
                "Handle task result event error, the task instance is already finished, will discord this event");
    }
    dataQualityResultOperator.operateDqExecuteResult(taskEvent, taskInstance);

    TaskInstance oldTaskInstance = new TaskInstance();
    TaskInstanceUtils.copyTaskInstance(taskInstance, oldTaskInstance);
    try {
        taskInstance.setStartTime(taskEvent.getStartTime());
        taskInstance.setHost(taskEvent.getWorkerAddress());
        taskInstance.setLogPath(taskEvent.getLogPath());
        taskInstance.setExecutePath(taskEvent.getExecutePath());
        taskInstance.setPid(taskEvent.getProcessId());
        taskInstance.setAppLink(taskEvent.getAppIds());
        taskInstance.setState(taskEvent.getState());
        taskInstance.setEndTime(taskEvent.getEndTime());
        taskInstance.setVarPool(taskEvent.getVarPool());
        processService.changeOutParam(taskInstance);
        processService.updateTaskInstance(taskInstance);//更新task信息
        sendAckToWorker(taskEvent);//发送确认消息给worker
    } catch (Exception ex) {
        TaskInstanceUtils.copyTaskInstance(oldTaskInstance, taskInstance);
        throw new TaskEventHandleError("Handle task result event error, save taskInstance to db error", ex);
    }
    StateEvent stateEvent = new StateEvent();
    stateEvent.setProcessInstanceId(taskEvent.getProcessInstanceId());
    stateEvent.setTaskInstanceId(taskEvent.getTaskInstanceId());
    stateEvent.setExecutionStatus(taskEvent.getState());
    stateEvent.setType(StateEventType.TASK_STATE_CHANGE);
    workflowExecuteThreadPool.submitStateEvent(stateEvent);//提交workerflow状态修改事件到workflowExecuteThreadPool中

}

/**
 * submit state event
 */
public void submitStateEvent(StateEvent stateEvent) {
    WorkflowExecuteRunnable workflowExecuteThread = processInstanceExecCacheManager.getByProcessInstanceId(stateEvent.getProcessInstanceId());
    if (workflowExecuteThread == null) {
        logger.warn("Submit state event error, cannot from workflowExecuteThread from cache manager, stateEvent:{}", stateEvent);
        return;
    }
    workflowExecuteThread.addStateEvent(stateEvent);
    logger.info("Submit state event success, stateEvent: {}", stateEvent);
}

3.5.master闭环提交下游任务

3.5.1.EventExecuteService处理stateEvent

@Override
public void run() {
    while (Stopper.isRunning()) {
        try {
            eventHandler();
            TimeUnit.MILLISECONDS.sleep(Constants.SLEEP_TIME_MILLIS_SHORT);
        } catch (InterruptedException interruptedException) {
            logger.warn("Master event service interrupted, will exit this loop", interruptedException);
            Thread.currentThread().interrupt();
            break;
        } catch (Exception e) {
            logger.error("Master event execute service error", e);
        }
    }
}

private void eventHandler() {
    for (WorkflowExecuteRunnable workflowExecuteThread : this.processInstanceExecCacheManager.getAll()) {
        try {
            LoggerUtils.setWorkflowInstanceIdMDC(workflowExecuteThread.getProcessInstance().getId());
            workflowExecuteThreadPool.executeEvent(workflowExecuteThread);
        } finally {
            LoggerUtils.removeWorkflowInstanceIdMDC();
        }
    }
}

调用workflowExecuteThread的handlerEvents处理事件。

/**
 * Handle the events belong to the given workflow.
 */
public void executeEvent(final WorkflowExecuteRunnable workflowExecuteThread) {
    if (!workflowExecuteThread.isStart() || workflowExecuteThread.eventSize() == 0) {
        return;
    }
    if (multiThreadFilterMap.containsKey(workflowExecuteThread.getKey())) {
        logger.warn("The workflow has been executed by another thread");
        return;
    }
    multiThreadFilterMap.put(workflowExecuteThread.getKey(), workflowExecuteThread);
    int processInstanceId = workflowExecuteThread.getProcessInstance().getId();
    ListenableFuture<?> future = this.submitListenable(workflowExecuteThread::handleEvents);
    future.addCallback(new ListenableFutureCallback() {
        @Override
        public void onFailure(Throwable ex) {
            LoggerUtils.setWorkflowInstanceIdMDC(processInstanceId);
            try {
                logger.error("Workflow instance events handle failed", ex);
                multiThreadFilterMap.remove(workflowExecuteThread.getKey());
            } finally {
                LoggerUtils.removeWorkflowInstanceIdMDC();
            }
        }

        @Override
        public void onSuccess(Object result) {
            try {
                LoggerUtils.setWorkflowInstanceIdMDC(workflowExecuteThread.getProcessInstance().getId());
                if (workflowExecuteThread.workFlowFinish()) {
                    stateWheelExecuteThread.removeProcess4TimeoutCheck(workflowExecuteThread.getProcessInstance().getId());
                    processInstanceExecCacheManager.removeByProcessInstanceId(processInstanceId);
                    notifyProcessChanged(workflowExecuteThread.getProcessInstance());
                    logger.info("Workflow instance is finished.");
                }
            } catch (Exception e) {
                logger.error("Workflow instance is finished, but notify changed error", e);
            } finally {
                // make sure the process has been removed from multiThreadFilterMap
                multiThreadFilterMap.remove(workflowExecuteThread.getKey());
                LoggerUtils.removeWorkflowInstanceIdMDC();
            }
        }
    });
}

3.5.2.workflowExecuteThread处理stateEvent事件

/**
 * handle event
 */
public void handleEvents() {
    if (!isStart()) {
        logger.info(
                "The workflow instance is not started, will not handle its state event, current state event size: {}",
                stateEvents);
        return;
    }
    StateEvent stateEvent = null;
    while (!this.stateEvents.isEmpty()) {
        try {
            stateEvent = this.stateEvents.peek();
            LoggerUtils.setWorkflowAndTaskInstanceIDMDC(stateEvent.getProcessInstanceId(),
                    stateEvent.getTaskInstanceId());
            // if state handle success then will remove this state, otherwise will retry this state next time.
            // The state should always handle success except database error.
            checkProcessInstance(stateEvent);

            StateEventHandler stateEventHandler =
                    StateEventHandlerManager.getStateEventHandler(stateEvent.getType())
                            .orElseThrow(() -> new StateEventHandleError("Cannot find handler for the given state event"));
            logger.info("Begin to handle state event, {}", stateEvent);
            if (stateEventHandler.handleStateEvent(this, stateEvent)) {//调用stateEventHandler处理事件
                this.stateEvents.remove(stateEvent);
            }
        } catch (StateEventHandleError stateEventHandleError) {
            logger.error("State event handle error, will remove this event: {}", stateEvent, stateEventHandleError);
            this.stateEvents.remove(stateEvent);
            ThreadUtils.sleep(Constants.SLEEP_TIME_MILLIS);
        } catch (StateEventHandleException stateEventHandleException) {
            logger.error("State event handle error, will retry this event: {}",
                    stateEvent,
                    stateEventHandleException);
            ThreadUtils.sleep(Constants.SLEEP_TIME_MILLIS);
        } catch (Exception e) {
            // we catch the exception here, since if the state event handle failed, the state event will still keep in the stateEvents queue.
            logger.error("State event handle error, get a unknown exception, will retry this event: {}",
                    stateEvent,
                    e);
            ThreadUtils.sleep(Constants.SLEEP_TIME_MILLIS);
        } finally {
            LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();
        }

    }
}

3.5.3.TaskStateEventHandler处理stateEvent事件

判断是否是任务完成事件如果是完成事件，调用workflowExecuteThread的taskFinished方法，提交下游任务

@Override
public boolean handleStateEvent(WorkflowExecuteRunnable workflowExecuteRunnable, StateEvent stateEvent)
    throws StateEventHandleException, StateEventHandleError {
    measureTaskState(stateEvent);
    workflowExecuteRunnable.checkTaskInstanceByStateEvent(stateEvent);

    Optional<TaskInstance> taskInstanceOptional =
        workflowExecuteRunnable.getTaskInstance(stateEvent.getTaskInstanceId());

    TaskInstance task = taskInstanceOptional.orElseThrow(() -> new StateEventHandleError(
        "Cannot find task instance from taskMap by task instance id: " + stateEvent.getTaskInstanceId()));

    if (task.getState() == null) {
        throw new StateEventHandleError("Task state event handle error due to task state is null");
    }

    Map<Long, Integer> completeTaskMap = workflowExecuteRunnable.getCompleteTaskMap();

    if (task.getState().typeIsFinished()) {
        if (completeTaskMap.containsKey(task.getTaskCode())
            && completeTaskMap.get(task.getTaskCode()) == task.getId()) {
            logger.warn("The task instance is already complete, stateEvent: {}", stateEvent);
            return true;
        }
//调用workflowexecuteRunnabletaskFinished方法。
        workflowExecuteRunnable.taskFinished(task);
        if (task.getTaskGroupId() > 0) {
            workflowExecuteRunnable.releaseTaskGroup(task);
        }
        return true;
    }
    Map<Long, ITaskProcessor> activeTaskProcessMap = workflowExecuteRunnable.getActiveTaskProcessMap();
    if (activeTaskProcessMap.containsKey(task.getTaskCode())) {
        ITaskProcessor iTaskProcessor = activeTaskProcessMap.get(task.getTaskCode());
        iTaskProcessor.action(TaskAction.RUN);

        if (iTaskProcessor.taskInstance().getState().typeIsFinished()) {
            if (iTaskProcessor.taskInstance().getState() != task.getState()) {
                task.setState(iTaskProcessor.taskInstance().getState());
            }
            workflowExecuteRunnable.taskFinished(task);
        }
        return true;
    }
    throw new StateEventHandleException(
        "Task state event handle error, due to the task is not in activeTaskProcessorMaps");
}

3.5.4.wokerflowExecuteThread调度下游任务

public void taskFinished(TaskInstance taskInstance) throws StateEventHandleException {
    logger.info("TaskInstance finished task code:{} state:{}", taskInstance.getTaskCode(), taskInstance.getState());
    try {

        activeTaskProcessorMaps.remove(taskInstance.getTaskCode());
        stateWheelExecuteThread.removeTask4TimeoutCheck(processInstance, taskInstance);
        stateWheelExecuteThread.removeTask4RetryCheck(processInstance, taskInstance);
        stateWheelExecuteThread.removeTask4StateCheck(processInstance, taskInstance);

        if (taskInstance.getState().typeIsSuccess()) {
            completeTaskMap.put(taskInstance.getTaskCode(), taskInstance.getId());
            // todo: merge the last taskInstance
            processInstance.setVarPool(taskInstance.getVarPool());
            processService.saveProcessInstance(processInstance);
            if (!processInstance.isBlocked()) {
                submitPostNode(Long.toString(taskInstance.getTaskCode()));
            }
        } else if (taskInstance.taskCanRetry() && processInstance.getState() != ExecutionStatus.READY_STOP) {
            // retry task
            logger.info("Retry taskInstance taskInstance state: {}", taskInstance.getState());
            retryTaskInstance(taskInstance);
        } else if (taskInstance.getState().typeIsFailure()) {
            completeTaskMap.put(taskInstance.getTaskCode(), taskInstance.getId());
            // There are child nodes and the failure policy is: CONTINUE
            if (processInstance.getFailureStrategy() == FailureStrategy.CONTINUE && DagHelper.haveAllNodeAfterNode(
                    Long.toString(taskInstance.getTaskCode()),
                    dag)) {
                submitPostNode(Long.toString(taskInstance.getTaskCode()));
            } else {
                errorTaskMap.put(taskInstance.getTaskCode(), taskInstance.getId());
                if (processInstance.getFailureStrategy() == FailureStrategy.END) {
                    killAllTasks();
                }
            }
        } else if (taskInstance.getState().typeIsFinished()) {
            // todo: when the task instance type is pause, then it should not in completeTaskMap
            completeTaskMap.put(taskInstance.getTaskCode(), taskInstance.getId());
        }
        logger.info("TaskInstance finished will try to update the workflow instance state, task code:{} state:{}",
                taskInstance.getTaskCode(),
                taskInstance.getState());
        this.updateProcessInstanceState();
    } catch (Exception ex) {
        logger.error("Task finish failed, get a exception, will remove this taskInstance from completeTaskMap", ex);
        // remove the task from complete map, so that we can finish in the next time.
        completeTaskMap.remove(taskInstance.getTaskCode());
        throw ex;
    }
}

4.总结

4.1.各个组件作用

ApiServer负责前端的接口请求。
Master负责工作流的任务调度，根据策略选择一台合适的worker执行任务，并更新任务状态到db。
Worker负责接受到master的任务，然后运行，并报告运行结果给master

4.2.线程作用

MasterSchedulerBootstrap：command扫描线程，负责扫描apiserver写入的command信息，并创建processInstants入库。
WorkflowEventLooper：WorkflowEvent处理线程，负责处理MasterSchedulerBootstrap写入的WorkflowEvent
WorkflowExecuteRunnable：负责工作流的启动逻辑，构建dag有向无环图，初始化调度配置，提交任务到任务队列中。
TaskPriorityQueueConsumer：负责消费优先级队列的任务，异步通过dispacher选择wokrer，向worker发送启动任务的command。
TaskDispatchProcessor：worker节点负责处理 master的command信息。
WorkerManagerThread:worker节点负责管理当前正则运行的task信息
TaskExecuteThread：task的执行线程，负责执行task的逻辑，并返回执行结果给master。
TaskExecuteResponseProcessor:负责处理worker返回的任务结果，并包装成taskEvent
TaskEventService：负责处理taskEvent TaskResultEventHandler：被taskEventService调用，负责task结果处理。
EventExecuteService:负责处理工作流产生的事件。
TaskStateEventHandler：负责处理workflowExecute的event，event类型为TaskStateEvent 并且如果是taskstate是运行完成信息，还要提交调度下游任务。
